Isuzu WW
▶
TRUCKS
▶
EXY
▶
11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#37179) — 61 parça
◀

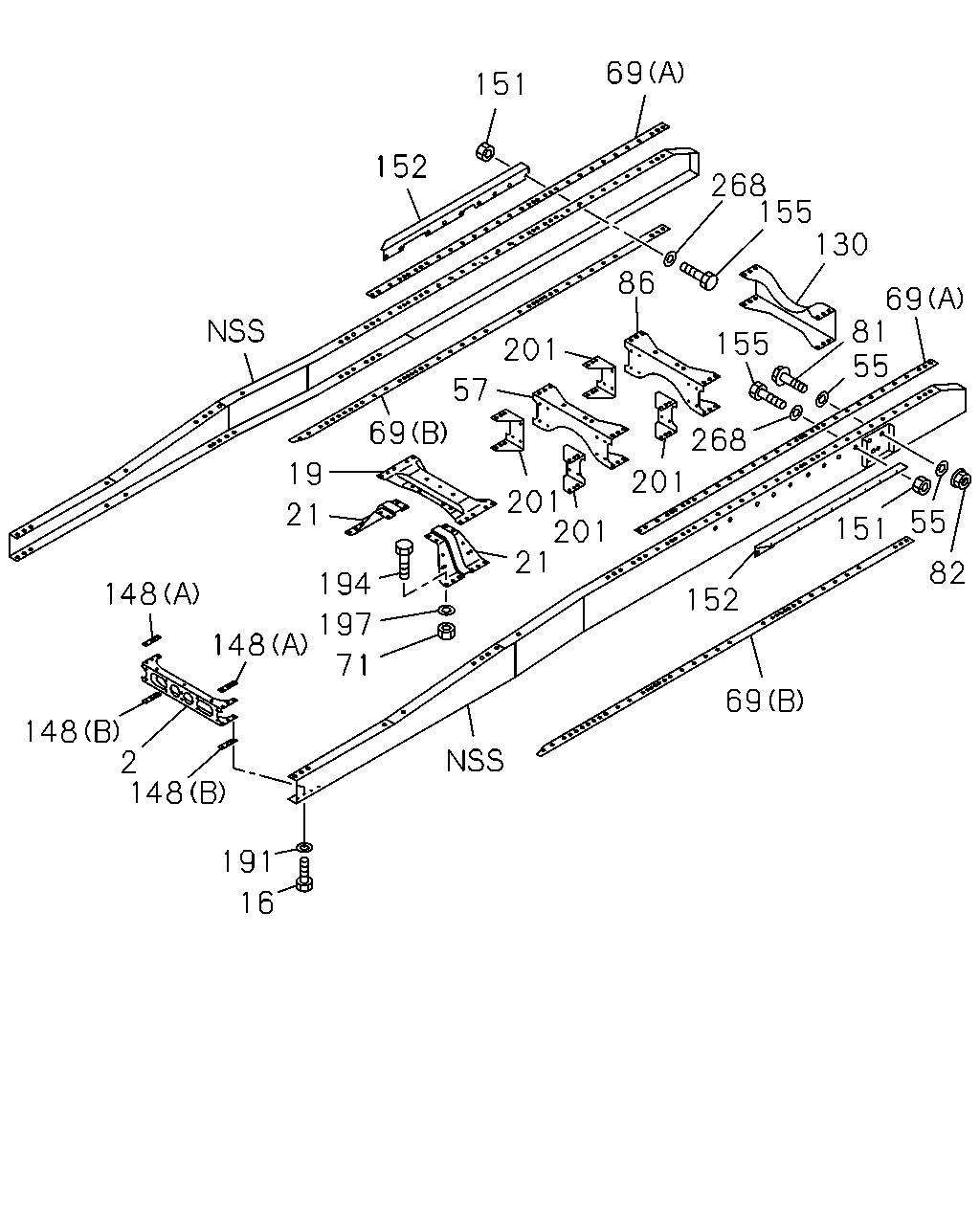

[501A] CROSS MEMBER AND OUTRIGGER (31 parça)
[501A] BRACKET AND UNDER MEMBER (30 parça)
▶
69
151
152
268
155
130
86
69
81
55
268
201
201
201
21
201
69
155
57
19
21
55
151
82
194
148
152
197
148
71
69
148
2
148
191
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0710-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
0710-
19
MEMBER; CROSS,2ND
1-53174-231-2
01
1
0710-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
0710-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
0710-
55
WASHER; PL
ID=16.2
1-09503-223-0
16
1
0710-1504
55
WASHER; PL
ID=16.2
1-09503-316-0
16
1
1505-
55
WASHER; PL
ID=15
9-09651-069-0
04
1
0710-1201
55
WASHER; PL
ID=15
8-98010-627-1
04
1
1202-
57
MEMBER; CROSS,RR SUSP FRT
1-53181-937-3
01
1
0710-
69
GUSSET; RR SUSP,UPR
(A)
1-53161-700-1
02
1
0710-
69
GUSSET; RR SUSP,UPR
(B)
8-97617-011-0
01
1
0710-
69
GUSSET; RR SUSP,UPR
(B)
8-97617-012-0
01
1
0710-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
0710-
81
BOLT; BRKT
M14X50
0-20951-450-0
02
1
0710-
82
NUT; BRKT
M14
0-91110-514-0
02
1
0710-
86
MEMBER; CROSS,RR SUSP RR
1-53181-937-3
01
1
0710-
130
MEMBER; CROSS,END
1-53181-875-1
01
1
0710-
148
SPACER; C/MBR
(A)
1-53168-400-1
02
1
0710-
148
SPACER; C/MBR
(B)
1-53168-403-1
02
1
0710-
151
NUT; OUTRIGGER
M16
0-91110-516-0
18
1
0710-
152
OUTRIGGER
1-53456-300-2
01
1
0710-
152
OUTRIGGER
1-53456-301-2
01
1
0710-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
18
1
0710-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-223-0
02
1
0710-1504
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-316-0
02
1
1505-
194
BOLT; 2ND C/MBR
M14X50
0-20951-450-0
08
1
0710-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
0710-1201
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1202-
201
GUSSET; C/MBR
1-53167-544-1
04
1
0710-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
18
1
0710-
13
12
11
11
12
13
23
23
23
25
25
26
24
25
26
23
35
36
37
44
26
25
25
23
26
25
24
23
23
46
25
26
39
25
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0710-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0710-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0710-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0710-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
05
1
0710-0802
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
04
1
0803-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
04
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
05
1
0710-0802
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
0803-
23
BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81
1-09029-103-0
02
1
1111-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
08
1
0710-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0710-
23
BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100
1-09029-075-0
03
1
0710-1110
23
BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100
1-09029-075-0
01
1
1111-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0710-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0710-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0710-1504
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1505-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
19
1
0710-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
19
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
15
1
0710-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0710-
35
MEMBER; UNDER
1-53174-263-2
01
1
0710-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0710-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0710-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0710-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0710-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0710-
46
BOLT; BRKT FIX
M14X40
0-20951-440-0
04
1
0710-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
