◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#37178) — 18 parça

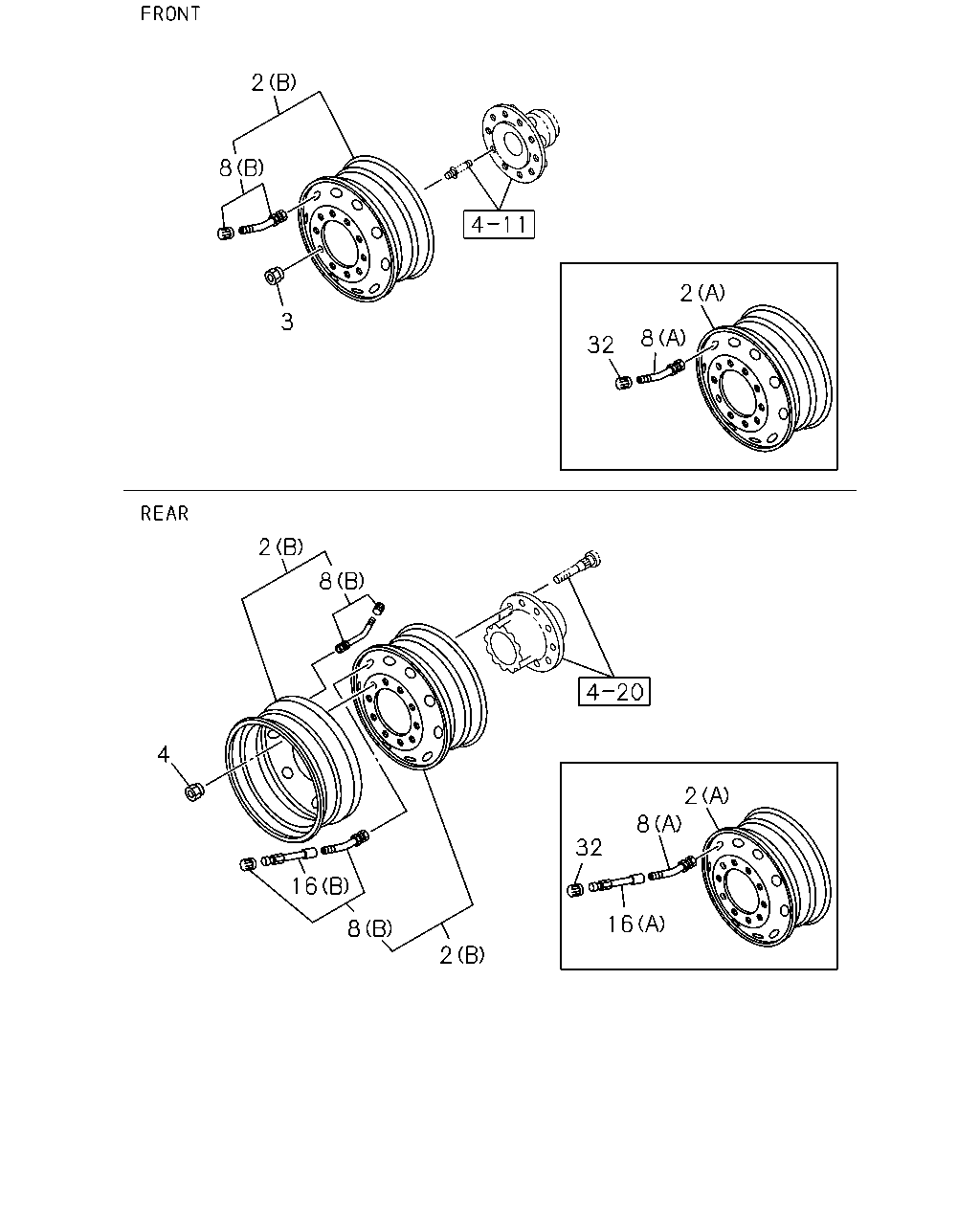

çizim 180645
2 8 32 3 8 2 2 8 4 16 8 2 16 32 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42350-729-0 01 1 0710-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42350-694-0 01 1 0710-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-729-0 10 1 0710-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) 		1-42350-694-0 10 1 0710-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0710-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0710-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 0908-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42370-020-3 01 1 0710-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42370-044-0 01 1 0710-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42370-020-3 10 1 0710-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) 		1-42370-044-0 10 1 0710-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170 		1-42370-024-0 04 1 0710-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170 		8-98167-052-0 04 1 1004-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115 		1-42370-015-2 04 1 0710-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115 		8-98167-051-0 04 1 1004-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 01 1 0710-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 10 1 0710-
