4-71 — AIR SUSPENSION PIPING (#37177) — 12 parça

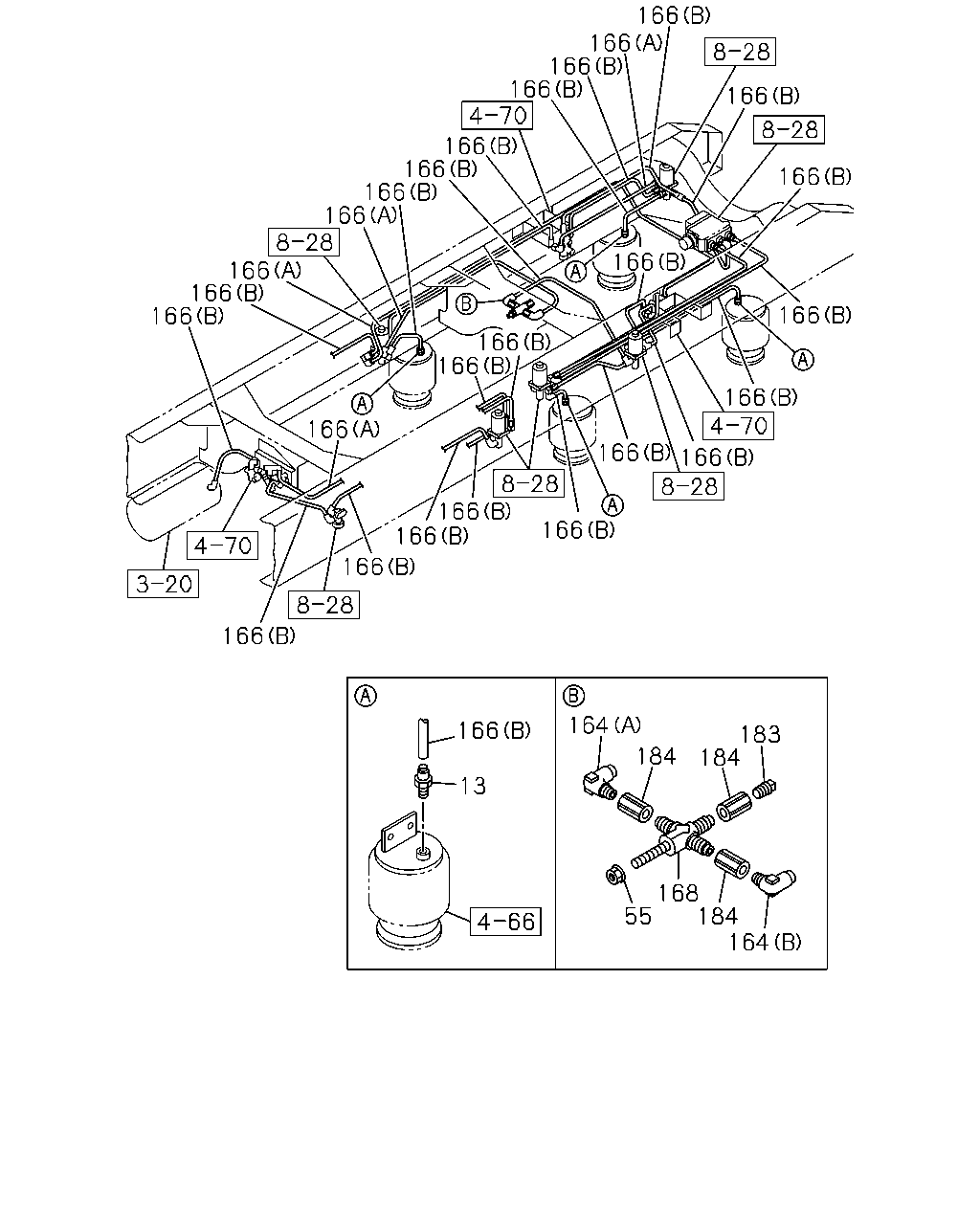

çizim 180656
166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 166 13 164 184 184 183 55 168 184 164
BalonParca AdiParca NoAdetTipApplied Date
13 UNION; AIR PIPE
DIN12 & R1/4 STRAIGHT 		1-09661-214-0 04 1 0710-
55 NUT; UNION
M10 FLANGE 		0-91180-210-0 01 1 0710-
164 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
164 CONNECTOR
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
166 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 09 1 0804-
166 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
166 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-
166 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
166 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-
168 UNION; 3WAY 1-09656-714-0 01 1 0710-
183 ADAPTER
PT1/4 		9-99204-513-0 01 1 0710-
184 PLUG
M16 & RC1/4 STRAIGHT 		1-09660-886-0 03 1 0710-
