Isuzu WW
▶
TRUCKS
▶
EXY
▶
11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#37170) — 36 parça
◀

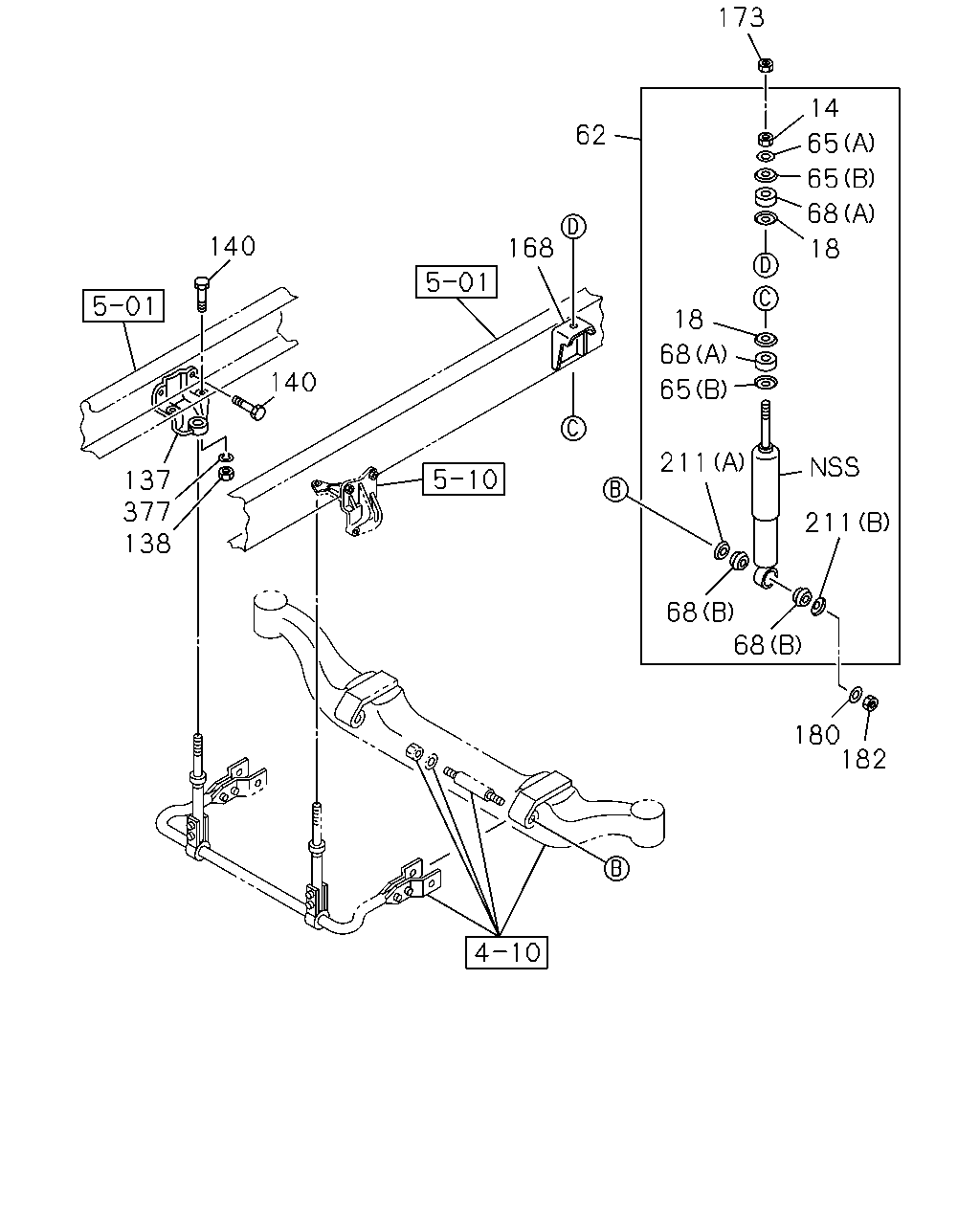

[450A] SHOCK ABSORBER AND BRACKET (18 parça)

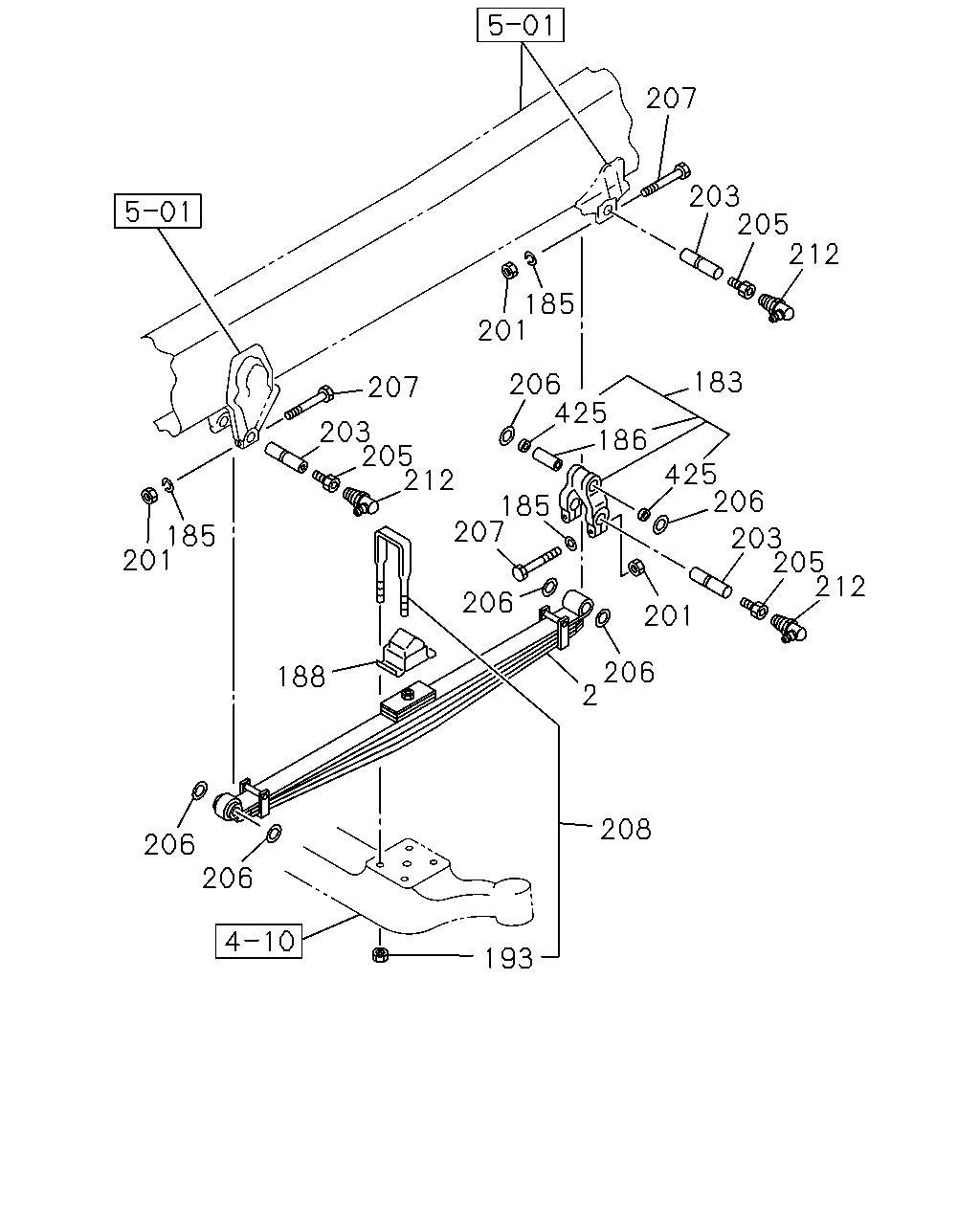

[450A] LEAF SPRING FIXING (18 parça)
▶
173
14
65
65
68
18
62
168
140
140
137
377
138
182
180
68
68
211
211
65
68
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0710-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
0710-
62
ABSORBER ASM; SHOCK,FRT
1-51600-415-0
02
1
0710-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
0710-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
0710-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
0710-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0710-
137
BRACKET; STAB BAR TO FRAME
1-51781-111-0
01
1
0710-
138
NUT; BRKT
M14
0-91110-514-0
02
1
0710-
140
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0710-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0710-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
0710-
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0710-
182
NUT; S/ABS LWR
M20
0-91110-520-0
02
1
0710-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0710-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0710-
377
WASHER; LK,BRKT
ID=15
9-09651-069-0
04
1
0710-1201
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
04
1
1202-
207
203
205
212
185
201
207
203
205
212
207
185
206
425
183
186
425
206
203
205
212
201
206
2
206
188
185
201
206
206
193
208
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-97616-319-0
02
1
0710-
183
SHACKLE; FRT SUSP
1-51162-071-0
02
1
0710-1005
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1006-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0710-
186
BUSHING; SHACKLE
OD=42
1-51351-044-0
02
1
0710-1005
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1006-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
8-98075-087-0
02
1
0710-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0710-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0710-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
0710-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0710-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0710-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0710-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
0710-1206
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1207-
212
NIPPLE; GREASE,ELBOW
PT1/8 ELBOW
0-90301-610-0
06
1
0710-
425
SEAL; DUST
1-51177-321-0
04
1
0710-1005
