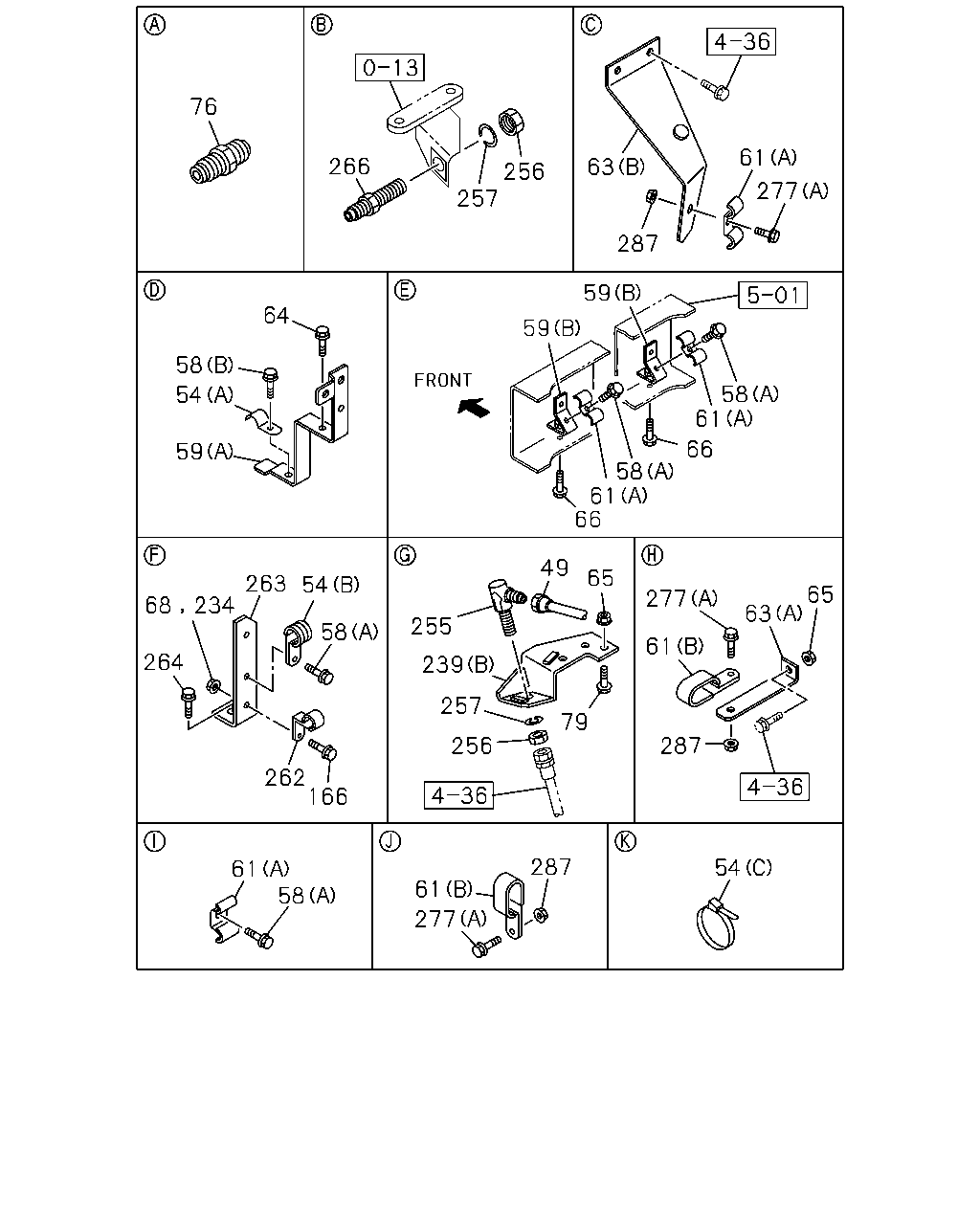

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#37166) — 98 parça

63 61 287 277 59 59 58 61 58 66 61 66 65 49 277 61 65 63 255 239 58 54 263 234 68 264 262 166 61 256 257 79 287 287 277 58 61 54 64 58 59 54 76 266 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0710-
59	BRACKET; CLIP,OIL PIPE (A)	8-98063-710-0	01	1	0710-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1105-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	0710-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0710-1104
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1105-
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	0710-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	0710-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28050-825-0	01	1	0710-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1105-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-1104
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1105-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-1104
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0710-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0710-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1105-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0710-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0710-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0710-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-

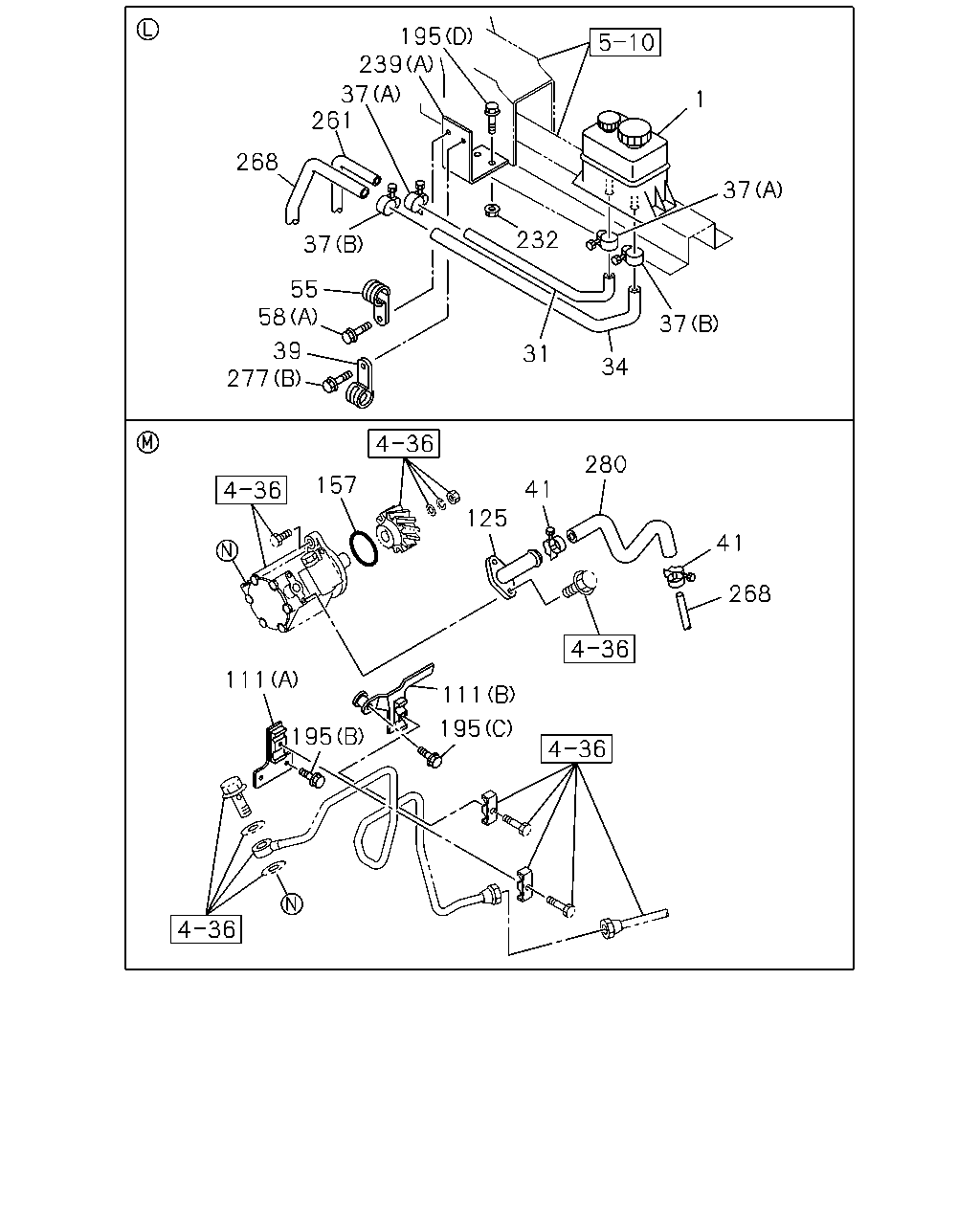

195 239 37 261 268 37 55 58 277 39 232 1 37 37 34 31 157 125 41 280 41 268 111 195 195 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0710-0711
34	HOSE; P/S OIL TANK,OUTLET	8-98105-152-0	01	1	0712-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0710-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0710-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0710-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0710-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0710-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0710-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0710-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0710-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0710-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0710-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0710-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-

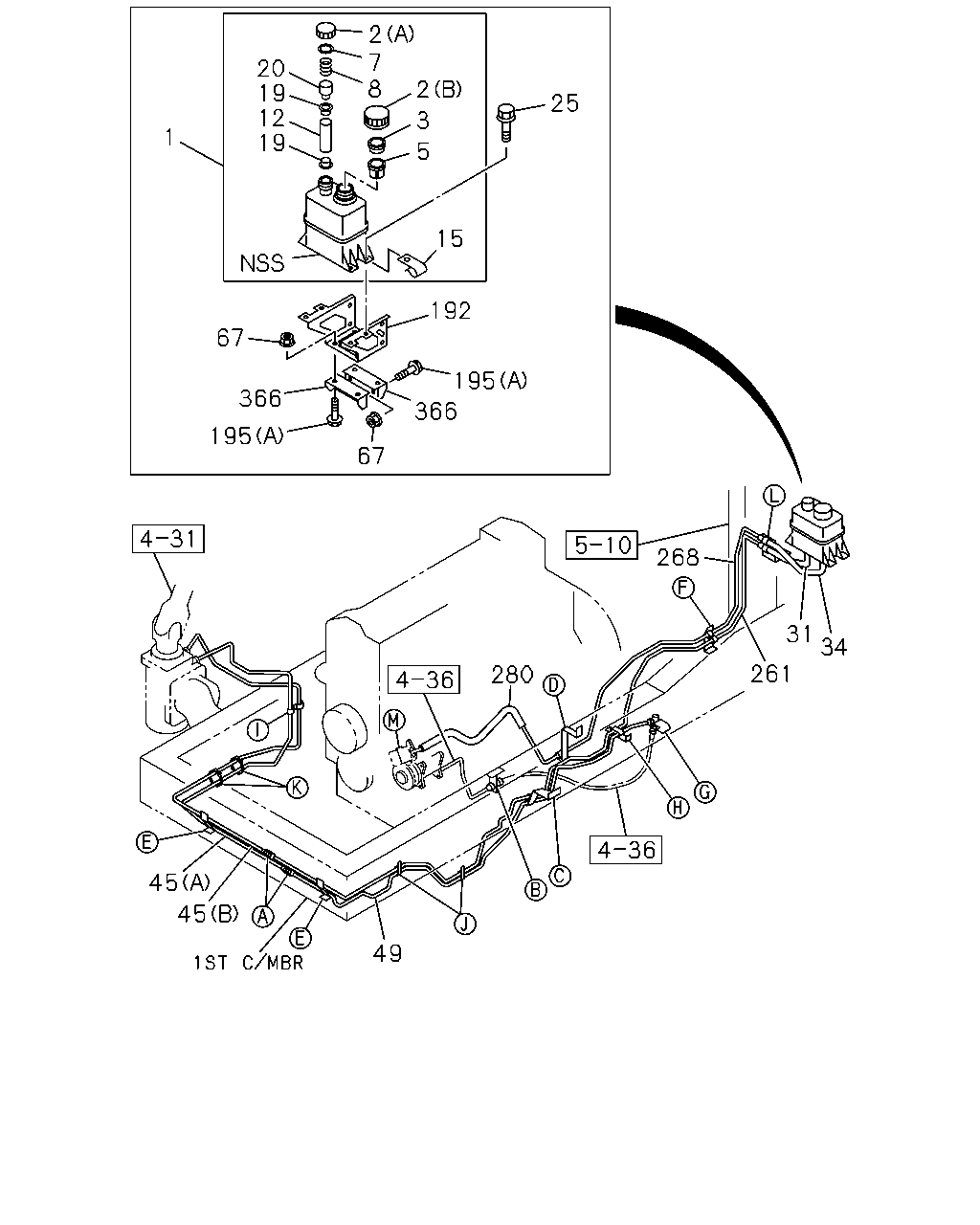

2 3 2 20 19 12 19 1 67 15 5 7 8 25 192 195 366 366 195 67 280 45 45 268 31 34 261 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0710-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0710-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0710-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0710-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0710-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0710-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0710-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0710-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0710-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0710-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0710-0711
34	HOSE; P/S OIL TANK,OUTLET	8-98105-152-0	01	1	0712-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98056-504-0	01	1	0710-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98056-505-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98257-649-0	01	1	1310-
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0710-0710
192	BRACKET; P/S OIL TANK	8-98105-149-0	01	1	0711-1009
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	1010-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0710-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0710-
