◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#37162) — 378 parça

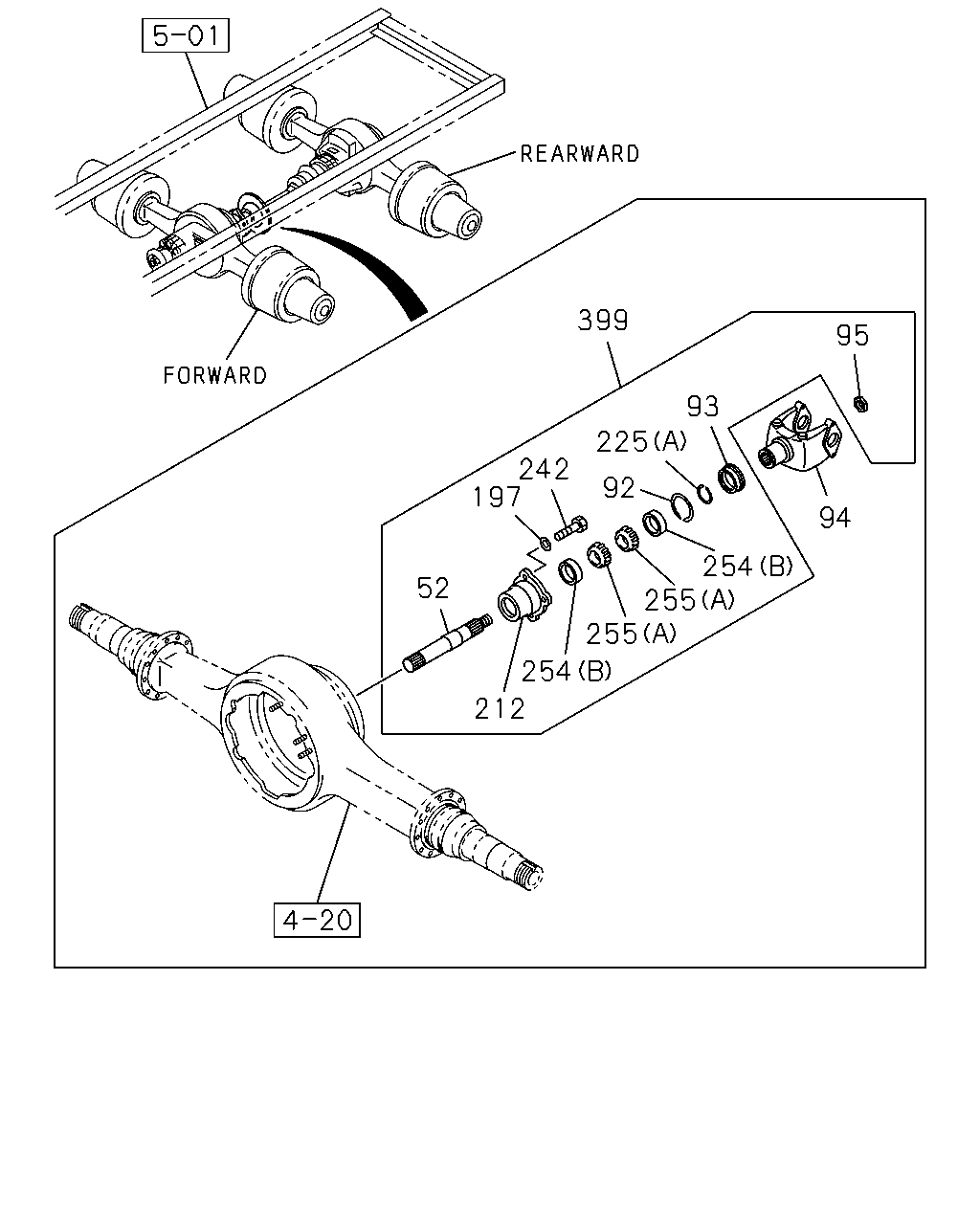

çizim 180623
95 399 93 225 92 242 197 52 212 254 255 255 254 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
52 SHAFT; OUTPUT 1-41343-025-0 01 1 0710-1008 ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 1009- ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 0710-1008 ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 1009- ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-191-0 01 1 0710-1008 ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-191-0 01 1 1009- ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-362-0 01 1 0710-1008 ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-362-0 01 1 1009- ● ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0710-1008 ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 1009- ● ● ● ● ●
197 COVER; HELICAL GEAR CASE 1-41329-037-0 04 1 0710-1008 ● ● ●
197 COVER; HELICAL GEAR CASE 1-41329-037-0 04 1 1009- ● ● ● ● ●
212 COVER 1-41519-049-0 01 1 0710-1008 ● ● ●
212 COVER 1-41519-049-0 01 1 1009- ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 0710-1008 ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 1009- ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 0710-1008 ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 1009- ● ● ● ● ●
242 BOLT; COVER 1-42119-226-0 04 1 0710-1008 ● ● ●
242 BOLT; COVER 1-42119-226-0 04 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 02 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 02 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 1009- ● ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 0710-1008 ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 1009- ● ● ● ● ●

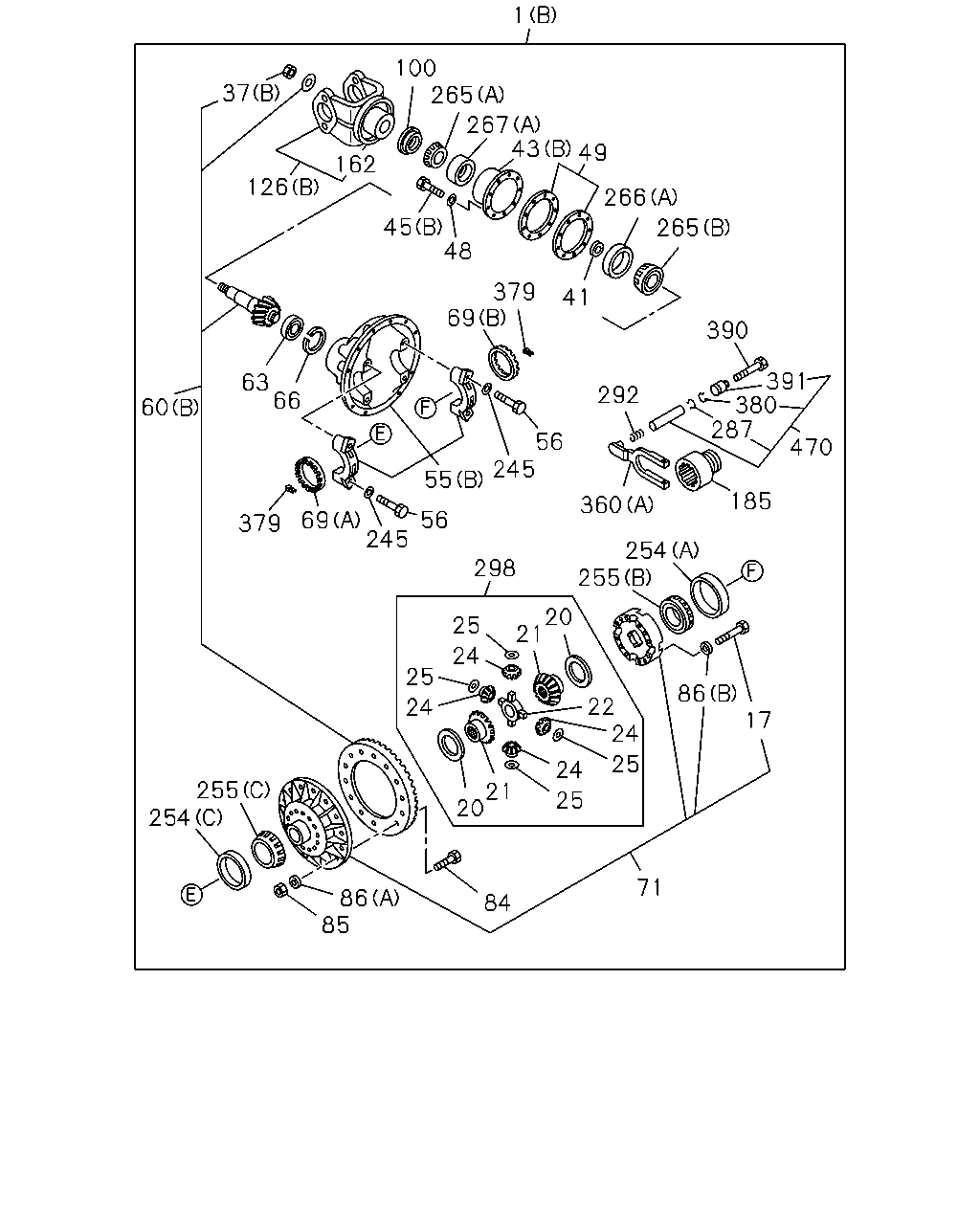

çizim 180644
1 100 265 37 267 43 49 162 266 45 48 265 379 69 41 390 391 380 287 63 66 29 60 56 245 55 470 185 360 56 69 245 379 254 255 298 20 21 25 24 25 86 17 22 24 24 25 24 255 254 21 20 25 71 86 85 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
(A) 		1-41003-533-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 		1-41003-535-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 		1-41003-532-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 		1-41003-534-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 43/10 		1-41003-368-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 41/10 		1-41003-367-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 43/11 		1-41003-311-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 43/11 		1-41003-312-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 43/10 		1-41002-636-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 41/10 		1-41002-635-0 01 1 0710- ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0710-1008 ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 1009- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0710-1008 ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 1009- ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 0710-1008 ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 1009- ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 0710-1008 ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 1009- ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 0710-1008 ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 1009- ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 0710-1008 ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 1009- ● ● ● ● ●
29 SHIM; BRG RET 1-41154-091-0 02 1 0710-1008 ● ● ●
29 SHIM; BRG RET 1-41154-091-0 02 1 1009- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0710-1008 ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 1009- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0710-1008 ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 1009- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 0710-1008 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 1009- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 0710-1008 ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 1009- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0710-1008 ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 1009- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0710-1008 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 1009- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0710-1008 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 1009- ● ● ● ● ●
48 WASHER; LK,FINAL PINION 1-41329-034-0 08 1 0710-1008 ● ● ●
48 WASHER; LK,FINAL PINION 1-41329-034-0 08 1 1009- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-090-0 01 1 0710-1008 ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-090-0 01 1 1009- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0710-1008 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 1009- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 0710-1008 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 1009- ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0710-1008 ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 1009- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-671-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/11 		1-41210-753-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/11 		1-41210-755-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/12 		1-41210-752-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/12 		1-41210-754-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-589-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-594-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-588-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-593-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-669-0 01 1 0710- ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0710-1008 ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 1009- ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0710-1008 ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 1009- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 02 1 0710-1008 ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 02 1 1009- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 02 1 0710-1008 ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 02 1 1009- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0710- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 0710-1008 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 1009- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0710-1008 ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 1009- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0710-1008 ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 1009- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0710-1008 ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 1009- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0710-1008 ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 1009- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-185-0 01 1 0710-1008 ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-185-0 01 1 1009- ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 02 1 0710-1008 ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 02 1 1009- ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 0710-1008 ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 1009- ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0710-1008 ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 02 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 02 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 1009- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0710-1008 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 1009- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 0710-1008 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 1009- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 0710-1008 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 1009- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0710-1008 ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 1009- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0710-1008 ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 1009- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0710-1008 ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 1009- ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0710-1008 ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 1009- ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0710-1008 ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 1009- ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 0710-1008 ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 1009- ● ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 0710-1008 ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 1009- ● ● ● ● ●
379 PIN; SPLIT 1-41129-021-0 04 1 0710-1008 ● ● ●
379 PIN; SPLIT 1-41129-021-0 04 1 1009- ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0710-1008 ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 1009- ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0710-1008 ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 1009- ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0710-1008 ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 1009- ● ● ● ● ●
470 SHIFT KIT 1-48269-258-0 02 1 0710-1008 ● ● ●
470 SHIFT KIT 1-48269-258-0 02 1 1009- ● ● ● ● ●

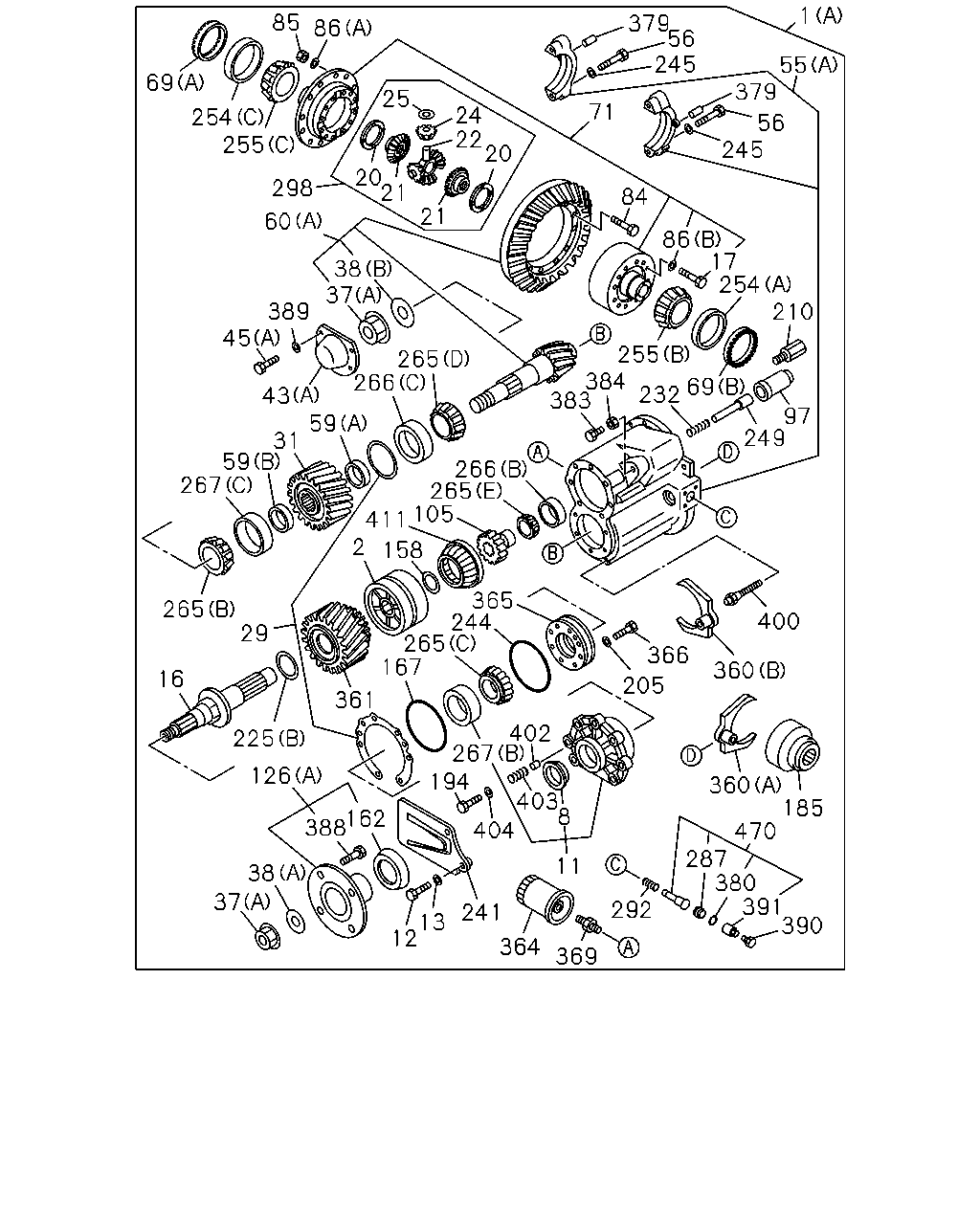

çizim 180646
1 85 379 56 245 86 55 379 69 25 71 24 22 20 254 255 56 245 20 21 298 84 21 60 86 17 254 210 38 389 45 255 384 383 265 266 69 232 43 59 97 249 31 59 267 266 265 105 411 2 158 365 244 265 167 265 29 400 366 360 16 205 361 402 267 194 403 8 225 126 360 185 470 287 380 391 390 162 388 404 11 38 292 37 241 13 12 364 369
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
(A) 		1-41003-533-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 		1-41003-535-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 		1-41003-532-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 		1-41003-534-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 43/10 		1-41003-368-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 41/10 		1-41003-367-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 43/11 		1-41003-311-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 43/11 		1-41003-312-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 43/10 		1-41002-636-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 41/10 		1-41002-635-0 01 1 0710- ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 0710-1008 ● ● ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 1009- ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-190-0 01 1 0710-1008 ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-190-0 01 1 1009- ● ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 0710-1008 ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 1009- ● ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 0710-1008 ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 1009- ● ● ● ● ●
13 WASHER; COVER TO CASE 1-41329-084-0 07 1 0710-1008 ● ● ●
13 WASHER; COVER TO CASE 1-41329-084-0 07 1 1009- ● ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-032-0 01 1 0710-1008 ● ● ●
16 SHAFT ASM; INPUT 1-41341-032-0 01 1 1009- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0710-1008 ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 1009- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0710-1008 ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 1009- ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 0710-1008 ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 04 1 1009- ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 0710-1008 ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 02 1 1009- ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 0710-1008 ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 08 1 1009- ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 0710-1008 ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 08 1 1009- ● ● ● ● ●
29 SHIM; BRG RET 1-41154-091-0 02 1 0710-1008 ● ● ●
29 SHIM; BRG RET 1-41154-091-0 02 1 1009- ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-423-0 01 1 0710-1008 ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-423-0 01 1 1009- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0710-1008 ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 1009- ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0710-1008 ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 1009- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 0710-1008 ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 1009- ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 0710-1008 ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 1009- ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 0710-1008 ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 1009- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0710-1008 ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 1009- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0710-1008 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 1009- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0710-1008 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 1009- ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0710-1008 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 1009- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 0710-1008 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 1009- ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0710-1008 ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 1009- ● ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 0710-1008 ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 1009- ● ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 0710-1008 ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 1009- ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/11 		1-41210-671-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/11 		1-41210-753-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/11 		1-41210-755-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/12 		1-41210-752-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/12 		1-41210-754-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/10 		1-41210-589-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/10 		1-41210-594-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-588-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-593-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/11 		1-41210-669-0 01 1 0710- ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 02 1 0710-1008 ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 02 1 1009- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 02 1 0710-1008 ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 02 1 1009- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0710- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 0710-1008 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 1009- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0710-1008 ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 1009- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0710-1008 ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 1009- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0710-1008 ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 1009- ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0710-1008 ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 1009- ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0710-1008 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 1009- ● ● ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 0710-1008 ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 1009- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0710-1008 ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 1009- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-424-0 01 1 0710-1008 ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-424-0 01 1 1009- ● ● ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 0710-1008 ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 1009- ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 02 1 0710-1008 ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 02 1 1009- ● ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0710-1008 ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 1009- ● ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 0710-1008 ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 02 1 1009- ● ● ● ● ●
194 PLUG 1-41329-077-0 01 1 0710-1008 ● ● ●
194 PLUG 1-41329-077-0 01 1 1009- ● ● ● ● ●
205 WASHER; PL 1-41329-016-0 06 1 0710-1008 ● ● ●
205 WASHER; PL 1-41329-016-0 06 1 1009- ● ● ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 0710-1008 ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 1009- ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 0710-1008 ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 1009- ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 0710-1008 ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 1009- ● ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0710-1008 ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 1009- ● ● ● ● ●
241 COVER; SHIFT HSG 1-41329-080-0 01 1 0710-1008 ● ● ●
241 COVER; SHIFT HSG 1-41329-080-0 01 1 1009- ● ● ● ● ●
244 GASKET; COVER 1-41349-155-0 01 1 0710-1008 ● ● ●
244 GASKET; COVER 1-41349-155-0 01 1 1009- ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0710-1008 ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 1009- ● ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0710-1008 ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 02 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 02 1 1009- ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710-1008 ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 02 1 1009- ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 0710-1008 ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 02 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 1009- ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0710-1008 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 1009- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 0710-1008 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 1009- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 0710-1008 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 1009- ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 0710-1008 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 1009- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0710-1008 ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 1009- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0710-1008 ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 1009- ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0710-1008 ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 1009- ● ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 0710-1008 ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 02 1 1009- ● ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 0710-1008 ● ● ●
292 SPRING; PISTON 1-48265-008-0 02 1 1009- ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0710-1008 ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 1009- ● ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 0710-1008 ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 02 1 1009- ● ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 0710-1008 ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 1009- ● ● ● ● ●
361 GEAR; DRIVE 1-41251-423-0 01 1 0710-1008 ● ● ●
361 GEAR; DRIVE 1-41251-423-0 01 1 1009- ● ● ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 0710-1008 ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 1009- ● ● ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 0710-1008 ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 1009- ● ● ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 0710-1008 ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 1009- ● ● ● ● ●
369 PLUG; STRAINER 1-41389-020-0 01 1 0710-1008 ● ● ●
369 PLUG; STRAINER 1-41389-020-0 01 1 1009- ● ● ● ● ●
379 PIN; SPLIT 1-41129-021-0 04 1 0710-1008 ● ● ●
379 PIN; SPLIT 1-41129-021-0 04 1 1009- ● ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 0710-1008 ● ● ●
380 GASKET; PISTON 1-48269-075-0 02 1 1009- ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0710-1008 ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 1009- ● ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0710-1008 ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 1009- ● ● ● ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 0710-1008 ● ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 1009- ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-069-0 05 1 0710-1008 ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-069-0 05 1 1009- ● ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 0710-1008 ● ● ●
390 BOLT; CAGING 1-48269-071-0 02 1 1009- ● ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 0710-1008 ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 02 1 1009- ● ● ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 0710-1008 ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 1009- ● ● ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 0710-1008 ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 1009- ● ● ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 0710-1008 ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 1009- ● ● ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 0710-1008 ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 1009- ● ● ● ● ●
411 SLEEVE; CLU 1-41519-082-0 01 1 0710-1008 ● ● ●
411 SLEEVE; CLU 1-41519-082-0 01 1 1009- ● ● ● ● ●
470 SHIFT KIT 1-48269-258-0 02 1 0710-1008 ● ● ●
470 SHIFT KIT 1-48269-258-0 02 1 1009- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
