◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#3716) — 137 parça

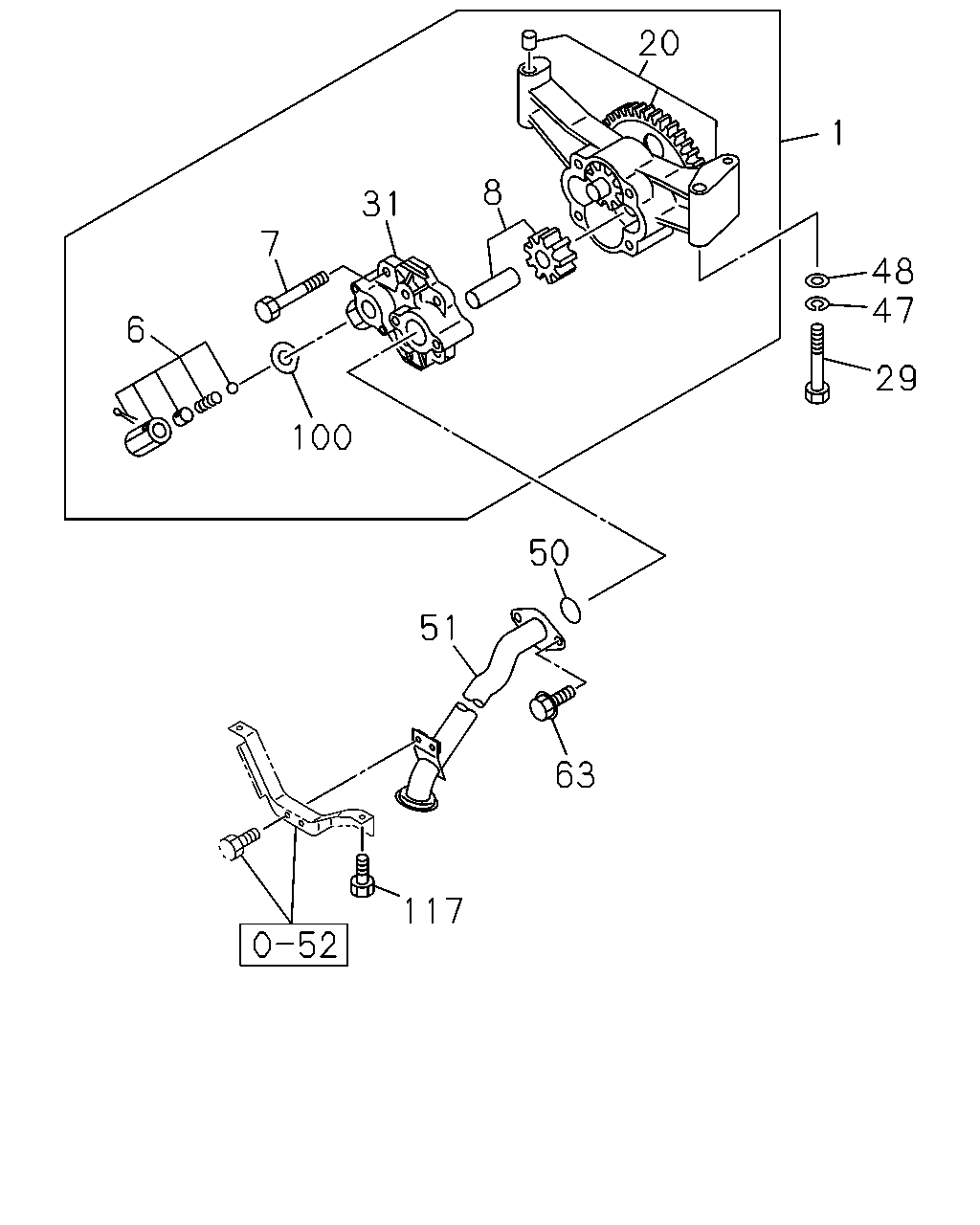

çizim 39830
20 1 8 31 7 48 47 6 29 100 50 51 63 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL 8-94393-830-3 01 1 9601-9805 ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 9806-9806 ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 9807-0004 ● ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 0005-0607 ● ●
1 PUMP ASM; OIL 8-94395-564-3 01 1 0608- ● ● ●
1 PUMP ASM; OIL 1-13100-219-1 01 1 9601-0109 ● ●
1 PUMP ASM; OIL 1-13100-219-1 01 1 0110- ●
1 PUMP ASM; OIL 1-13100-191-2 01 1 0110- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-021-1 01 1 9601-0109 ● ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-021-1 01 1 0110- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-018-0 01 1 0110- ●
7 BOLT; COVER,OIL PUMP
M8X35 W/LK WASHER 		0-50040-835-0 04 1 9601-0512 ● ●
7 BOLT; COVER,OIL PUMP
M8X35 W/LK WASHER 		0-50540-835-0 04 1 0601- ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94393-834-0 01 1 9601-9805 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9806-9806 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9807-0004 ● ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 0005-0607 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 0608- ● ● ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-059-0 01 1 9601- ● ●
20 GEAR; DRIVE,OIL PUMP 8-94393-831-3 01 1 9601-9805 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 9806-9806 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 9807-0004 ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 0005-0607 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-1 01 1 0608- ● ● ●
20 GEAR; DRIVE,OIL PUMP 1-13120-063-0 01 1 9601- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9601-9806 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9807-0004 ● ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 0005-0512 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0601-0607 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0608- ● ● ●
29 BOLT; OIL PUMP
M10X80 		0-16806-080-0 03 1 9601-0512 ● ●
29 BOLT; OIL PUMP
M10X80 		0-16856-080-0 03 1 0601- ● ●
31 COVER; OIL PUMP 1-13113-057-0 01 1 9601-0109 ● ●
31 COVER; OIL PUMP 1-13113-057-0 01 1 0110- ●
31 COVER; OIL PUMP 1-13113-058-0 01 1 0110- ●
47 WASHER; LK,OIL PUMP
ID=10.2 		9-09150-810-0 03 1 9601-0603 ● ●
47 WASHER; LK,OIL PUMP
ID=10.2 		0-91510-810-0 03 1 0604- ● ●
48 WASHER; PL,OIL PUMP
ID=10.5 OD=22 		9-09164-610-0 03 1 9601-0605 ● ●
48 WASHER; PL,OIL PUMP
ID=10.5 OD=22 		0-91614-610-0 03 1 0606- ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9601-9806 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9807-0004 ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 0005-0112 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0201-0607 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0608- ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9601- ● ●
51 STRAINER & PIPE ASM; OIL 8-94396-067-0 01 1 9601-9805 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9806-9806 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9807-0004 ● ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 0005-0607 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 0608-1209 ● ● ●
51 STRAINER & PIPE ASM; OIL 8-98204-155-0 01 1 1210- ● ● ●
51 STRAINER & PIPE ASM; OIL 1-13312-512-1 01 1 9601- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9601-9806 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9807-0004 ● ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 0005-0607 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 0608- ● ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE 		0-28080-820-0 02 1 9601-0512 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ●
100 WASHER; LK,RELIEF VLV,OIL PUMP 1-09530-003-0 01 1 9601-0109 ● ●
100 WASHER; LK,RELIEF VLV,OIL PUMP 1-09530-003-0 01 1 0110- ●
100 WASHER; LK,RELIEF VLV,OIL PUMP
OD=34 		1-09530-004-0 01 1 0110- ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9601-9806 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9807-0004 ● ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 0005-0607 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 0608- ● ● ●
117 BOLT; STAY TO CRANKCASE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ● ●
117 BOLT; STAY TO CRANKCASE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●

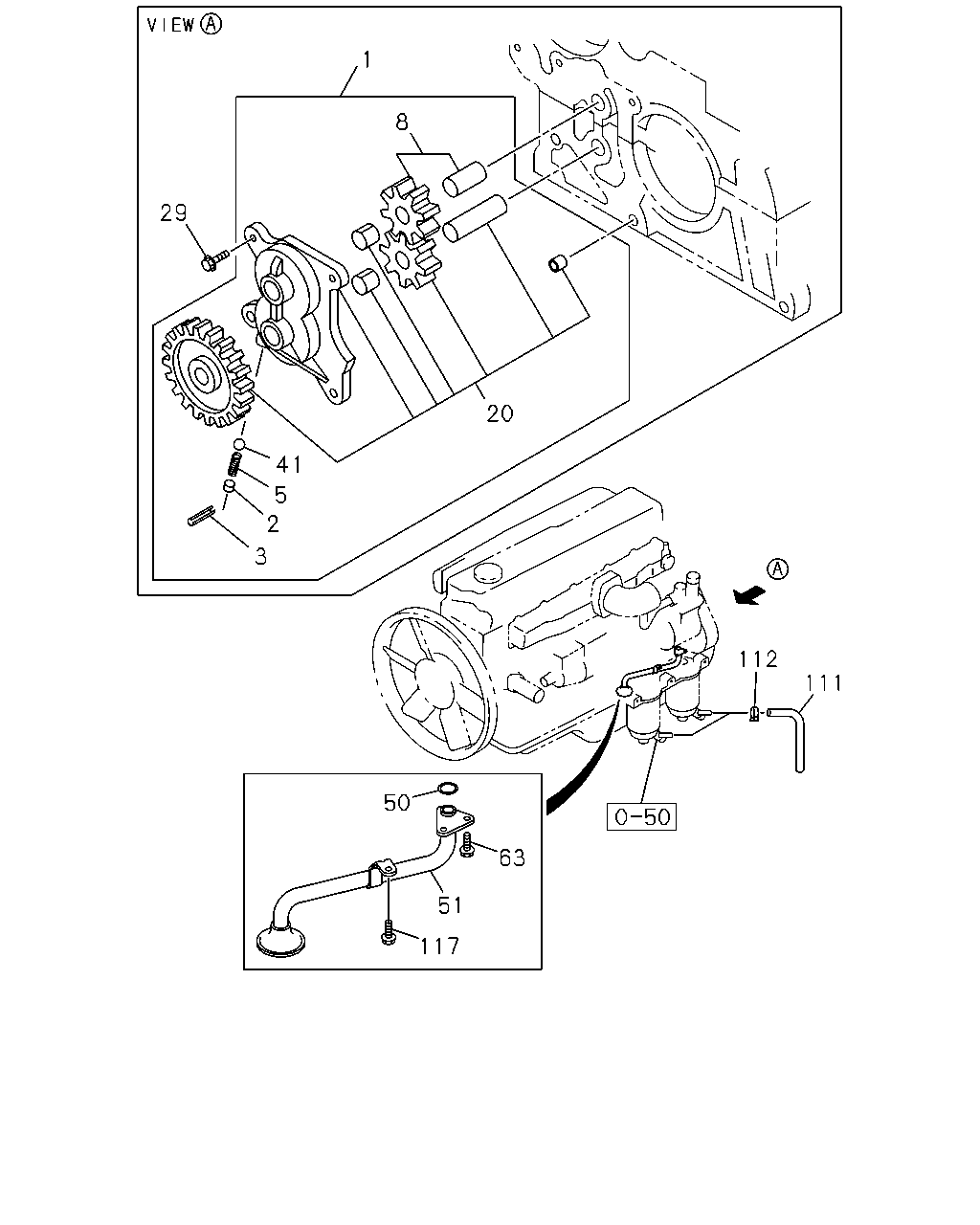

çizim 40297
1 8 29 20 41 5 2 3 112 111 50 63 51 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL 8-94393-830-3 01 1 9601-9805 ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 9806-9806 ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 9807-0004 ● ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 0005-0607 ● ●
1 PUMP ASM; OIL 8-94395-564-3 01 1 0608- ● ● ●
1 PUMP ASM; OIL 1-13100-219-1 01 1 9601-0109 ● ●
1 PUMP ASM; OIL 1-13100-219-1 01 1 0110- ●
1 PUMP ASM; OIL 1-13100-191-2 01 1 0110- ●
2 SEAT; SPR 5-13165-004-0 01 1 9601-9806 ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9807-0004 ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 0005-0607 ● ●
2 SEAT; SPR 5-13165-004-0 01 1 0608- ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9601-9806 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9807-0004 ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 0005-0607 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 0608- ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9601-9806 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9807-0004 ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 0005-0607 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 0608- ● ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94393-834-0 01 1 9601-9805 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9806-9806 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9807-0004 ● ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 0005-0607 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 0608- ● ● ●
8 GEAR; DRIVEN,OIL PUMP 1-13120-059-0 01 1 9601- ● ●
20 GEAR; DRIVE,OIL PUMP 8-94393-831-3 01 1 9601-9805 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 9806-9806 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 9807-0004 ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 0005-0607 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-1 01 1 0608- ● ● ●
20 GEAR; DRIVE,OIL PUMP 1-13120-063-0 01 1 9601- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9601-9806 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9807-0004 ● ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 0005-0512 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0601-0607 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0608- ● ● ●
29 BOLT; OIL PUMP
M10X80 		0-16806-080-0 03 1 9601-0512 ● ●
29 BOLT; OIL PUMP
M10X80 		0-16856-080-0 03 1 0601- ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9601-9806 ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9807-0004 ● ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 0005-0607 ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 0608- ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9601-9806 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9807-0004 ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 0005-0112 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0201-0607 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0608- ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9601- ● ●
51 STRAINER & PIPE ASM; OIL 8-94396-067-0 01 1 9601-9805 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9806-9806 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9807-0004 ● ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 0005-0607 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 0608-1209 ● ● ●
51 STRAINER & PIPE ASM; OIL 8-98204-155-0 01 1 1210- ● ● ●
51 STRAINER & PIPE ASM; OIL 1-13312-512-1 01 1 9601- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9601-9806 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9807-0004 ● ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 0005-0607 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 0608- ● ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE 		0-28080-820-0 02 1 9601-0512 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ●
111 HOSE; OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94396-950-0 02 1 9601- ●
112 CLIP; HOSE,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=14 		5-09707-004-1 02 1 9601- ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9601-9806 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9807-0004 ● ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 0005-0607 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 0608- ● ● ●
117 BOLT; STAY TO CRANKCASE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ● ●
117 BOLT; STAY TO CRANKCASE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
