◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#37158) — 20 parça

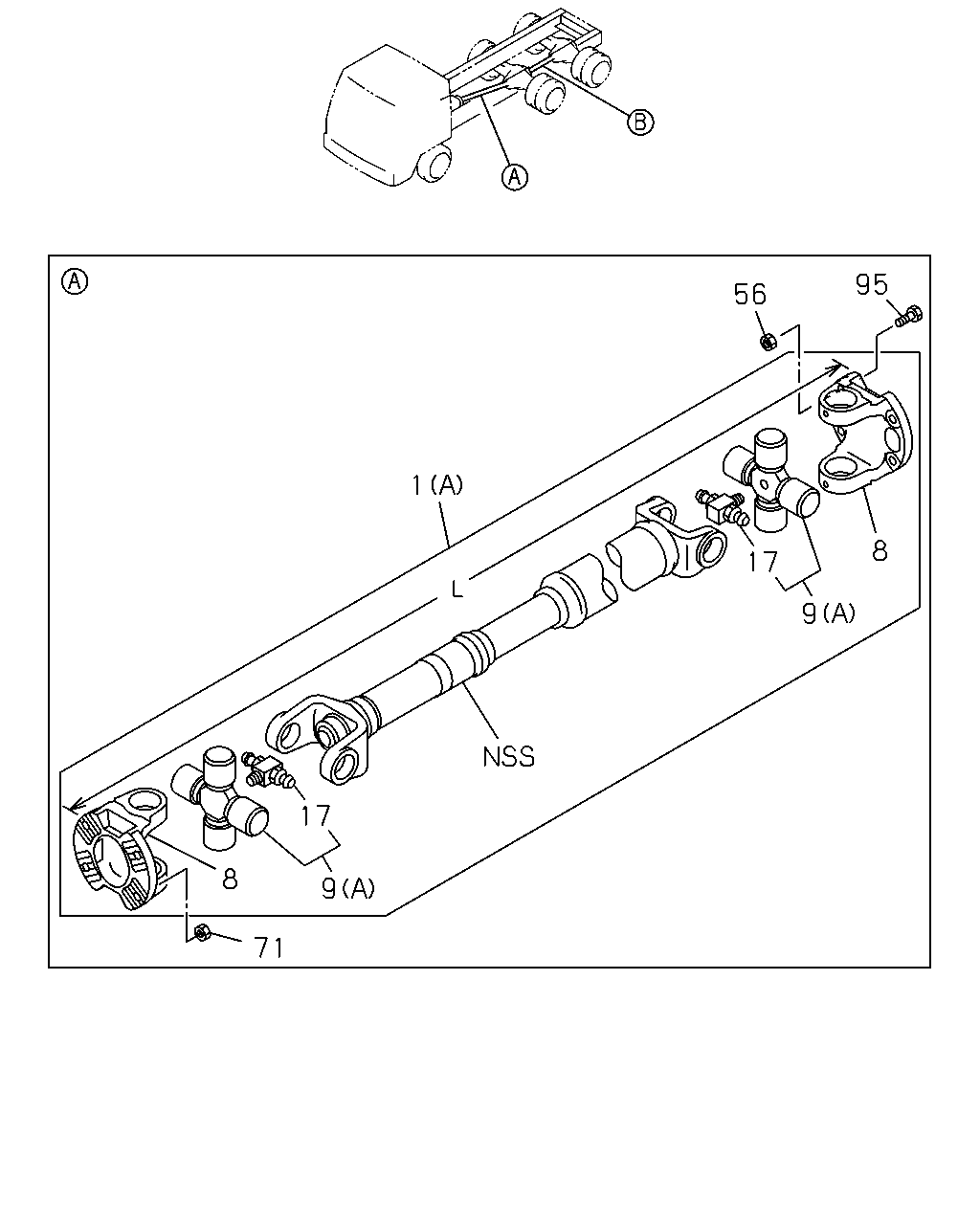

çizim 180618
95 56 1 71 8 17 9 9 17 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=435.3 		1-37124-894-0 01 1 0710-
1 SHAFT; PROP
(A) L=1120 		1-37125-165-0 01 1 0710-
8 YOKE; FLANGE,PROP SHAFT 1-37211-083-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-118-0 02 1 0710-
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 0710-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0710-
çizim 180637
9 198 96 1 128 225 96 198 9 106
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=435.3 		1-37124-894-0 01 1 0710-
1 SHAFT; PROP
(A) L=1120 		1-37125-165-0 01 1 0710-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-118-0 02 1 0710-
96 BOLT; PROP SHAFT 1-09088-009-0 08 1 0710-
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0710-
128 SEAL; SLEEVE 1-37247-025-0 01 1 0710-
198 PLATE; PROP SHAFT 1-37319-010-0 04 1 0710-
225 YOKE; SLEEVE,PROP SHAFT
L=297 		1-37241-142-0 01 1 0710-
