◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#37156) — 26 parça
çizim 180610
165 81 166 19 32 31 157 76 91 91 125 91 91 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
19 UNION; AIR PIPE 1-09650-121-1 01 1 0710-
31 NUT; UNION
M16 		0-91111-516-0 01 1 0710-
32 WASHER; LK,UNION
ID=16.2 		0-91510-516-0 01 1 0710-
76 NIPPLE; AIR PIPE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
81 COCK; AIR COUPLING
RED 		1-09680-091-0 01 1 0710-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-
91 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1006-
91 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710-
157 ADAPTER
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-
165 CONNECTOR; ELBOW
PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0710-
166 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0710-

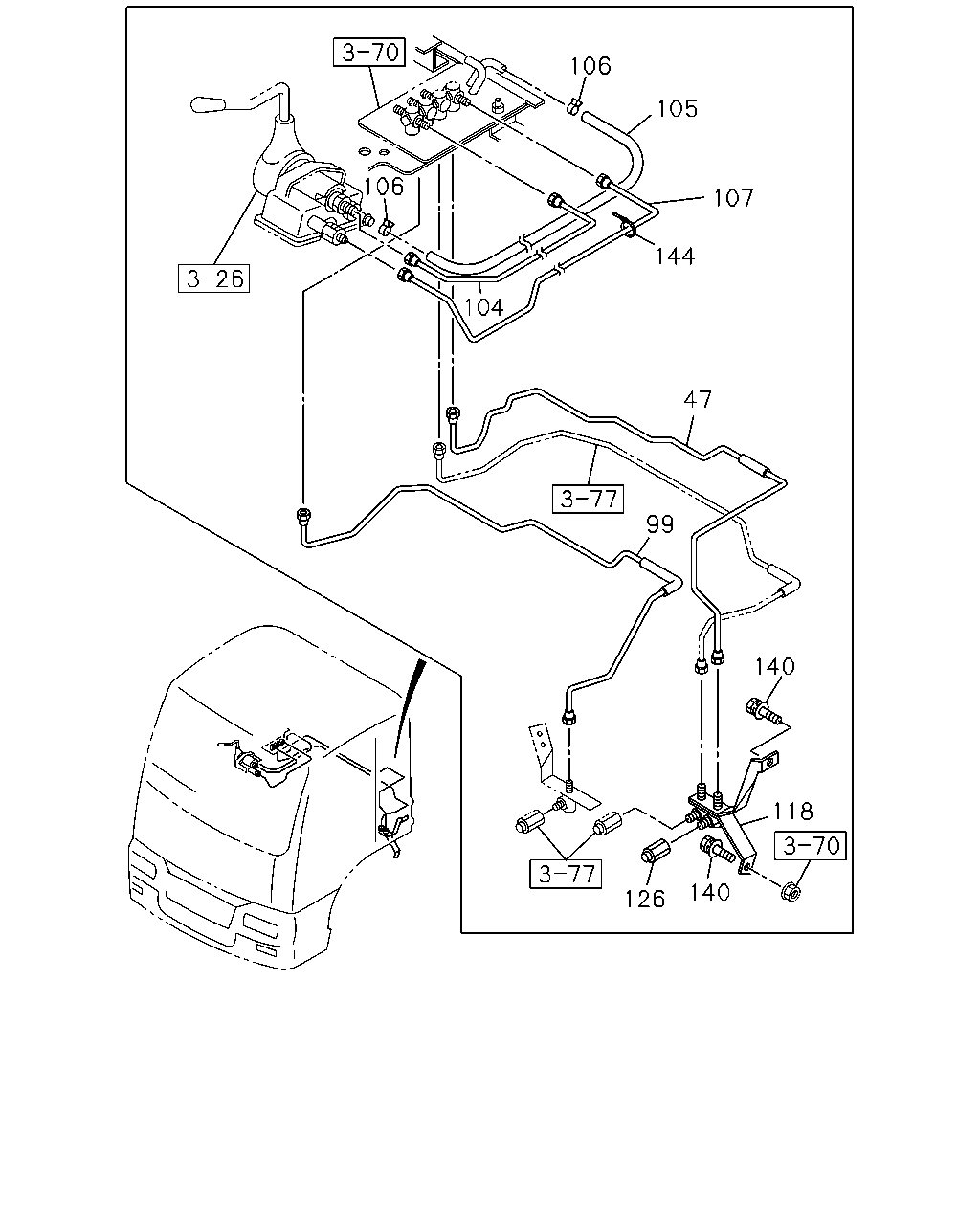

çizim 180629
106 105 107 144 104 106 47 99 140 118 140 126
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; AIR,UNION TO UNION 1-49121-763-2 01 1 0710-
99 PIPE; AIR,JOINT TO JOINT 1-49122-058-1 01 1 0710-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 0710-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0710-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0710-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0710-
118 JOINT; AIR PIPE 1-47470-608-1 01 1 0710-
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0710-
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
