◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#37155) — 259 parça

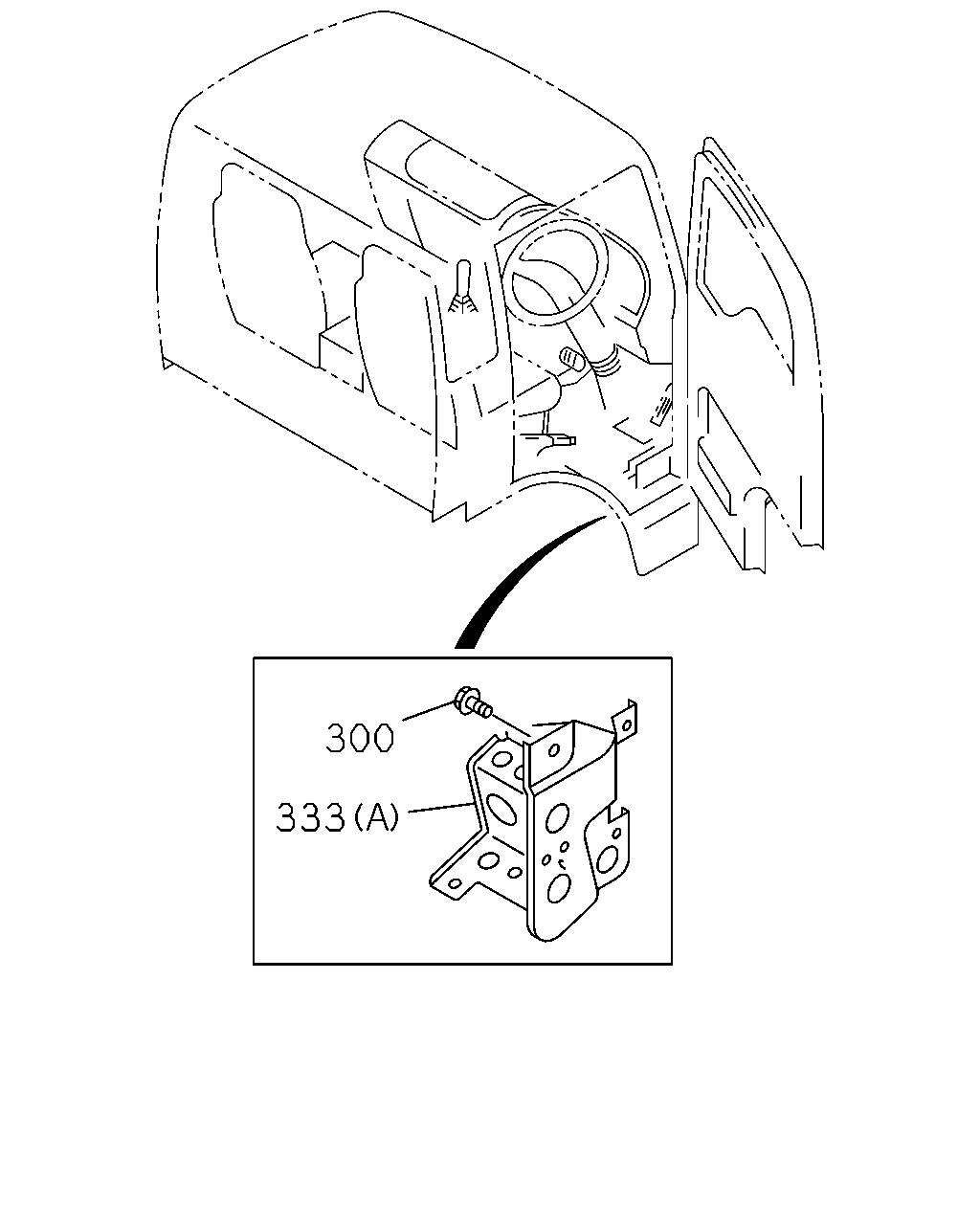

çizim 180613
300 333
BalonParca AdiParca NoAdetTipApplied Date
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-

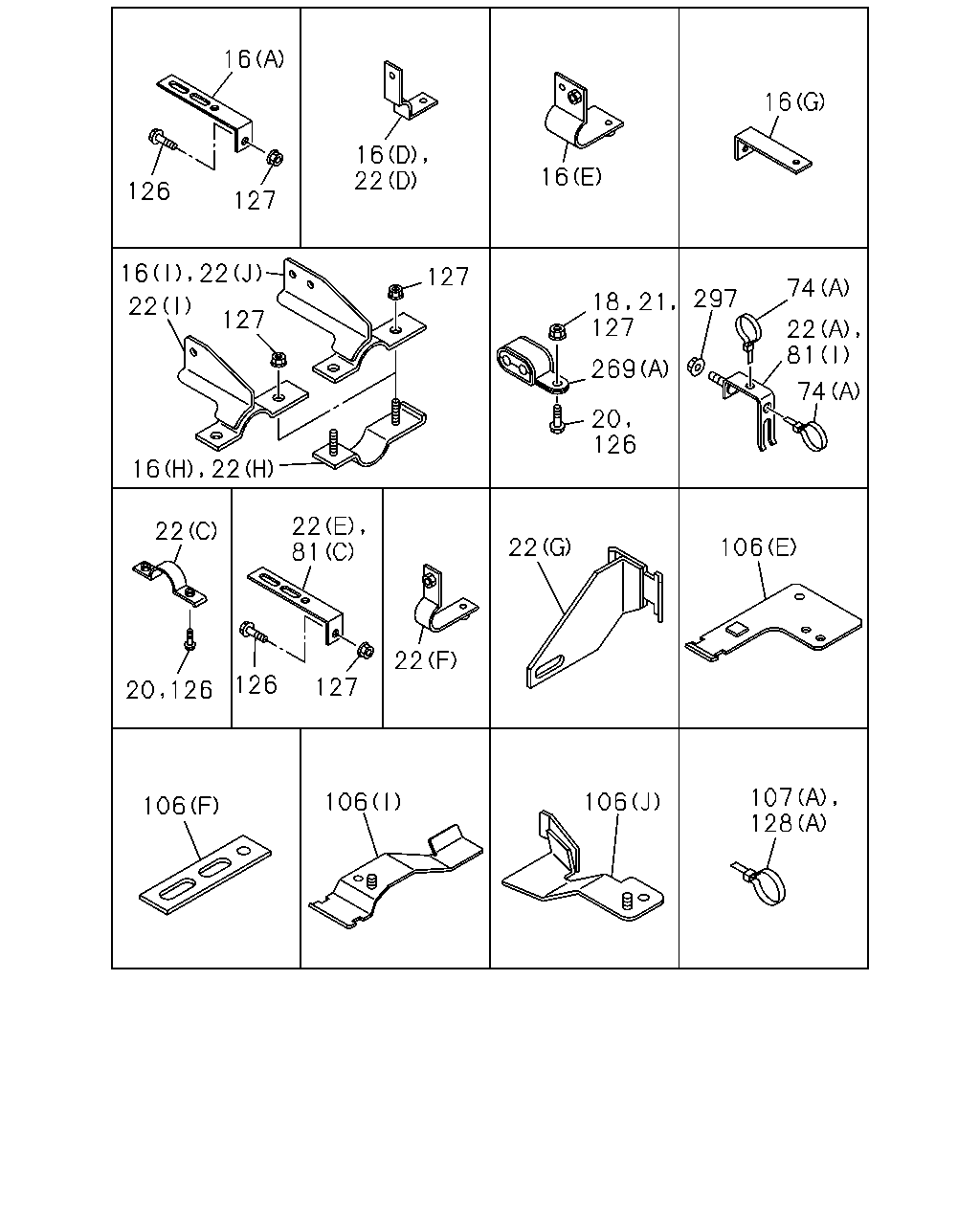

çizim 180615
106 106 107 128 106 127 126 126 20 22 22 81 22 22 106 74 81 22 74 297 21 18 127 269 20 126 127 22 16 127 22 16 22 16 16 22 16 127 126 16
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0710-
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 0710-
16 BRACKET; PIPE CLIP
(D) 		1-47478-588-0 01 1 0710-1110
16 BRACKET; PIPE CLIP
(H) 		8-98199-763-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(H) 		8-98212-967-0 01 1 1212-
16 BRACKET; PIPE CLIP
(E) 		1-47479-249-0 01 1 0710-1110
16 BRACKET; PIPE CLIP
(I) 		8-98199-937-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(I) 		8-98212-968-0 01 1 1212-
16 BRACKET; PIPE CLIP
(C) L=30 		1-47479-481-0 01 1 0710-
16 BRACKET; PIPE CLIP
(F) 		1-47479-598-0 01 1 0710-
16 BRACKET; PIPE CLIP
(G) 		8-98075-300-1 02 1 0710-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1110
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-1211
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-1211
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0710-1211
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212-
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710-
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 05 1 0710-
22 BRACKET; CLIP
(D) 		1-47478-588-0 01 1 0710-1110
22 BRACKET; CLIP
(I) 		8-98199-761-0 01 1 1111-1211
22 BRACKET; CLIP
(J) 		8-98212-967-0 01 1 1212-
22 BRACKET; CLIP
(F) 		1-47478-589-0 01 1 0710-1110
22 BRACKET; CLIP
(H) 		8-98199-763-0 01 1 1111-1211
22 BRACKET; CLIP
(H) 		8-98212-968-0 01 1 1212-
22 BRACKET; CLIP
(A) 		1-47479-381-2 02 1 0710-1005
22 BRACKET; CLIP
(B) L=95 		1-82699-085-0 01 1 0710-
22 BRACKET; CLIP
(G) 		8-98075-301-1 02 1 0710-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710-
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710-
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710-
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710-
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 0710-
106 BRACKET; TUBE CLIP
(C) 		8-98096-977-0 01 1 0710-0805
106 BRACKET; TUBE CLIP
(C) 		8-98118-569-0 01 1 0806-
106 BRACKET; TUBE CLIP
(D) 		8-98096-978-0 01 1 0710-
106 BRACKET; TUBE CLIP
(G) 		1-47471-108-0 01 1 0710-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0710-1504
106 BRACKET; TUBE CLIP
(D) 		8-98302-600-0 01 1 1505-
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 0710-
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0710-1412
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0710-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0710-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0710-
106 BRACKET; TUBE CLIP
(H) 		8-98084-703-1 01 1 0710-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710-
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1110
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1006-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 10 1 0710-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 12 1 0710-1005
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 1006-
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 21 1 0710-1005
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 22 1 1006-
128 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1110
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0710-1005
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1006-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-

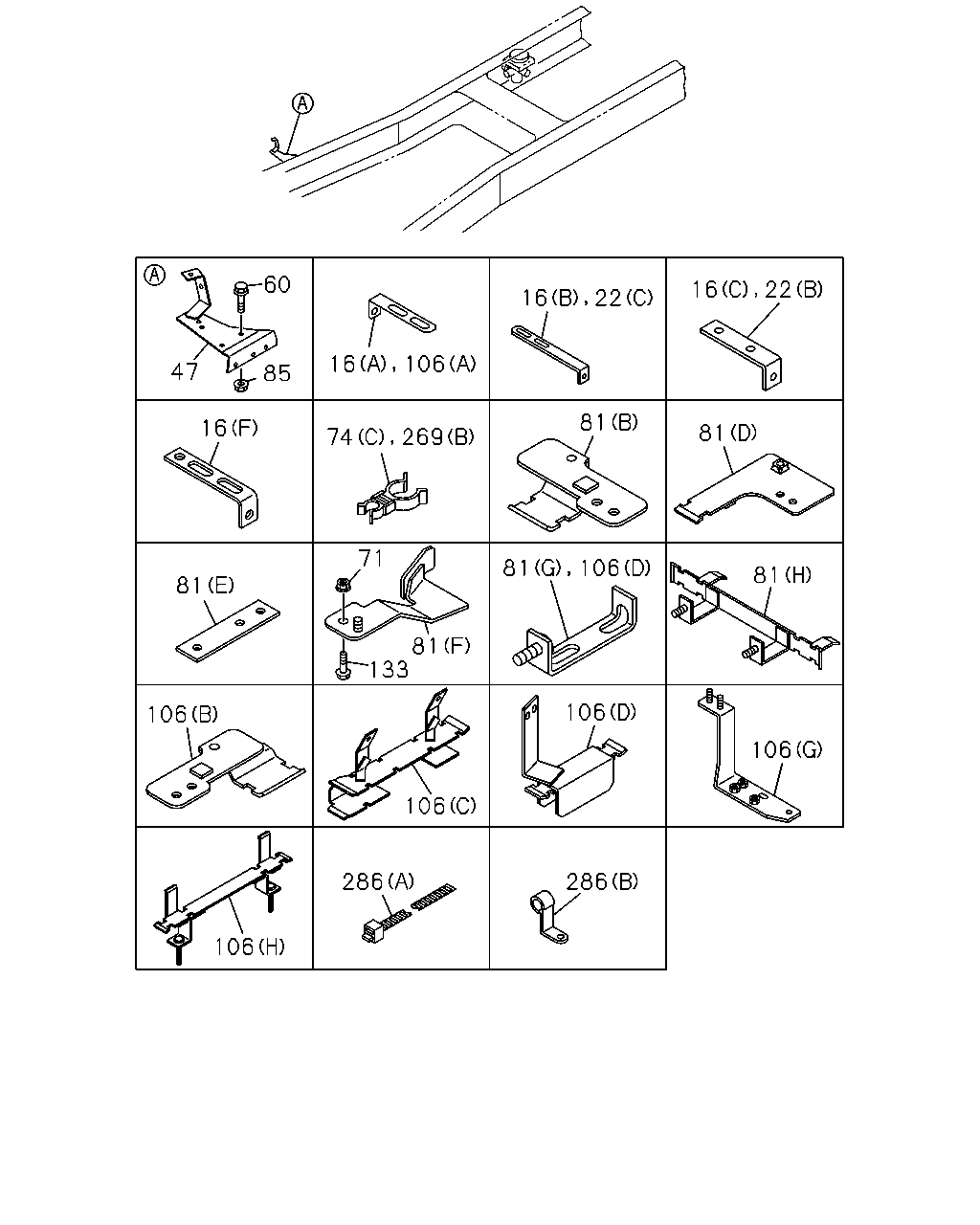

çizim 180617
22 16 22 16 106 16 60 47 85 16 74 269 81 81 81 106 81 81 133 71 81 106 106 286 106 106 286 106
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0710-
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 0710-
16 BRACKET; PIPE CLIP
(D) 		1-47478-588-0 01 1 0710-1110
16 BRACKET; PIPE CLIP
(H) 		8-98199-763-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(H) 		8-98212-967-0 01 1 1212-
16 BRACKET; PIPE CLIP
(E) 		1-47479-249-0 01 1 0710-1110
16 BRACKET; PIPE CLIP
(I) 		8-98199-937-0 01 1 1111-1211
16 BRACKET; PIPE CLIP
(I) 		8-98212-968-0 01 1 1212-
16 BRACKET; PIPE CLIP
(C) L=30 		1-47479-481-0 01 1 0710-
16 BRACKET; PIPE CLIP
(F) 		1-47479-598-0 01 1 0710-
16 BRACKET; PIPE CLIP
(G) 		8-98075-300-1 02 1 0710-
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710-
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 05 1 0710-
22 BRACKET; CLIP
(D) 		1-47478-588-0 01 1 0710-1110
22 BRACKET; CLIP
(I) 		8-98199-761-0 01 1 1111-1211
22 BRACKET; CLIP
(J) 		8-98212-967-0 01 1 1212-
22 BRACKET; CLIP
(F) 		1-47478-589-0 01 1 0710-1110
22 BRACKET; CLIP
(H) 		8-98199-763-0 01 1 1111-1211
22 BRACKET; CLIP
(H) 		8-98212-968-0 01 1 1212-
22 BRACKET; CLIP
(A) 		1-47479-381-2 02 1 0710-1005
22 BRACKET; CLIP
(B) L=95 		1-82699-085-0 01 1 0710-
22 BRACKET; CLIP
(G) 		8-98075-301-1 02 1 0710-
47 BRACKET; PIPE CLIP 1-47471-389-0 01 1 0710-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710-
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710-
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710-
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710-
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 0710-
106 BRACKET; TUBE CLIP
(C) 		8-98096-977-0 01 1 0710-0805
106 BRACKET; TUBE CLIP
(C) 		8-98118-569-0 01 1 0806-
106 BRACKET; TUBE CLIP
(D) 		8-98096-978-0 01 1 0710-
106 BRACKET; TUBE CLIP
(G) 		1-47471-108-0 01 1 0710-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0710-1504
106 BRACKET; TUBE CLIP
(D) 		8-98302-600-0 01 1 1505-
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 0710-
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0710-1412
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0710-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0710-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0710-
106 BRACKET; TUBE CLIP
(H) 		8-98084-703-1 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 0710-1005
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 13 1 1006-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1110
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
286 CLIP; NYLON TUBE
(B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0710-
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 0710-

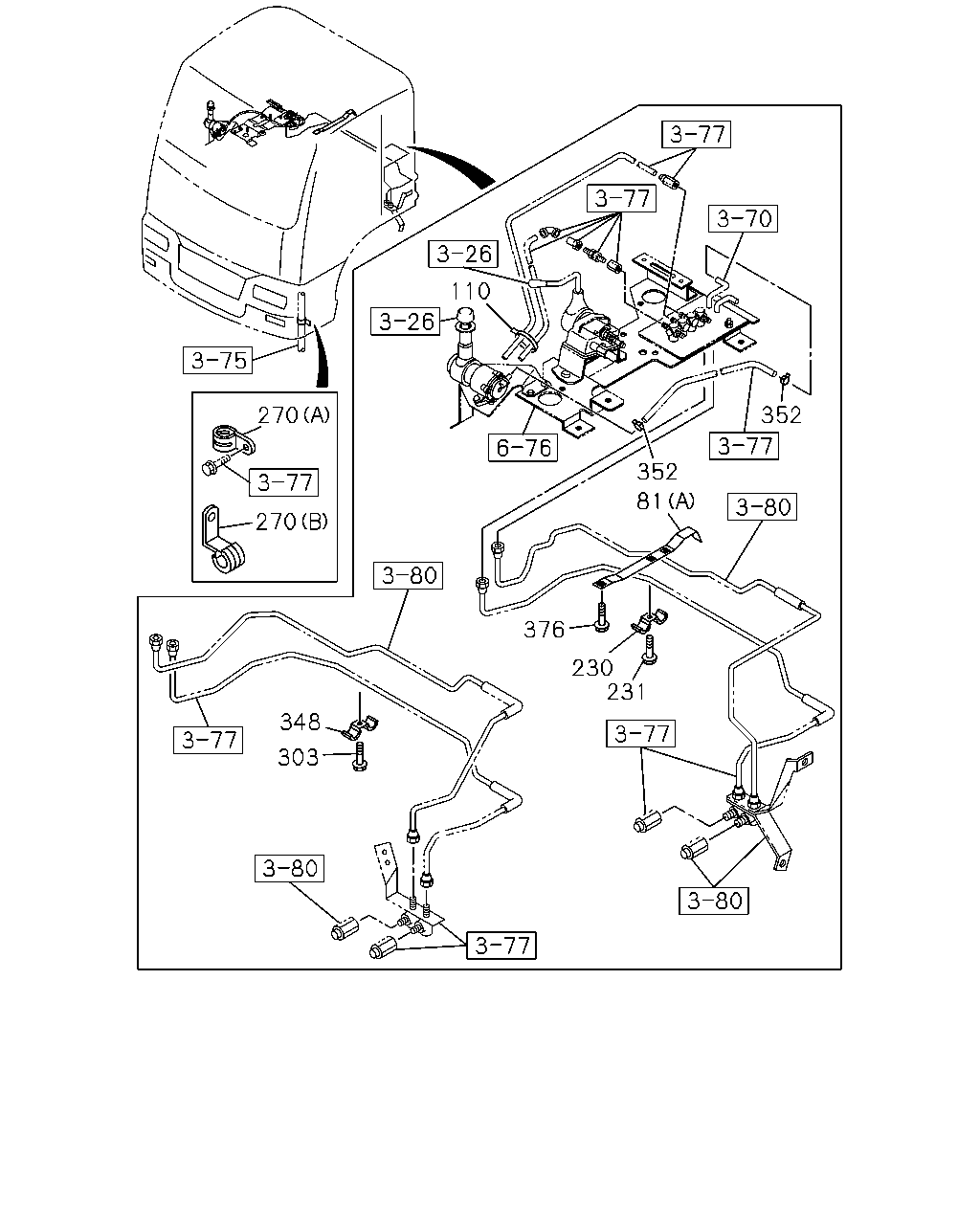

çizim 180620
110 270 270 348 303 376 230 231 81 352 352
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710-
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710-
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710-
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0710-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0710-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0910
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0911-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0710-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0710-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-

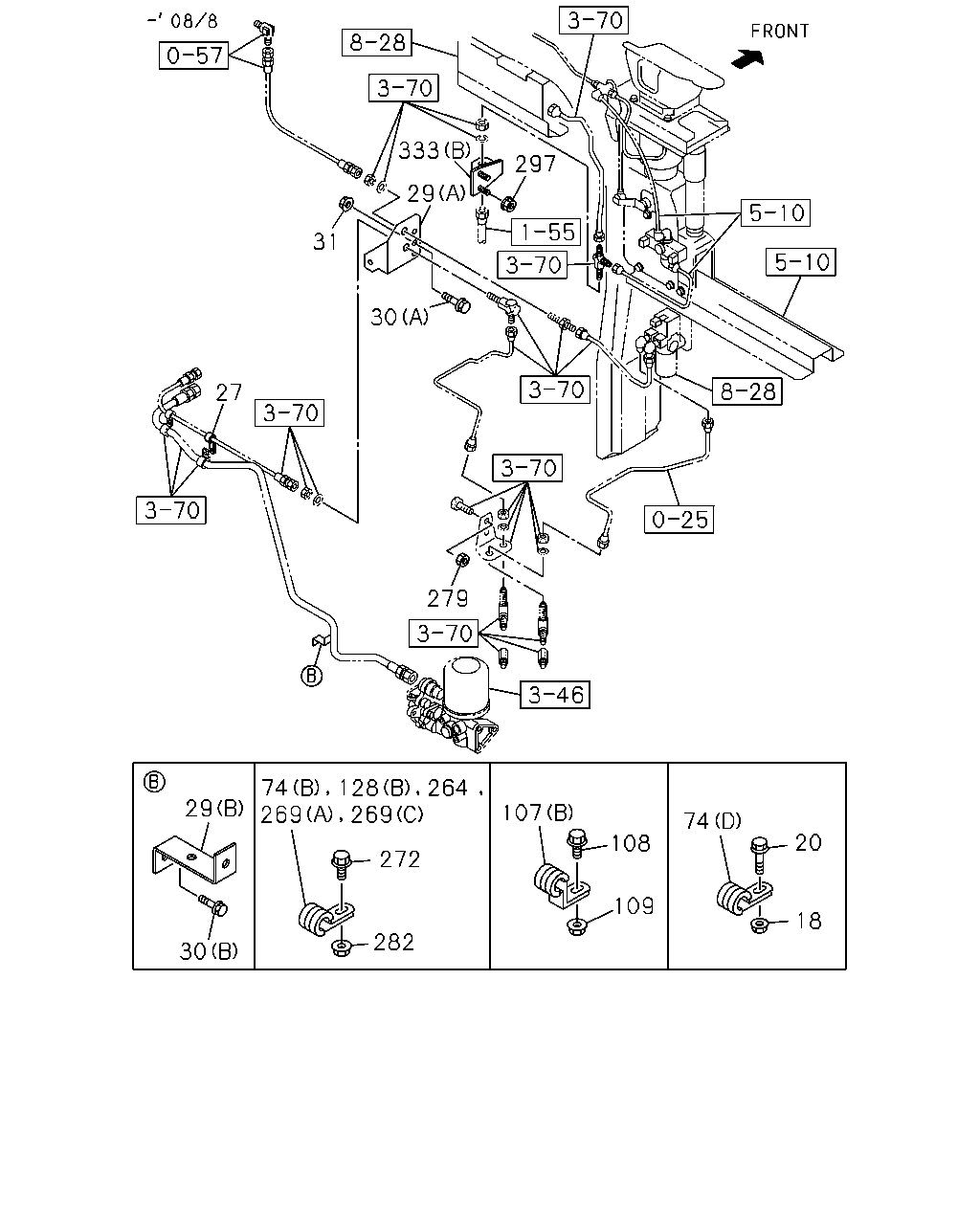

çizim 180621
333 297 29 31 30 27 279 74 29 107 74 20 108 272 109 18 282 30 128 264 269 269
BalonParca AdiParca NoAdetTipApplied Date
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1110
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-1211
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-1211
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710-
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 0710-
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 0710-
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 0804-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 0804-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710-
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710-
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 21 1 0710-1005
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 22 1 1006-
128 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 0710-
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
272 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-1504
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1505-
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1110
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0710-1005
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1006-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-

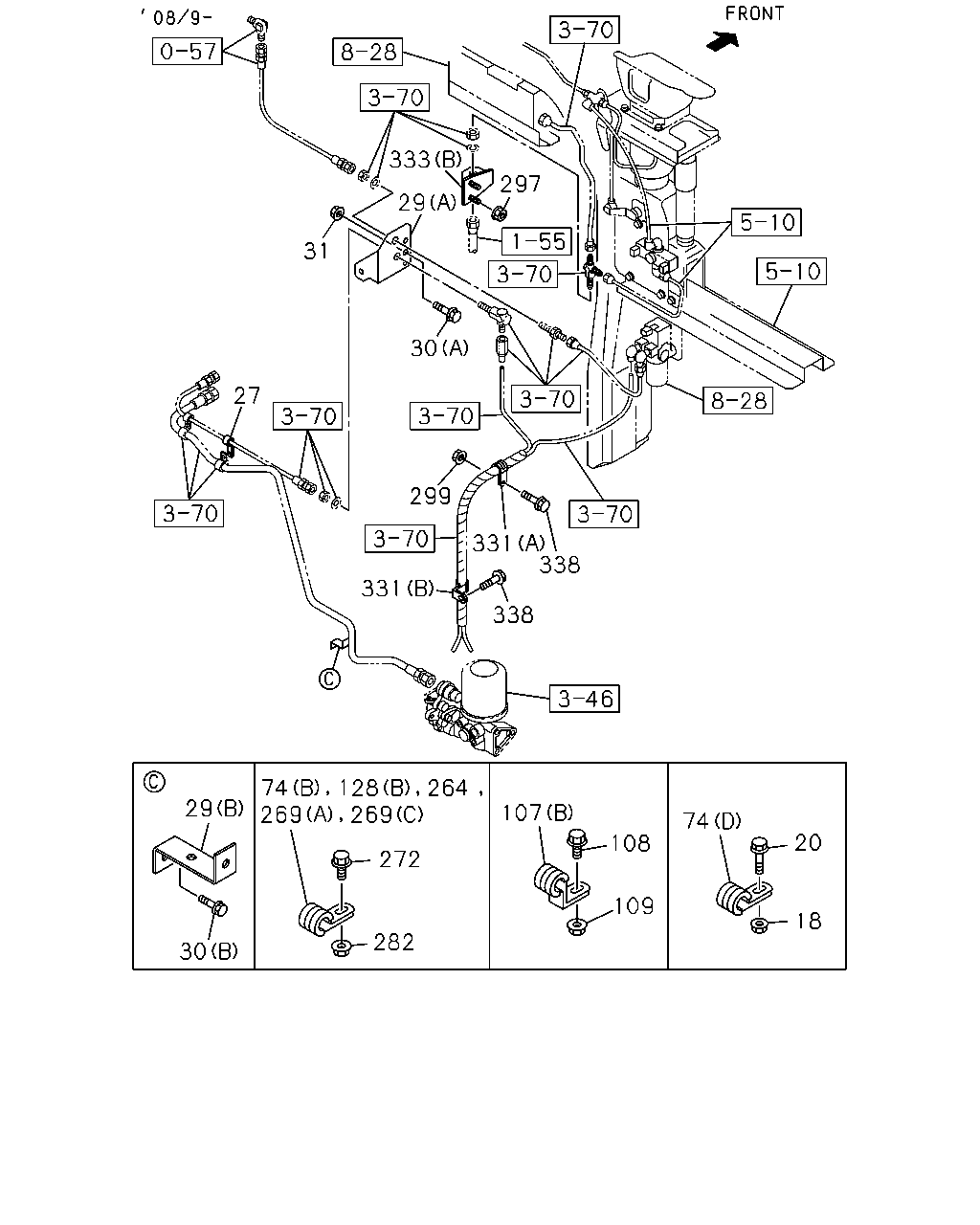

çizim 180821
333 297 29 31 30 27 299 331 338 331 338 74 29 107 74 20 108 272 109 18 282 30 128 264 269 269
BalonParca AdiParca NoAdetTipApplied Date
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1110
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-1211
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-1211
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710-
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 0710-
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 0710-
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 0804-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 0804-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710-
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710-
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 21 1 0710-1005
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 22 1 1006-
128 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 0710-
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710-
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710-
272 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1110
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0710-1005
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1006-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
331 CLIP; NYLON TUBE
(A) ID=19 L=20 		0-95235-836-0 01 1 0809-
331 CLIP; NYLON TUBE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 0809-
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
