Isuzu WW
▶
TRUCKS
▶
EXY
▶
11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#37145) — 27 parça
◀
[334A] REPAIR KIT (2 parça)

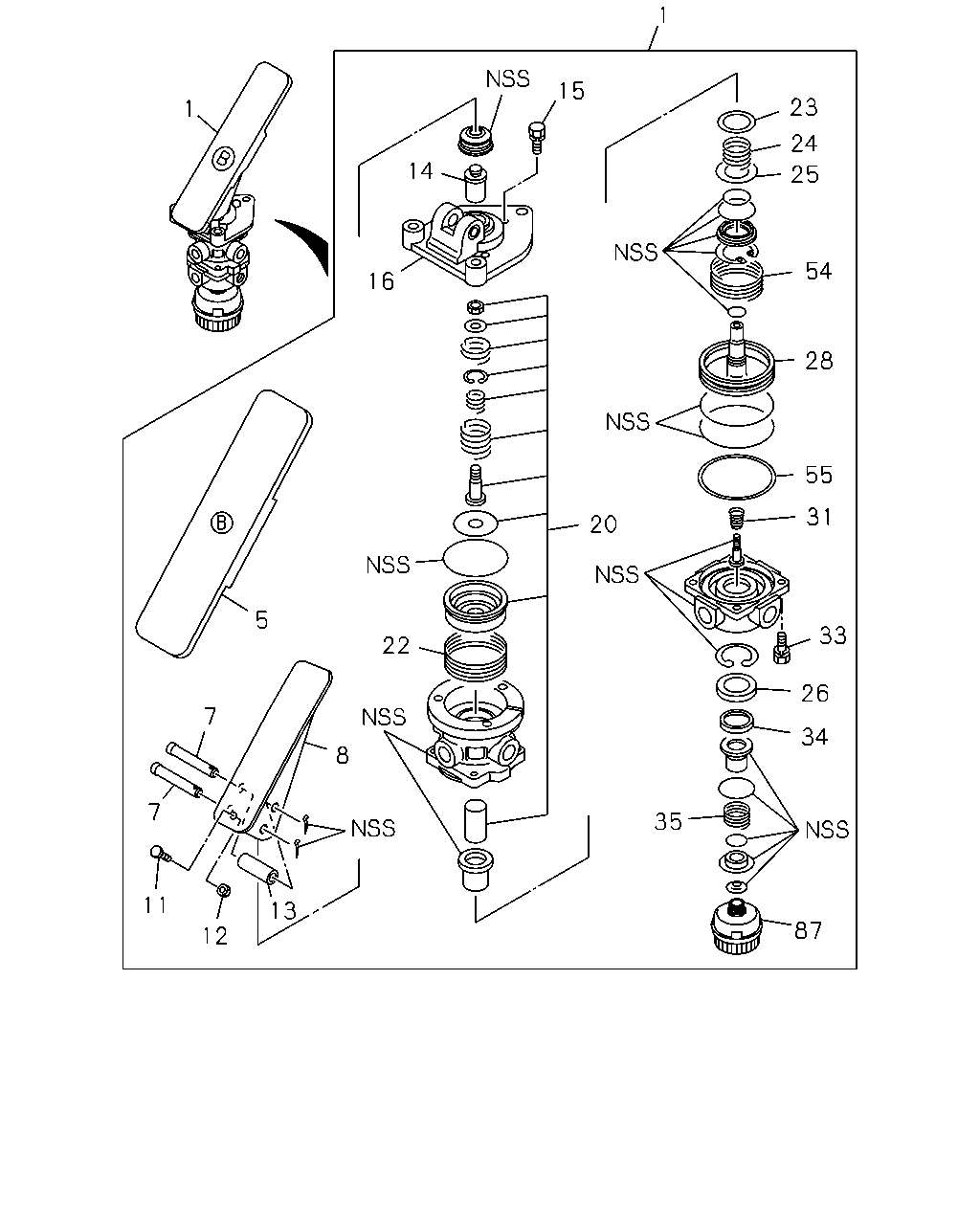

[334A] COMPONENT (25 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
1-85576-211-1
01
1
0710-1211
2
REPAIR KIT; BRK VLV
8-98222-817-0
01
1
1212-
1
14
16
15
1
23
24
25
54
28
55
31
33
26
34
87
35
20
22
5
7
7
11
12
13
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-891-0
01
1
0710-1211
1
VALVE; BRK
8-98222-797-0
01
1
1212-
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0710-
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0710-
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0710-
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0710-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
0710-
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0710-
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
0710-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
0710-
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
0710-
20
PISTON; UPR,BRK VLV
1-48119-592-0
01
1
0710-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
0710-
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
0710-
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
0710-
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
0710-
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
0710-
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
0710-
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
0710-
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
0710-
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
0710-
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
0710-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
0710-
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
0710-
87
SILENCER; VALVE
1-48219-149-0
01
1
0710-
