3-26 — TRAILER CONTROL (#37144) — 155 parça
çizim 180584
246 244 245
BalonParca AdiParca NoAdetTipApplied Date
244 GRIP 8-97620-002-0 01 1 0710-
245 BOLT; GRIP
M12X30 FLANGE 		0-28051-230-0 04 1 0710-
246 NUT; GRIP
M12 FLANGE 		0-91180-212-0 04 1 0710-
çizim 180586
1 1 4 6 5 7 8 9 10 11 12 13 24 25 23 22 21 20 19 18 17 16 15 14 25 24 28
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-848-0 01 1 0710-
4 HANDLE ASM; BRK VLV 1-48119-517-0 01 1 0710-
5 GASKET; HANDLE 1-48119-128-0 01 1 0710-
6 PIN; SPR 1-48119-143-0 01 1 0710-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 0710-
7 HEAD; BRK VLV
(B) 		1-48469-195-0 01 1 0710-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0710-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0710-
9 WASHER; LK,ADJ 1-48119-123-0 01 1 0710-
10 RING; ADJ 1-48119-122-0 01 1 0710-
11 GASKET; HD TO COVER 1-48119-130-0 01 1 0710-
12 COVER; BRK VLV 1-48129-097-1 01 1 0710-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0710-
14 FOLLOWER; CAM 1-48129-135-0 01 1 0710-
15 CAM; FOLLOWER 1-48129-134-0 01 1 0710-
16 SPRING; GRUDUATING 1-48129-101-0 01 1 0710-
17 PISTON; SPR 1-48129-095-0 01 1 0710-
18 GASKET; BODY 1-48129-096-0 01 1 0710-
19 SPRING; PISTON 1-48129-094-0 01 1 0710-
20 GUIDE; VLV 1-48129-090-0 01 1 0710-
21 VALVE; IN & EXH 1-48121-017-0 01 1 0710-
22 SPRING; VLV 1-48123-024-0 01 1 0710-
23 BODY; BRK VLV 1-48111-060-1 01 1 0710-
24 BOLT; EXH VLV 1-48129-092-0 02 1 0710-
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 0710-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0710-
çizim 180587
8 28 5 3 22 125 65 3 22 3 22
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV 1-85576-375-0 01 1 0710-
5 GASKET; HANDLE 1-48119-128-0 01 1 0710-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0710-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0710-
22 SPRING; VLV 1-48123-024-0 01 1 0710-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0710-
65 NUT; RELAY VLV
(B) M10 FLANGE 		0-91180-210-0 02 1 1006-
65 NUT; RELAY VLV
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-
125 BOLT; RELAY VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1006-

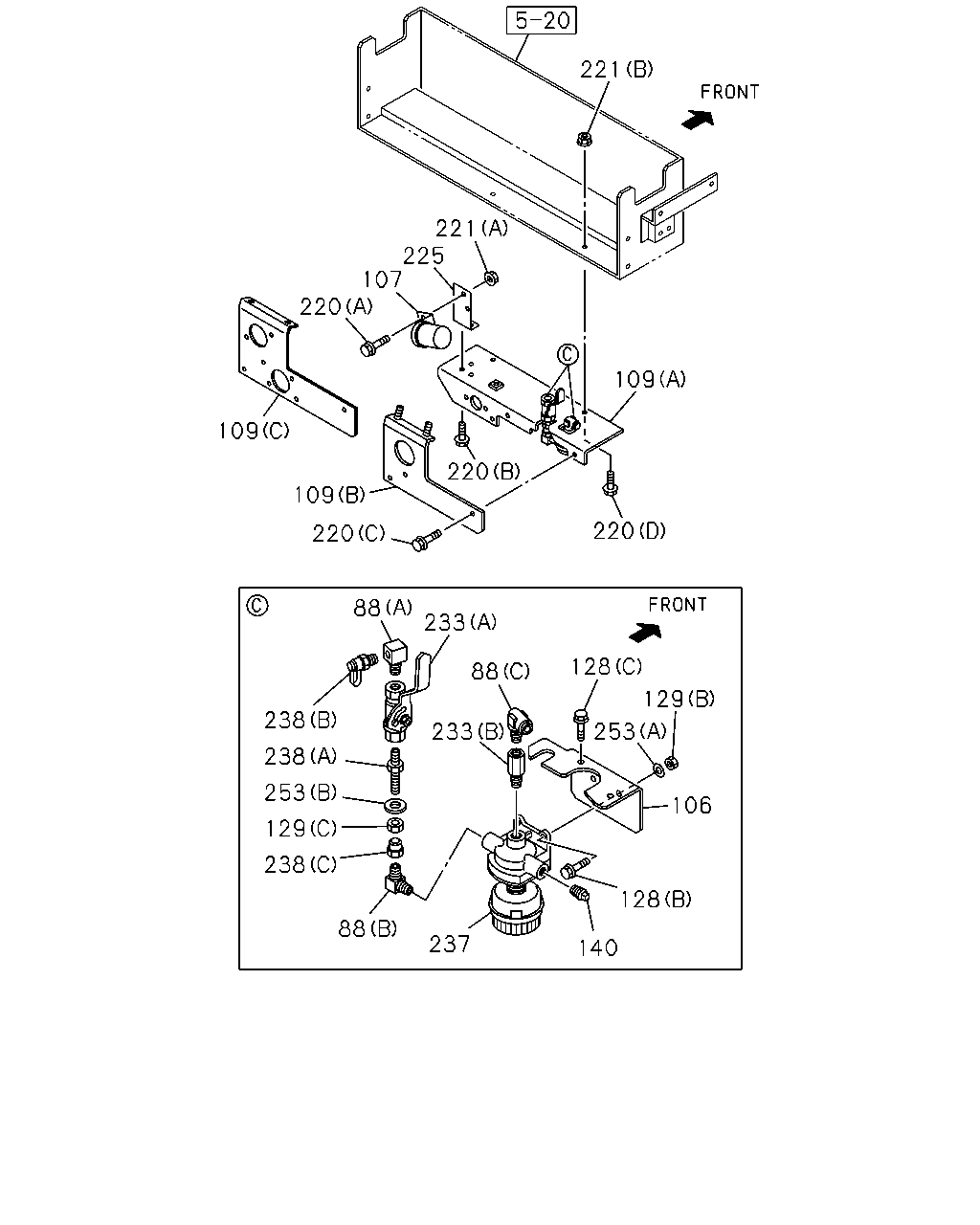

çizim 180588
5 20 221 221 225 107 220 109 109 220 109 220 220 88 233 128 88 129 238 253 233 238 253 106 129 238 128 88 237 140
BalonParca AdiParca NoAdetTipApplied Date
5 GASKET; HANDLE 1-48119-128-0 01 1 0710-
20 GUIDE; VLV 1-48129-090-0 01 1 0710-
88 CONNECTOR; ELBOW
(A) PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0710-
88 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-
88 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
106 BRACKET; VLV 8-98097-029-0 01 1 0710-
107 HANGER; JUMPER HOSE 1-57550-022-2 01 1 0710-
109 BRACKET; HOSE HANGER
(A) 		8-98097-878-0 01 1 0710-1004
109 BRACKET; HOSE HANGER
(C) 		8-98163-271-0 01 1 1005-
109 BRACKET; HOSE HANGER
(B) 		8-98085-698-0 01 1 0710-1004
109 BRACKET; HOSE HANGER
(A) 		8-98163-270-0 01 1 1005-
128 BOLT; VLV
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0710-
128 BOLT; VLV
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
128 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
129 NUT; VLV
(B) M8 		0-91110-508-0 02 1 0710-
129 NUT; VLV
(C) M16 		0-91111-516-0 01 1 0710-
129 NUT; VLV
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-
140 PLUG
PT3/8 		9-09204-517-0 01 1 0710-
220 BOLT; HANGER
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-
220 BOLT; HANGER
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
220 BOLT; HANGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
220 BOLT; HANGER
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0710-
221 NUT; HANGER
(A) M6 FLANGE 		0-91180-106-0 02 1 0710-
221 NUT; HANGER
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
225 BRACKET; HANGER 1-82698-002-0 01 1 0710-
233 ADAPTER; VLV
(A) YELLOW 		1-09680-093-0 01 1 0710-
233 ADAPTER; VLV
(B) PT3/8 		1-48319-058-0 03 1 0710-
237 VALVE; QUICK RELEASE 1-48410-726-1 01 1 0710-
238 CONNECTOR
(A) 		1-09650-121-1 01 1 0710-
238 CONNECTOR
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0710-
238 CONNECTOR
(C) 		9-13712-013-0 01 1 0710-
253 WASHER; PL
(A) ID=8.4 OD=22 		0-91610-708-0 02 1 0710-
253 WASHER; PL
(B) ID=17 OD=32 		9-09160-616-0 01 1 0710-

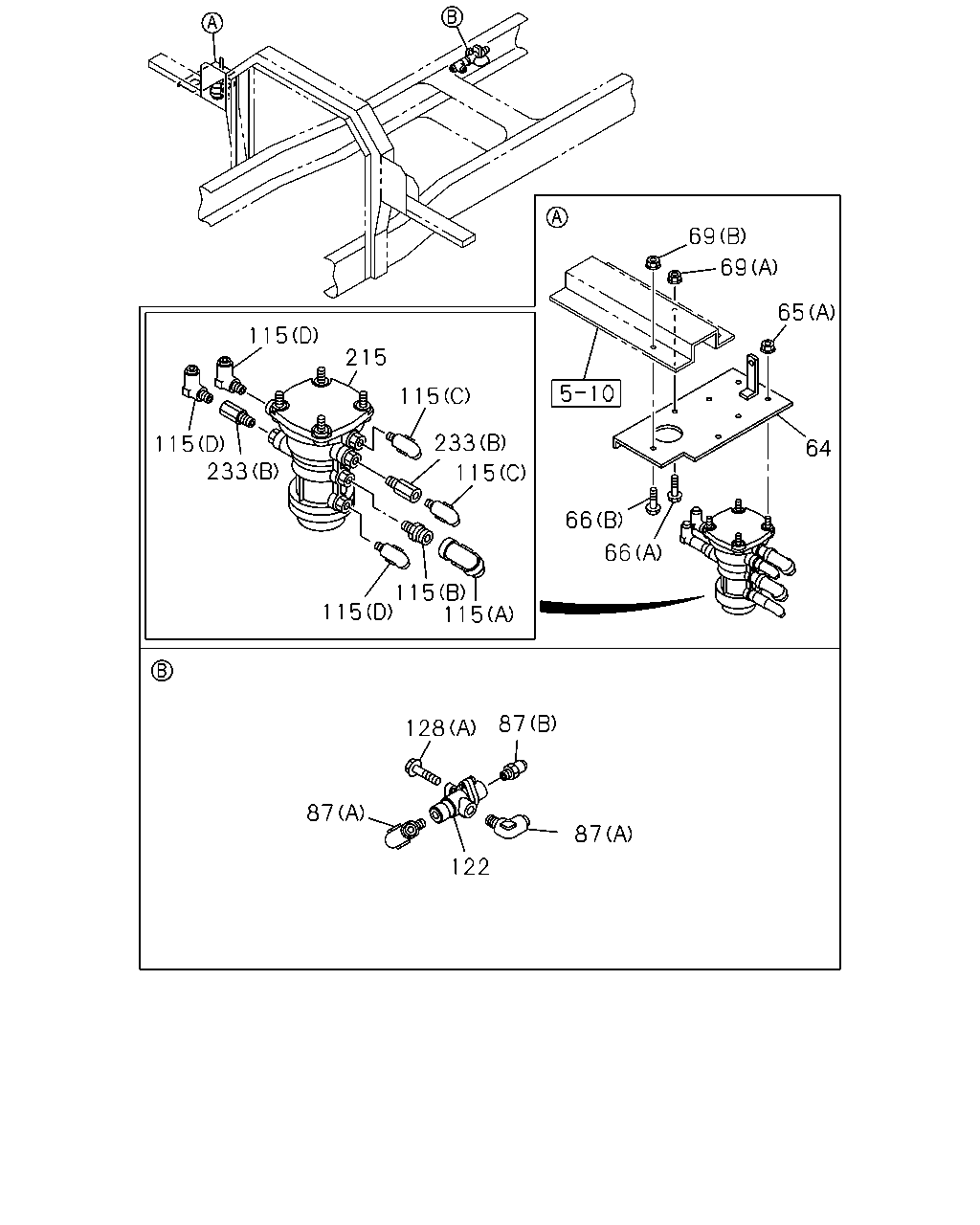

çizim 180592
69 69 65 115 215 5 10 115 233 115 233 64 115 66 66 115 115 115 87 128 87 87 122
BalonParca AdiParca NoAdetTipApplied Date
5 GASKET; HANDLE 1-48119-128-0 01 1 0710-
10 RING; ADJ 1-48119-122-0 01 1 0710-
64 BRACKET; RELAY VLV 8-98089-547-0 01 1 0710-
65 NUT; RELAY VLV
(B) M10 FLANGE 		0-91180-210-0 02 1 1006-
65 NUT; RELAY VLV
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-
66 BOLT; VLV BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
66 BOLT; VLV BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0710-
69 NUT; VLV BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-
69 NUT; VLV BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
87 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-
87 CONNECTOR; DBL CHECK VLV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-
115 CONNECTOR; DUAL RELAY VLV
(A) DIN8 ELBOW 		1-09660-924-1 01 1 0710-1006
115 CONNECTOR; DUAL RELAY VLV
(A) 		8-97633-756-0 01 1 1007-
115 CONNECTOR; DUAL RELAY VLV
(B) 		1-09660-948-0 01 1 0710-1006
115 CONNECTOR; DUAL RELAY VLV
(B) 		8-97633-771-0 01 1 1007-
115 CONNECTOR; DUAL RELAY VLV
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-
115 CONNECTOR; DUAL RELAY VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-
122 VALVE ASM; DOUBLE CHECK 1-48410-531-1 01 1 0710-
128 BOLT; VLV
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0710-
128 BOLT; VLV
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
128 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
215 VALVE; TRAILER CONT 8-98091-694-0 01 1 0710-
233 ADAPTER; VLV
(A) YELLOW 		1-09680-093-0 01 1 0710-
233 ADAPTER; VLV
(B) PT3/8 		1-48319-058-0 03 1 0710-

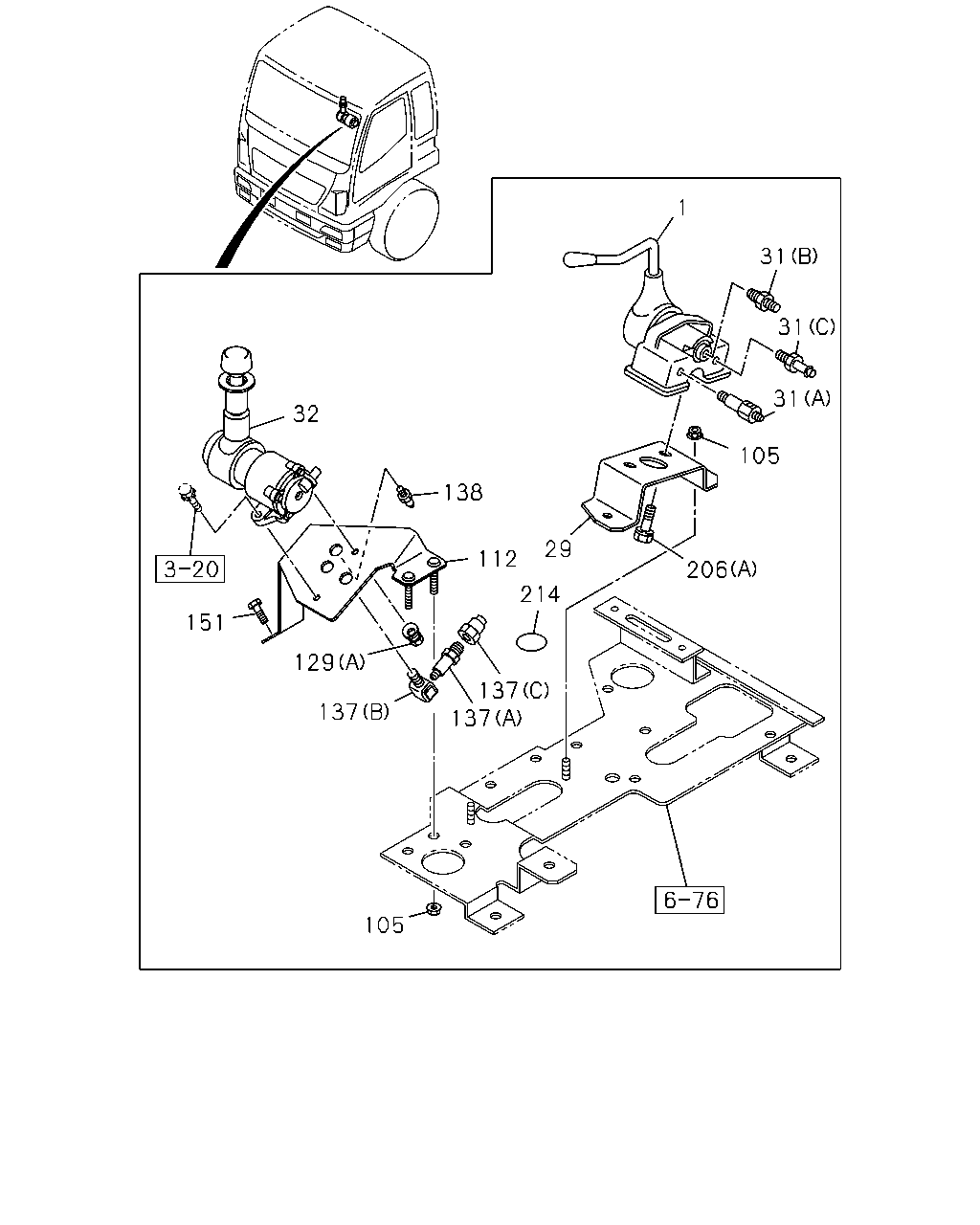

çizim 180593
1 31 31 31 105 206 29 214 112 138 32 151 129 137 137 137 105
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-848-0 01 1 0710-
29 BRACKET; HAND BRK 1-79997-357-1 01 1 0710-
31 CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 0710-
31 CONNECTOR; HAND BRK VLV
(A) M14 		1-09656-391-2 01 1 0710-
31 CONNECTOR; HAND BRK VLV
(C) L=45 		8-94338-874-0 01 1 0710-
32 VALVE; BRK,HAND CONT 1-48460-340-1 01 1 0710-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
112 BRACKET; CONT VLV 1-79996-387-0 01 1 0710-
129 NUT; VLV
(B) M8 		0-91110-508-0 02 1 0710-
129 NUT; VLV
(C) M16 		0-91111-516-0 01 1 0710-
129 NUT; VLV
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-
137 CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 0710-
137 CONNECTOR; SUPPLY
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0710-
137 CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-
138 CONNECTOR; DELIVERY
DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-
151 BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
206 BOLT; HAND BRK VALVE
(A) M10X20 W/LK WASHER 		0-50541-020-0 02 1 0710-
206 BOLT; HAND BRK VALVE
(B) 		1-48469-160-0 01 1 0710-
214 SEAL; COVER,HAND BRK
OD=25 BLACK 		1-76798-019-0 01 1 0710-

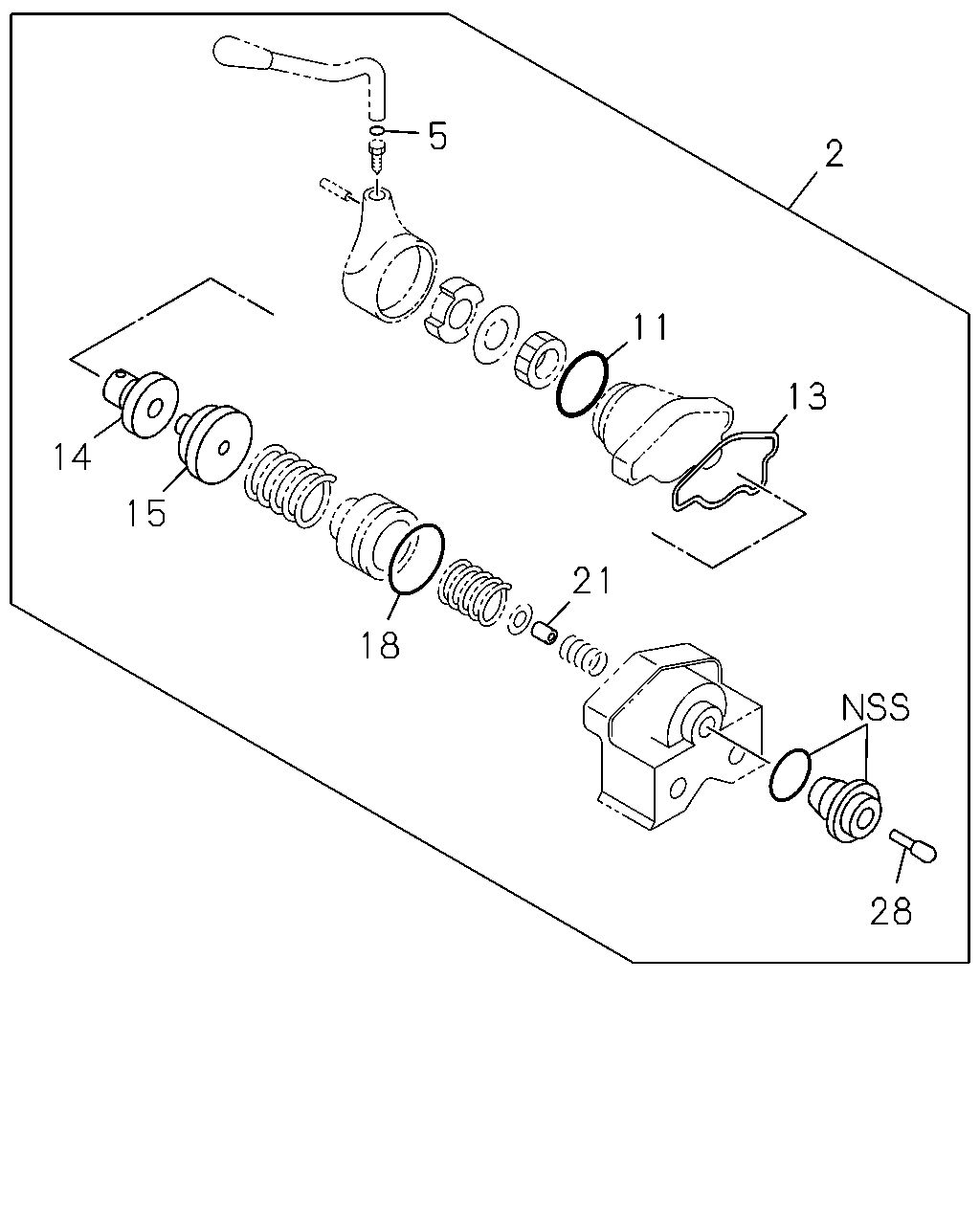

çizim 180594
2 5 11 13 8 21 18 5 14
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; HAND BRK VLV 1-85576-181-0 01 1 0710-
5 GASKET; HANDLE 1-48119-128-0 01 1 0710-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0710-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0710-
11 GASKET; HD TO COVER 1-48119-130-0 01 1 0710-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0710-
14 FOLLOWER; CAM 1-48129-135-0 01 1 0710-
18 GASKET; BODY 1-48129-096-0 01 1 0710-
21 VALVE; IN & EXH 1-48121-017-0 01 1 0710-

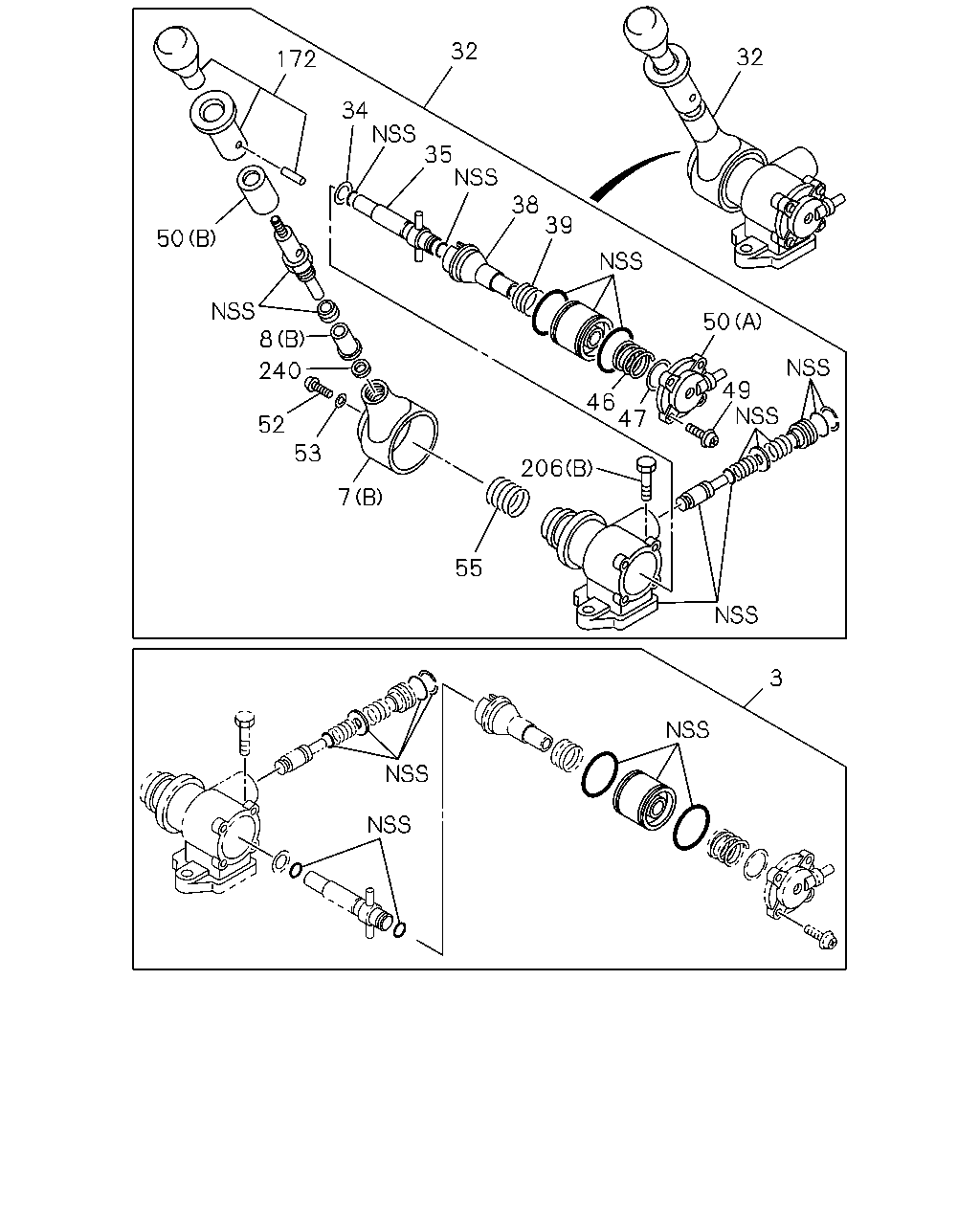

çizim 180600
32 32 172 34 35 38 39 50 49 47 46 206 55 7 53 52 240 8 50 3
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV 1-85576-375-0 01 1 0710-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 0710-
7 HEAD; BRK VLV
(B) 		1-48469-195-0 01 1 0710-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0710-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0710-
32 VALVE; BRK,HAND CONT 1-48460-340-1 01 1 0710-
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0710-
35 HOLDER; CAM 1-48469-148-0 01 1 0710-
38 SEAT; EXH VLV 1-48469-149-0 01 1 0710-
39 SPRING; RETURN,CAM RING 1-48469-150-0 01 1 0710-
46 SPRING; MAIN,PISTON 1-48469-152-0 01 1 0710-
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0710-
49 SCREW; COVER 1-48469-169-0 04 1 0710-
50 COVER; HAND BRK VLV
(A) 		1-48469-153-0 01 1 0710-
50 COVER; HAND BRK VLV
(B) 		1-48469-196-0 01 1 0710-
52 SCREW; HANDLE 1-48469-062-0 01 1 0710-
53 WASHER; HANDLE 1-48469-061-0 01 1 0710-
55 SPRING; RETURN,HANDLE 1-48469-155-0 01 1 0710-
172 KNOB; VALVE 1-48469-204-0 01 1 0710-
206 BOLT; HAND BRK VALVE
(A) M10X20 W/LK WASHER 		0-50541-020-0 02 1 0710-
206 BOLT; HAND BRK VALVE
(B) 		1-48469-160-0 01 1 0710-
240 RING; STOPPER 1-48469-193-0 01 1 0710-
çizim 180813
237 183 180 177 254
BalonParca AdiParca NoAdetTipApplied Date
177 SPRING; RELAY VLV 9-48419-003-0 01 1 0710-
180 REPAIR KIT; RELAY VLV
(B) 		1-85576-449-0 01 1 0710-
180 REPAIR KIT; RELAY VLV
(A) 		1-85576-235-0 01 1 0710-1109
180 REPAIR KIT; RELAY VLV
(A) 		1-85576-484-0 01 1 1110-
183 RETAINER; VALVE 1-48419-020-0 01 1 0710-
237 VALVE; QUICK RELEASE 1-48410-726-1 01 1 0710-
254 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-
çizim 180833
180
BalonParca AdiParca NoAdetTipApplied Date
180 REPAIR KIT; RELAY VLV
(B) 		1-85576-449-0 01 1 0710-
180 REPAIR KIT; RELAY VLV
(A) 		1-85576-235-0 01 1 0710-1109
180 REPAIR KIT; RELAY VLV
(A) 		1-85576-484-0 01 1 1110-
