Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#37142) — 304 parça

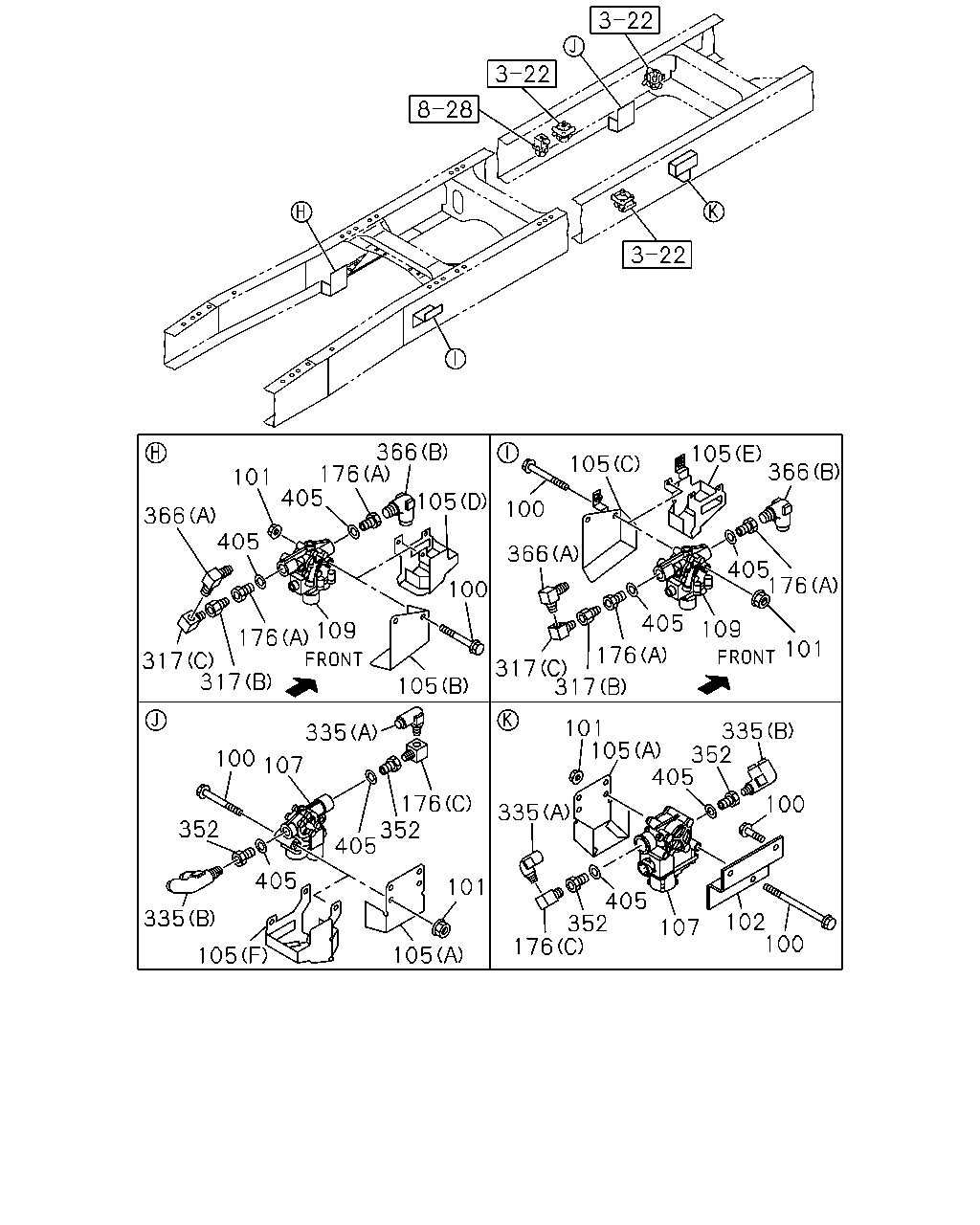

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0710-

1 10 5 10 5 10 5 10 10 7 6 10 7 6 27 164 176 5 7 6 7 6 405 176 27 27 27 176 405 27 27 405

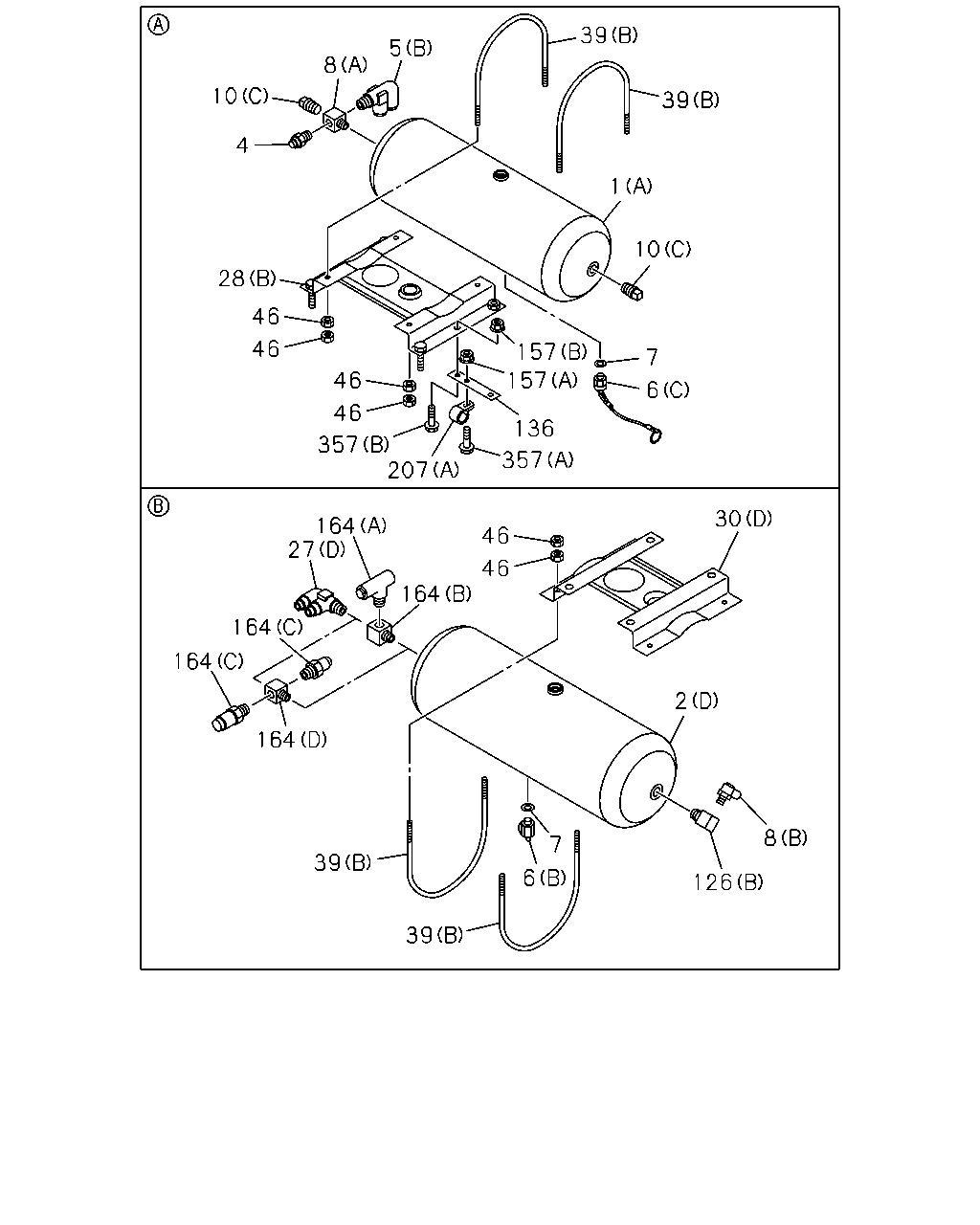

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48371-389-1	01	1	0710-
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	0710-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-
5	UNION; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0710-
6	COCK; DRAIN,AIR TANK FUEL TANK 550L+450L<EDQ> (A)	1-48312-012-0	02	1	0710-
6	COCK; DRAIN,AIR TANK (A)	1-48312-012-0	03	1	0710-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	03	1	0710-
6	COCK; DRAIN,AIR TANK (C)	8-98096-896-0	01	1	0710-
7	GASKET; DRAIN COCK FUEL TANK 550L+450L<EDQ> ID=14	1-09630-145-0	02	1	0710-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	07	1	0710-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	0710-
10	PLUG; AIR TANK (B) M22	1-09661-502-0	01	1	0710-
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	05	1	0710-0805
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	04	1	0806-
27	UNION; ELBOW,AIR TANK (A)	1-09660-778-1	01	1	0710-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
27	UNION; ELBOW,AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	0710-
27	UNION; ELBOW,AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	04	1	0710-
27	UNION; ELBOW,AIR TANK (E) PT3/8 & PT3/8	1-09661-303-0	01	1	0710-1005
27	UNION; ELBOW,AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	1006-
164	CONNECTOR; SUB AIR TANK (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0710-0805
164	CONNECTOR; SUB AIR TANK (D) PT3/8 4WAY	1-09661-489-0	01	1	0806-
164	CONNECTOR; SUB AIR TANK (B) PT3/8 3WAY	1-09661-300-0	03	1	0710-0805
164	CONNECTOR; SUB AIR TANK (B) PT3/8 3WAY	1-09661-300-0	02	1	0806-
164	CONNECTOR; SUB AIR TANK (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-0805
164	CONNECTOR; SUB AIR TANK (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0806-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0710-
176	ADAPTER (B)	1-09660-884-0	01	1	0710-
176	ADAPTER (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-
176	ADAPTER (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-
405	GASKET ID=22.5	9-09571-422-0	05	1	0710-0810
405	GASKET ID=22.5	9-09571-422-0	03	1	0811-
405	GASKET ID=22.5	9-09571-422-0	04	1	0710-
405	GASKET ID=22.5	9-09571-422-0	02	1	0710-0810
405	GASKET ID=22.5	9-09571-422-0	02	1	0811-
405	GASKET ID=22.5	9-09571-422-0	02	1	0811-

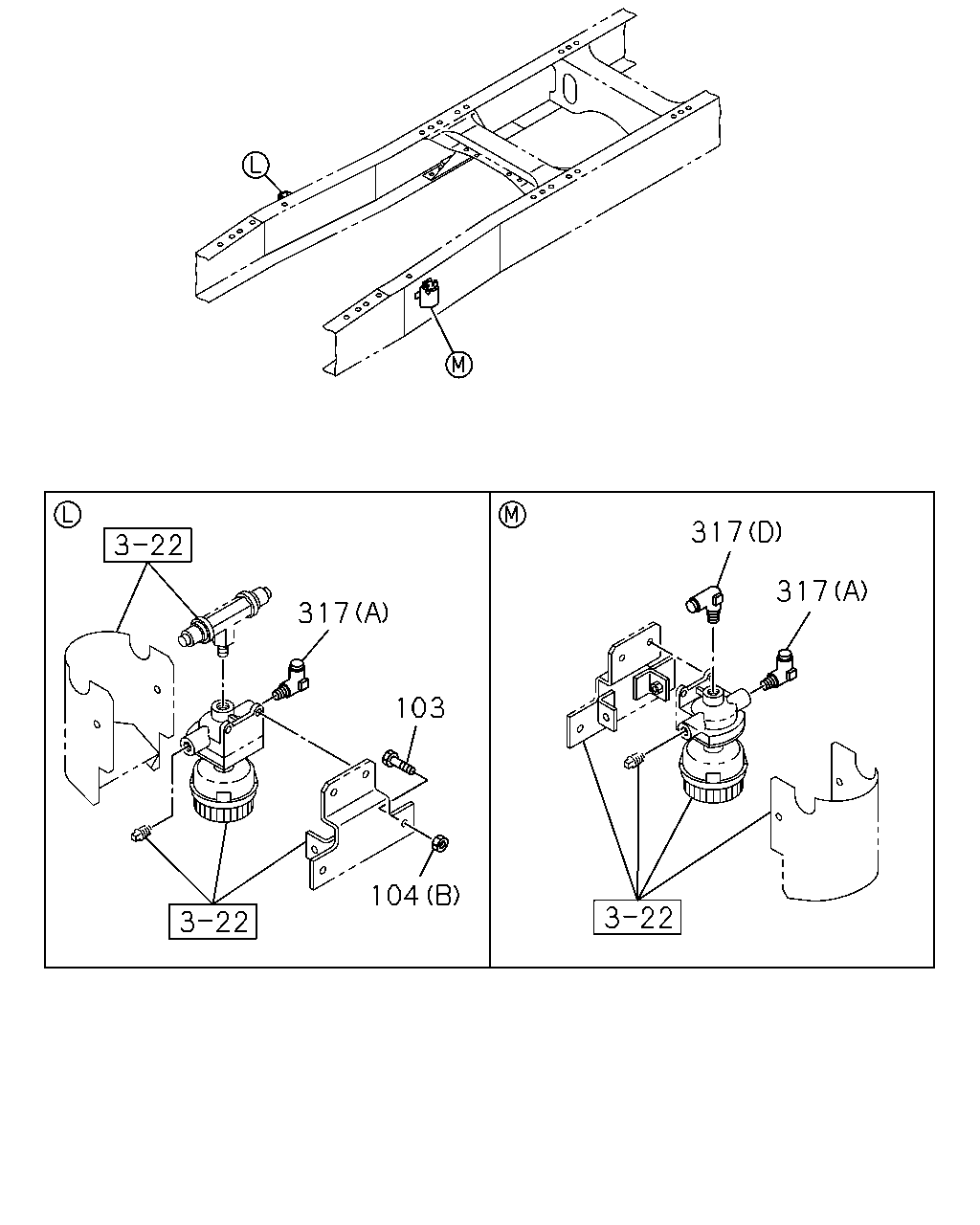

317 317 317 103 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0710-
104	NUT; BRKT (A) M14 FLANGE	0-91150-214-0	02	1	0710-0810
104	NUT; BRKT (A) M14 FLANGE	0-91180-214-0	02	1	0811-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	08	1	0710-
317	CONNECTOR; MODULATOR (B) PT3/8	1-09664-210-0	02	1	0710-
317	CONNECTOR; MODULATOR (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	0710-
317	CONNECTOR; MODULATOR (C) PT3/8 ELBOW	1-09660-696-0	02	1	0710-
317	CONNECTOR; MODULATOR (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-

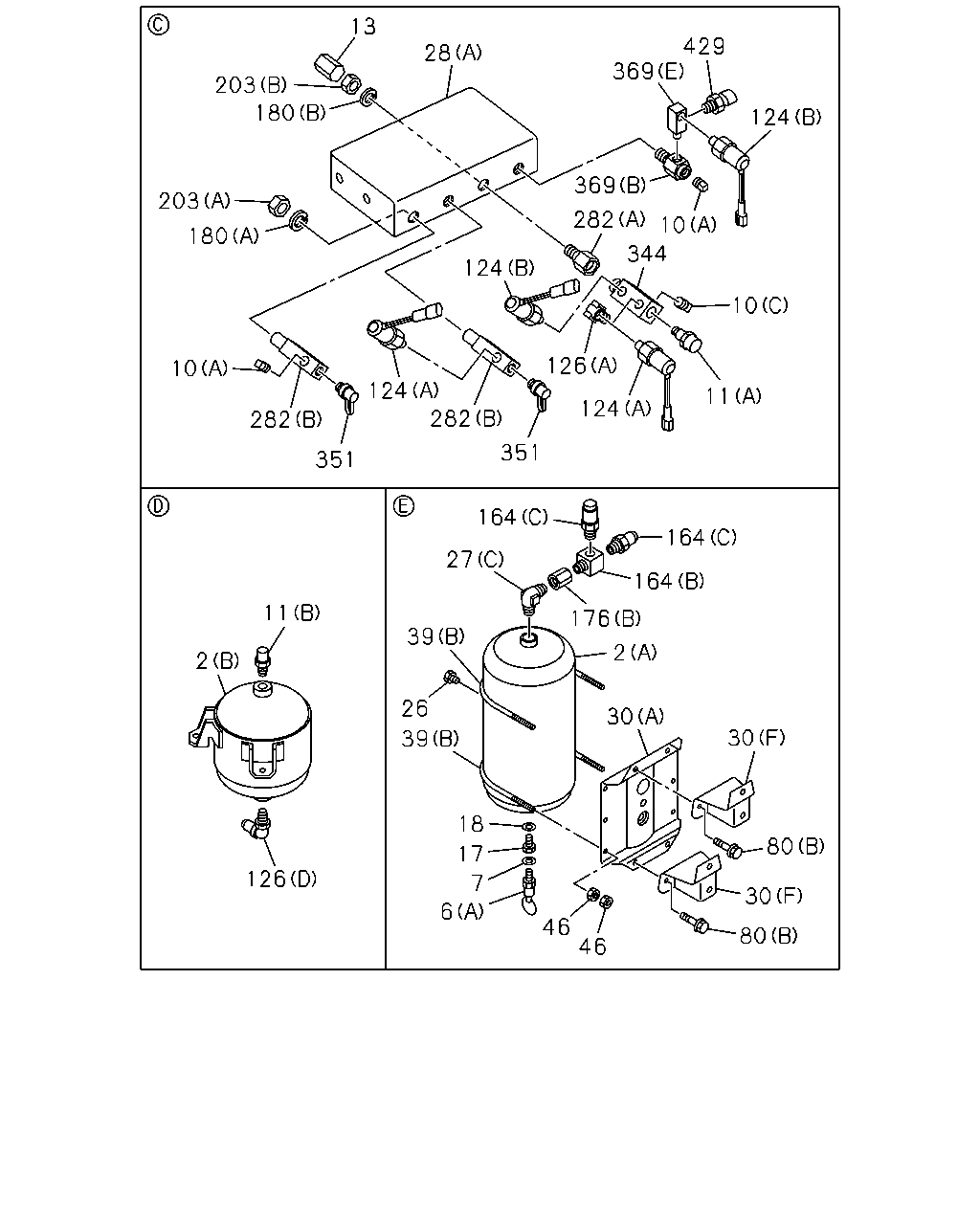

429 369 124 369 282 10 344 124 126 124 11 10 351 282 124 351 282 10 180 203 180 203 13 28 11 2 126 39 26 39 27 164 164 164 176 30 2 30 80 30 80 46 46 57 17 18 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48371-165-3	01	1	0710-
2	TANK; AIR (B)	1-48371-166-3	01	1	0710-
2	TANK; AIR (C)	1-48371-376-0	01	1	0710-
2	TANK; AIR (D)	1-48371-389-1	01	1	0710-
7	GASKET; DRAIN COCK FUEL TANK 550L+450L<EDQ> ID=14	1-09630-145-0	02	1	0710-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	07	1	0710-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	0710-
10	PLUG; AIR TANK (B) M22	1-09661-502-0	01	1	0710-
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	05	1	0710-0805
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	04	1	0806-
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	0710-
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	0710-
13	ADAPTER; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0710-
17	ADAPTER; AUTO DRAIN	9-09902-374-0	01	1	0710-
18	GASKET; ADAPTER ID=22.5	9-09571-422-0	01	1	0710-
26	PLUG; SUB AIR TANK M14	1-09661-569-0	01	1	0710-
27	UNION; ELBOW,AIR TANK (A)	1-09660-778-1	01	1	0710-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
27	UNION; ELBOW,AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	0710-
27	UNION; ELBOW,AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	04	1	0710-
27	UNION; ELBOW,AIR TANK (E) PT3/8 & PT3/8	1-09661-303-0	01	1	0710-1005
27	UNION; ELBOW,AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	1006-
28	BRACKET; AIR TANK (A)	8-98096-681-0	01	1	0710-
28	BRACKET; AIR TANK (B)	8-98098-062-0	01	1	0710-
28	BRACKET; AIR TANK (C)	8-98083-646-0	02	1	0710-
28	BRACKET; AIR TANK (D)	8-98083-661-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (A)	1-48317-473-2	01	1	0710-
30	BRACKET; AIR TANK,SUB (B)	8-98083-646-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (C)	8-98083-661-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (D)	8-98084-104-0	01	1	0710-
30	BRACKET; AIR TANK,SUB (E)	8-98085-700-0	01	1	0710-
30	BRACKET; AIR TANK,SUB (F)	8-98085-701-0	02	1	0710-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0710-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	06	1	0710-
46	NUT; U-BOLT M8	0-91110-508-0	40	1	0710-
57	BOLT; BRKT,AIR TANK TO FRAME M14X50	0-20951-450-0	02	1	0710-
80	BOLT; BRKT (A) M14X35 FLANGE	0-28661-435-0	04	1	0710-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-
80	BOLT; BRKT (C) M12X30 FLANGE	0-28651-230-0	12	1	0710-
124	SWITCH; AIR PRESSURE (A)	1-48340-065-0	02	1	0710-
124	SWITCH; AIR PRESSURE (B)	1-48340-066-0	02	1	0710-
126	CONNECTOR; ELBOW (A) PT1/4 2WAY	1-09660-693-0	01	1	0710-
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
126	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
126	CONNECTOR; ELBOW (D) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0710-
164	CONNECTOR; SUB AIR TANK (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0710-0805
164	CONNECTOR; SUB AIR TANK (D) PT3/8 4WAY	1-09661-489-0	01	1	0806-
164	CONNECTOR; SUB AIR TANK (B) PT3/8 3WAY	1-09661-300-0	03	1	0710-0805
164	CONNECTOR; SUB AIR TANK (B) PT3/8 3WAY	1-09661-300-0	02	1	0806-
164	CONNECTOR; SUB AIR TANK (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-0805
164	CONNECTOR; SUB AIR TANK (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0806-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0710-
176	ADAPTER (B)	1-09660-884-0	01	1	0710-
176	ADAPTER (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-
176	ADAPTER (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-
180	WASHER; LK (A) ID=18.2	0-91510-518-0	03	1	0710-
180	WASHER; LK (B) ID=16.2	0-91510-516-0	01	1	0710-
203	NUT (A) M18	0-91110-518-0	03	1	0710-
203	NUT (B) M16	0-91110-516-0	01	1	0710-
282	UNION; 2 WAY (B)	1-09661-593-0	02	1	0710-
282	UNION; 2 WAY (A)	1-09650-222-1	01	1	0710-
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	0710-
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0710-
369	CONNECTOR; 3WAY (A)	1-09660-970-0	01	1	0710-
369	CONNECTOR; 3WAY (B)	1-09661-092-0	01	1	0710-
369	CONNECTOR; 3WAY (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	02	1	0710-
369	CONNECTOR; 3WAY (D)	1-09661-284-0	01	1	0710-
369	CONNECTOR; 3WAY (E) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	0710-
429	SENSOR THREAD R1/4	1-80220-023-1	01	1	0710-

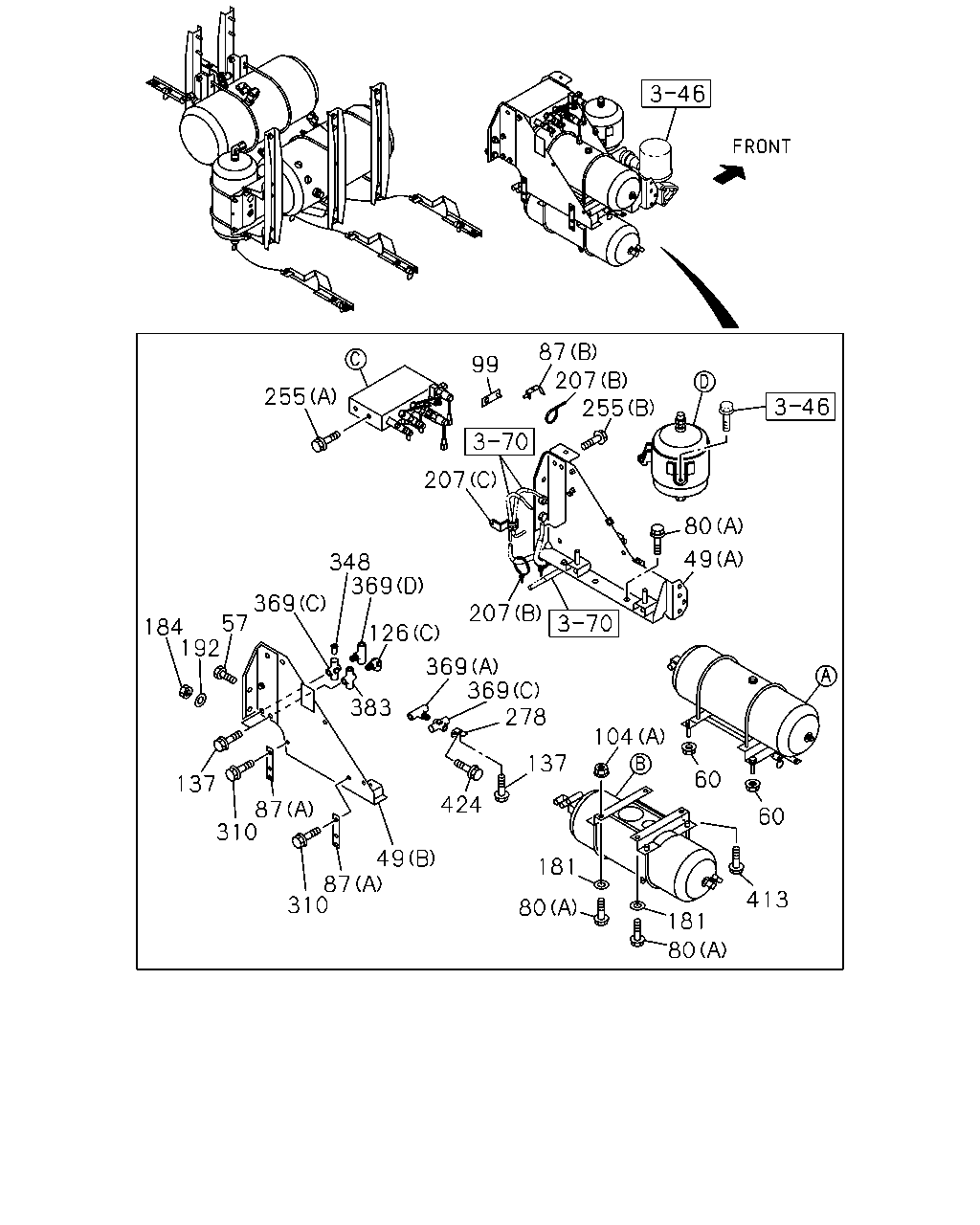

255 99 87 207 255 207 348 369 57 192 184 369 126 369 383 369 278 137 424 49 87 310 310 137 87 80 181 104 60 60 413 181 80 49 80 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	BRACKET; AIR TANK (A)	8-98096-895-0	01	1	0710-
49	BRACKET; AIR TANK (B)	8-98096-982-0	01	1	0710-0801
49	BRACKET; AIR TANK (B)	8-98110-259-0	01	1	0802-
57	BOLT; BRKT,AIR TANK TO FRAME M14X50	0-20951-450-0	02	1	0710-
60	NUT; AIR TANK FIX M14 FLANGE	0-91180-214-0	02	1	0710-
80	BOLT; BRKT (A) M14X35 FLANGE	0-28661-435-0	04	1	0710-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-
80	BOLT; BRKT (C) M12X30 FLANGE	0-28651-230-0	12	1	0710-
87	BRACKET; AIR PIPE JOINT (A) L=130	1-47478-959-0	02	1	0710-
87	BRACKET; AIR PIPE JOINT (B)	8-98060-053-0	01	1	0710-
99	PLATE; STUD BOLT	8-98084-117-0	01	1	0710-
104	NUT; BRKT (A) M14 FLANGE	0-91150-214-0	02	1	0710-0810
104	NUT; BRKT (A) M14 FLANGE	0-91180-214-0	02	1	0811-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	08	1	0710-
126	CONNECTOR; ELBOW (A) PT1/4 2WAY	1-09660-693-0	01	1	0710-
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
126	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
126	CONNECTOR; ELBOW (D) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0710-
137	BOLT; BRKT FUEL TANK 550L<EDP> M8X20 FLANGE	0-28650-820-0	06	1	0710-
137	BOLT; BRKT FUEL TANK 550L+450L<EDQ> M8X20 FLANGE	0-28650-820-0	10	1	0710-
137	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	0710-
137	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-
181	WASHER; LK,AIR TANK ID=14.2	0-91510-514-0	02	1	0710-
184	NUT; BRKT M14	0-91110-514-0	03	1	0710-
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	05	1	0710-
207	CLIP; AIR PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0710-
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	05	1	0710-
207	CLIP; AIR PIPE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0710-
255	BOLT; CONN (A) M12X30 FLANGE	0-28651-230-0	01	1	0710-
255	BOLT; CONN (B) M12X40 FLANGE	0-28651-240-0	02	1	0710-
278	BRACKET; CONNECTOR	1-47477-648-0	01	1	0710-
310	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	02	1	0710-
310	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-
348	PLUG OD=12	1-09661-617-0	01	1	0710-
369	CONNECTOR; 3WAY (A)	1-09660-970-0	01	1	0710-
369	CONNECTOR; 3WAY (B)	1-09661-092-0	01	1	0710-
369	CONNECTOR; 3WAY (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	02	1	0710-
369	CONNECTOR; 3WAY (D)	1-09661-284-0	01	1	0710-
369	CONNECTOR; 3WAY (E) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	0710-
383	UNION; 3 WAY DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0710-
413	BOLT M14X60	0-20951-460-0	02	1	0710-
424	BOLT; UNION M8X12 FLANGE	0-28050-812-0	01	1	0710-

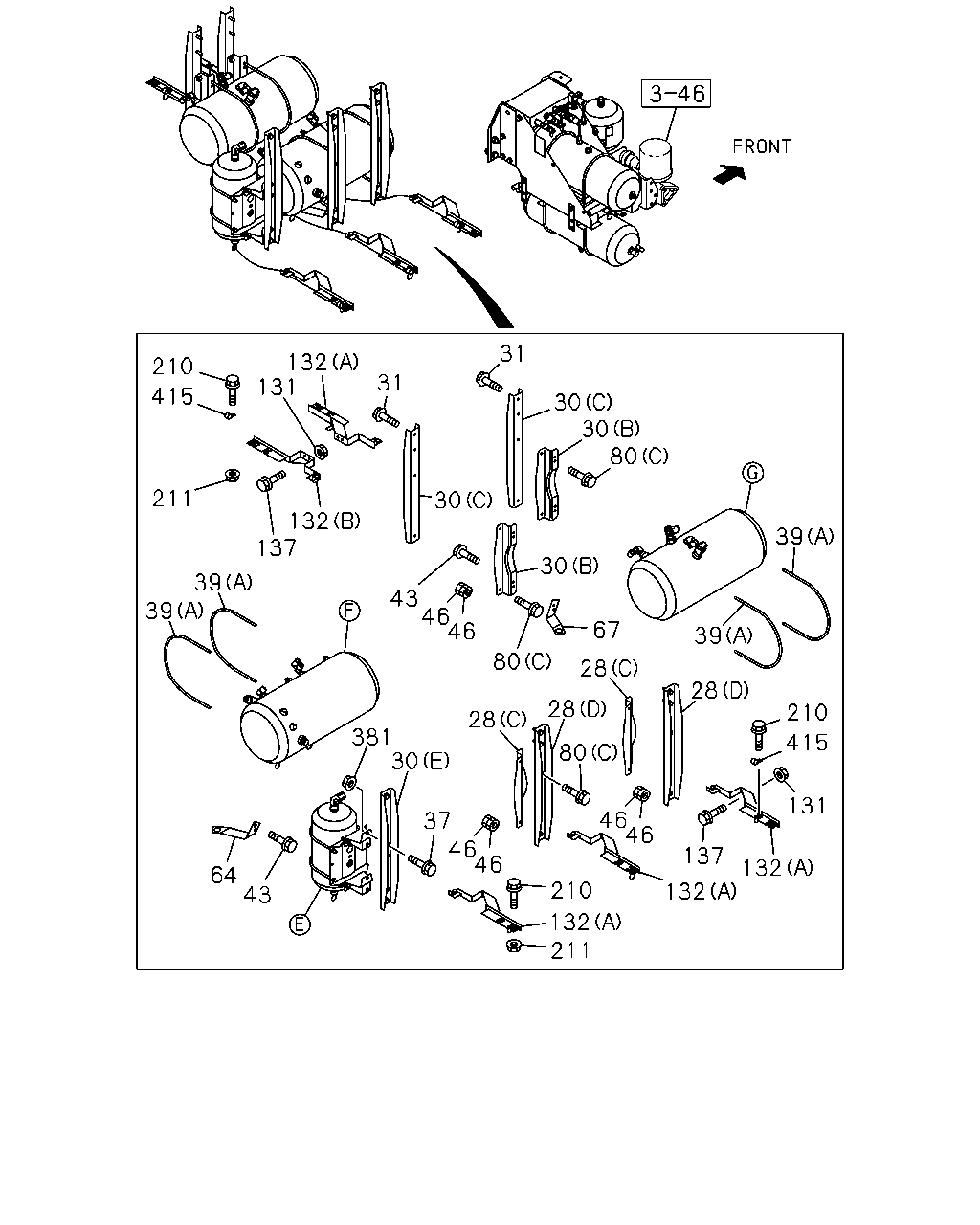

210 415 131 132 31 31 30 30 80 30 132 137 211 39 39 43 46 46 30 67 80 28 39 39 210 28 415 131 28 80 28 30 381 64 43 37 46 46 210 132 211 132 137 46 46 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK (A)	8-98096-681-0	01	1	0710-
28	BRACKET; AIR TANK (B)	8-98098-062-0	01	1	0710-
28	BRACKET; AIR TANK (C)	8-98083-646-0	02	1	0710-
28	BRACKET; AIR TANK (D)	8-98083-661-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (A)	1-48317-473-2	01	1	0710-
30	BRACKET; AIR TANK,SUB (B)	8-98083-646-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (C)	8-98083-661-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (D)	8-98084-104-0	01	1	0710-
30	BRACKET; AIR TANK,SUB (E)	8-98085-700-0	01	1	0710-
30	BRACKET; AIR TANK,SUB (F)	8-98085-701-0	02	1	0710-
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	04	1	0710-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	05	1	0710-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0710-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	06	1	0710-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	02	1	0710-
46	NUT; U-BOLT M8	0-91110-508-0	40	1	0710-
64	STAY; AIR TANK,MAIN	8-98083-662-0	01	1	0710-
67	STAY; SUB TANK	8-98083-663-0	01	1	0710-
80	BOLT; BRKT (A) M14X35 FLANGE	0-28661-435-0	04	1	0710-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-
80	BOLT; BRKT (C) M12X30 FLANGE	0-28651-230-0	12	1	0710-
131	NUT; BRKT FIX FUEL TANK 550L<EDP> M8 FLANGE	0-91180-108-0	06	1	0710-
131	NUT; BRKT FIX FUEL TANK 550L+450L<EDQ> M8 FLANGE	0-91180-108-0	10	1	0710-
132	BRACKET; STRING GUIDE FUEL TANK 550L<EDP> (A)	8-98097-722-0	03	1	0710-
132	BRACKET; STRING GUIDE FUEL TANK 550L+450L<EDQ> (A)	8-98097-722-0	04	1	0710-
132	BRACKET; STRING GUIDE FUEL TANK 550L+450L<EDQ> (B)	8-98097-724-0	01	1	0710-
137	BOLT; BRKT FUEL TANK 550L<EDP> M8X20 FLANGE	0-28650-820-0	06	1	0710-
137	BOLT; BRKT FUEL TANK 550L+450L<EDQ> M8X20 FLANGE	0-28650-820-0	10	1	0710-
137	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	0710-
137	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-
210	BOLT; STRING GUIDE FUEL TANK 550L<EDP> M8X16 FLANGE	0-28050-816-0	06	1	0710-
210	BOLT; STRING GUIDE FUEL TANK 550L+450L<EDQ> M8X16 FLANGE	0-28050-816-0	10	1	0710-
211	NUT; STRING GUIDE FUEL TANK 550L<EDP> M8 FLANGE	0-91180-108-0	06	1	0710-
211	NUT; STRING GUIDE FUEL TANK 550L+450L<EDQ> M8 FLANGE	0-91180-108-0	10	1	0710-
381	NUT; SUB TANK M12 FLANGE	0-91180-212-0	01	1	0710-
415	CLIP; STRING GUIDE FUEL TANK 550L<EDP> ID=16 L=20	0-95235-535-0	03	1	0710-
415	CLIP; STRING GUIDE FUEL TANK 550L<EDP> ID=6 L=20	9-09524-535-0	03	1	0710-
415	CLIP; STRING GUIDE FUEL TANK 550L+450L<EDQ> ID=16 L=20	0-95235-535-0	05	1	0710-
415	CLIP; STRING GUIDE FUEL TANK 550L+450L<EDQ> ID=6 L=20	9-09524-535-0	05	1	0710-

39 5 8 10 39 4 1 10 28 46 46 157 7 46 157 6 46 136 357 207 357 30 164 27 46 46 164 164 164 2 164 8 7 39 6 126 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48371-389-1	01	1	0710-
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	0710-
2	TANK; AIR (A)	1-48371-165-3	01	1	0710-
2	TANK; AIR (B)	1-48371-166-3	01	1	0710-
2	TANK; AIR (C)	1-48371-376-0	01	1	0710-
2	TANK; AIR (D)	1-48371-389-1	01	1	0710-
4	CONNECTOR; FLARE	1-09661-134-0	01	1	0710-0805
4	CONNECTOR; FLARE DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0806-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-
5	UNION; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0710-
6	COCK; DRAIN,AIR TANK FUEL TANK 550L+450L<EDQ> (A)	1-48312-012-0	02	1	0710-
6	COCK; DRAIN,AIR TANK (A)	1-48312-012-0	03	1	0710-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	03	1	0710-
6	COCK; DRAIN,AIR TANK (C)	8-98096-896-0	01	1	0710-
7	GASKET; DRAIN COCK FUEL TANK 550L+450L<EDQ> ID=14	1-09630-145-0	02	1	0710-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	07	1	0710-
8	CONNECTOR; AIR TANK (A) PT3/8 4WAY	1-09661-489-0	01	1	0710-0805
8	CONNECTOR; AIR TANK (A)	1-09656-708-0	01	1	0806-
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	0710-
10	PLUG; AIR TANK (B) M22	1-09661-502-0	01	1	0710-
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	05	1	0710-0805
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	04	1	0806-
27	UNION; ELBOW,AIR TANK (A)	1-09660-778-1	01	1	0710-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
27	UNION; ELBOW,AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	0710-
27	UNION; ELBOW,AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	04	1	0710-
27	UNION; ELBOW,AIR TANK (E) PT3/8 & PT3/8	1-09661-303-0	01	1	0710-1005
27	UNION; ELBOW,AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	1006-
28	BRACKET; AIR TANK (A)	8-98096-681-0	01	1	0710-
28	BRACKET; AIR TANK (B)	8-98098-062-0	01	1	0710-
28	BRACKET; AIR TANK (C)	8-98083-646-0	02	1	0710-
28	BRACKET; AIR TANK (D)	8-98083-661-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (A)	1-48317-473-2	01	1	0710-
30	BRACKET; AIR TANK,SUB (B)	8-98083-646-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (C)	8-98083-661-0	02	1	0710-
30	BRACKET; AIR TANK,SUB (D)	8-98084-104-0	01	1	0710-
30	BRACKET; AIR TANK,SUB (E)	8-98085-700-0	01	1	0710-
30	BRACKET; AIR TANK,SUB (F)	8-98085-701-0	02	1	0710-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0710-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	06	1	0710-
46	NUT; U-BOLT M8	0-91110-508-0	40	1	0710-
126	CONNECTOR; ELBOW (A) PT1/4 2WAY	1-09660-693-0	01	1	0710-
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
126	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
126	CONNECTOR; ELBOW (D) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0710-
136	BRACKET; CLIP L=125	1-47477-975-1	01	1	0710-
157	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0710-
157	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0710-
164	CONNECTOR; SUB AIR TANK (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0710-0805
164	CONNECTOR; SUB AIR TANK (D) PT3/8 4WAY	1-09661-489-0	01	1	0806-
164	CONNECTOR; SUB AIR TANK (B) PT3/8 3WAY	1-09661-300-0	03	1	0710-0805
164	CONNECTOR; SUB AIR TANK (B) PT3/8 3WAY	1-09661-300-0	02	1	0806-
164	CONNECTOR; SUB AIR TANK (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-0805
164	CONNECTOR; SUB AIR TANK (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0806-
207	CLIP; AIR PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0710-
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	05	1	0710-
207	CLIP; AIR PIPE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0710-
357	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-
357	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-

366 176 105 100 100 109 176 405 101 405 366 317 317 105 366 105 317 317 405 176 109 405 366 105 176 101 101 105 405 335 405 352 107 100 335 352 102 101 176 335 107 100 352 335 405 405 352 105 100 176 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	0710-
100	BOLT; MODULATOR M8X35 FLANGE	0-28650-835-0	02	1	0710-
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	0710-1504
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	0710-1504
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1505-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0710-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	0710-
102	BRACKET; MODULATOR	1-47471-180-0	01	1	0710-1504
102	BRACKET; MODULATOR	8-98300-018-0	01	1	1505-
105	COVER; MODULATOR (B)	8-98081-578-0	01	1	0710-1504
105	COVER; MODULATOR (E)	8-98300-151-0	01	1	1505-
105	COVER; MODULATOR (C)	8-98081-826-0	01	1	0710-1504
105	COVER; MODULATOR (D)	8-98300-153-0	01	1	1505-
105	COVER; MODULATOR (A)	1-47471-354-0	01	1	0710-1504
105	COVER; MODULATOR (A)	1-47471-354-0	01	1	0710-1504
105	COVER; MODULATOR (F)	8-98300-150-0	01	1	1505-
105	COVER; MODULATOR (A)	8-98302-925-0	01	1	1505-
107	MODULATOR; RR	1-48240-115-0	01	1	0710-1504
107	MODULATOR; RR	1-48240-115-0	01	1	0710-1504
107	MODULATOR; RR	8-98215-454-0	01	1	1505-
107	MODULATOR; RR	8-98215-454-0	01	1	1505-
109	MODULATOR; FRT	1-48240-115-0	02	1	0710-1504
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0710-
176	ADAPTER (B)	1-09660-884-0	01	1	0710-
176	ADAPTER (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-
176	ADAPTER (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-
317	CONNECTOR; MODULATOR (B) PT3/8	1-09664-210-0	02	1	0710-
317	CONNECTOR; MODULATOR (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	0710-
317	CONNECTOR; MODULATOR (C) PT3/8 ELBOW	1-09660-696-0	02	1	0710-
317	CONNECTOR; MODULATOR (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
335	CONNECTOR; MODULATOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
335	CONNECTOR; MODULATOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-
335	CONNECTOR; MODULATOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-
335	CONNECTOR; MODULATOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0710-
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0710-
366	CONNECTOR; NYLON TUBE (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	0710-
366	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-
405	GASKET ID=22.5	9-09571-422-0	05	1	0710-0810
405	GASKET ID=22.5	9-09571-422-0	03	1	0811-
405	GASKET ID=22.5	9-09571-422-0	04	1	0710-
405	GASKET ID=22.5	9-09571-422-0	02	1	0710-0810
405	GASKET ID=22.5	9-09571-422-0	02	1	0811-
405	GASKET ID=22.5	9-09571-422-0	02	1	0811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
