◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#37134) — 105 parça

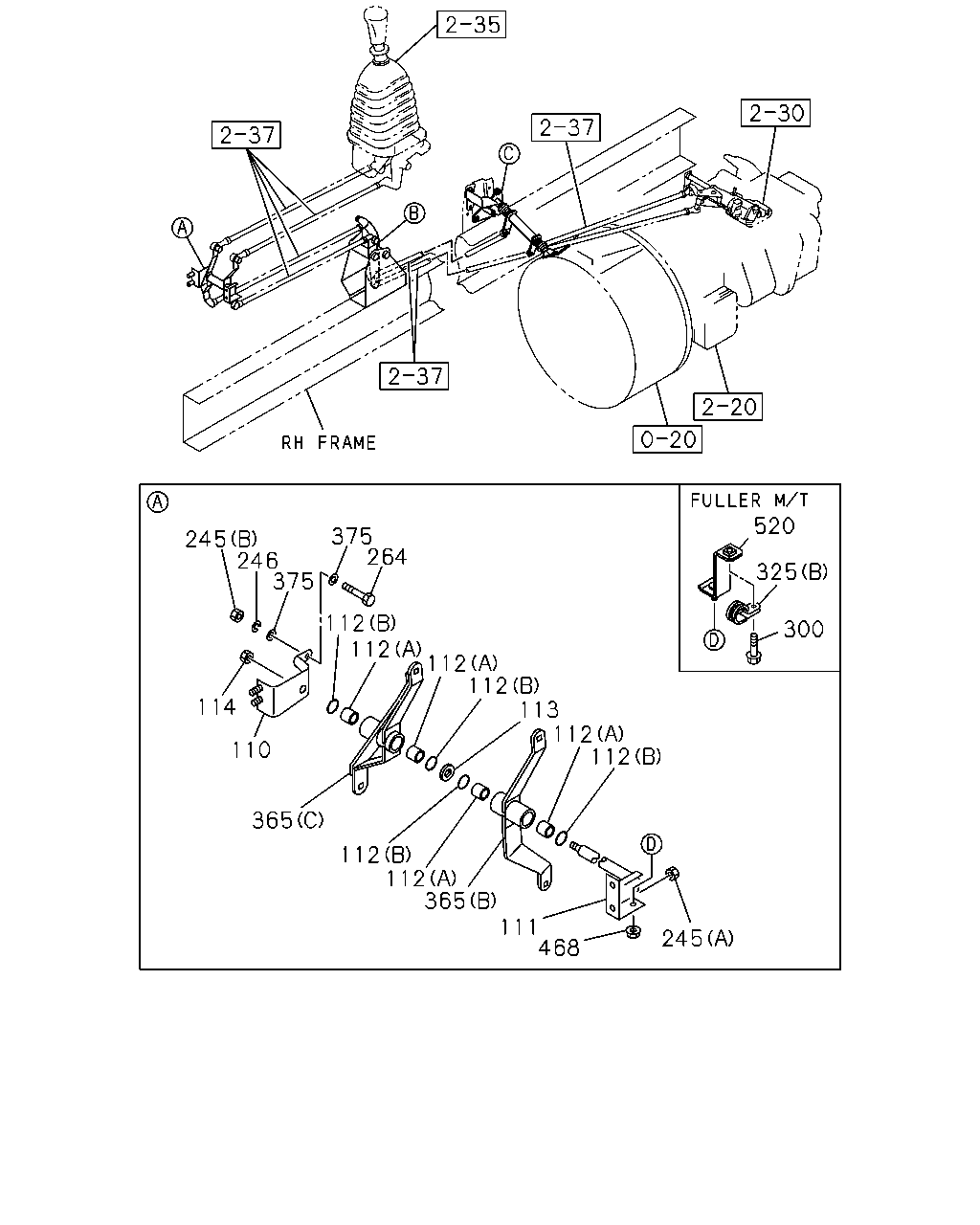

çizim 180559
245 246 375 375 264 112 112 112 112 113 112 112 300 325 520 245 468 111 365 112 112 365 110 114
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-839-1 01 1 0710-
111 SHAFT; RELAY LEVER,1ST 1-33619-777-2 01 1 0710-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0710-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0710-
113 WASHER; RELAY LEVER
ID=17 OD=30 		0-91610-516-0 01 1 0710-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0710-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-1304
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-110-0 02 1 1305-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0710-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0710-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0710-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0710-0801
325 CLIP; NYLON TUBE
(A) L=170.3 		1-09987-182-0 01 1 0802-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0710-
365 LEVER; RELAY,SELECT
(B) 		1-33651-822-3 01 1 0710-
365 LEVER; RELAY,SELECT
(C) 		1-33651-823-3 01 1 0710-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0710-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0710-
520 BRACKET; NYLON TUBE 1-79996-628-0 01 1 0710-

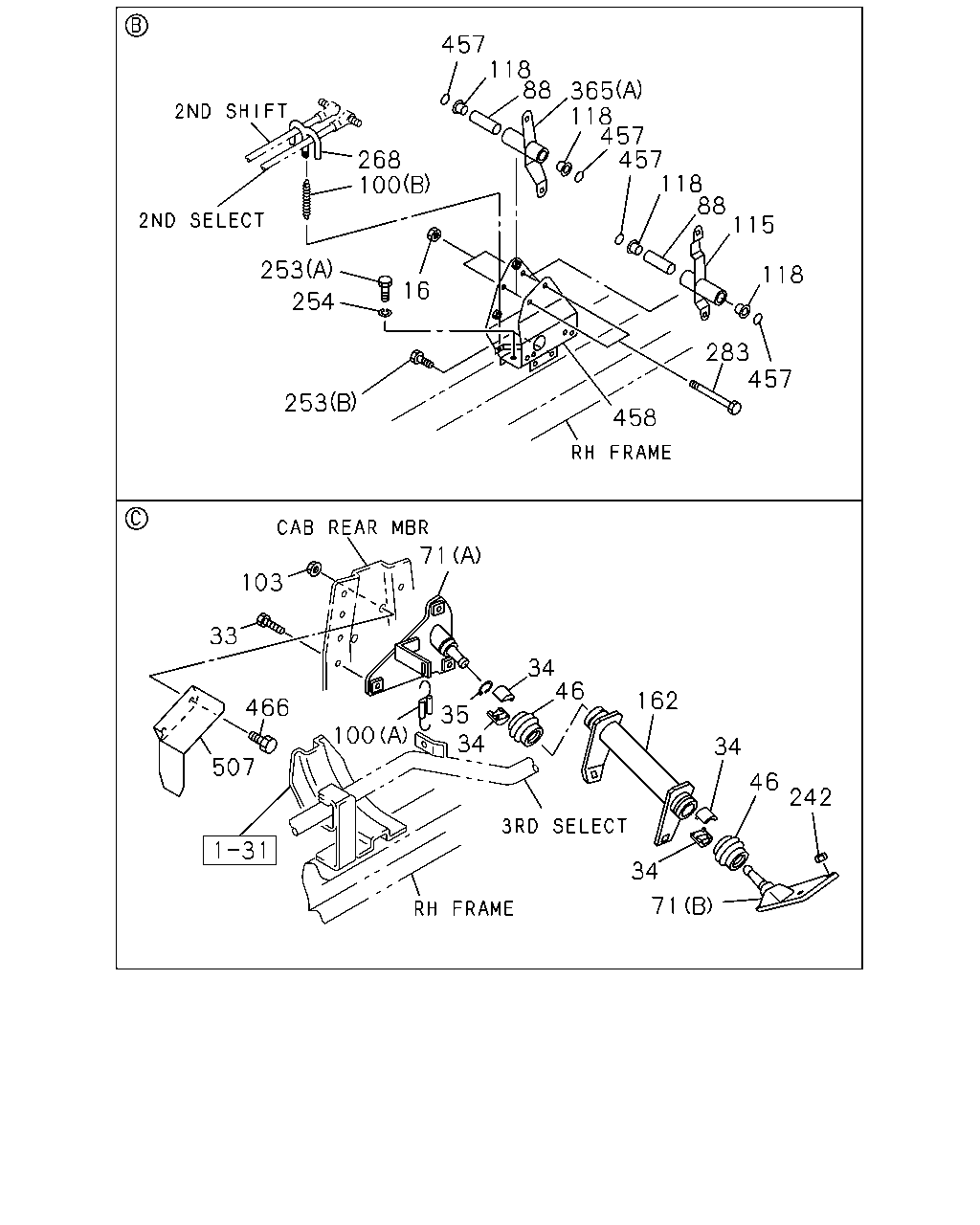

çizim 180560
457 118 88 365 118 457 457 118 88 115 118 283 457 458 253 254 16 253 100 268 103 33 466 507 71 100 35 34 34 46 162 34 46 242 34 71
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0710-
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0710-1003
33 BOLT; BRKT,3RD RELAY LEVER
M10X35 FLANGE 		0-28651-035-0 03 1 1004-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0710-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0710-
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0710-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0710-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-706-0 01 1 0710-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0710-
100 SPRING
(A) 		1-09583-319-0 01 1 0710-
100 SPRING
(B) 		1-09583-351-0 01 1 0710-
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0710-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0710-
162 LEVER; RELAY 1-33651-625-1 01 1 0710-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0710-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0710-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0710-
254 WASHER; LK,RELAY LEVER
ID=14.2 		0-91510-614-0 02 1 0710-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0710-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0710-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0710-
365 LEVER; RELAY,SELECT
(B) 		1-33651-822-3 01 1 0710-
365 LEVER; RELAY,SELECT
(C) 		1-33651-823-3 01 1 0710-
457 GASKET 1-09623-594-0 04 1 0710-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0710-
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0801-
507 PROTECTOR; HEAT 8-98096-654-1 01 1 0710-

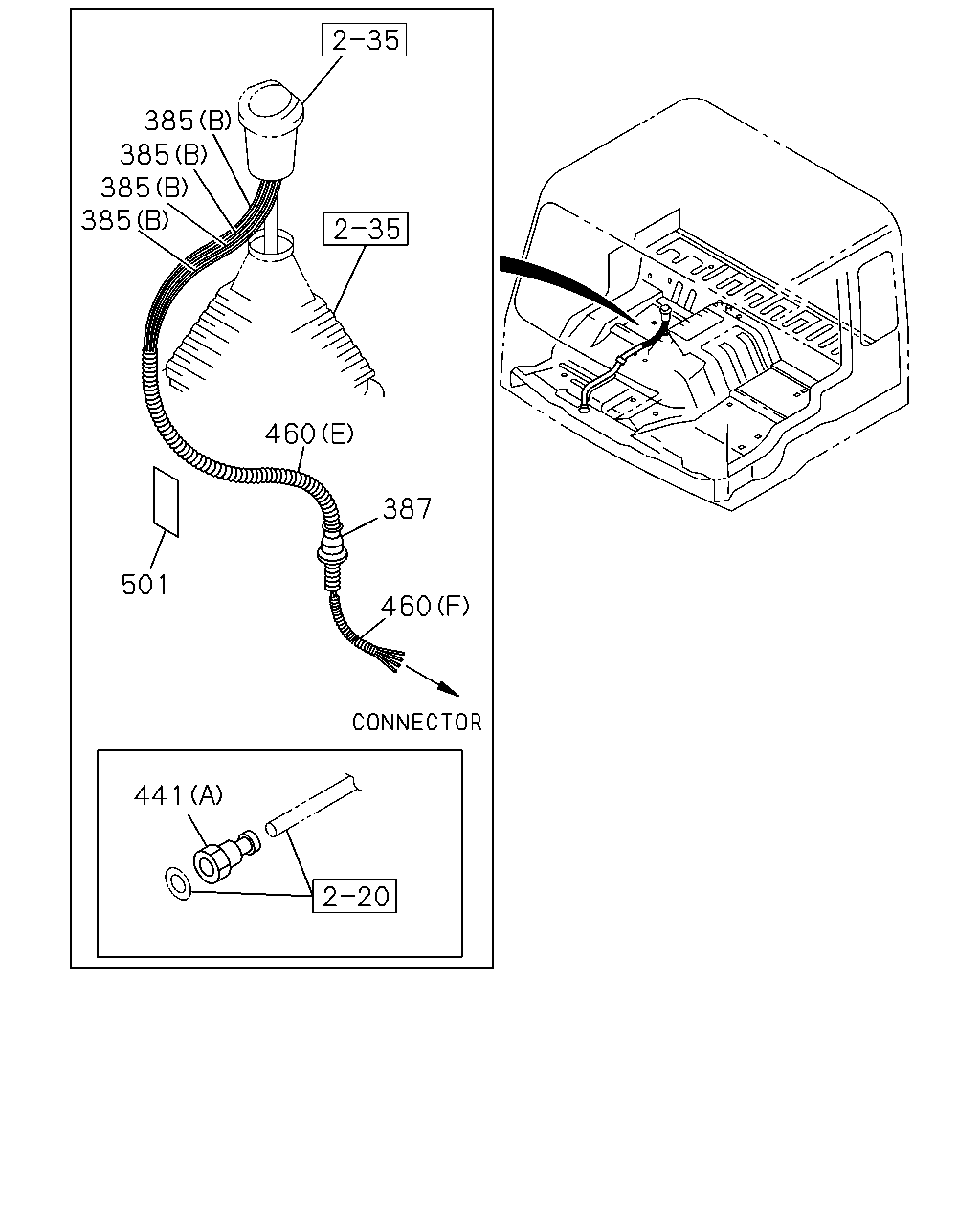

çizim 180561
385 385 385 385 460 501 441 460 387
BalonParca AdiParca NoAdetTipApplied Date
385 TUBE; NYLON
(B) L=1850 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(B) L=1850 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(A) L=3240 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(A) L=3330 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(A) L=3345 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(A) L=3760 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0710-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0710-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0710-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805-
460 TUBE; CORRUGATE
(F) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0710-
460 TUBE; CORRUGATE
(F) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
460 TUBE; CORRUGATE
(D) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(E) L=1140 SERVICED BY L=2000 		1-83129-338-0 01 1 0710-
460 TUBE; CORRUGATE
(A) L=2610 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-1 04 1 0710-

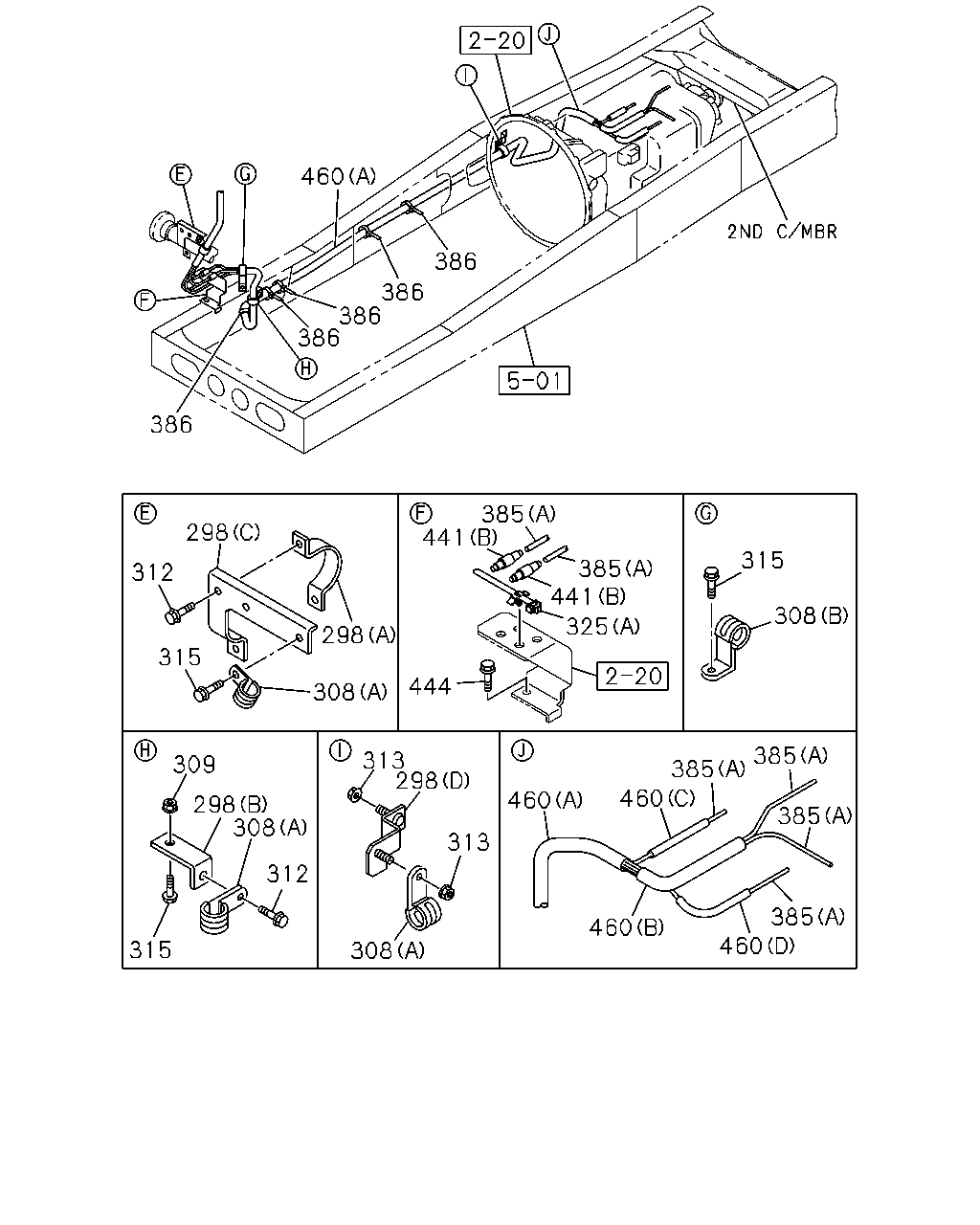

çizim 180572
460 386 386 386 386 386 385 441 298 315 385 441 312 308 325 298 315 444 308 313 298 385 309 385 460 460 298 308 385 313 312 385 460 460 315 308
BalonParca AdiParca NoAdetTipApplied Date
298 BRACKET
(A) 		1-47471-479-0 01 1 0710-
298 BRACKET
(B) 		1-47479-477-0 01 1 0710-
298 BRACKET
(C) 		8-98084-094-0 01 1 0710-
298 BRACKET
(D) 		8-98085-717-0 01 1 0710-
308 CLIP; PIPE
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-
308 CLIP; PIPE
(A) ID=19 L=28 		0-95235-856-0 01 1 0710-
308 CLIP; PIPE
(B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0710-
309 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
312 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0710-
313 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0710-0801
325 CLIP; NYLON TUBE
(A) L=170.3 		1-09987-182-0 01 1 0802-
385 TUBE; NYLON
(B) L=1850 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(B) L=1850 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
385 TUBE; NYLON
(A) L=3240 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0710-
385 TUBE; NYLON
(A) L=3330 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0710-
385 TUBE; NYLON
(A) L=3345 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0710-
385 TUBE; NYLON
(A) L=3760 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0710-
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 05 1 0710-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0710-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0710-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805-
444 BOLT; BRKT,NIPPLE
M8X30 FLANGE 		0-28650-830-0 01 1 0710-
460 TUBE; CORRUGATE
(F) ID=10 L=400 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0710-
460 TUBE; CORRUGATE
(F) L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
460 TUBE; CORRUGATE
(D) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
460 TUBE; CORRUGATE
(E) L=1140 SERVICED BY L=2000 		1-83129-338-0 01 1 0710-
460 TUBE; CORRUGATE
(A) L=2610 SERVICED BY L=6000 		1-83129-337-0 01 1 0710-
