Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#37126) — 79 parça

24 167 153 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-
56	BRACKET; FLEX HOSE	8-98085-695-0	01	1	0710-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1726 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1718 SERVICED BY L=1800	1-47428-768-0	01	1	0805-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-
167	BRACKET; UNION	1-71117-183-3	01	1	0710-

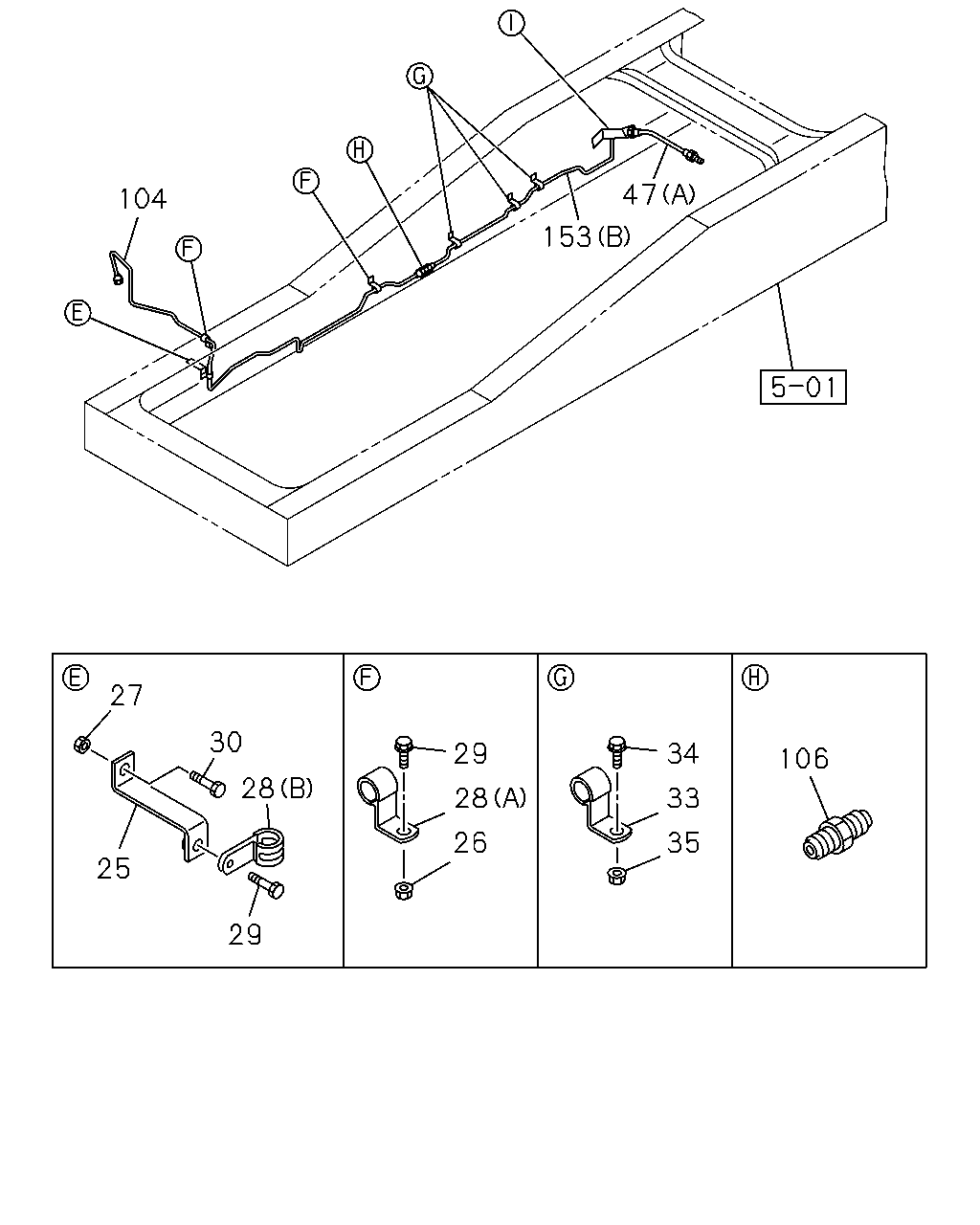

47 153 106 34 33 35 29 28 26 28 30 27 25 29 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0710-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0710-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0710-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0710-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0710-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0710-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0710-
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	0710-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	0710-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0710-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1726 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1718 SERVICED BY L=1800	1-47428-768-0	01	1	0805-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-

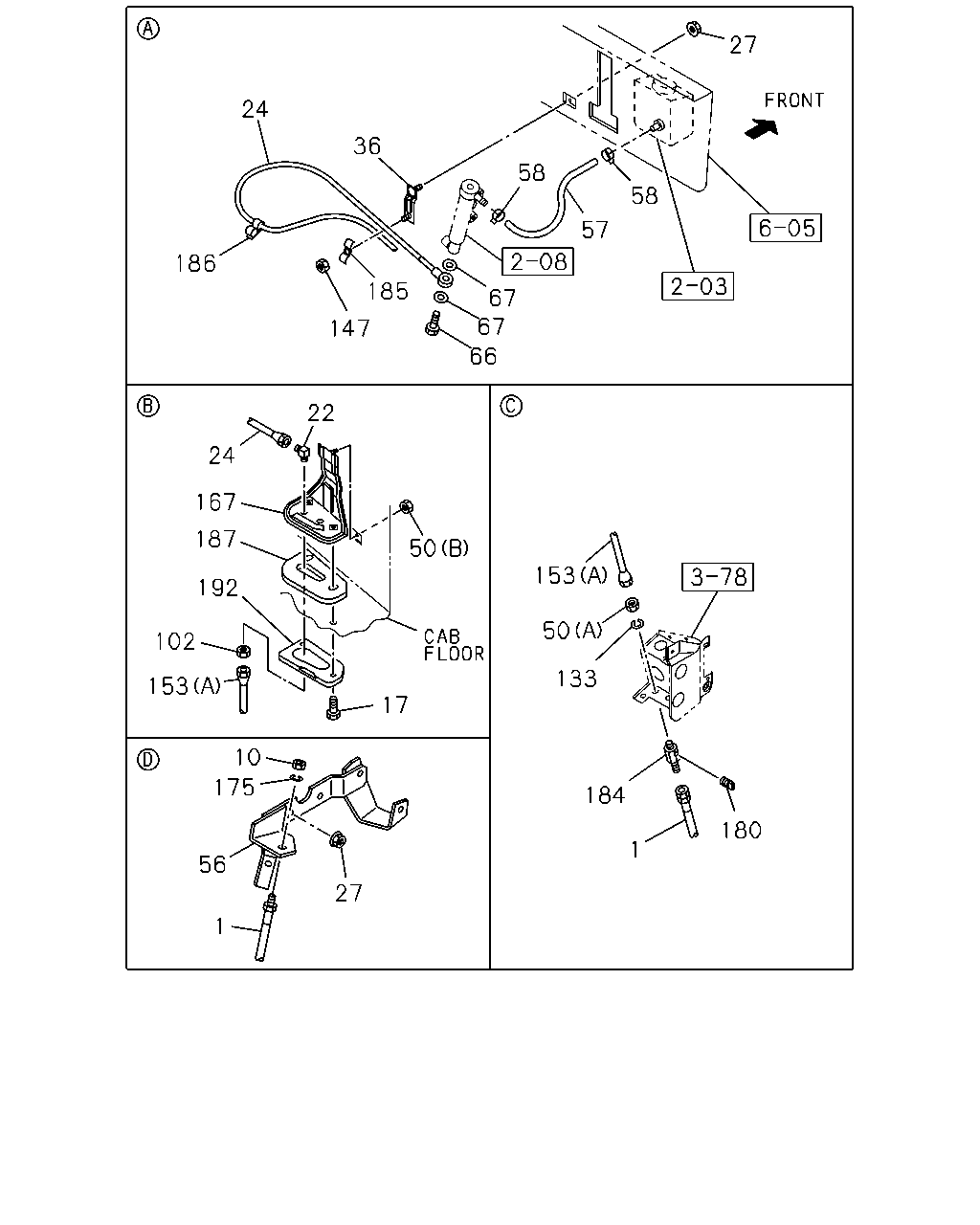

27 24 36 58 58 57 186 185 67 67 147 66 22 24 167 187 50 153 192 50 102 133 153 17 10 175 184 180 1 56 27 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0710-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0710-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-
36	BRACKET; CLIP	1-71117-191-1	01	1	0710-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0710-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0710-
56	BRACKET; FLEX HOSE	8-98085-695-0	01	1	0710-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0710-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0710-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0710-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1726 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1718 SERVICED BY L=1800	1-47428-768-0	01	1	0805-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-
167	BRACKET; UNION	1-71117-183-3	01	1	0710-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-
180	PLUG; PIPE	9-09204-510-0	01	1	0710-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0710-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0710-
186	HOLDER; CLIP	8-94107-710-0	02	1	0710-
187	SEAL; BRKT	1-71117-222-0	01	1	0710-
192	PLATE	1-71117-221-0	01	1	0710-

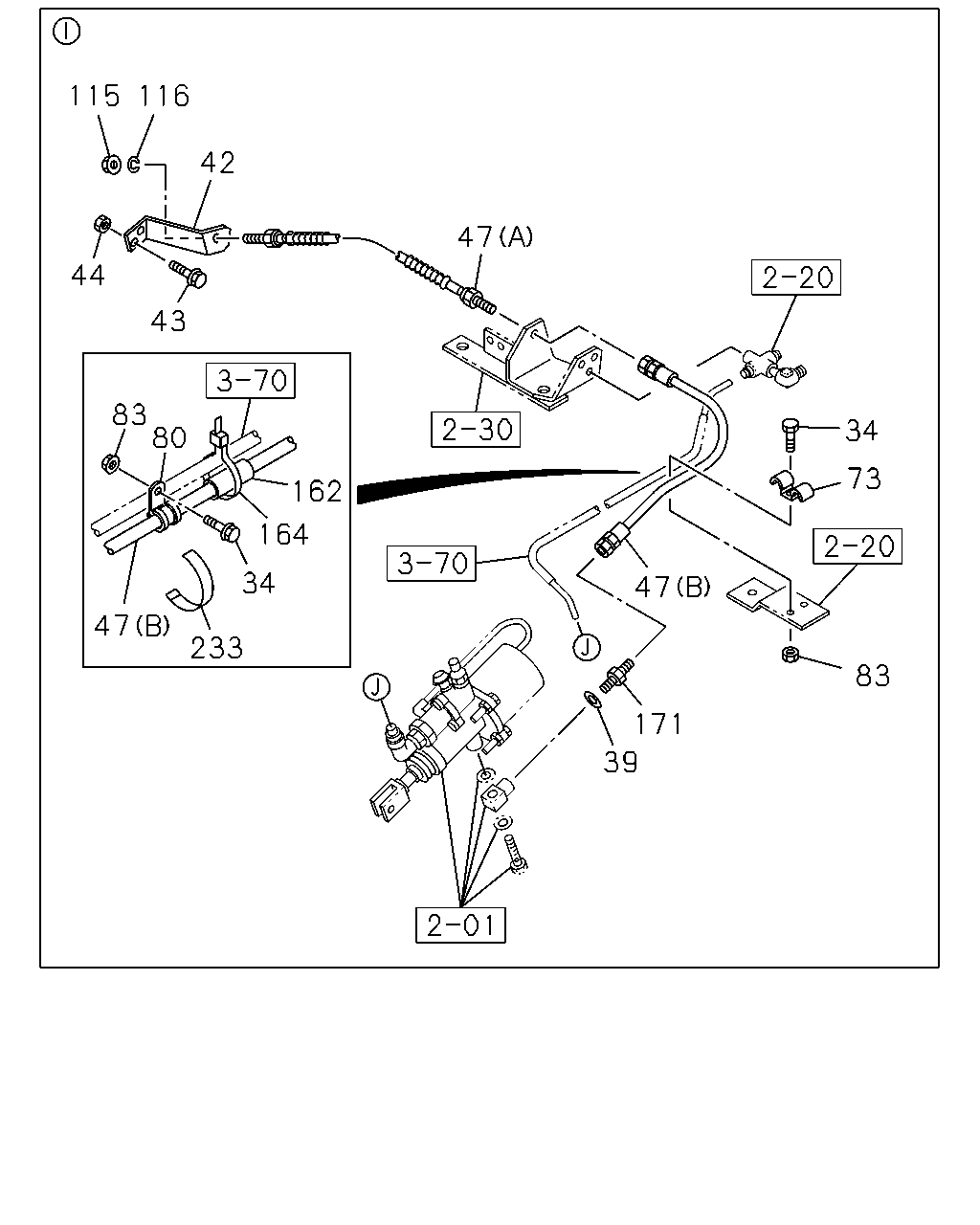

115 116 44 43 42 83 80 47 233 34 164 162 47 34 73 83 47 171 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0710-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0710-
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-
42	BRACKET; FLEX HOSE,CLU CONT	8-98080-029-0	01	1	0710-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	0710-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	0710-
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0710-
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	0710-
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	0710-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	0710-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	0710-
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	0710-
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	0710-
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	0710-
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0710-
