Isuzu WW
▶
TRUCKS
▶
EXY
▶
11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#37124) — 33 parça
◀

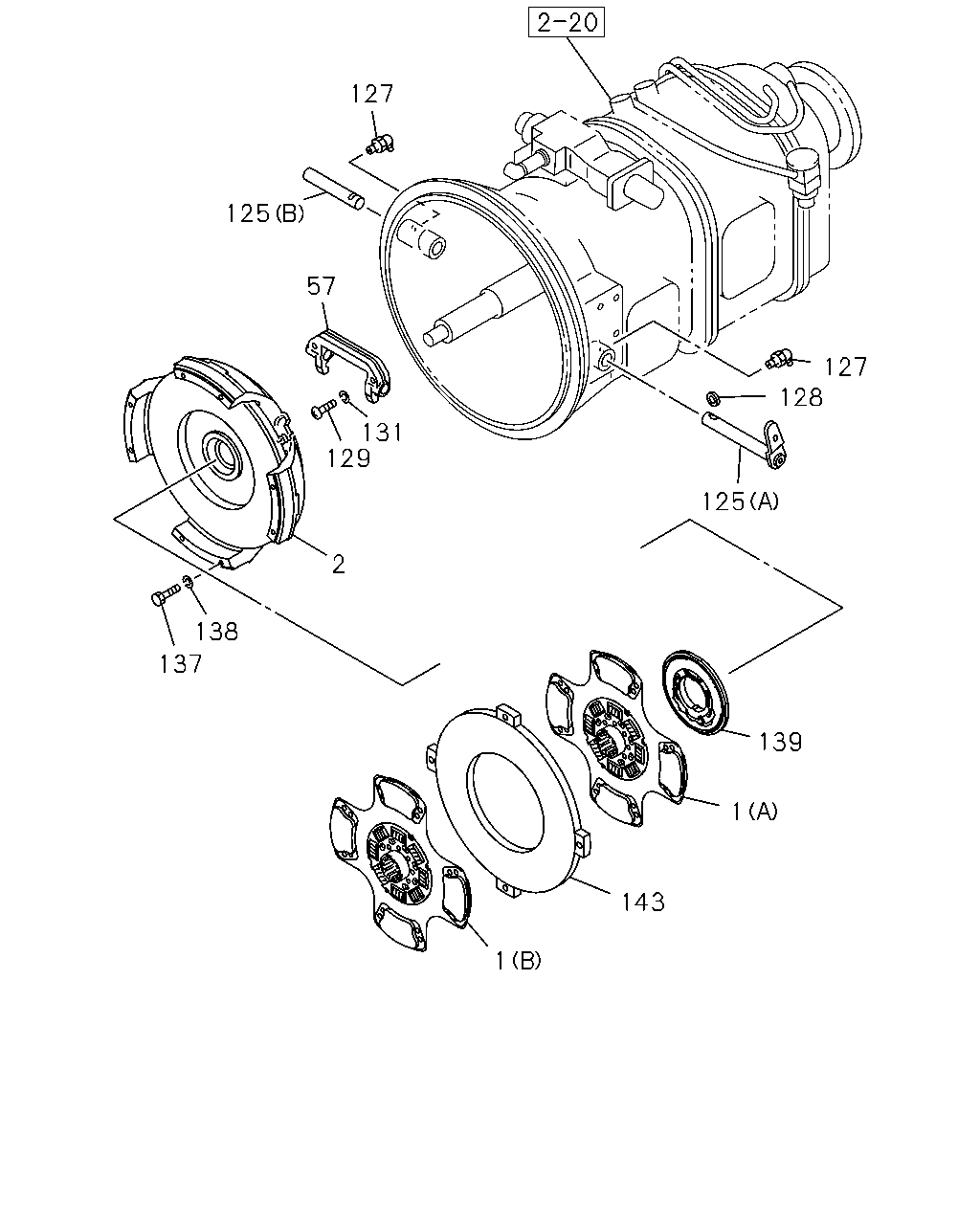

[201A] DISC AND PLATE (16 parça)

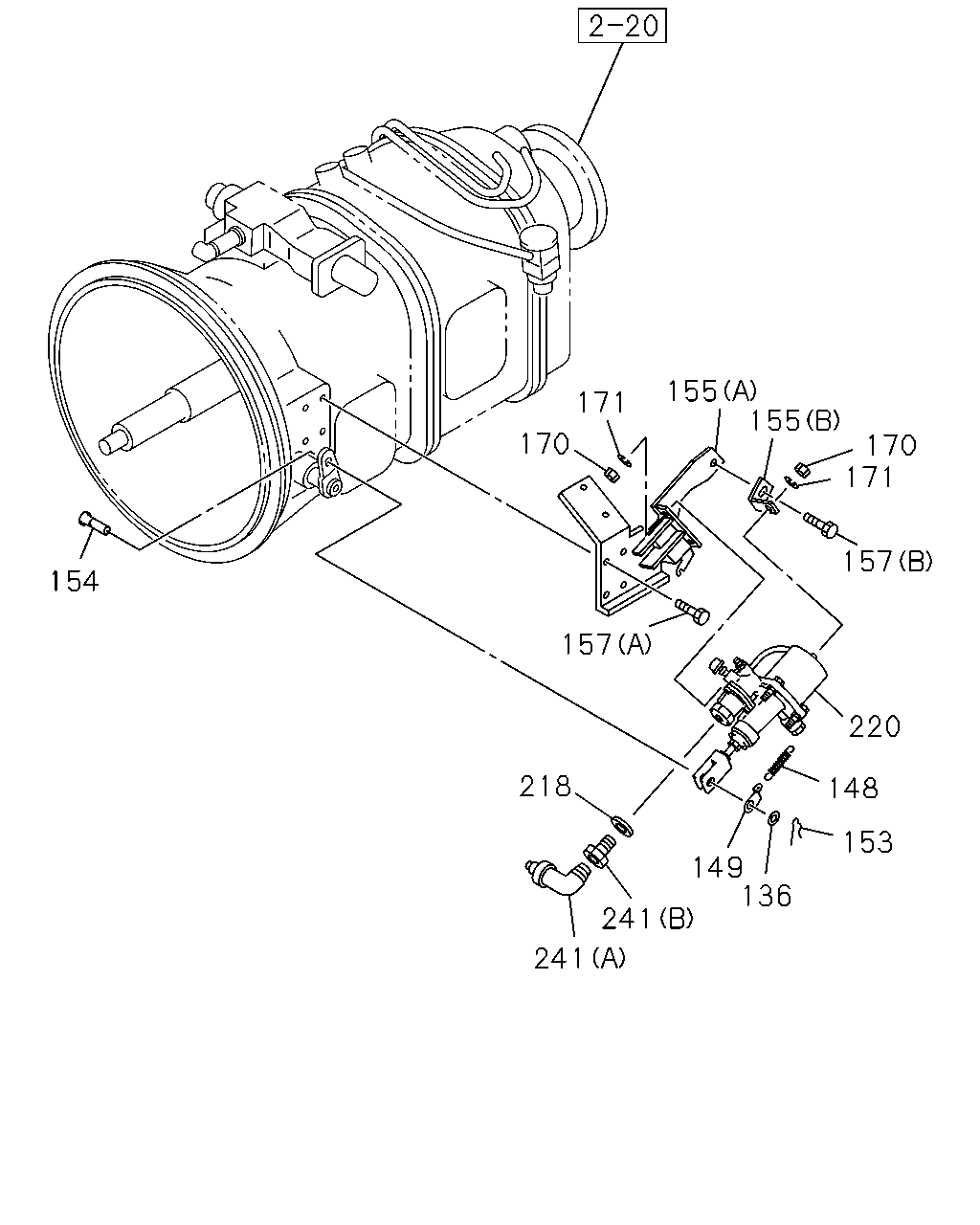

[201A] BOOSTER AND BRACKET (17 parça)
▶
127
125
57
131
129
2
138
137
1
143
1
139
125
128
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
(A) 15.5"
1-31240-792-0
01
1
0710-
1
DISC; CLUTCH
(B) 15.5"
1-31240-793-0
01
1
0710-
2
PLATE ASM; PRESSURE,CLU
1-31220-347-0
01
1
0710-
57
FORK; SHIFT,CLU
1-31341-020-0
01
1
0710-
125
SHAFT; CLU
(A)
1-31342-279-0
01
1
0710-
125
SHAFT; CLU
(B) L=146
1-31342-283-0
01
1
0710-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0710-
128
KEY; FEATHER,CLU SHAFT
1-31349-007-0
01
1
0710-
129
BOLT; SHIFT FORK
1-09087-021-0
02
1
0710-1206
129
BOLT; SHIFT FORK
8-98224-040-0
02
1
1207-
131
WASHER; LK,SHIFT FORK
ID=11.4
9-09850-072-0
02
1
0710-
137
BOLT; CLU COVER
1-09087-022-0
08
1
0710-
138
WASHER; LK,CLU COVER
ID=11.4
9-09850-072-0
08
1
0710-
139
BRAKE; CLU
1-31259-038-0
01
1
0710-
143
PLATE; INTERMEDIATE
1-31221-098-0
01
1
0710-1509
143
PLATE; INTERMEDIATE
8-98305-946-0
01
1
1510-
154
170
171
155
155
170
171
157
157
218
241
241
136
149
153
148
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
136
WASHER; PL
ID=15
0-91610-514-0
01
1
0710-
148
SPRING; CLU RETURN
9-09744-034-0
01
1
0710-
149
EYE; SPRING,RETURN SPRING
1-31426-025-0
01
1
0710-
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
0710-
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
0710-
155
BRACKET; MINIPACK
(B)
1-31429-367-0
01
1
0710-
155
BRACKET; MINIPACK
(A)
1-31429-458-0
01
1
0710-
157
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
0710-
157
BOLT; BRKT
(A) M10X25 W/LK WASHER
0-50051-025-0
04
1
0710-0906
157
BOLT; BRKT
(A) M10X25 W/LK WASHER
0-50551-025-0
04
1
0907-
170
NUT; BOOSTER FIX
M8
0-91110-508-0
03
1
0710-
171
WASHER; LK,BOOSTER FIX
ID=8.2
0-91510-508-0
03
1
0710-
218
GASKET
ID=14.2 OD=23.0
9-09572-014-0
01
1
0710-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-085-0
01
1
0710-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-431-1
01
1
0710-
241
CONNECTOR
(A) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
0710-
241
CONNECTOR
(B) M14 & PT1/4
9-48319-149-0
01
1
0710-
