◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#37121) — 250 parça

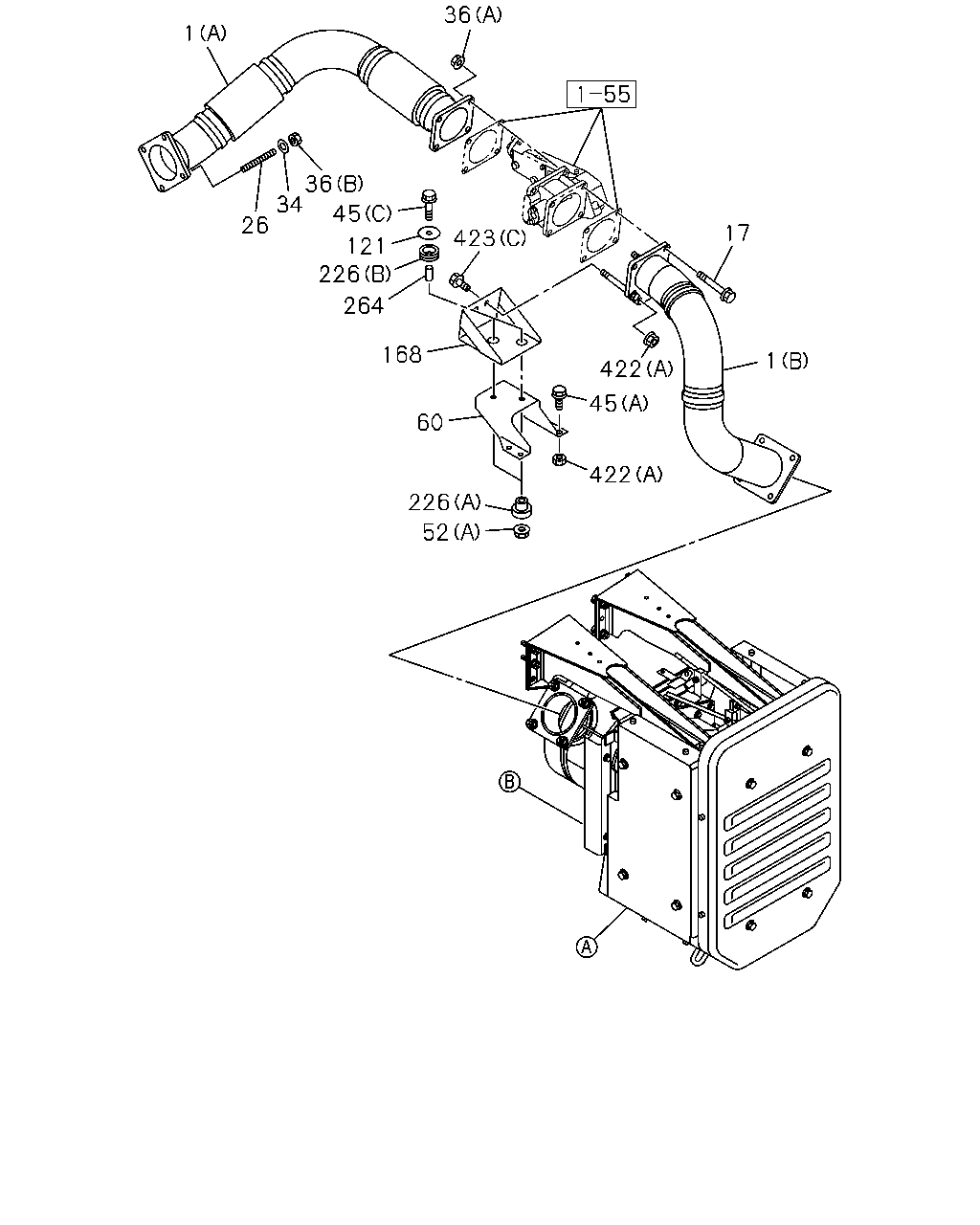

çizim 180538
1 36 423 17 1 422 45 422 52 226 60 168 264 226 121 45 36 34 26
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-97620-124-0 01 1 0710-
1 PIPE; EXH
(B) 		8-97621-308-0 01 1 0710-
17 BOLT; EXH PIPE
M12X120 FLANGE 		0-28056-212-0 02 1 0710-
26 STUD; EXH MANIF
M12X125 L=145 		8-97617-265-0 04 1 0710-1402
26 STUD; EXH MANIF
M12X125 L=145 		8-97648-063-0 04 1 1403-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0710-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0710-
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 0710-
45 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
45 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0710-
45 BOLT; BRKT
(C) M10X60 FLANGE 		0-28051-060-0 02 1 0710-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 06 1 1105-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0710-1104
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1105-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0710-
60 BRACKET; FRAME TO BRKT 8-97620-122-0 01 1 0710-
121 WASHER; PL,BRKT
OD=55 		9-09852-169-0 02 1 0710-
168 BRACKET; EXH PIPE,FRT 8-97620-118-1 01 1 0710-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-
264 TUBE; DIST,SUPPORT RUBBER
L=37.5 		9-22151-217-0 02 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0710-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 1210-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 1210-

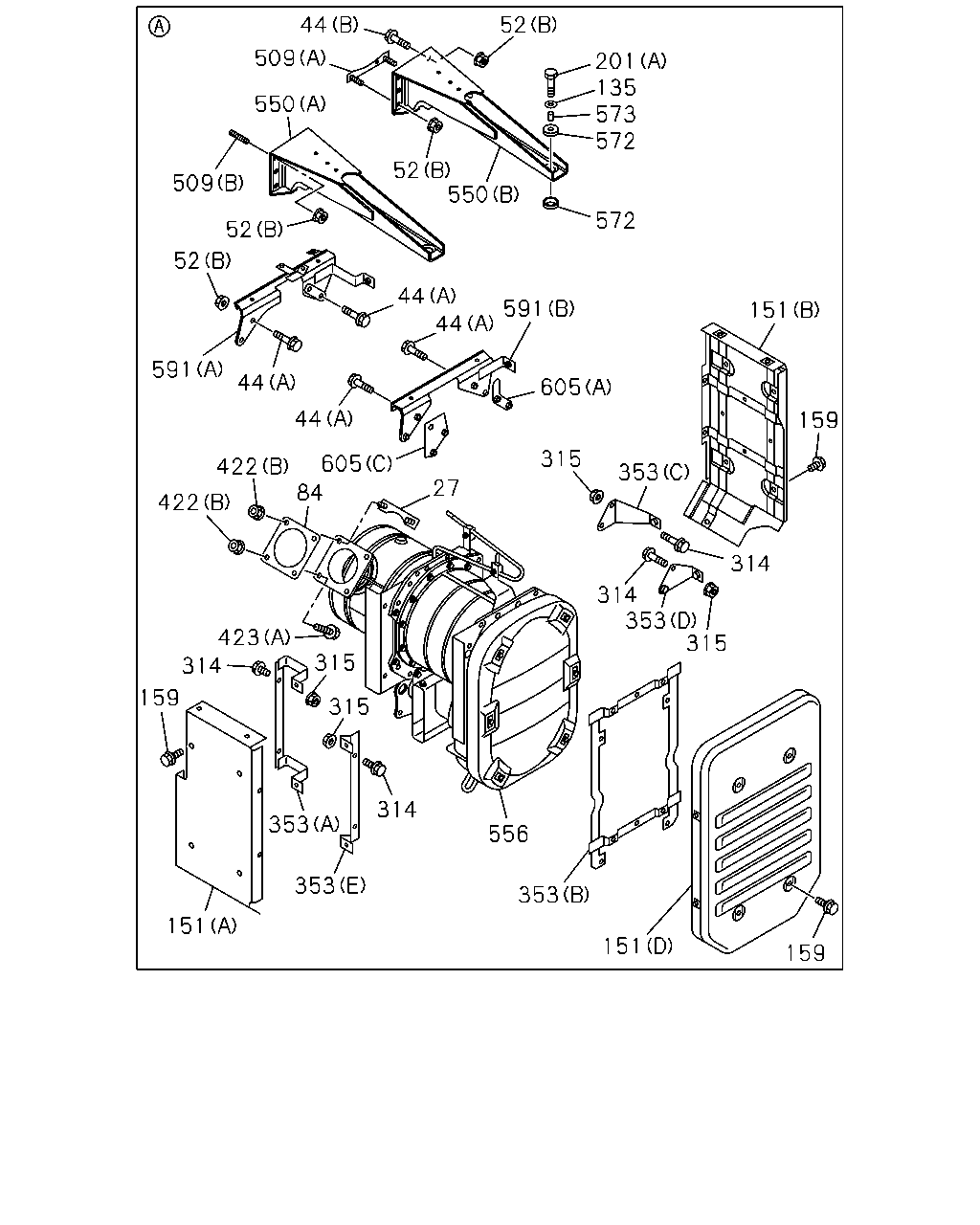

çizim 180539
44 509 550 509 52 52 591 422 44 44 605 84 422 423 314 159 315 315 315 353 314 314 159 151 353 315 27 605 591 44 44 52 550 572 572 573 135 201 52 159 151 353 556 314 353 353 151
BalonParca AdiParca NoAdetTipApplied Date
27 STUD; EXH PIPE 8-97616-750-0 01 1 0710-
44 BOLT; BRKT
(A) M10X40 FLANGE 		0-28051-040-0 08 1 0710-
44 BOLT; BRKT
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0710-0803
44 BOLT; BRKT
(B) M12X35 FLANGE 		0-28051-235-0 04 1 0804-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 06 1 1105-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0710-1104
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1105-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0710-
84 GASKET; EXH PIPE 1-22116-030-0 01 1 0710-
135 WASHER; PL,STAY
ID=10.5 OD=32 		0-91614-810-0 04 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		8-97624-244-0 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(B) 		8-97616-261-1 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97616-489-0 01 1 0710-0805
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97628-216-0 01 1 0806-
151 PROTECTOR; HEAT,EXH PIPE
(D) 		8-97620-030-0 01 1 0710-
159 BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 0710-
201 BOLT; STAY
(A) M10X50 		0-10956-050-0 04 1 0710-
201 BOLT; STAY
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0710-
201 BOLT; STAY
(C) M10X70 FLANGE 		0-28051-070-0 01 1 0710-
314 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0710-
314 BOLT; BRKT
M10X35 FLANGE 		0-28051-035-0 04 1 0710-
315 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
315 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-
353 BRACKET; HEAT PROTECTOR
(A) 		8-97624-246-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(B) 		8-97616-210-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(C) 		8-97616-262-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(D) 		8-97616-263-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(E) 		8-97616-265-0 01 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0710-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 1210-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 1210-
509 STUD; BRKT
(A) 		8-97624-393-0 01 1 0710-0803
509 STUD; BRKT
(B) M12X40 L=56 		1-09300-123-0 04 1 0710-
550 BRACKET; DPD
(A) 		8-97616-254-0 01 1 0710-
550 BRACKET; DPD
(B) 		8-97616-255-0 01 1 0710-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 0710-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 0710-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 0710-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 1210-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 1210-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 1210-
556 DPD ASM 8-98057-166-2 01 1 0710-0909
556 DPD ASM 8-98084-619-5 01 1 0910-
556 DPD ASM 8-98084-619-5 01 1 1210-
572 RUBBER 8-98035-816-0 08 1 0710-
573 TUBE; DIST
L=22 		9-22159-024-0 04 1 0710-
591 STAY; DPD
(A) 		8-97616-256-1 01 1 0710-
591 STAY; DPD
(B) 		8-97616-257-0 01 1 0710-
605 PLATE; NUT
(A) 		8-97619-175-1 02 1 0710-
605 PLATE; NUT
(C) 		8-97619-554-1 01 1 0710-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 0710-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 1210-

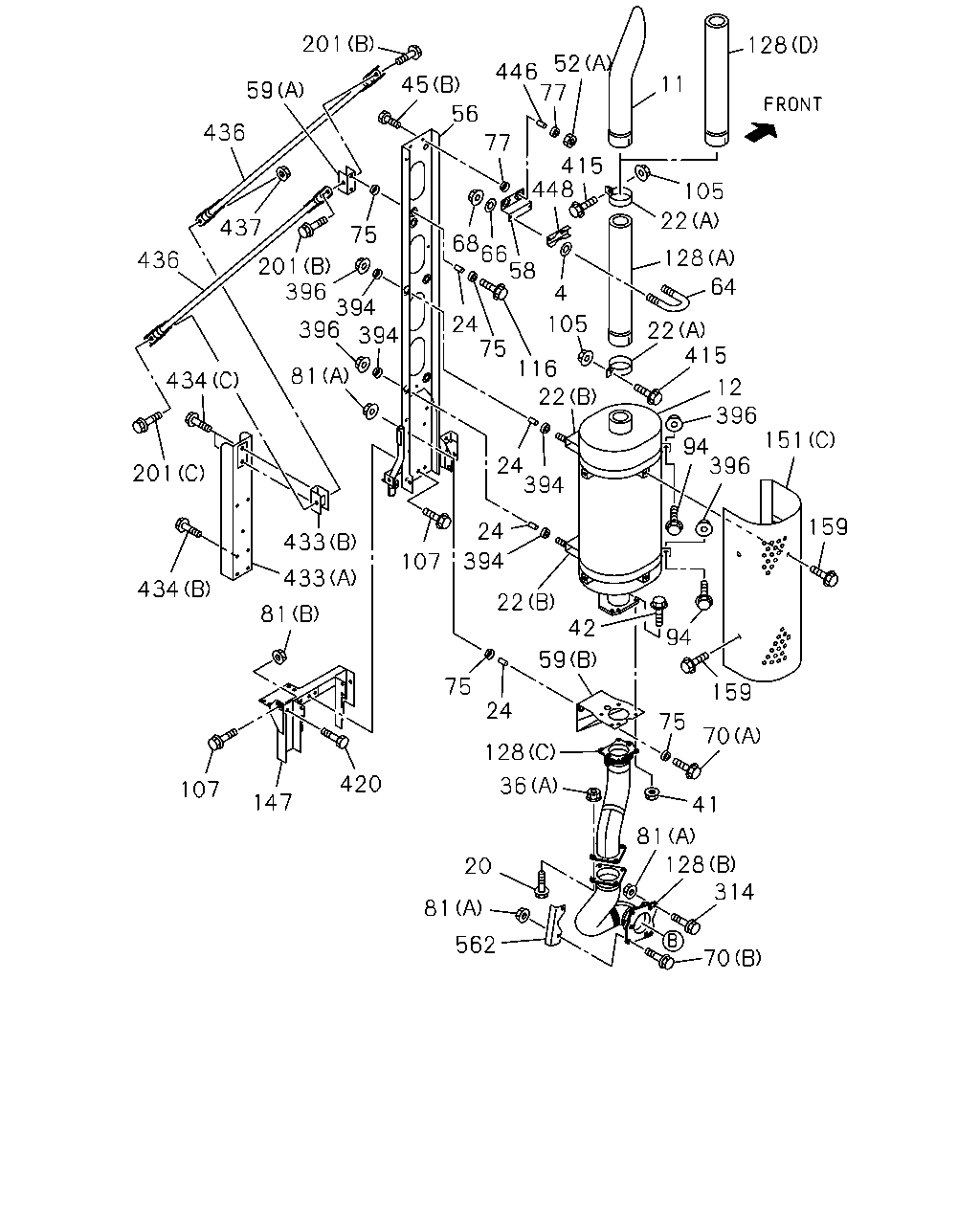

çizim 180548
128 11 52 77 446 45 201 59 436 437 436 201 75 396 394 396 394 81 434 201 434 107 147 420 81 433 433 107 394 24 24 394 22 42 59 75 24 128 36 20 81 562 70 314 128 81 41 70 75 159 94 159 151 396 94 396 12 415 22 105 116 22 75 24 68 66 58 77 56 448 415 105 22 128 64 4
BalonParca AdiParca NoAdetTipApplied Date
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 0710-
11 PIPE; EXH,RR 1-22123-086-1 01 1 0710-
12 SILENCER ASM; EXH 8-97621-716-0 01 1 0710-
20 BOLT; FLANGE,EXH PIPE
M12X35 FLANGE 		0-28051-235-0 06 1 0710-0911
20 BOLT; FLANGE,EXH PIPE
M12X35 FLANGE 		0-28051-235-0 08 1 0912-
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 02 1 0710-1104
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 01 1 1105-
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 01 1 1105-
22 CLAMP; EXH PIPE
(B) 		1-22133-270-0 02 1 0710-
24 COLLAR; DIST,CLAMP
L=25 		1-14234-083-0 10 1 0710-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0710-
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 0710-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 04 1 0710-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X40 FLANGE 		0-28051-240-0 04 1 0710-
45 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
45 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0710-
45 BOLT; BRKT
(C) M10X60 FLANGE 		0-28051-060-0 02 1 0710-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 06 1 1105-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0710-1104
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1105-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0710-
56 BRACKET; CLAMP,EXH PIPE 8-97624-058-2 01 1 0710-
58 BRACKET; EXH PIPE,RR 1-22131-799-0 01 1 0710-
59 BRACKET; EXH SILENCER,FRT
(A) 		1-22119-408-0 01 1 0710-
59 BRACKET; EXH SILENCER,FRT
(B) 		8-97618-865-0 01 1 0710-
64 U-BOLT; EXH PIPE,RR 1-22113-097-0 01 1 0710-
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0710-
68 NUT; U BOLT
M8 		0-91110-508-0 02 1 0710-
70 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 04 1 0710-
70 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 01 1 0710-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 12 1 0710-
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 04 1 0710-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1105-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 05 1 0710-1104
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1105-
81 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 05 1 0710-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28051-040-0 02 1 0710-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 01 1 0710-
107 BOLT; BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 0710-
116 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0710-
128 PIPE; EXH,RR
(A) 		1-22123-087-1 01 1 0710-
128 PIPE; EXH,RR
(D) 		1-22123-444-0 01 1 0710-
128 PIPE; EXH,RR
(B) 		8-97621-274-0 01 1 0710-
128 PIPE; EXH,RR
(C) 		8-97621-300-1 01 1 0710-
147 BRACKET; VERTICAL PIPE 8-97624-059-3 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		8-97624-244-0 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(B) 		8-97616-261-1 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97616-489-0 01 1 0710-0805
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97628-216-0 01 1 0806-
151 PROTECTOR; HEAT,EXH PIPE
(D) 		8-97620-030-0 01 1 0710-
159 BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 0710-
201 BOLT; STAY
(A) M10X50 		0-10956-050-0 04 1 0710-
201 BOLT; STAY
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0710-
201 BOLT; STAY
(C) M10X70 FLANGE 		0-28051-070-0 01 1 0710-
314 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0710-
314 BOLT; BRKT
M10X35 FLANGE 		0-28051-035-0 04 1 0710-
394 RUBBER; SUPPORT,CLAMP
OD=40 		1-22159-094-0 08 1 0710-
396 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 06 1 0710-
415 BOLT; CLAMP
M10X40 FLANGE 		0-28051-040-0 01 1 0710-
420 BOLT; BRKT,VERTICAL PIPE
M12X35 FLANGE 		0-28051-235-0 05 1 0710-
433 BRACKET; STAY,EXH PIPE
(A) 		8-97620-409-2 01 1 0710-
433 BRACKET; STAY,EXH PIPE
(B) 		8-97622-822-0 01 1 0710-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 08 1 0710-0907
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0908-0909
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0908-0909
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 08 1 0910-1104
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 1105-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 1105-
434 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1210-
436 STAY; SUPPORT,EXH 8-97616-276-0 02 1 0710-
437 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0710-
446 PIECE; DIST,EXH PIPE,RR
L=25 		1-14234-083-0 02 1 0710-
448 PIECE; DIST,U-BOLT 1-22113-095-0 01 1 0710-
562 PLATE; STUD,BOLT 8-97623-014-0 01 1 0710-0911
562 PLATE; STUD,BOLT 8-97633-857-0 01 1 0912-

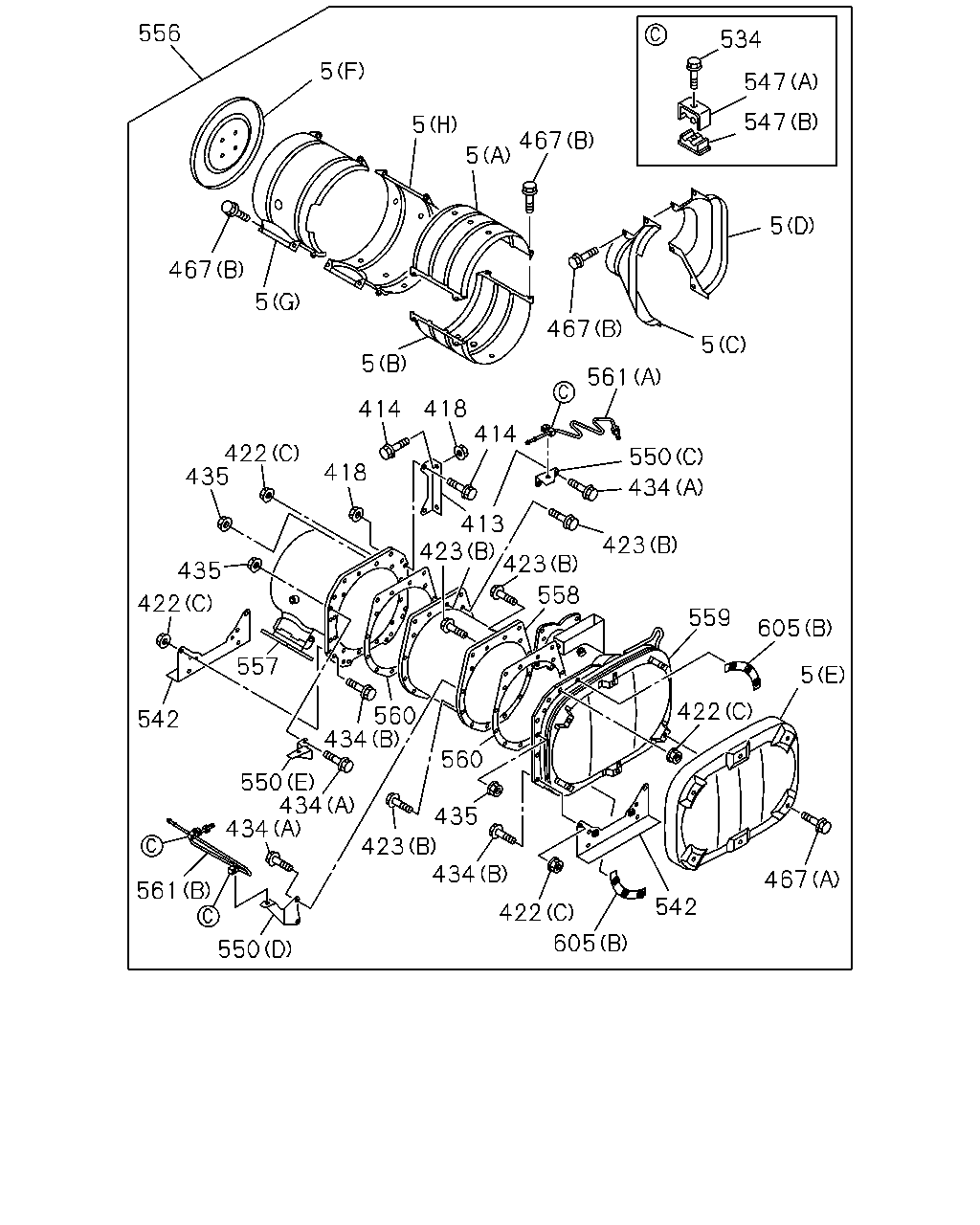

çizim 180556
556 5 5 5 467 534 547 547 5 5 467 561 418 414 5 5 467 414 418 422 435 435 422 542 561 550 434 550 434 557 434 560 560 435 423 434 422 605 542 467 5 605 559 422 558 423 423 413 423 434 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-98048-157-0 01 1 0710-
5 PROTECTOR; HEAT
(B) 		8-98048-158-0 01 1 0710-
5 PROTECTOR; HEAT
(C) 		8-98048-159-0 01 1 0710-
5 PROTECTOR; HEAT
(D) 		8-98048-160-0 01 1 0710-
5 PROTECTOR; HEAT
(E) 		8-98048-161-0 01 1 0710-
5 PROTECTOR; HEAT
(F) 		8-98060-018-0 01 1 0710-
5 PROTECTOR; HEAT
(G) 		8-98060-019-0 01 1 0710-
5 PROTECTOR; HEAT
(H) 		8-98060-020-0 01 1 0710-
5 PROTECTOR; HEAT
(A) 		8-98048-157-0 01 1 1210-
5 PROTECTOR; HEAT
(B) 		8-98048-158-0 01 1 1210-
5 PROTECTOR; HEAT
(C) 		8-98048-159-0 01 1 1210-
5 PROTECTOR; HEAT
(D) 		8-98048-160-0 01 1 1210-
5 PROTECTOR; HEAT
(E) 		8-98048-161-0 01 1 1210-
5 PROTECTOR; HEAT
(F) 		8-98060-018-0 01 1 1210-
5 PROTECTOR; HEAT
(G) 		8-98060-019-0 01 1 1210-
5 PROTECTOR; HEAT
(H) 		8-98060-020-0 01 1 1210-
413 BRACKET; EXH PIPE,CONN 8-98048-297-0 01 1 0710-
413 BRACKET; EXH PIPE,CONN 8-98048-297-0 01 1 1210-
414 BOLT; BRKT
M10X30 FLANGE 		0-28051-030-0 04 1 0710-
414 BOLT; BRKT
M10X30 FLANGE 		0-28051-030-0 04 1 1210-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 04 1 0710-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 04 1 1210-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0710-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 1210-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 1210-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 08 1 0710-0907
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0908-0909
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0908-0909
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 08 1 0910-1104
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 1105-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 1105-
434 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1210-
435 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
435 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1210-
467 BOLT; PROTECTOR
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0710-
467 BOLT; PROTECTOR
(B) M6X16 		8-98019-179-0 16 1 0710-0909
467 BOLT; PROTECTOR
(B) M6X16 		8-98019-179-0 17 1 0910-
467 BOLT; PROTECTOR
(A) M8X20 FLANGE 		0-28650-820-0 06 1 1210-
467 BOLT; PROTECTOR
(B) M6X16 		8-98019-179-0 17 1 1210-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1210-
542 BRACKET 8-98048-298-2 02 1 0710-
542 BRACKET 8-98048-298-2 02 1 1210-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1210-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1210-
550 BRACKET; DPD
(A) 		8-97616-254-0 01 1 0710-
550 BRACKET; DPD
(B) 		8-97616-255-0 01 1 0710-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 0710-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 0710-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 0710-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 1210-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 1210-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 1210-
556 DPD ASM 8-98057-166-2 01 1 0710-0909
556 DPD ASM 8-98084-619-5 01 1 0910-
556 DPD ASM 8-98084-619-5 01 1 1210-
557 CATALYST ASM 8-98048-141-5 01 1 0710-
557 CATALYST ASM 8-98048-141-5 01 1 1210-
558 FILTER ASM 8-98061-187-2 01 1 0710-
558 FILTER ASM 8-98061-187-2 01 1 1210-
559 COVER; RR 8-98057-197-1 01 1 0710-0909
559 COVER; RR 8-98084-621-0 01 1 0910-
559 COVER; RR 8-98084-621-0 01 1 1210-
560 GASKET; DPD 8-97381-467-0 02 1 0710-
560 GASKET; DPD 8-97381-467-0 02 1 1210-
561 PIPE; DPD
(A) 		8-98048-164-0 01 1 0710-0909
561 PIPE; DPD
(A) 		8-98084-625-1 01 1 0910-
561 PIPE; DPD
(B) 		8-98057-199-0 01 1 0710-0909
561 PIPE; DPD
(B) 		8-98084-624-1 01 1 0910-
561 PIPE; DPD
(A) 		8-98084-625-1 01 1 1210-
561 PIPE; DPD
(B) 		8-98084-624-1 01 1 1210-
605 PLATE; NUT
(A) 		8-97619-175-1 02 1 0710-
605 PLATE; NUT
(C) 		8-97619-554-1 01 1 0710-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 0710-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 1210-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
