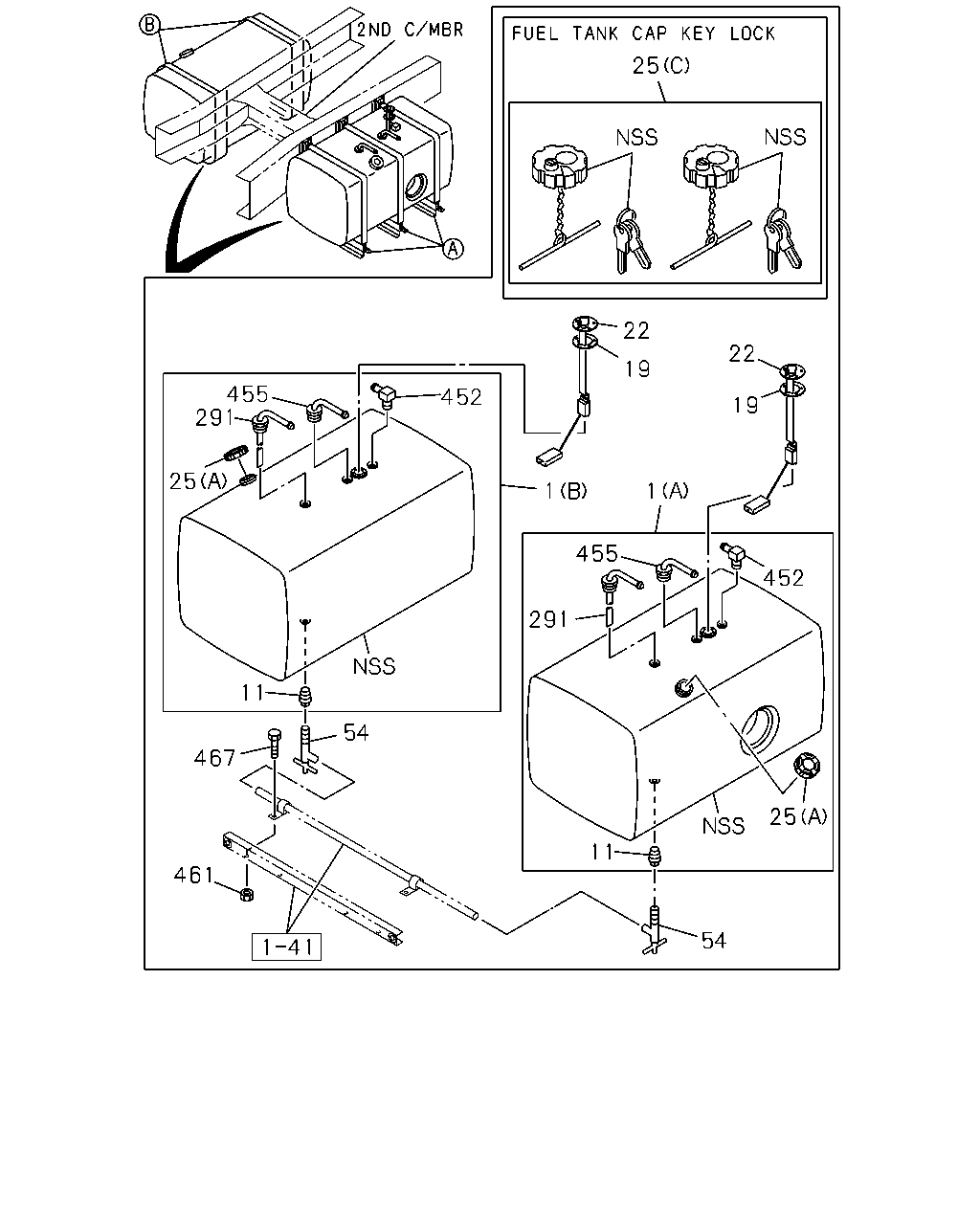

1-40 — FUEL TANK (#37118) — 121 parça

25 1 22 22 19 455 291 452 19 25 1 1 455 452 291 11 54 467 25 11 461 54 1 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A) 1250X700X700 550L	8-98048-278-2	01	1	0710-
1	TANK; FUEL FUEL TANK 550L+450L<EDQ> (B) 1050X700X700 450L	8-98048-281-1	01	1	0710-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0710-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0710-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0710-
22	UNIT; FUEL TANK	1-83141-150-1	01	1	0710-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> FUEL TANK CAP KEY LOCK<N05> (B)	8-98096-700-0	01	1	0805-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> FUEL TANK CAP KEY LOCK<N05> (C)	8-98117-149-0	01	1	0805-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0710-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0710-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	0710-
41	PIN; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-491-0	05	1	0710-
54	COCK ASM; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-09680-097-0	02	1	0710-
291	PIPE; FUEL,SUCTION FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	8-98098-902-0	01	1	0710-
452	BREATHER; FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0710-
452	BREATHER; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0710-
455	PIPE; FUEL,RETURN FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-016-0	01	1	0710-
461	NUT; CLIP,FUEL PIPE FUEL TANK 550L+450L<EDQ> M8 FLANGE	0-91180-108-0	02	1	0710-
467	BOLT FUEL TANK 550L+450L<EDQ> M8X20 FLANGE	0-28650-820-0	02	1	0710-

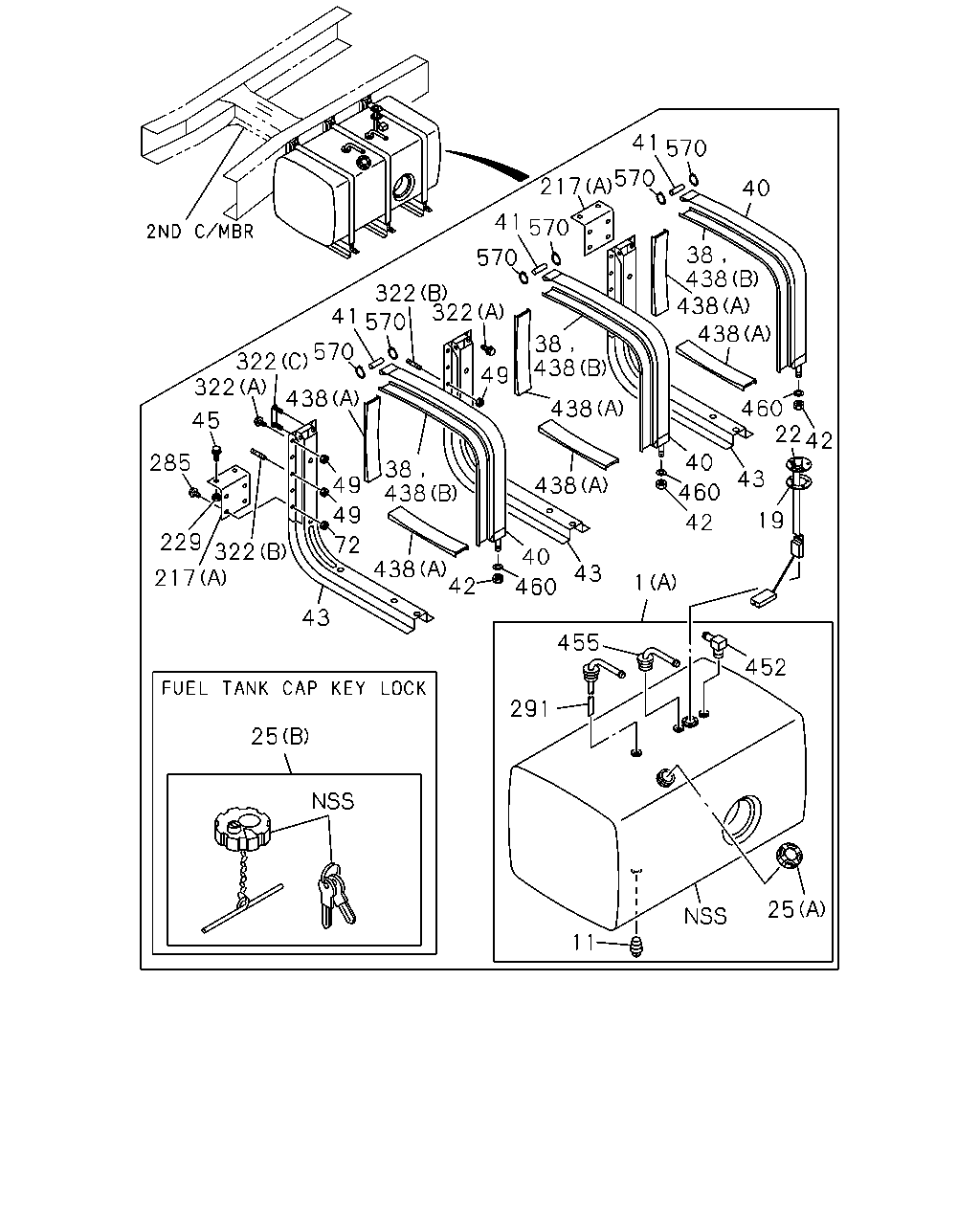

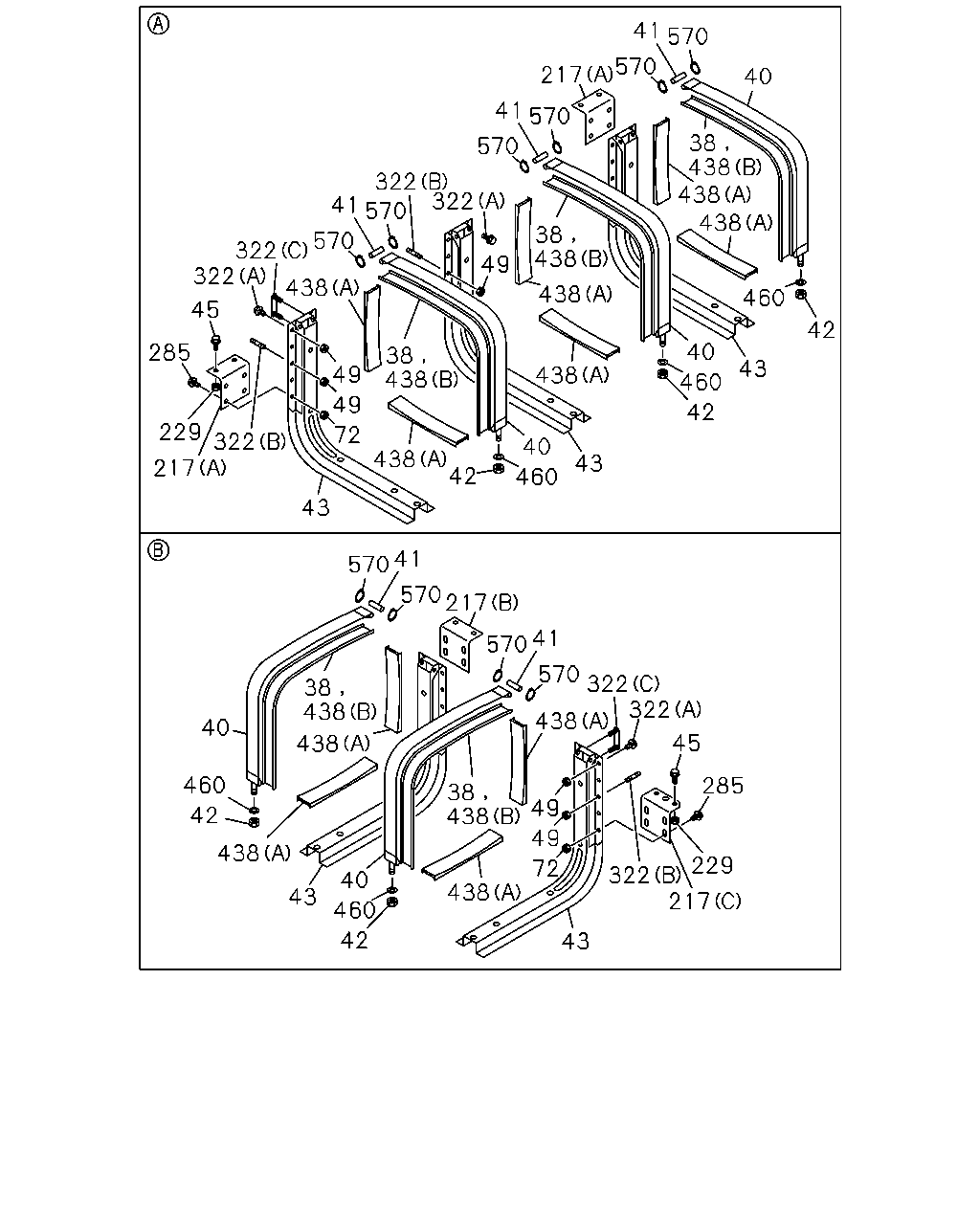

41 570 570 217 40 41 570 38 438 438 438 570 322 322 41 570 38 438 570 322 322 49 438 438 460 45 42 40 285 38 438 43 49 438 460 49 42 229 72 322 217 40 438 42 43 460 43 41 570 570 217 41 570 570 322 322 38 438 438 40 45 438 460 285 38 438 49 42 49 438 229 72 322 217 40 438 43 460 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-
38	INSULATION; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	0710-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-517-0	05	1	0710-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	0710-
41	PIN; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-491-0	05	1	0710-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP>	1-22559-027-0	03	1	0710-
42	NUT; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	1-22559-027-0	05	1	0710-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP>	8-98048-475-2	03	1	0710-0803
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP>	8-98110-151-0	03	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-475-2	05	1	0710-0803
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98110-151-0	05	1	0804-
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L<EDP> M14X40 FLANGE	0-28851-440-0	04	1	0710-1011
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L<EDP> M14X40 FLANGE	0-28861-440-0	04	1	1012-
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L+450L<EDQ> M14X40 FLANGE	0-28851-440-0	08	1	0710-1011
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L+450L<EDQ> M14X40 FLANGE	0-28861-440-0	08	1	1012-
49	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	10	1	0710-
49	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	21	1	0710-
72	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	08	1	0710-
72	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	16	1	0710-
217	BRACKET; FUEL TANK,LOW FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	8-98054-709-0	02	1	0710-
217	BRACKET; FUEL TANK,LOW FUEL TANK 550L+450L<EDQ> (B)	8-98054-707-0	01	1	0710-
217	BRACKET; FUEL TANK,LOW FUEL TANK 550L+450L<EDQ> (C)	8-98054-708-0	01	1	0710-
229	NUT; BRKT,FUEL TANK FUEL TANK 550L<EDP> M14	0-91110-514-0	04	1	0710-
229	NUT; BRKT,FUEL TANK FUEL TANK 550L+450L<EDQ> M14	0-91110-514-0	08	1	0710-
285	BOLT; BRKT FUEL TANK 550L<EDP> M12X35 FLANGE	0-28051-235-0	08	1	0710-
285	BOLT; BRKT FUEL TANK 550L+450L<EDQ> M12X35 FLANGE	0-28051-235-0	16	1	0710-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X35 FLANGE	0-28051-235-0	08	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X45 FLANGE	0-28051-245-0	08	1	0802-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X35 FLANGE	0-28051-235-0	16	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X45 FLANGE	0-28051-245-0	16	1	0802-
322	BOLT; BRKT FIX (C)	8-98093-605-0	02	1	0710-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X40 L=56	1-09300-123-0	06	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X50 L=66	1-09300-124-0	06	1	0802-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X40 L=56	1-09300-123-0	10	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X50 L=66	1-09300-124-0	10	1	0802-
438	LINER; RUBBER FUEL TANK 550L<EDP> (A)	8-98048-489-0	06	1	0710-0803
438	LINER; RUBBER FUEL TANK 550L<EDP> (B)	8-98048-490-0	03	1	0710-0805
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ> (A)	8-98048-489-0	10	1	0710-0803
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ> (B)	8-98048-490-0	05	1	0710-0805
460	WASHER; PL,BRKT FUEL TANK 550L<EDP> ID=17 OD=32	9-09160-616-0	03	1	0710-
460	WASHER; PL,BRKT FUEL TANK 550L+450L<EDQ> ID=17 OD=32	9-09160-616-0	05	1	0710-
570	CLIP; PIN FUEL TANK 550L<EDP>	1-22559-024-0	06	1	0710-
570	CLIP; PIN FUEL TANK 550L+450L<EDQ>	1-22559-024-0	10	1	0710-

41 570 570 217 40 41 570 38 438 438 438 570 322 322 41 570 38 438 570 322 322 49 438 438 460 22 42 45 40 285 38 438 43 49 438 460 49 19 42 229 72 322 217 40 438 42 43 1 460 43 455 452 291 25 1 25 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A) 1250X700X700 550L	8-98048-278-2	01	1	0710-
1	TANK; FUEL FUEL TANK 550L+450L<EDQ> (B) 1050X700X700 450L	8-98048-281-1	01	1	0710-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0710-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0710-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0710-
22	UNIT; FUEL TANK	1-83141-150-1	01	1	0710-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> FUEL TANK CAP KEY LOCK<N05> (B)	8-98096-700-0	01	1	0805-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> FUEL TANK CAP KEY LOCK<N05> (C)	8-98117-149-0	01	1	0805-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0710-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0710-
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-
38	INSULATION; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	0710-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-517-0	05	1	0710-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	0710-
41	PIN; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-491-0	05	1	0710-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP>	1-22559-027-0	03	1	0710-
42	NUT; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	1-22559-027-0	05	1	0710-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP>	8-98048-475-2	03	1	0710-0803
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP>	8-98110-151-0	03	1	0804-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-475-2	05	1	0710-0803
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98110-151-0	05	1	0804-
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L<EDP> M14X40 FLANGE	0-28851-440-0	04	1	0710-1011
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L<EDP> M14X40 FLANGE	0-28861-440-0	04	1	1012-
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L+450L<EDQ> M14X40 FLANGE	0-28851-440-0	08	1	0710-1011
45	BOLT; BRKT,FUEL TANK FUEL TANK 550L+450L<EDQ> M14X40 FLANGE	0-28861-440-0	08	1	1012-
49	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	10	1	0710-
49	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	21	1	0710-
72	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	08	1	0710-
72	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	16	1	0710-
217	BRACKET; FUEL TANK,LOW FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	8-98054-709-0	02	1	0710-
217	BRACKET; FUEL TANK,LOW FUEL TANK 550L+450L<EDQ> (B)	8-98054-707-0	01	1	0710-
217	BRACKET; FUEL TANK,LOW FUEL TANK 550L+450L<EDQ> (C)	8-98054-708-0	01	1	0710-
229	NUT; BRKT,FUEL TANK FUEL TANK 550L<EDP> M14	0-91110-514-0	04	1	0710-
229	NUT; BRKT,FUEL TANK FUEL TANK 550L+450L<EDQ> M14	0-91110-514-0	08	1	0710-
285	BOLT; BRKT FUEL TANK 550L<EDP> M12X35 FLANGE	0-28051-235-0	08	1	0710-
285	BOLT; BRKT FUEL TANK 550L+450L<EDQ> M12X35 FLANGE	0-28051-235-0	16	1	0710-
291	PIPE; FUEL,SUCTION FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	8-98098-902-0	01	1	0710-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X35 FLANGE	0-28051-235-0	08	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X45 FLANGE	0-28051-245-0	08	1	0802-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X35 FLANGE	0-28051-235-0	16	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X45 FLANGE	0-28051-245-0	16	1	0802-
322	BOLT; BRKT FIX (C)	8-98093-605-0	02	1	0710-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X40 L=56	1-09300-123-0	06	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X50 L=66	1-09300-124-0	06	1	0802-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X40 L=56	1-09300-123-0	10	1	0710-0801
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X50 L=66	1-09300-124-0	10	1	0802-
438	LINER; RUBBER FUEL TANK 550L<EDP> (A)	8-98048-489-0	06	1	0710-0803
438	LINER; RUBBER FUEL TANK 550L<EDP> (B)	8-98048-490-0	03	1	0710-0805
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ> (A)	8-98048-489-0	10	1	0710-0803
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ> (B)	8-98048-490-0	05	1	0710-0805
452	BREATHER; FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0710-
452	BREATHER; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0710-
455	PIPE; FUEL,RETURN FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-016-0	01	1	0710-
460	WASHER; PL,BRKT FUEL TANK 550L<EDP> ID=17 OD=32	9-09160-616-0	03	1	0710-
460	WASHER; PL,BRKT FUEL TANK 550L+450L<EDQ> ID=17 OD=32	9-09160-616-0	05	1	0710-
570	CLIP; PIN FUEL TANK 550L<EDP>	1-22559-024-0	06	1	0710-
570	CLIP; PIN FUEL TANK 550L+450L<EDQ>	1-22559-024-0	10	1	0710-
