2-20 — MANUAL TRANSMISSION ASM AND CASE (#37099) — 158 parça
çizim 180158
520 522 520 236 520 526 271 439 353 265
BalonParca AdiParca NoAdetTipApplied Date
236 BOLT; VALVE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0710-
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 07 1 0710-
353 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (F) ID=27 L=26 		8-98096-216-0 01 1 0710-
353 CLIP; NYLON TUBE
(A) ID=19 L=24 H=21 		1-09700-109-1 02 1 0710-0805
353 CLIP; NYLON TUBE
(A) ID=18 L=25 H=50 		1-09701-096-0 01 1 0806-
353 CLIP; NYLON TUBE
(F) ID=19 L=32 		1-09701-235-0 01 1 0710-0805
353 CLIP; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (F) ID=19 L=32 		1-09701-235-0 01 1 0710-0805
353 CLIP; NYLON TUBE
(F) ID=21 L=24 		8-94176-807-1 01 1 0806-
353 CLIP; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (F) ID=21 L=24 		8-94176-807-1 01 1 0806-
353 CLIP; NYLON TUBE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-0805
353 CLIP; NYLON TUBE
(B) ID=20 H=23 L=27 		1-09700-861-0 02 1 0806-
353 CLIP; NYLON TUBE
(C) ID=18 L=28 		1-09701-067-0 01 1 0710-
353 CLIP; NYLON TUBE
(E) ID=28 L=40 		1-09701-261-0 01 1 0710-
353 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 03 1 0710-
439 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 02 1 0710-
439 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
520 CONNECTOR
(A) R1/4 & M16 		0-92306-008-0 02 1 0710-
520 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0710-
522 VALVE ASM; REDUCING 1-48410-531-1 01 1 0710-
526 BRACKET; VALVE 1-47479-582-0 01 1 0710-

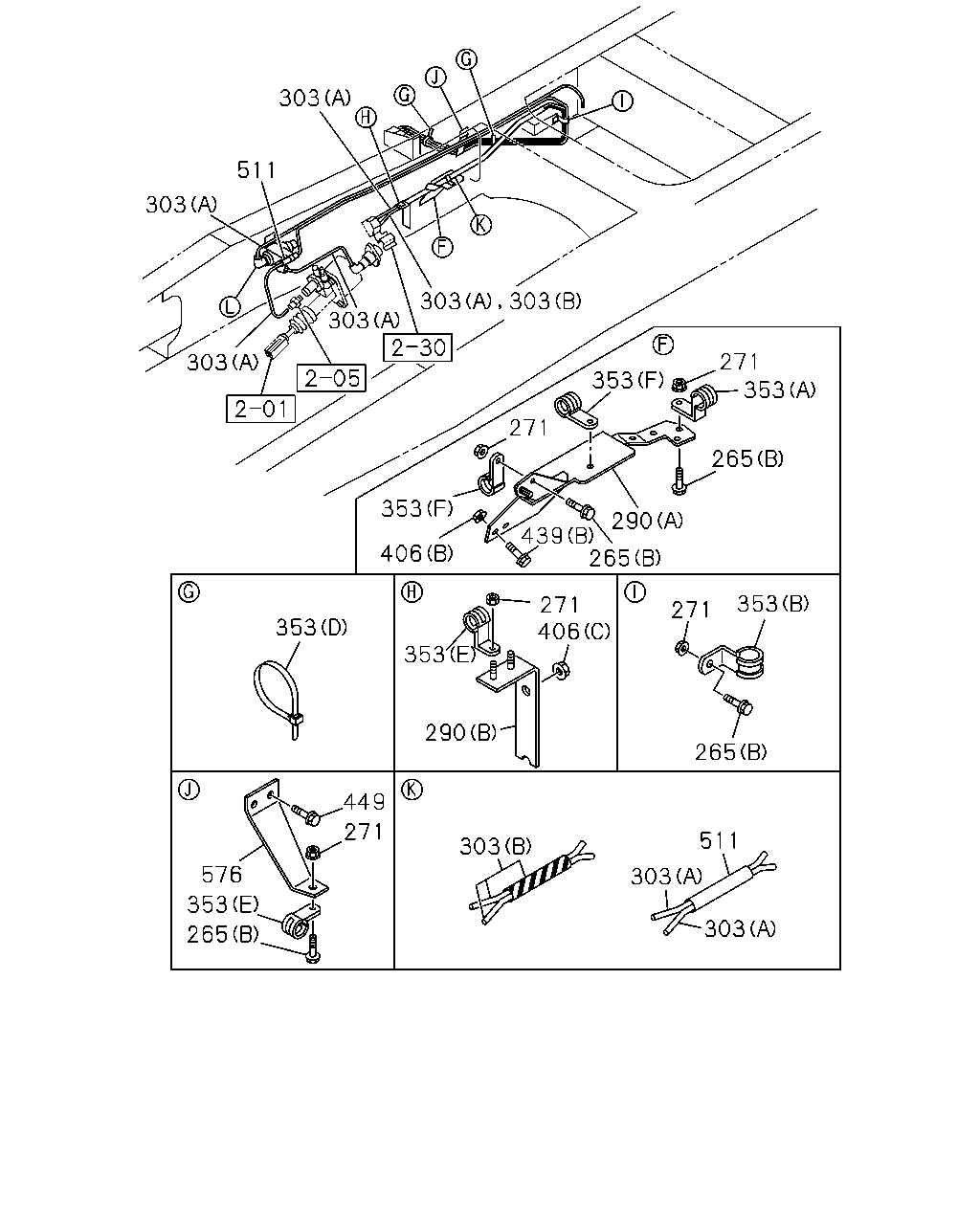

çizim 180164
303 511 303 303 303 303 303 271 353 353 265 271 290 265 439 353 406 353 353 290 271 406 271 353 265 511 303 303 303 449 271 576 353 265
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0710-
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 07 1 0710-
290 BRACKET; CLIP
(A) 		8-98095-618-0 01 1 0710-0805
290 BRACKET; CLIP
(A) 		8-98119-208-0 01 1 0806-
290 BRACKET; CLIP
(B) 		8-97611-316-1 01 1 0710-
303 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> (B) 		8-98095-622-0 01 1 0710-0805
303 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> (B) 		8-98119-289-0 01 1 0806-
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0710-
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 07 1 0710-
303 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0710-
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0710-
353 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (F) ID=27 L=26 		8-98096-216-0 01 1 0710-
353 CLIP; NYLON TUBE
(A) ID=19 L=24 H=21 		1-09700-109-1 02 1 0710-0805
353 CLIP; NYLON TUBE
(A) ID=18 L=25 H=50 		1-09701-096-0 01 1 0806-
353 CLIP; NYLON TUBE
(F) ID=19 L=32 		1-09701-235-0 01 1 0710-0805
353 CLIP; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (F) ID=19 L=32 		1-09701-235-0 01 1 0710-0805
353 CLIP; NYLON TUBE
(F) ID=21 L=24 		8-94176-807-1 01 1 0806-
353 CLIP; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (F) ID=21 L=24 		8-94176-807-1 01 1 0806-
353 CLIP; NYLON TUBE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-0805
353 CLIP; NYLON TUBE
(B) ID=20 H=23 L=27 		1-09700-861-0 02 1 0806-
353 CLIP; NYLON TUBE
(C) ID=18 L=28 		1-09701-067-0 01 1 0710-
353 CLIP; NYLON TUBE
(E) ID=28 L=40 		1-09701-261-0 01 1 0710-
353 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 03 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0710-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-
439 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 02 1 0710-
439 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
449 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
511 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0710-0805
511 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0806-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0710-
576 BRACKET; NYLON TUBE 1-47478-442-0 01 1 0710-

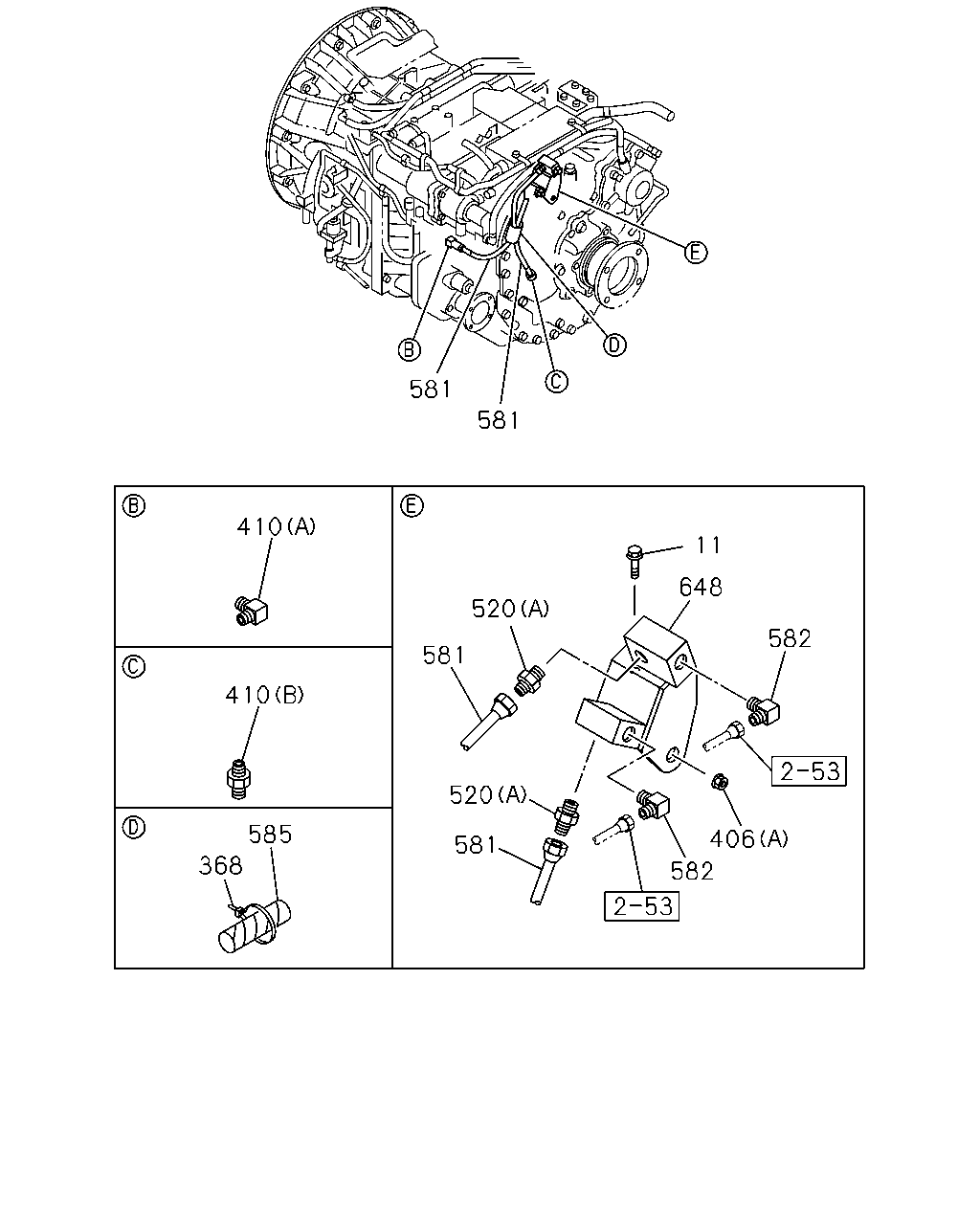

çizim 180165
581 581 410 410 585 368 581 520 581 520 11 648 582 406 582
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 01 1 0710-
368 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0710-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-
410 UNION; OIL PIPE
(B) R1/4 & M16 		0-92306-008-0 01 1 0710-
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 01 1 0710-
520 CONNECTOR
(A) R1/4 & M16 		0-92306-008-0 02 1 0710-
520 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0710-
581 HOSE; OIL COOLER
L=370 		8-98065-298-0 02 1 0710-
582 NIPPLE; ELBOW
R3/8 & M22 ELBOW 		1-09660-612-1 02 1 0710-
585 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0710-
648 UNION ASM 1-47470-670-0 01 1 0710-
çizim 180166
450 348 265 450 192 212 578 633 633 634 633 633 634 634 633 633 634 634 633 634 633 639 636 579 519 635 637 640 640 639 638
BalonParca AdiParca NoAdetTipApplied Date
192 HOSE; FLEX,TRANS
L=252 		1-09365-062-0 01 1 0710-
212 CLIP; FLEX HOSE
ID=9 H=20 L=25 		1-09701-073-0 01 1 0710-
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0710-
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-
348 NIPPLE; GREASE,SHAFT 9-09902-299-0 01 1 0710-
450 ADAPTER; OIL
(A) 		1-09660-012-0 01 1 0710-
450 ADAPTER; OIL
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
519 GASKET; SHAFT 1-34142-034-0 01 1 0710-
578 BRAKE; COUNTER SHAFT 1-33316-005-1 01 1 0710-
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28151-030-0 07 1 0710-

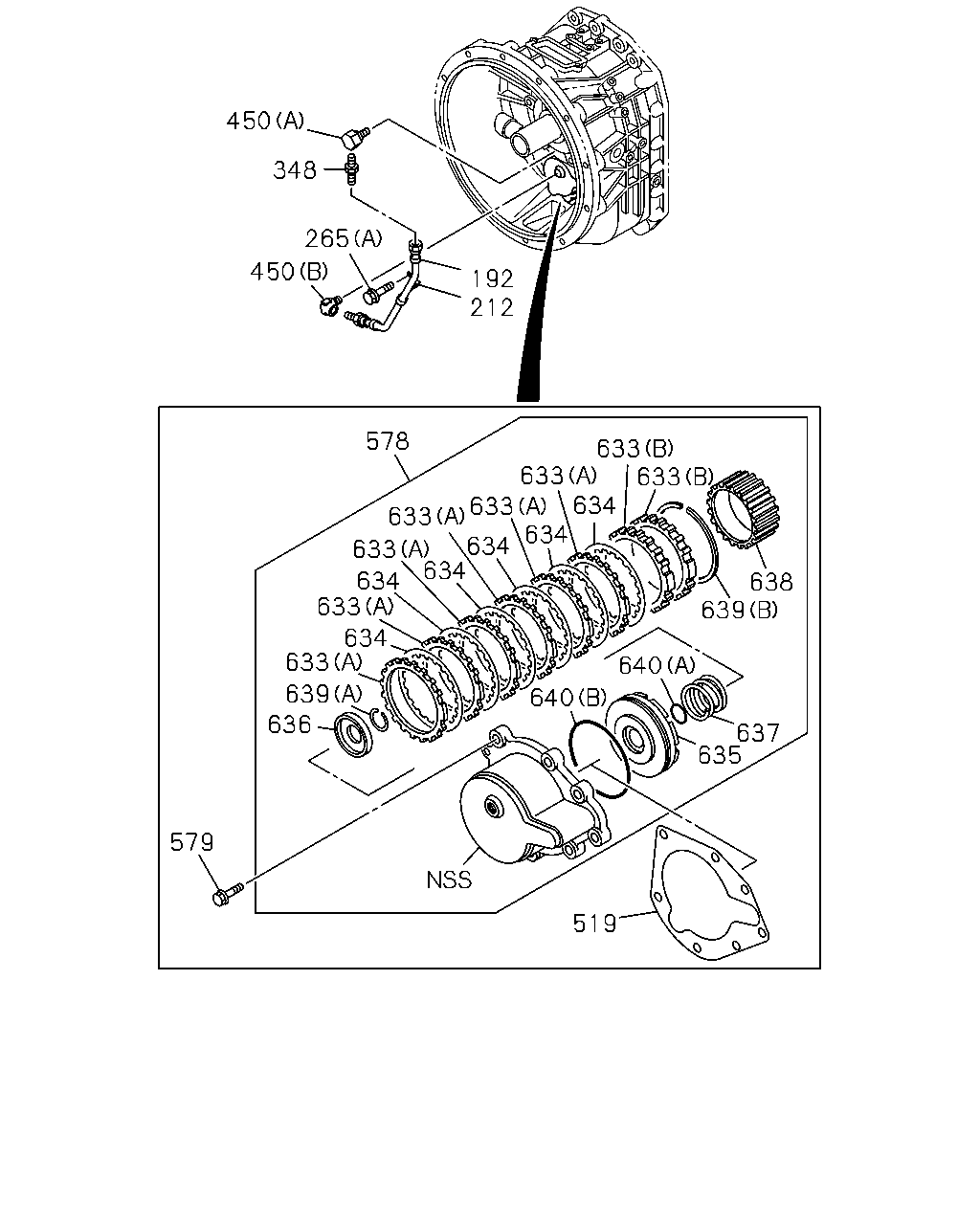

633 PLATE; SEPARATE,BRAKE
(A) 		1-33319-208-0 06 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=3.6 		1-33319-209-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=3.8 		1-33319-210-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=4.0 		1-33319-211-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=4.2 		1-33319-212-0 02 1 0710-
634 PLATE; FRICTION,BRAKE 1-33319-207-0 06 1 0710-
635 PISTON; BRAKE
T=4.90 		1-33319-230-0 01 1 0710-
636 PLATE; PRESSURE,BRAKE 1-33319-213-1 01 1 0710-
637 SPRING; BRAKE 1-33319-215-0 01 1 0710-
638 HUB; BRAKE 1-33319-220-0 01 1 0710-
639 RING; BRAKE
(A) 		1-33319-216-0 01 1 0710-
639 RING; BRAKE
(B) 		1-33319-217-0 01 1 0710-
640 GASKET; BRAKE
(A) 		1-33319-218-0 01 1 0710-
640 GASKET; BRAKE
(B) 		1-33319-219-0 01 1 0710-

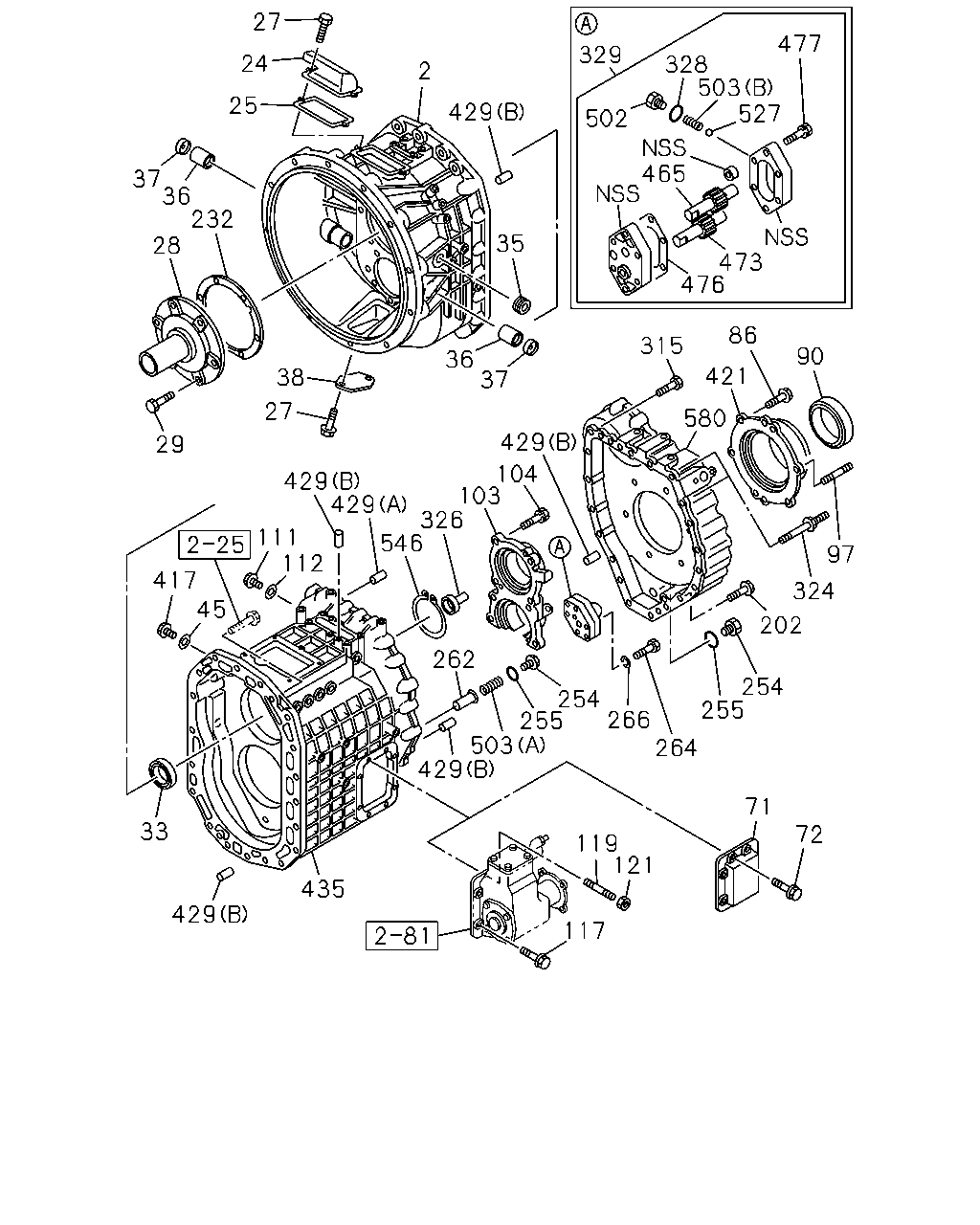

çizim 180184
27 24 25 2 429 35 36 37 38 27 29 28 232 36 37 329 328 477 503 527 502 465 473 476 86 90 315 421 580 429 104 103 326 546 429 429 111 112 417 45 262 97 324 202 254 255 264 266 254 255 503 429 33 435 429 117 119 121 71 72
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 8-98052-280-0 01 1 0710-1003
2 HOUSING; CLU 8-98168-737-0 01 1 1004-
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 0710-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 0710-1406
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1407-
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 0710-
28 COVER; FRT,TRANS CASE 1-33121-153-0 01 1 0710-
29 BOLT; FRT COVER
M10X40 FLANGE 		0-28161-040-0 06 1 0710-1211
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1212-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-624-0 01 1 0710-
35 GROMMET; CLU HSG 9-09575-796-0 01 1 0710-
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 0710-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 0710-
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 0710-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0710-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33141-066-0 01 1 0710-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X35 FLANGE 		0-28751-035-0 08 1 0710-
86 BOLT; RR COVER
M17X35 		1-09044-076-0 06 1 0710-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 0710-
97 STUD; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> M16X45 L=69 		9-04411-645-0 04 1 0710-
103 RETAINER; BRG 1-33151-060-1 01 1 0710-
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 0710-
111 PLUG; DRAIN FILLER
M24X17 FLANGE 		1-09604-022-0 02 1 0710-
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0710-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE 		0-28181-028-0 02 1 0710-0805
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE 		8-98044-944-0 02 1 0806-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40 		0-44011-025-0 06 1 0710-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE 		0-91180-210-0 06 1 0710-
202 BOLT; PLATE
M12X35 FLANGE 		0-28751-235-0 09 1 0710-
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 0710-
254 PLUG; DRAIN,OIL
M24X17 FLANGE 		1-09604-023-0 02 1 0710-
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0710-
262 STRAINER; OIL PUMP 1-41383-003-0 01 1 0710-
264 BOLT; OIL PUMP
M8X65 		0-10805-865-0 02 1 0710-
264 BOLT; OIL PUMP
M8X50 		0-10855-850-0 02 1 0710-
266 WASHER; LK
ID=8.2 		0-91510-508-0 04 1 0710-
315 BOLT; CASE
M12X50 FLANGE 		0-28151-250-0 11 1 0710-
315 BOLT; CASE
M12X110 FLANGE 		0-28156-211-0 05 1 0710-
315 BOLT; CASE
M12X35 FLANGE 		0-28751-235-0 02 1 0710-
324 STUD; RR COVER
M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 0710-
326 NOZZLE; OIL,OUTLET 1-33219-272-0 01 1 0710-
328 GASKET; PLUG 1-34159-100-0 01 1 0710-
329 PUMP ASM; OIL 1-34150-117-0 01 1 0710-1408
329 PUMP ASM; OIL 8-98283-996-0 01 1 1409-
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0710-
421 COVER; RR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33131-256-0 01 1 0710-
421 COVER; RR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33131-238-0 01 1 0710-
429 PIN; STRAIGHT
(B) OD=10 L=18 		9-08151-018-0 06 1 0710-
429 PIN; STRAIGHT
(A) OD=12 L=32 		9-08161-232-0 01 1 0710-
435 CASE; TRANS 1-33111-351-1 01 1 0710-1502
435 CASE; TRANS 8-98249-273-0 01 1 1503-
465 GEAR; IDLE,OIL PUMP 1-34151-013-0 01 1 0710-1408
473 GEAR; OUTPUT,OIL PUMP 1-34151-012-0 01 1 0710-1408
476 GASKET; COVER,OIL PUMP 1-34159-099-0 01 1 0710-
477 BOLT; OIL PUMP
M8X32 W/LK WASHER 		9-01900-832-0 02 1 0710-1408
502 PLUG; OIL PUMP 1-34159-101-0 01 1 0710-
503 SPRING; OIL PUMP
(A) 		1-09580-504-0 01 1 0710-
503 SPRING; OIL PUMP
(B) 		1-34159-102-0 01 1 0710-
527 BALL; OIL PUMP 9-00097-531-0 01 1 0710-
546 RING; SNAP,BRG
T=2.00 		1-09588-150-1 01 1 0710-
580 CASE; RANGE 1-33115-052-0 01 1 0710-

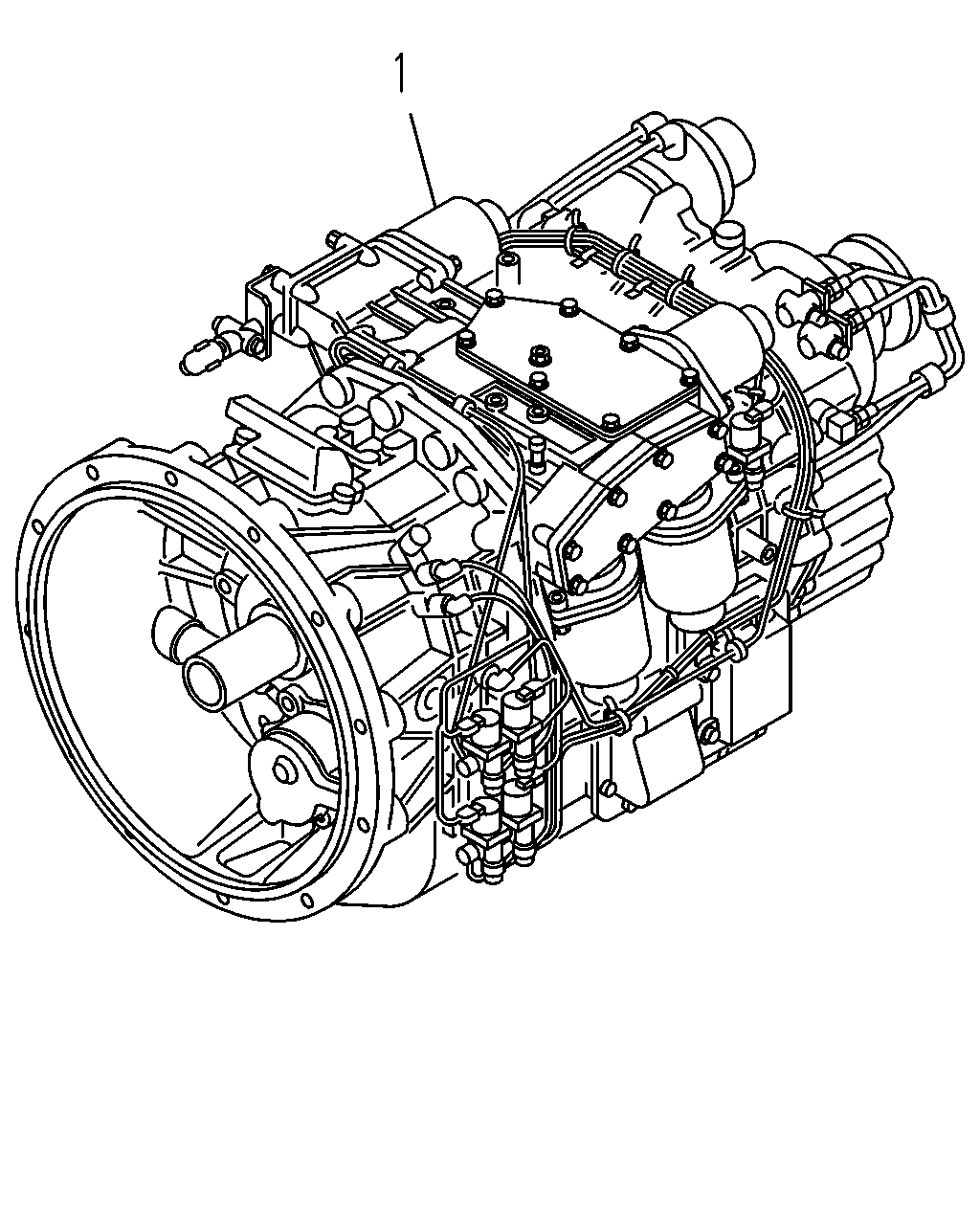

çizim 180191
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33044-064-0 01 1 0710-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> 		1-33044-064-0 01 1 0710-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33044-062-0 01 1 0710-
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2> 		1-33044-062-0 01 1 0710-
