◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#37090) — 189 parça

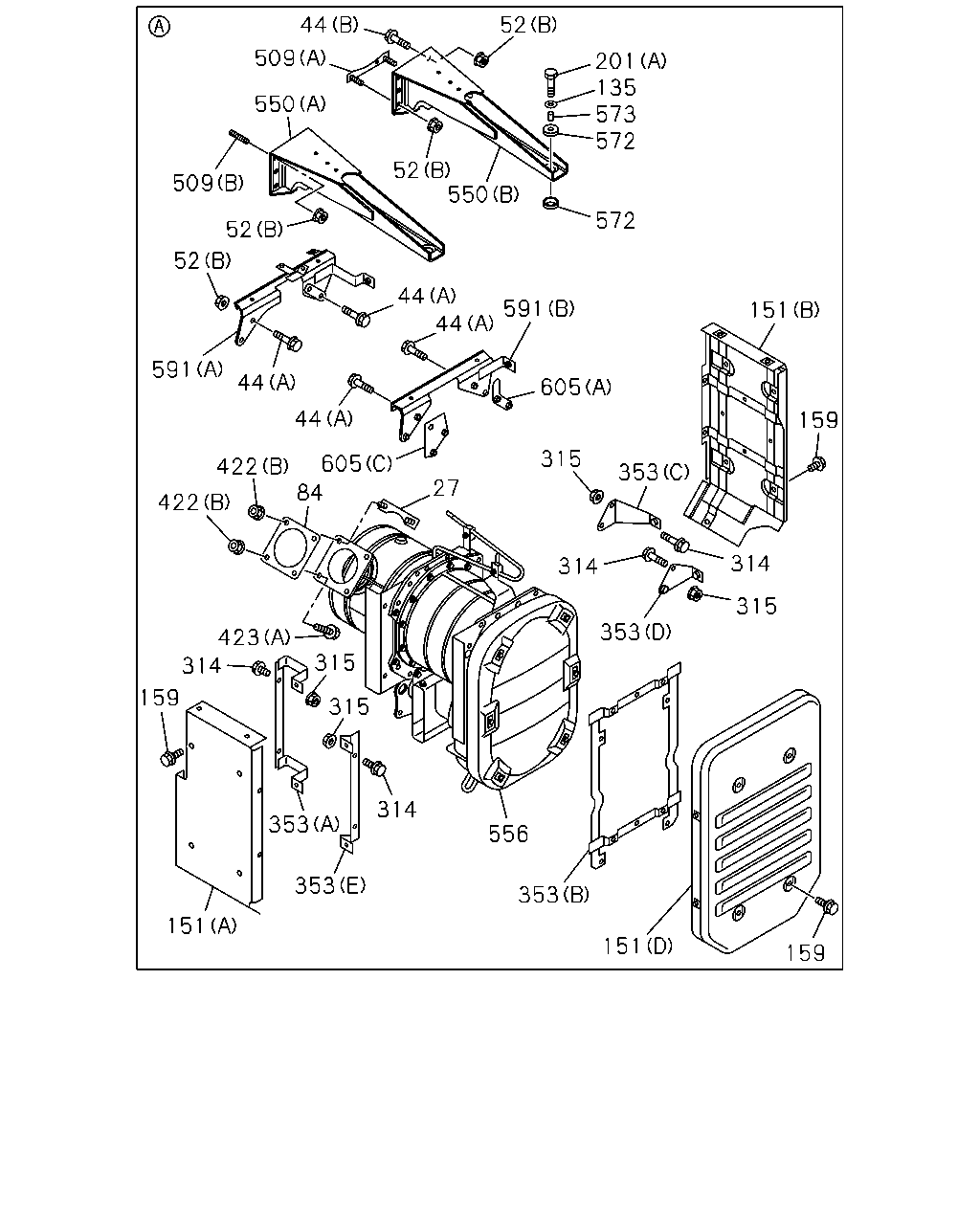

çizim 180148
44 52 509 201 135 573 572 550 52 550 509 572 52 52 44 591 151 44 591 44 605 44 159 315 605 422 84 353 27 422 314 314 315 353 423 315 314 159 315 314 353 556 353 353 151 151 159
BalonParca AdiParca NoAdetTipApplied Date
27 STUD; EXH PIPE 8-97616-750-0 01 1 0710-
44 BOLT; BRKT
(A) M10X40 FLANGE 		0-28051-040-0 08 1 0710-
44 BOLT; BRKT
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0710-0803
44 BOLT; BRKT
(B) M12X35 FLANGE 		0-28051-235-0 04 1 0804-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0710-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0710-
84 GASKET; EXH PIPE 1-22116-030-0 01 1 0710-
135 WASHER; PL,STAY
ID=10.5 OD=32 		0-91614-810-0 04 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		8-97624-244-0 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(B) 		8-97616-261-1 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97616-489-0 01 1 0710-0805
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97628-216-0 01 1 0806-
151 PROTECTOR; HEAT,EXH PIPE
(D) 		8-97620-030-0 01 1 0710-
159 BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 0710-
201 BOLT; STAY
(A) M10X50 		0-10956-050-0 04 1 0710-
201 BOLT; STAY
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0710-
201 BOLT; STAY
(C) M10X70 FLANGE 		0-28051-070-0 01 1 0710-
314 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0710-
314 BOLT; BRKT
M10X35 FLANGE 		0-28051-035-0 04 1 0710-
315 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
315 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-
353 BRACKET; HEAT PROTECTOR
(A) 		8-97624-246-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(B) 		8-97616-210-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(C) 		8-97616-262-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(D) 		8-97616-263-0 01 1 0710-
353 BRACKET; HEAT PROTECTOR
(E) 		8-97616-265-0 01 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0710-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0710-
509 STUD; BRKT
(A) 		8-97624-393-0 01 1 0710-0803
509 STUD; BRKT
(B) M12X40 L=56 		1-09300-123-0 04 1 0710-
550 BRACKET; DPD
(A) 		8-97616-254-0 01 1 0710-
550 BRACKET; DPD
(B) 		8-97616-255-0 01 1 0710-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 0710-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 0710-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 0710-
556 DPD ASM 8-98057-166-2 01 1 0710-0909
556 DPD ASM 8-98084-619-5 01 1 0910-
572 RUBBER 8-98035-816-0 08 1 0710-
573 TUBE; DIST
L=22 		9-22159-024-0 04 1 0710-
591 STAY; DPD
(A) 		8-97616-256-1 01 1 0710-
591 STAY; DPD
(B) 		8-97616-257-0 01 1 0710-
605 PLATE; NUT
(A) 		8-97619-175-1 02 1 0710-
605 PLATE; NUT
(C) 		8-97619-554-1 01 1 0710-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 0710-

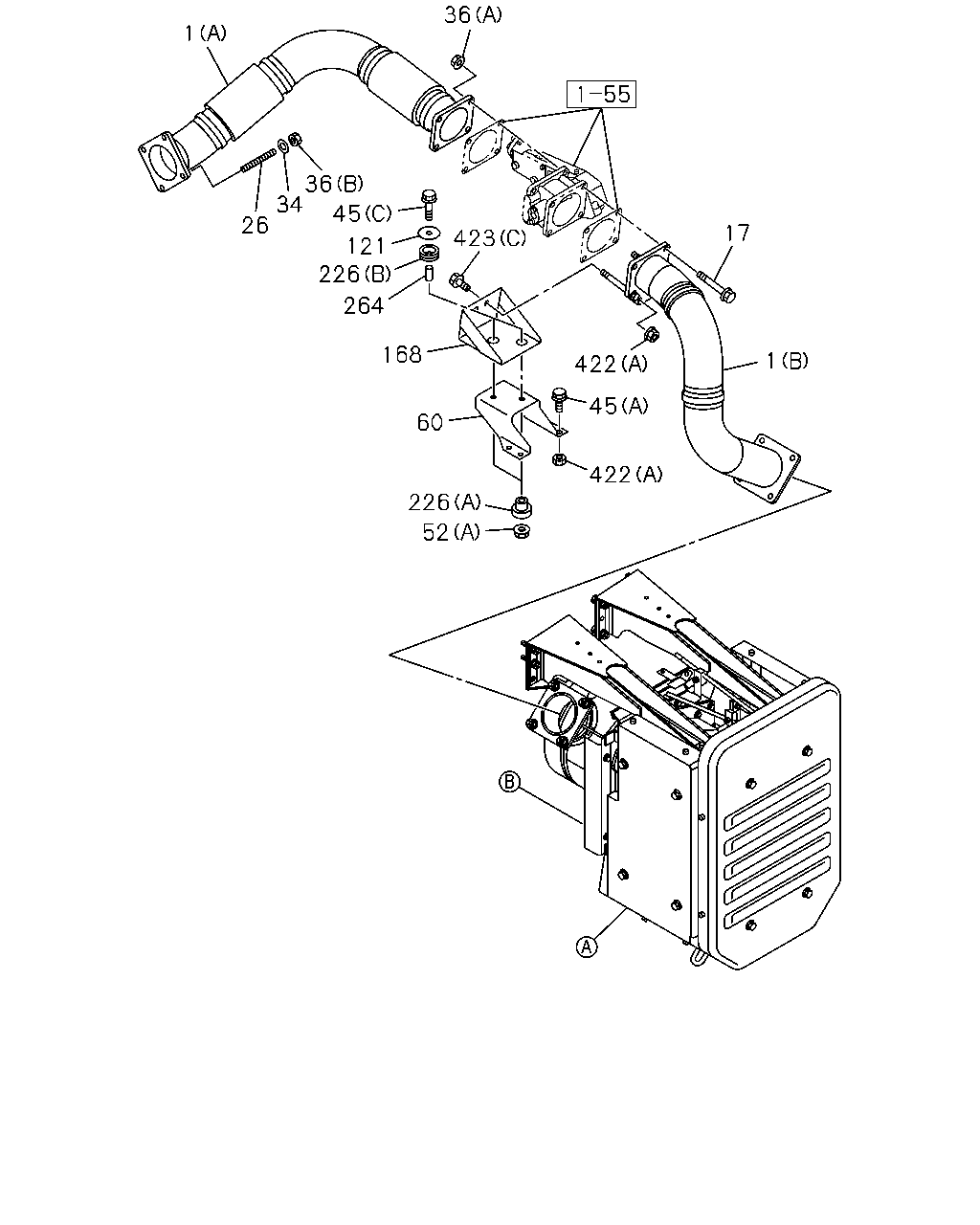

çizim 180149
1 36 36 34 26 45 121 423 226 264 168 60 17 1 422 45 422 226 52
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-97620-124-0 01 1 0710-
1 PIPE; EXH
(B) 		8-97621-308-0 01 1 0710-
17 BOLT; EXH PIPE
M12X120 FLANGE 		0-28056-212-0 02 1 0710-
26 STUD; EXH MANIF
M12X125 L=145 		8-97617-265-0 04 1 0710-1402
26 STUD; EXH MANIF
M12X125 L=145 		8-97648-063-0 04 1 1403-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0710-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0710-
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 0710-
45 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
45 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0710-
45 BOLT; BRKT
(C) M10X60 FLANGE 		0-28051-060-0 02 1 0710-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0710-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0710-
60 BRACKET; FRAME TO BRKT 8-97620-122-0 01 1 0710-
121 WASHER; PL,BRKT
OD=55 		9-09852-169-0 02 1 0710-
168 BRACKET; EXH PIPE,FRT 8-97620-118-1 01 1 0710-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-
264 TUBE; DIST,SUPPORT RUBBER
L=37.5 		9-22151-217-0 02 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0710-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0710-

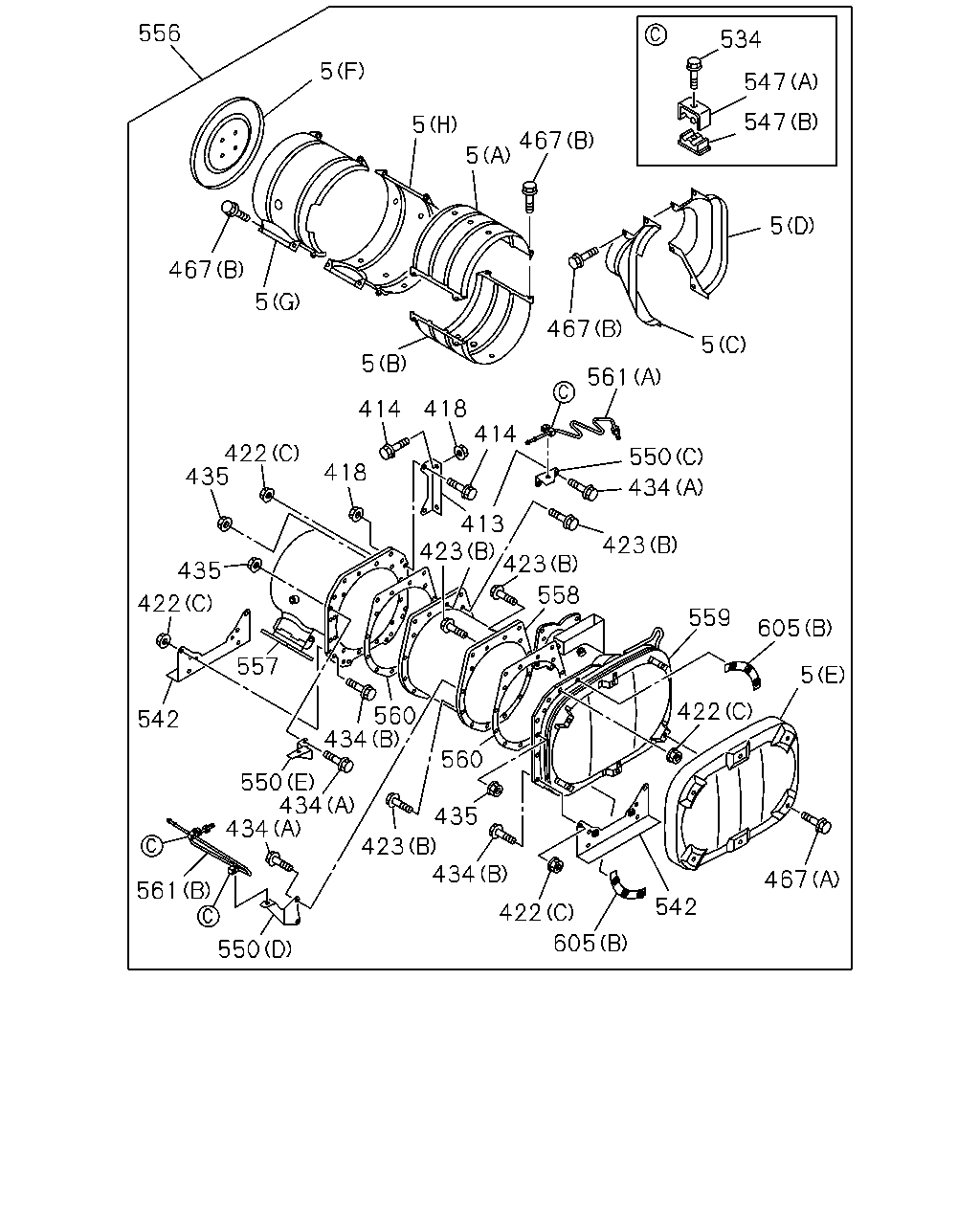

çizim 180154
556 534 5 547 547 5 467 5 5 467 5 467 5 5 561 418 414 414 422 435 550 418 434 413 423 423 423 435 558 422 559 605 557 5 422 560 434 542 560 550 434 434 435 423 434 467 561 542 422 605 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-98048-157-0 01 1 0710-
5 PROTECTOR; HEAT
(B) 		8-98048-158-0 01 1 0710-
5 PROTECTOR; HEAT
(C) 		8-98048-159-0 01 1 0710-
5 PROTECTOR; HEAT
(D) 		8-98048-160-0 01 1 0710-
5 PROTECTOR; HEAT
(E) 		8-98048-161-0 01 1 0710-
5 PROTECTOR; HEAT
(F) 		8-98060-018-0 01 1 0710-
5 PROTECTOR; HEAT
(G) 		8-98060-019-0 01 1 0710-
5 PROTECTOR; HEAT
(H) 		8-98060-020-0 01 1 0710-
413 BRACKET; EXH PIPE,CONN 8-98048-297-0 01 1 0710-
414 BOLT; BRKT
M10X30 FLANGE 		0-28051-030-0 04 1 0710-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 04 1 0710-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0710-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0710-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0710-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
434 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
435 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
467 BOLT; PROTECTOR
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0710-
467 BOLT; PROTECTOR
(B) M6X16 		8-98019-179-0 16 1 0710-0909
467 BOLT; PROTECTOR
(B) M6X16 		8-98019-179-0 17 1 0910-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710-
542 BRACKET 8-98048-298-2 02 1 0710-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710-
550 BRACKET; DPD
(A) 		8-97616-254-0 01 1 0710-
550 BRACKET; DPD
(B) 		8-97616-255-0 01 1 0710-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 0710-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 0710-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 0710-
556 DPD ASM 8-98057-166-2 01 1 0710-0909
556 DPD ASM 8-98084-619-5 01 1 0910-
557 CATALYST ASM 8-98048-141-5 01 1 0710-
558 FILTER ASM 8-98061-187-2 01 1 0710-
559 COVER; RR 8-98057-197-1 01 1 0710-0909
559 COVER; RR 8-98084-621-0 01 1 0910-
560 GASKET; DPD 8-97381-467-0 02 1 0710-
561 PIPE; DPD
(A) 		8-98048-164-0 01 1 0710-0909
561 PIPE; DPD
(A) 		8-98084-625-1 01 1 0910-
561 PIPE; DPD
(B) 		8-98057-199-0 01 1 0710-0909
561 PIPE; DPD
(B) 		8-98084-624-1 01 1 0910-
605 PLATE; NUT
(A) 		8-97619-175-1 02 1 0710-
605 PLATE; NUT
(C) 		8-97619-554-1 01 1 0710-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 0710-

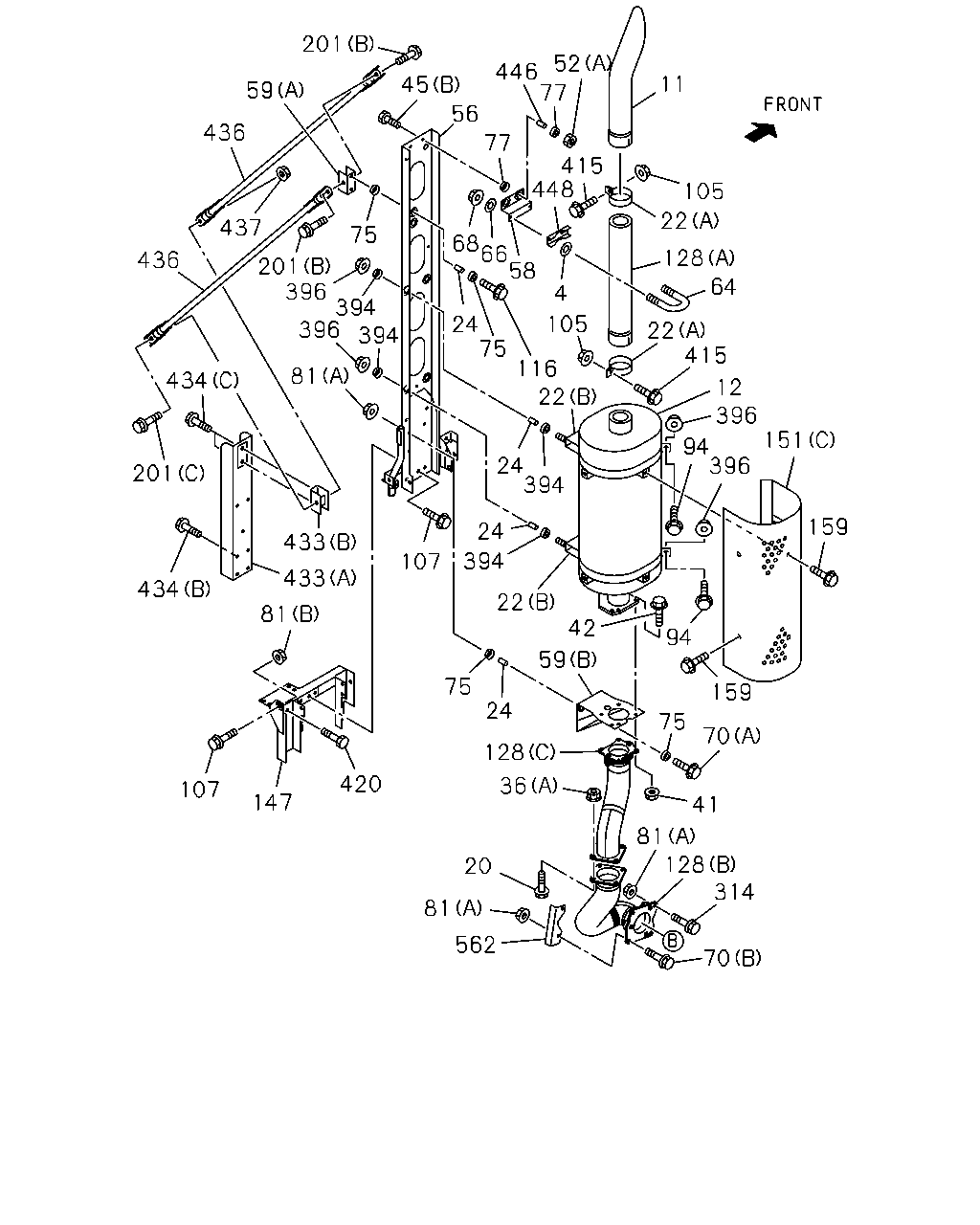

çizim 180159
201 52 446 77 45 11 59 56 436 77 415 448 105 22 437 75 68 66 58 128 436 201 396 394 396 394 64 4 105 24 75 22 415 116 22 81 434 12 396 151 94 396 24 394 201 24 159 433 394 107 433 434 22 81 42 94 59 75 159 24 75 70 128 420 36 107 147 41 81 128 314 20 81 562 70
BalonParca AdiParca NoAdetTipApplied Date
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 0710-
11 PIPE; EXH,RR 1-22123-086-1 01 1 0710-
12 SILENCER ASM; EXH 8-97621-716-0 01 1 0710-
20 BOLT; FLANGE,EXH PIPE
M12X35 FLANGE 		0-28051-235-0 06 1 0710-0911
20 BOLT; FLANGE,EXH PIPE
M12X35 FLANGE 		0-28051-235-0 08 1 0912-
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 02 1 0710-
22 CLAMP; EXH PIPE
(B) 		1-22133-270-0 02 1 0710-
24 COLLAR; DIST,CLAMP
L=25 		1-14234-083-0 10 1 0710-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0710-
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 0710-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 04 1 0710-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X40 FLANGE 		0-28051-240-0 04 1 0710-
45 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
45 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0710-
45 BOLT; BRKT
(C) M10X60 FLANGE 		0-28051-060-0 02 1 0710-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0710-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0710-
56 BRACKET; CLAMP,EXH PIPE 8-97624-058-2 01 1 0710-
58 BRACKET; EXH PIPE,RR 1-22131-799-0 01 1 0710-
59 BRACKET; EXH SILENCER,FRT
(A) 		1-22119-408-0 01 1 0710-
59 BRACKET; EXH SILENCER,FRT
(B) 		8-97618-865-0 01 1 0710-
64 U-BOLT; EXH PIPE,RR 1-22113-097-0 01 1 0710-
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0710-
68 NUT; U BOLT
M8 		0-91110-508-0 02 1 0710-
70 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0710-
70 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 01 1 0710-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 12 1 0710-
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 04 1 0710-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 05 1 0710-
81 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 05 1 0710-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28051-040-0 02 1 0710-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 01 1 0710-
107 BOLT; BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 0710-
116 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0710-
128 PIPE; EXH,RR
(A) 		1-22123-087-1 01 1 0710-
128 PIPE; EXH,RR
(B) 		8-97621-274-0 01 1 0710-
128 PIPE; EXH,RR
(C) 		8-97621-300-1 01 1 0710-
147 BRACKET; VERTICAL PIPE 8-97624-060-3 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		8-97624-244-0 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(B) 		8-97616-261-1 01 1 0710-
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97616-489-0 01 1 0710-0805
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97628-216-0 01 1 0806-
151 PROTECTOR; HEAT,EXH PIPE
(D) 		8-97620-030-0 01 1 0710-
159 BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 0710-
201 BOLT; STAY
(A) M10X50 		0-10956-050-0 04 1 0710-
201 BOLT; STAY
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0710-
201 BOLT; STAY
(C) M10X70 FLANGE 		0-28051-070-0 01 1 0710-
314 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0710-
314 BOLT; BRKT
M10X35 FLANGE 		0-28051-035-0 04 1 0710-
394 RUBBER; SUPPORT,CLAMP
OD=40 		1-22159-094-0 08 1 0710-
396 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 06 1 0710-
415 BOLT; CLAMP
M10X40 FLANGE 		0-28051-040-0 01 1 0710-
420 BOLT; BRKT,VERTICAL PIPE
M12X35 FLANGE 		0-28051-235-0 05 1 0710-
433 BRACKET; STAY,EXH PIPE
(A) 		8-97620-409-2 01 1 0710-
433 BRACKET; STAY,EXH PIPE
(B) 		8-97622-822-0 01 1 0710-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0710-
434 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0710-
436 STAY; SUPPORT,EXH 8-97616-276-0 02 1 0710-
437 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0710-
446 PIECE; DIST,EXH PIPE,RR
L=25 		1-14234-083-0 02 1 0710-
448 PIECE; DIST,U-BOLT 1-22113-095-0 01 1 0710-
562 PLATE; STUD,BOLT 8-97623-014-0 01 1 0710-0911
562 PLATE; STUD,BOLT 8-97633-857-0 01 1 0912-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
