◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10695 - LV233(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#3708) — 27 parça

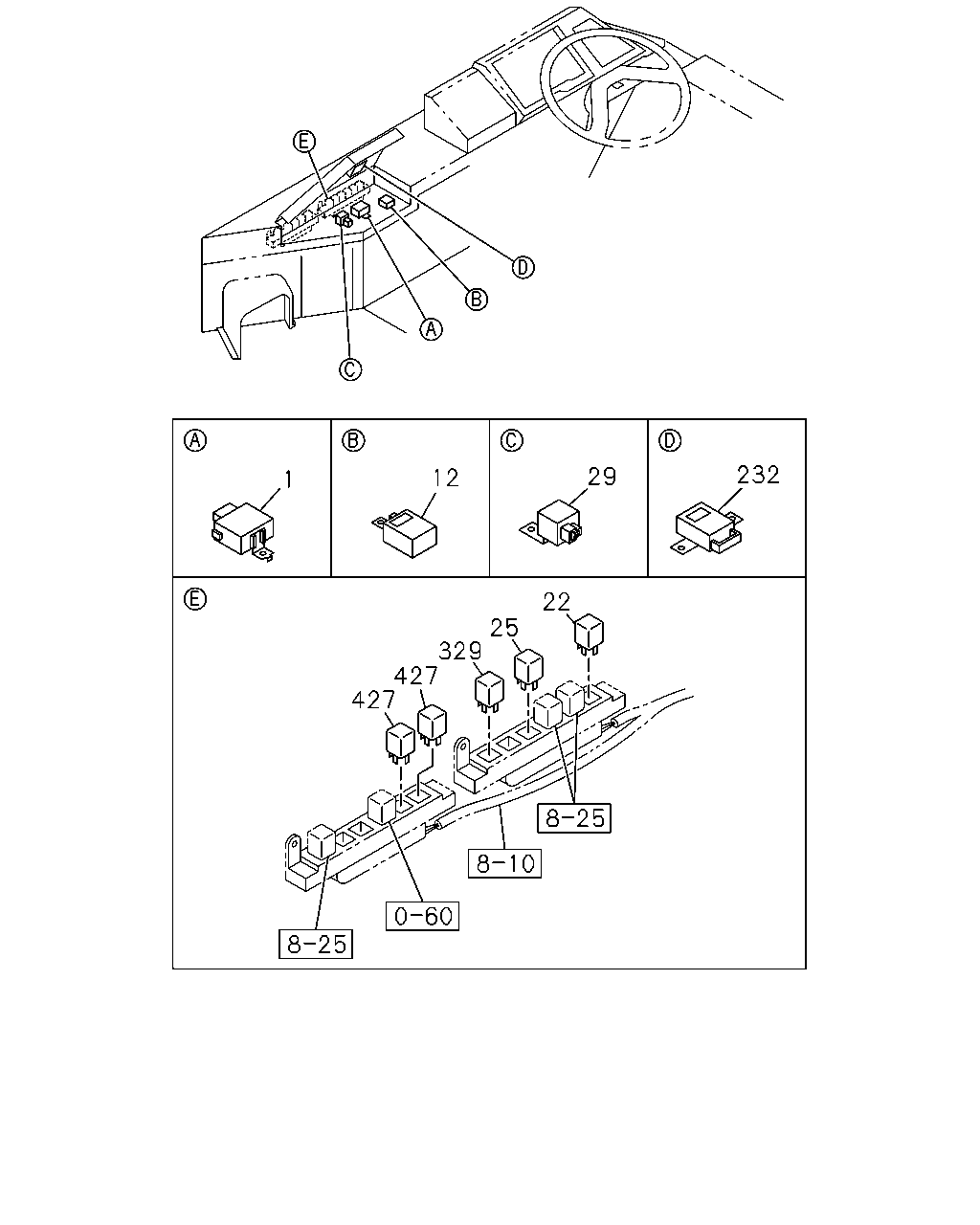

çizim 37933
232 29 12 1 22 25 329 427 427
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-064-0 01 1 9712-
12 RELAY; LAMP,FAILURE INDICATOR 1-82550-143-2 01 1 9712-
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9712-
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9712-
29 RELAY; HORN 1-83420-001-0 01 1 9712-
232 RELAY; WARNING BUZZER 1-82550-119-1 01 1 9712-
329 RELAY; BACK LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9712-
427 RELAY; RETARDER
24V 12.5A MITUBA 		8-97062-815-1 02 1 9712-

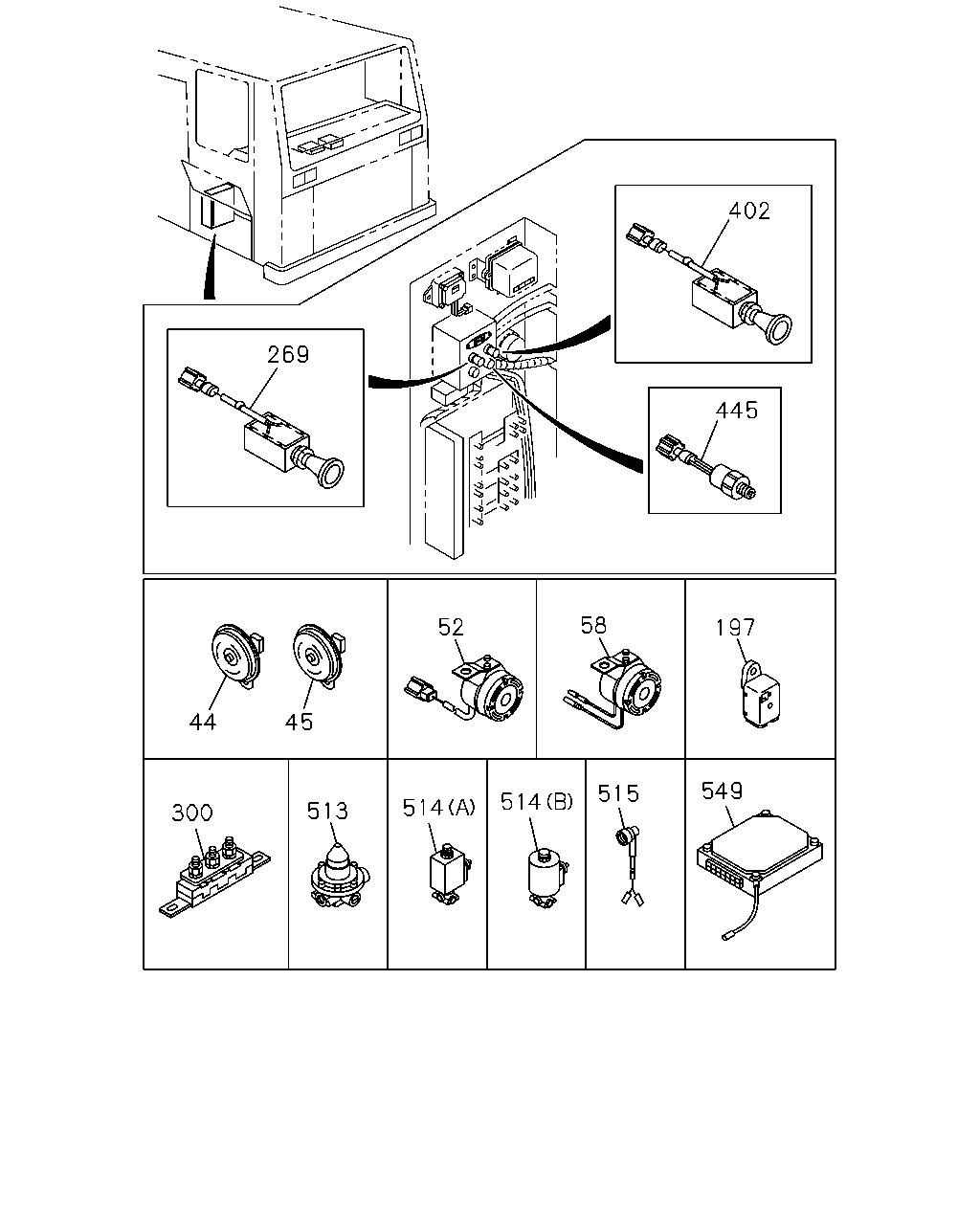

çizim 38014
402 269 445 58 52 197 45 44 549 515 514 514 513 300
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 1-83410-057-1 01 1 9712-
45 HORN; LOW NOTE 1-83410-058-1 01 1 9712-
52 BUZZER; BACK
NIKKO 		1-83460-052-0 01 1 9712-
52 BUZZER; BACK
METRO DENSO 		1-83460-088-0 01 1 9904-9907
52 BUZZER; BACK
EXC. NIKKO<Y70> METRO DENSO 		1-83460-088-1 01 1 9908-
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9712-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-
197 BUZZER; WARNING,AIR HEAT OIL BRK 1-83460-051-1 01 1 9712-
269 SWITCH; BATTERY,ENG ROOM 1-82340-358-0 01 1 9712-
300 BLOCK; JUNCTION,WIRING HARNESS 1-82530-019-0 01 1 9712-
402 SWITCH; IGNITION SAFETY 1-82340-382-0 01 1 9712-
445 SWITCH; ENG STOP 1-82380-107-1 01 1 9712-
513 VALVE; REDUCTION
1.20BAR 		1-48110-084-0 01 1 9712-
513 VALVE; REDUCTION
3.00BAR 		1-48110-085-0 01 1 9712-
514 VALVE; SOLENOID
(A) 		1-82563-581-0 01 1 9712-
514 VALVE; SOLENOID
(B) 		1-82563-803-0 01 1 9712-
515 HARNESS; VLV 1-82449-002-0 01 1 9712-
549 CONTROL UNIT; ENGINE 1-80110-177-0 01 1 9712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
