0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#37078) — 85 parça

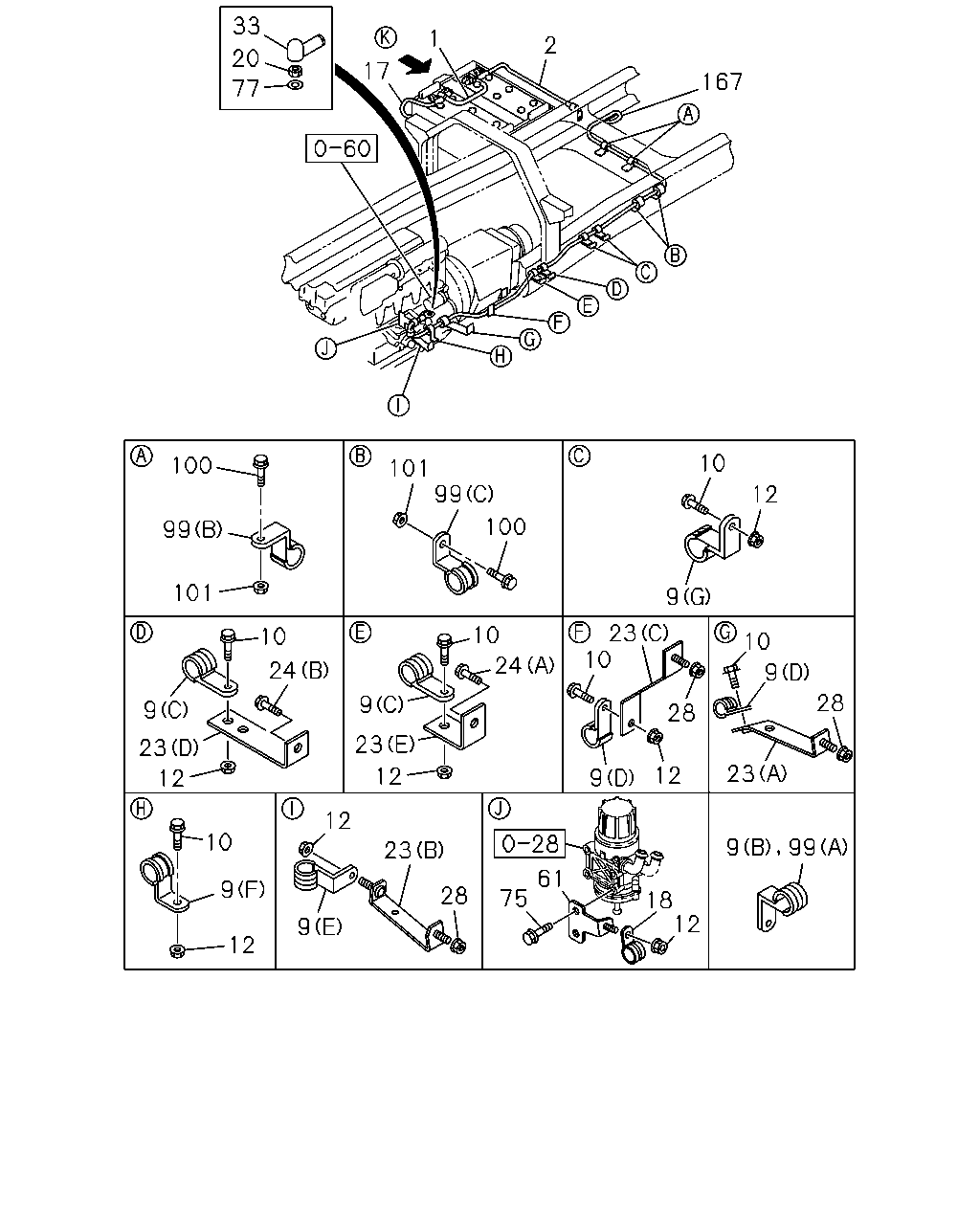

çizim 180127
33 1 2 20 17 167 77 10 100 101 99 12 100 99 101 9 23 10 10 10 10 24 24 9 28 9 9 28 23 23 23 12 12 9 12 12 10 23 61 9 28 75 18 12 9 12 9 99
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-391-1 01 1 0710-
2 CABLE; BATTERY
L=720 		1-82650-386-1 01 1 0710-
9 CLIP; BATTERY CABLE
EXC. BRAKE SYSTEM RETARDER<RE2> (G) ID=18 L=28 H=30 		1-09701-110-0 03 1 0802-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0710-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 02 1 0710-
9 CLIP; BATTERY CABLE
(G) ID=18 L=28 H=30 		1-09701-110-0 03 1 0710-0801
9 CLIP; BATTERY CABLE
BRAKE SYSTEM RETARDER<RE2> (G) ID=18 L=28 H=30 		1-09701-110-0 02 1 0802-
9 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-94176-807-1 02 1 0710-
9 CLIP; BATTERY CABLE
BRAKE SYSTEM RETARDER<RE2> (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0710-
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710-
10 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
10 BOLT; BATTERY CABLE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0710-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 08 1 0710-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-762-3 01 1 0710-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 0710-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 0710-
23 BRACKET; CABLE CLIP TO FRAME
(E) L=40 		1-47478-410-0 01 1 0710-
23 BRACKET; CABLE CLIP TO FRAME
(D) L=95 		1-82698-557-0 01 1 0710-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		1-82698-574-0 01 1 0710-
23 BRACKET; CABLE CLIP TO FRAME
(C) 		1-82698-575-1 01 1 0710-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-82698-589-0 01 1 0710-
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0710-
33 CAP; INSULATOR 8-97181-965-0 01 1 0710-
61 BRACKET; BATTERY CABLE 1-82698-587-0 01 1 0710-
75 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0710-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 0710-
99 CLIP; BATTERY CABLE
EXC. BRAKE SYSTEM RETARDER<RE2> (C) ID=18 L=25 H=50 		1-09701-096-0 02 1 0802-
99 CLIP; BATTERY CABLE
(B) ID=18 H=23 L=28 		1-09701-070-0 02 1 0710-
99 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 02 1 0710-0801
99 CLIP; BATTERY CABLE
BRAKE SYSTEM RETARDER<RE2> (C) ID=18 L=25 H=50 		1-09701-096-0 01 1 0802-
99 CLIP; BATTERY CABLE
BRAKE SYSTEM RETARDER<RE2> (A) ID=25 H=60 L=35 		1-09701-103-0 01 1 0710-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710-
167 CABLE; BATTERY RELAY TO STARTER
BRAKE SYSTEM RETARDER<RE2> 		8-97623-231-0 01 1 0710-
167 CABLE; BATTERY RELAY TO STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		8-97623-230-0 01 1 0710-

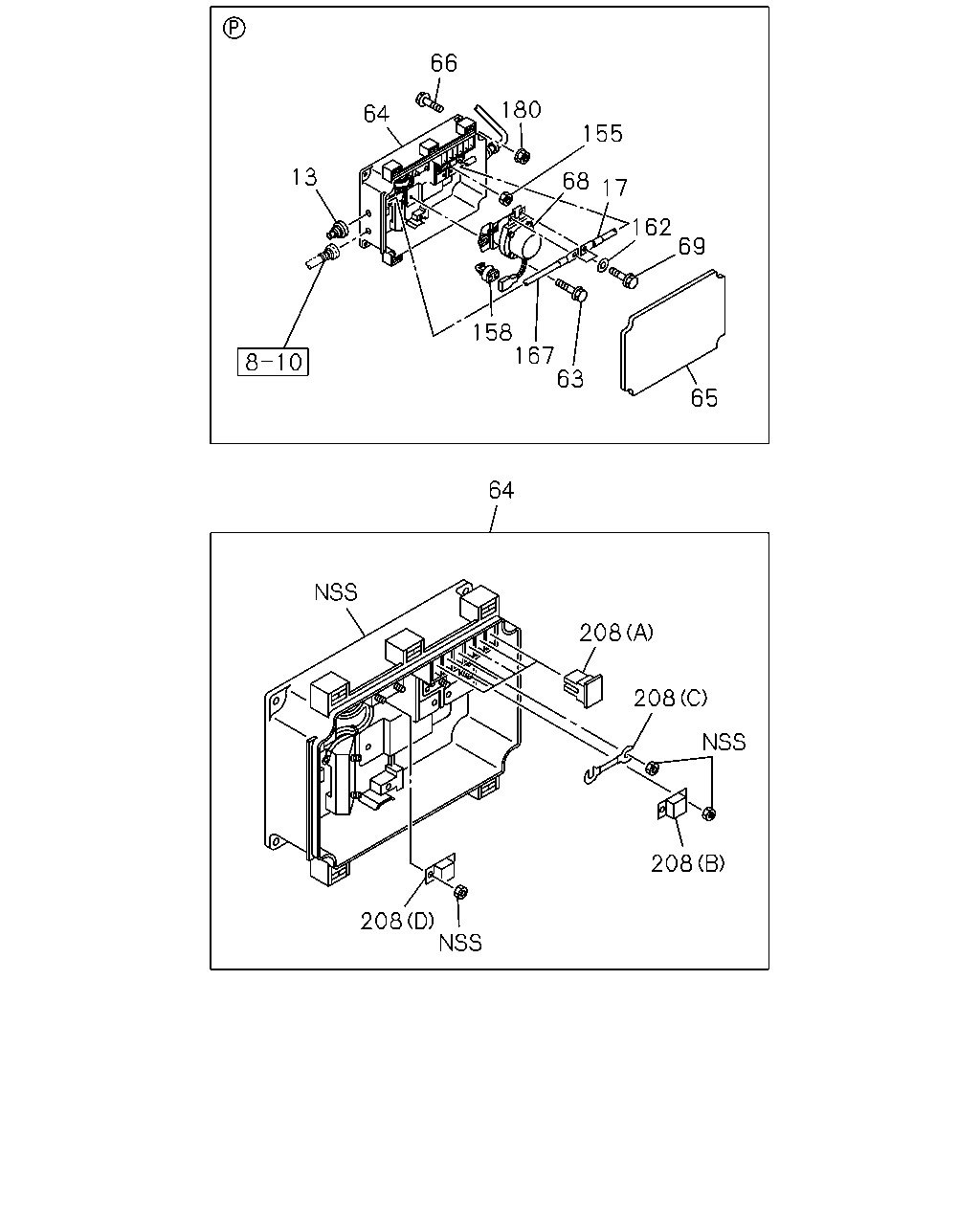

çizim 180128
66 180 64 155 13 68 17 162 69 158 167 63 65 64 208 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0710-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-762-3 01 1 0710-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0710-
64 BOX; BATTERY RELAY
GENERATOR 24V-60A 1.5KW(SC8) 		1-82510-650-0 01 1 0710-
64 BOX; BATTERY RELAY
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82510-652-0 01 1 0710-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 0710-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0710-
68 RELAY; BATTERY 1-82550-313-0 01 1 0710-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0710-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0710-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0710-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0710-
167 CABLE; BATTERY RELAY TO STARTER
BRAKE SYSTEM RETARDER<RE2> 		8-97623-231-0 01 1 0710-
167 CABLE; BATTERY RELAY TO STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		8-97623-230-0 01 1 0710-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0710-
208 FUSE
(D) 80A 		1-82516-031-0 01 1 0710-
208 FUSE
(A) 40A GREEN 		8-94468-662-0 06 1 0710-
208 FUSE
GENERATOR 24V-60A 1.5KW(SC8) (B) 100A 		1-82516-032-0 01 1 0710-
208 FUSE
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) 125A 		9-82941-130-1 01 1 0710-

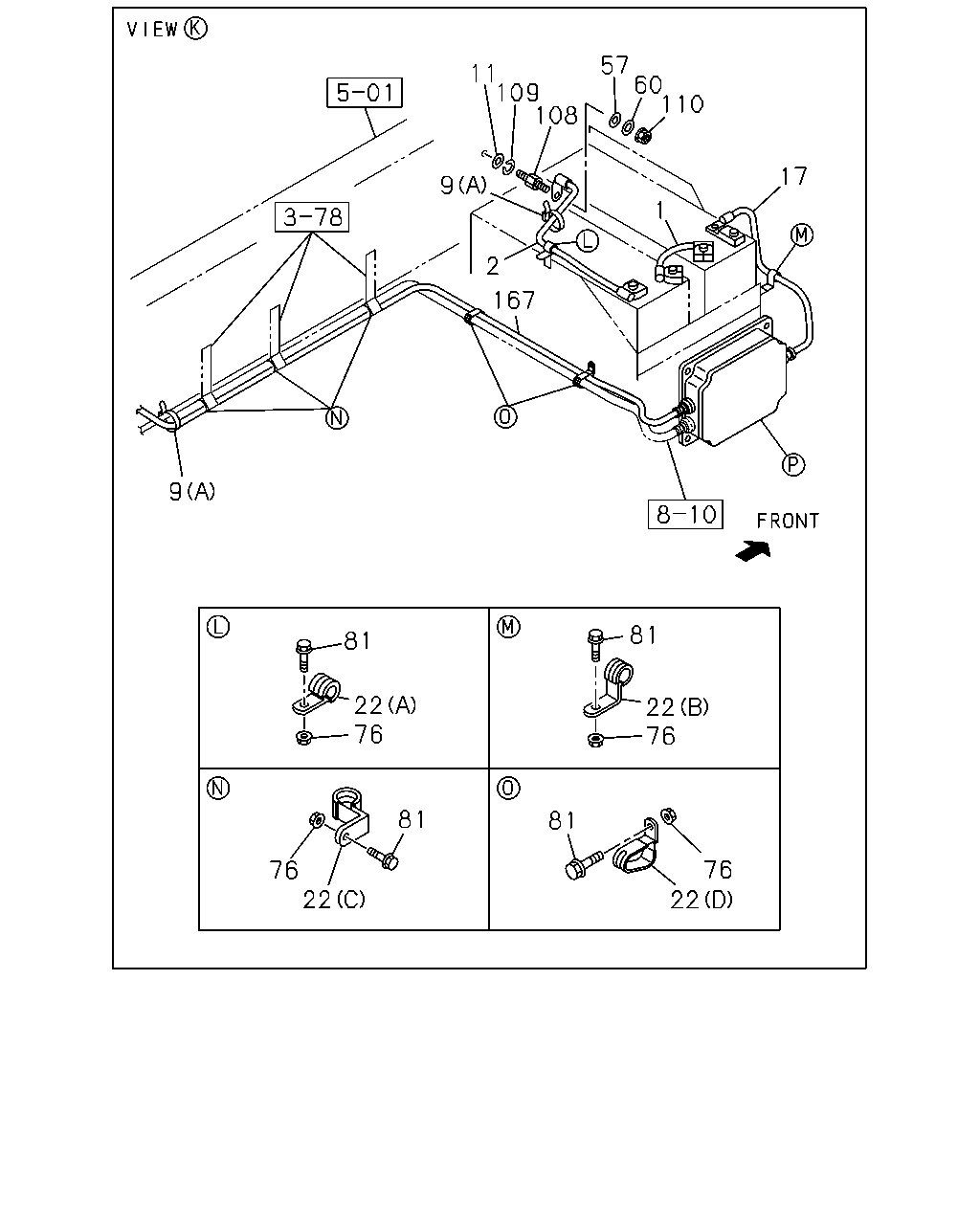

çizim 180129
57 60 110 11 109 108 17 9 1 2 167 9 81 81 22 76 22 76 81 81 76 22 76 22
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-391-1 01 1 0710-
2 CABLE; BATTERY
L=720 		1-82650-386-1 01 1 0710-
9 CLIP; BATTERY CABLE
EXC. BRAKE SYSTEM RETARDER<RE2> (G) ID=18 L=28 H=30 		1-09701-110-0 03 1 0802-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0710-
9 CLIP; BATTERY CABLE
(E) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 02 1 0710-
9 CLIP; BATTERY CABLE
(G) ID=18 L=28 H=30 		1-09701-110-0 03 1 0710-0801
9 CLIP; BATTERY CABLE
BRAKE SYSTEM RETARDER<RE2> (G) ID=18 L=28 H=30 		1-09701-110-0 02 1 0802-
9 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-94176-807-1 02 1 0710-
9 CLIP; BATTERY CABLE
BRAKE SYSTEM RETARDER<RE2> (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0710-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0710-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-762-3 01 1 0710-
22 CLIP; BATTERY CABLE
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0710-
22 CLIP; BATTERY CABLE
(D) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 0710-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0710-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0710-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 06 1 0710-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0710-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0710-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0710-
167 CABLE; BATTERY RELAY TO STARTER
BRAKE SYSTEM RETARDER<RE2> 		8-97623-231-0 01 1 0710-
167 CABLE; BATTERY RELAY TO STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		8-97623-230-0 01 1 0710-
