0-60 — ENGINE ELECTRICAL CONTROL PARTS (#37077) — 84 parça

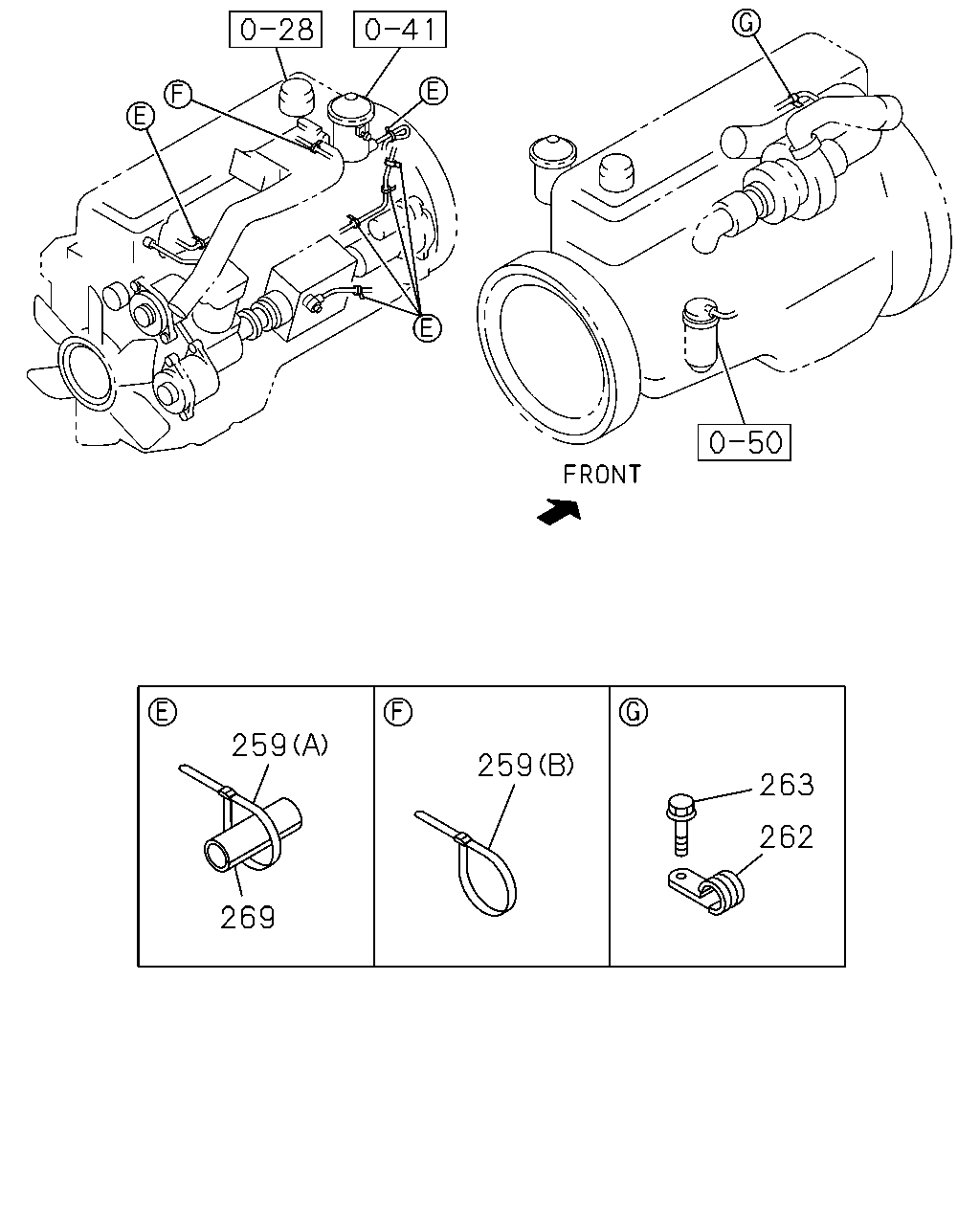

çizim 180118
259 259 263 262 269
BalonParca AdiParca NoAdetTipApplied Date
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 0710-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		8-98216-431-0 06 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 0710-
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 01 1 0710-
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710-

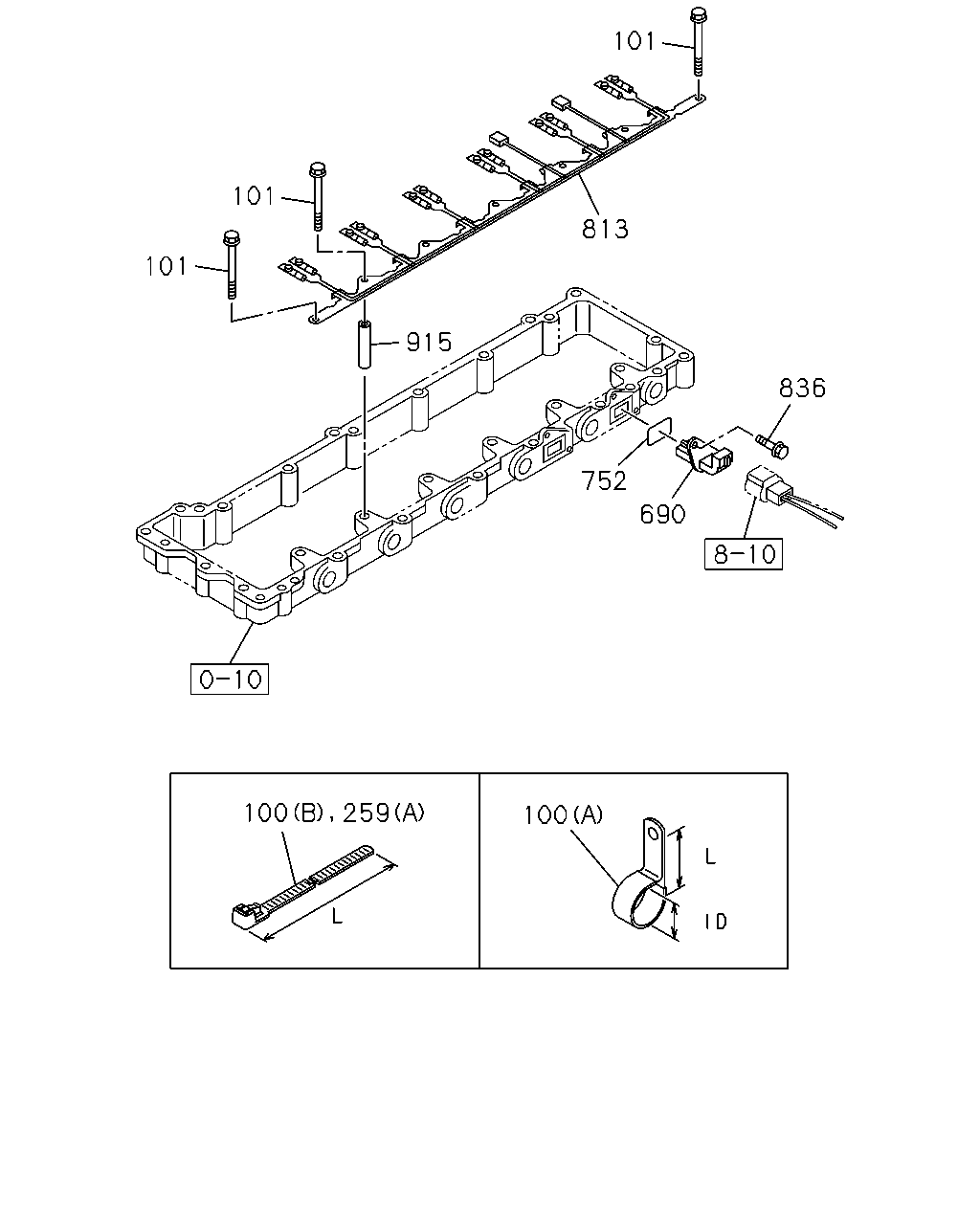

çizim 180119
101 101 813 101 915 836 752 690 100 100 259
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 0710-
100 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0710-1205
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1206-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 0710-
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 0710-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		8-98216-431-0 06 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 0710-
690 CONNECTOR 8-94390-858-1 02 1 0710-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0710-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 0710-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0710-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 0710-

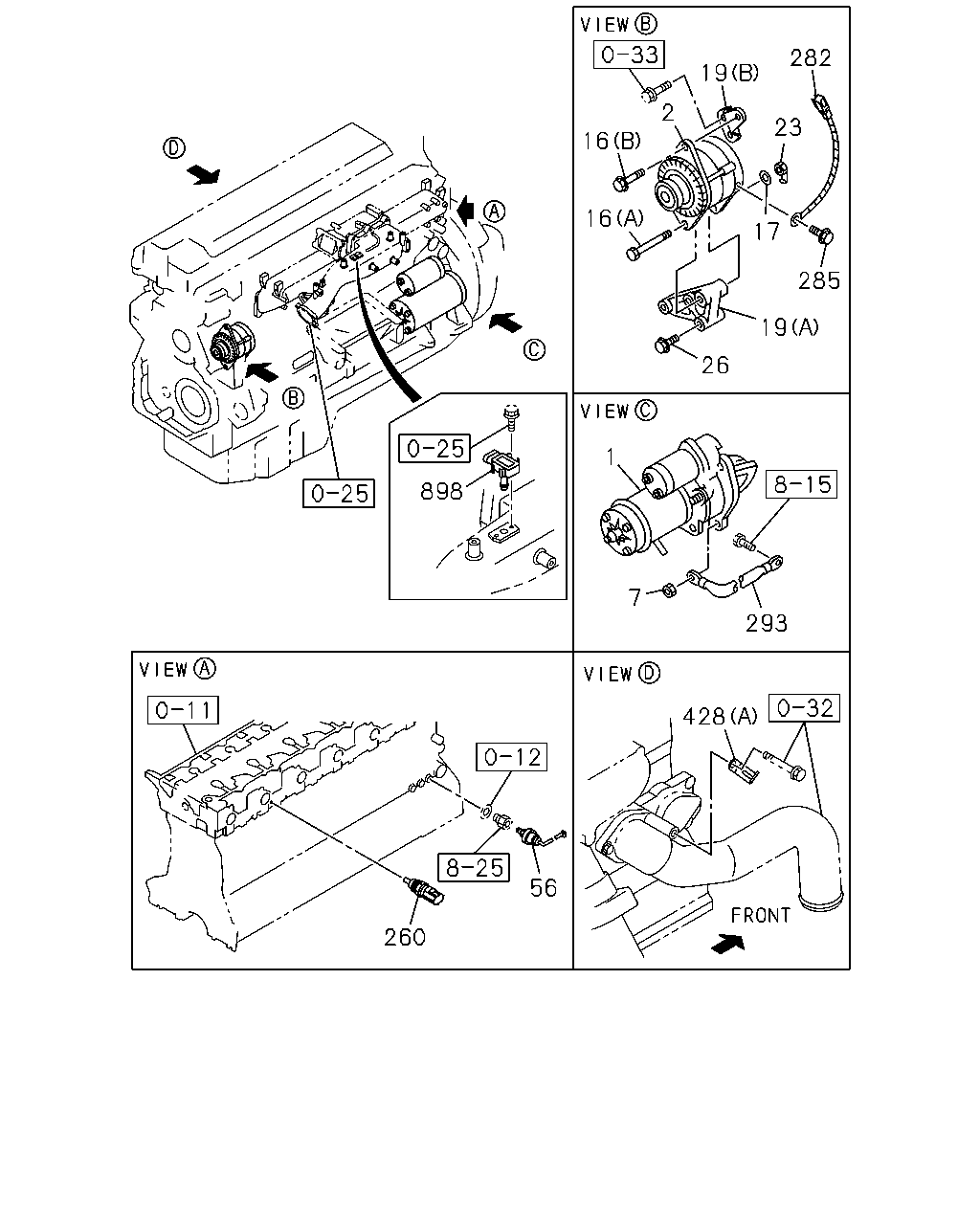

çizim 180120
282 19 2 16 16 17 23 285 19 26 1 7 898 293 56 260 428
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 0710-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		8-98013-613-4 01 1 0710-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		8-98013-614-3 01 1 0710-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0710-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 0710-
16 BOLT; GEN
GENERATOR 24V-60A 1.5KW(SC8) (A) M14X123 		1-09040-105-0 01 1 0710-
16 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M14X157 		1-09040-106-0 01 1 0710-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0710-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 0710-
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 0710-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0710-0910
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0911-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0710-
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 0710-
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0710-1406
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1407-
282 HARNESS; EXT,GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82640-682-2 01 1 0710-
285 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X12 FLANGE 		0-28050-812-0 01 1 0710-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0710-
428 CLIP; HARNESS
(B) L=350 		1-09707-183-0 01 1 0710-
428 CLIP; HARNESS
(F) ID=30X2 L=28 		1-09701-266-0 01 1 0710-
428 CLIP; HARNESS
(E) ID=35X2 L=32 		1-09701-314-0 03 1 0710-
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0710-
428 CLIP; HARNESS
(D) 		1-82699-993-1 01 1 0710-
428 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 0710-
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 0710-
898 SENSOR; BOOST 8-98009-418-0 01 1 0710-
çizim 180121
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 1-81171-100-1 01 1 0710-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 0710-

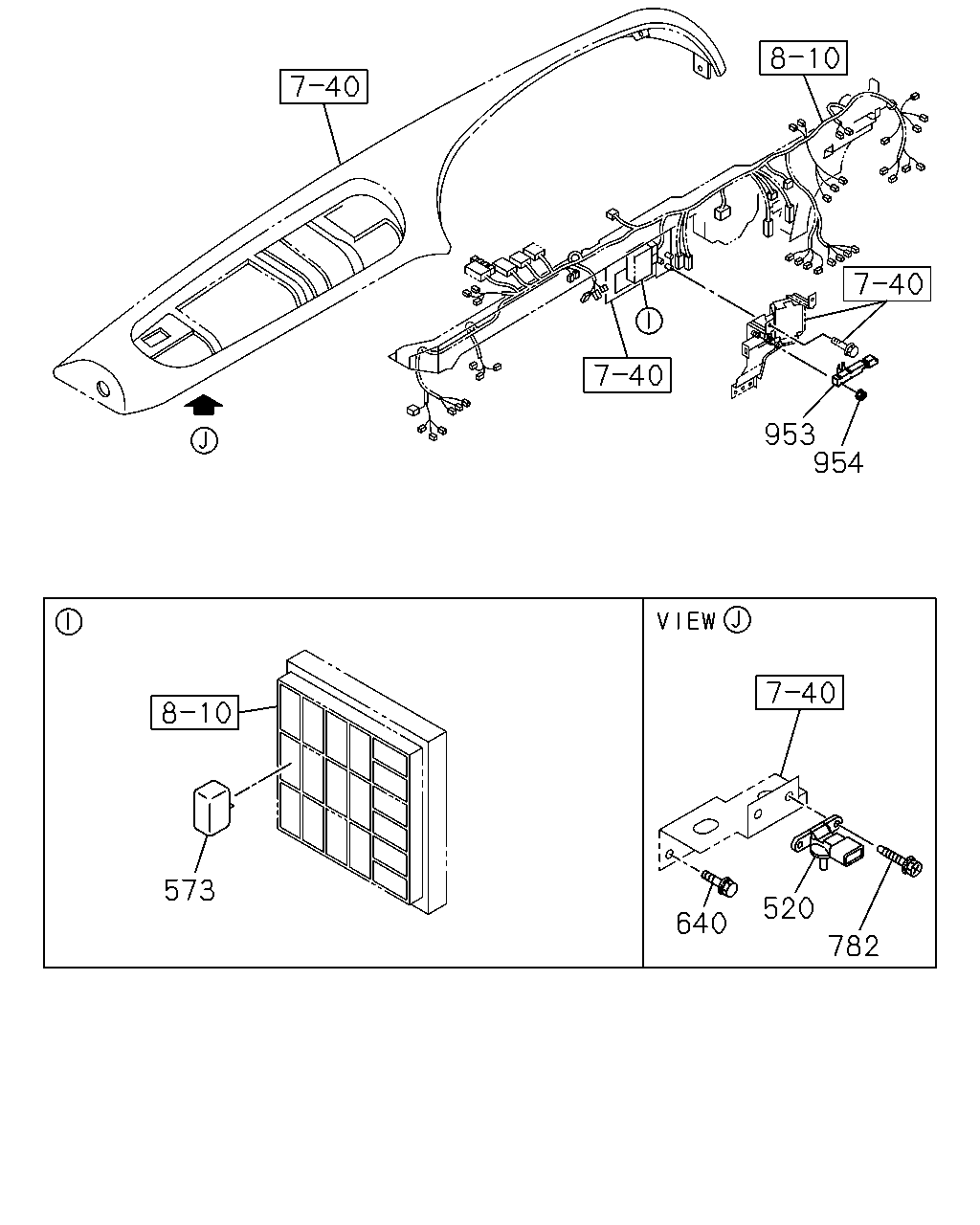

çizim 180122
953 954 573 520 640 782
BalonParca AdiParca NoAdetTipApplied Date
520 SENSOR; PRESSURE 8-98020-514-0 01 1 0710-
573 RELAY; ELEC GOV
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0710-
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 0710-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0710-
çizim 180124
428 428 441 441 428 428 441 441 428 428
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(B) L=350 		1-09707-183-0 01 1 0710-
428 CLIP; HARNESS
(F) ID=30X2 L=28 		1-09701-266-0 01 1 0710-
428 CLIP; HARNESS
(E) ID=35X2 L=32 		1-09701-314-0 03 1 0710-
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0710-
428 CLIP; HARNESS
(D) 		1-82699-993-1 01 1 0710-
428 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 0710-
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 0710-
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 05 1 0710-0809
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0810-0904
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
çizim 180125
612 611
BalonParca AdiParca NoAdetTipApplied Date
611 BRACKET; SENSOR 8-97618-867-0 01 1 0710-
612 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 02 1 0710-

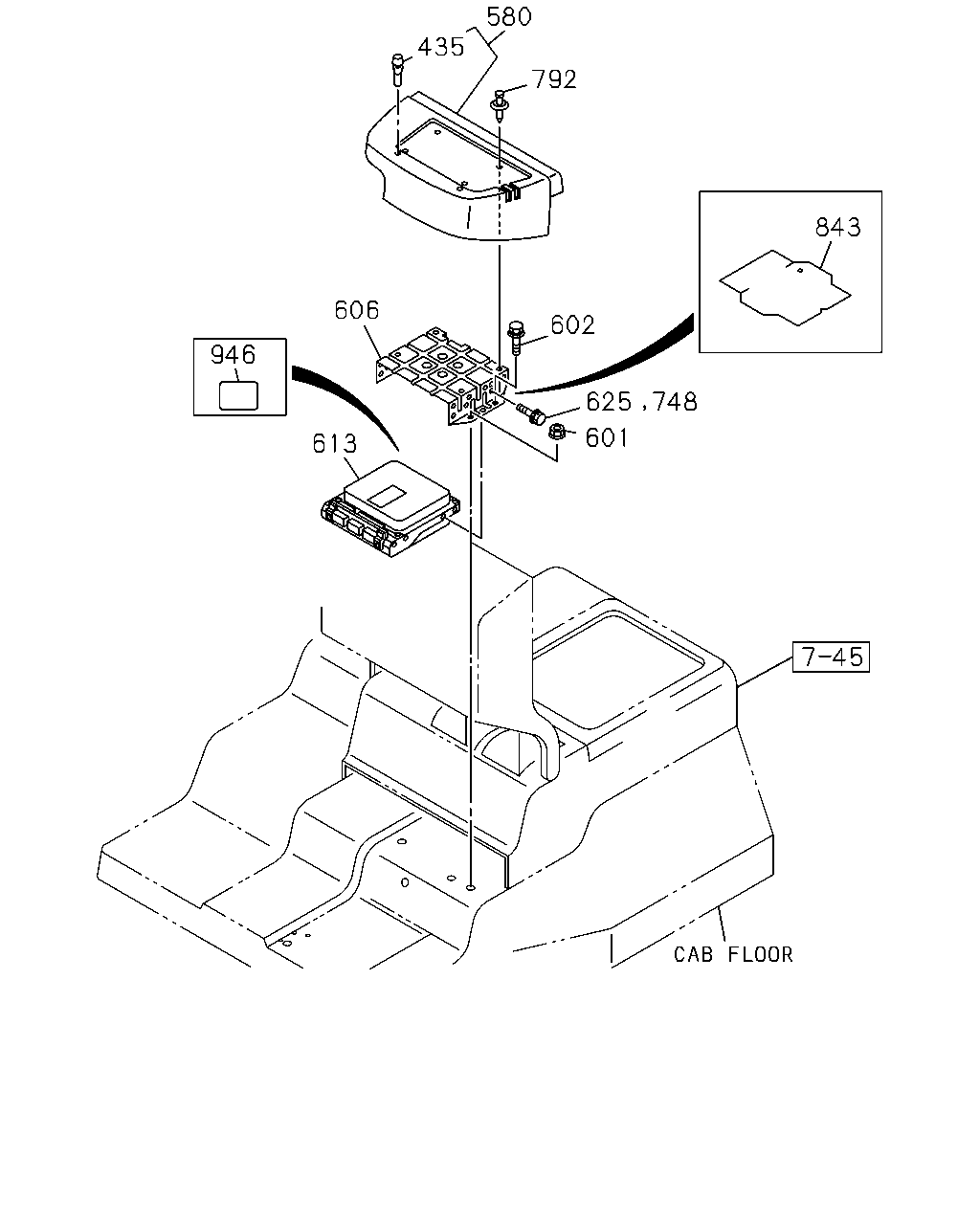

çizim 180126
580 435 792 843 606 602 946 625 748 601 613
BalonParca AdiParca NoAdetTipApplied Date
435 RUBBER; CUSHION 1-72537-138-0 02 1 0710-
580 COVER; CONT UNIT 1-72537-279-2 01 1 0710-
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-
602 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710-
602 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
606 BRACKET; CONT UNIT 1-72537-333-0 01 1 0710-
613 CONTROL UNIT; ENG 8-98089-051-2 01 1 0710-0807
613 CONTROL UNIT; ENG 8-98115-672-0 01 1 0808-0910
613 CONTROL UNIT; ENG 8-97634-918-0 01 1 0911-1012
613 CONTROL UNIT; ENG 8-97985-243-1 01 1 1101-
625 SCREW; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0710-
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 08 1 0710-
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 0710-
843 SEAL; BRKT 1-76770-009-2 01 1 0710-1101
843 SEAL; BRKT 8-98119-974-0 01 1 1102-
946 SEAL; TAPE 1-80199-006-0 01 1 0710-1212
946 SEAL; TAPE 8-98166-639-0 01 1 1301-
