0-40 — FUEL INJECTION SYSTEM (#37070) — 137 parça

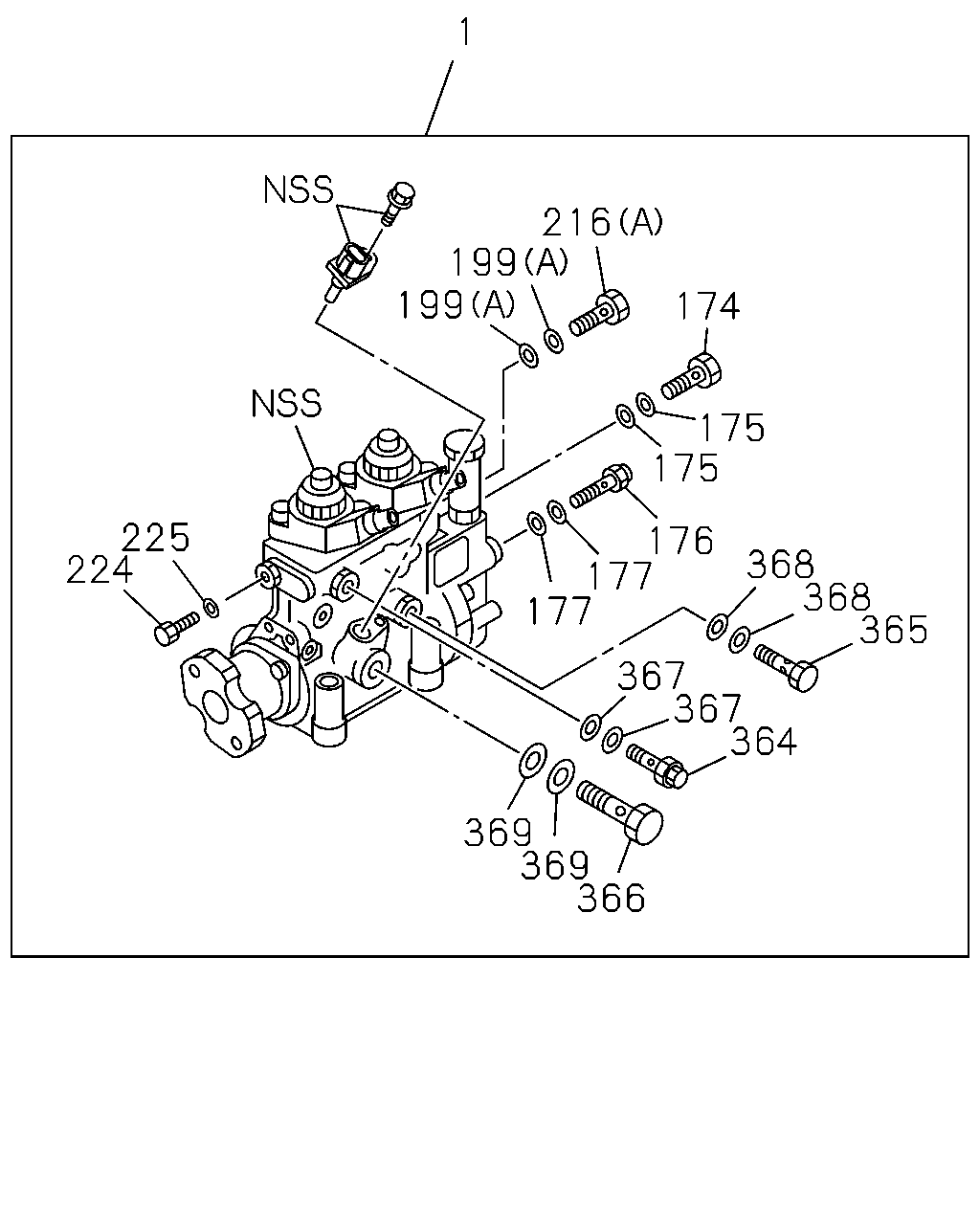

çizim 180104
1 216 199 199 174 175 175 225 224 176 177 177 368 368 365 367 367 364 369 369 366
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 1-15603-515-3 01 1 0710-
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0710-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0710-
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0710-
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0710-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0710-
225 GASKET; PLUG 1-15619-502-0 01 1 0710-
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0710-
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0710-
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0710-
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0710-
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0710-
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0710-

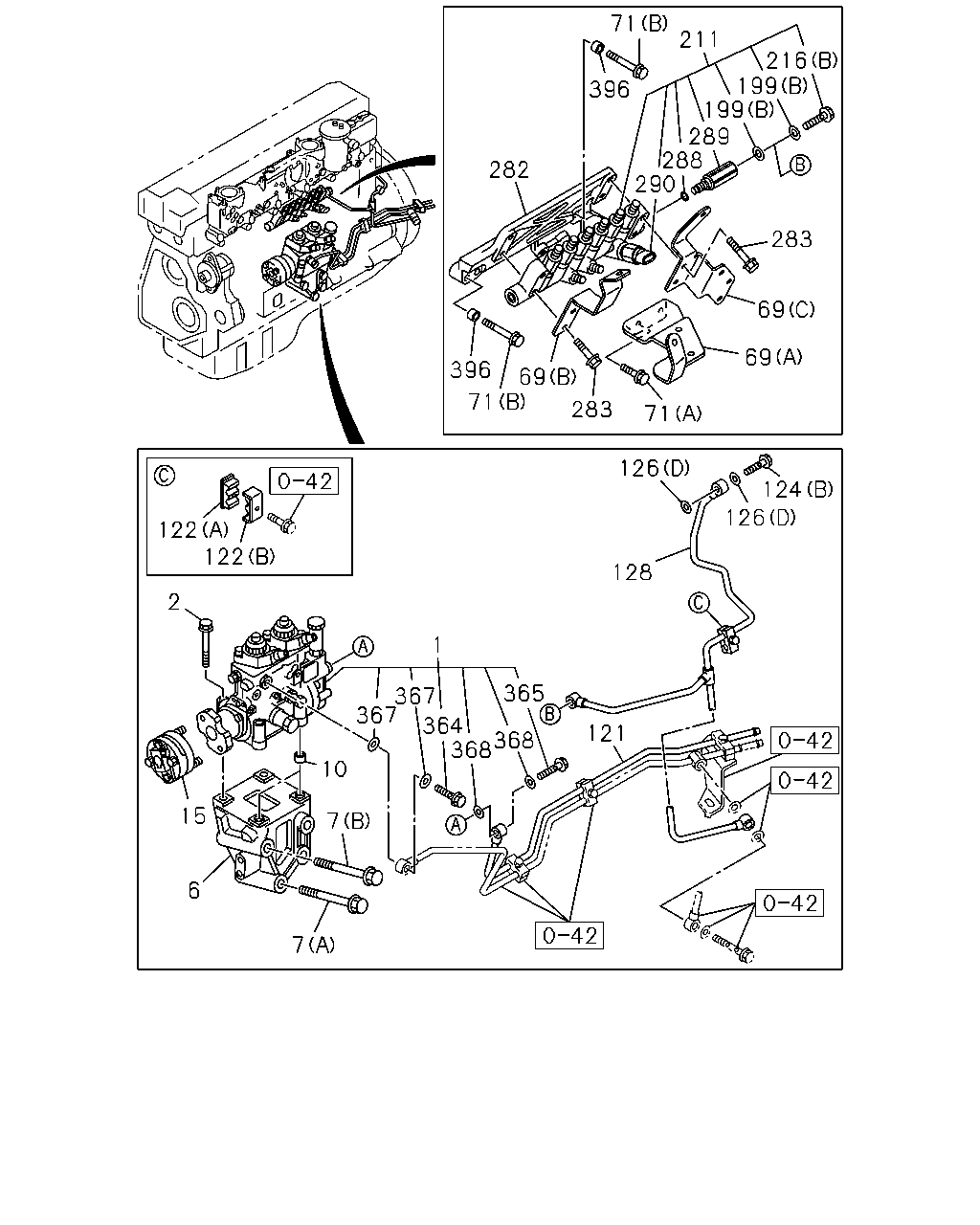

çizim 180106
282 396 71 69 71 283 69 69 283 290 288 289 199 199 216 71 211 396 124 126 126 128 121 365 367 364 368 368 7 10 367 2 1 15 6 7 122 122
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 1-15603-515-3 01 1 0710-
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 0710-
6 BRACKET; INJ PUMP TO C/BL 8-97611-140-1 01 1 0710-1001
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1002-
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0710-
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0710-
10 DOWEL; INJ PUMP
OD=14 L=10 		9-11319-065-3 02 1 0710-1001
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1002-
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(A) 		8-97605-219-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(B) 		8-97613-974-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(C) 		8-97613-988-0 01 1 0710-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 02 1 0710-
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-908-1 01 1 0710-
122 CLIP; LEAK OFF PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 01 1 1206-
122 CLIP; LEAK OFF PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 01 1 1206-
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206-
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-
128 PIPE ASM; INJ 8-97603-638-0 01 1 0710-1205
128 PIPE ASM; INJ 8-98218-280-0 01 1 1206-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-
211 RAIL ASM; COMMON 8-97603-121-2 01 1 0710-
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0710-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-
282 BRACKET; COMMON RAIL 8-97603-122-2 01 1 0710-
283 BOLT; COMMON RAIL
M10X40 FLANGE 		0-28151-040-0 04 1 0710-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0710-
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 0710-
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-1102
290 SENSOR; PRESS 8-98119-790-0 01 1 1103-
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0710-
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0710-
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0710-
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0710-
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 0710-

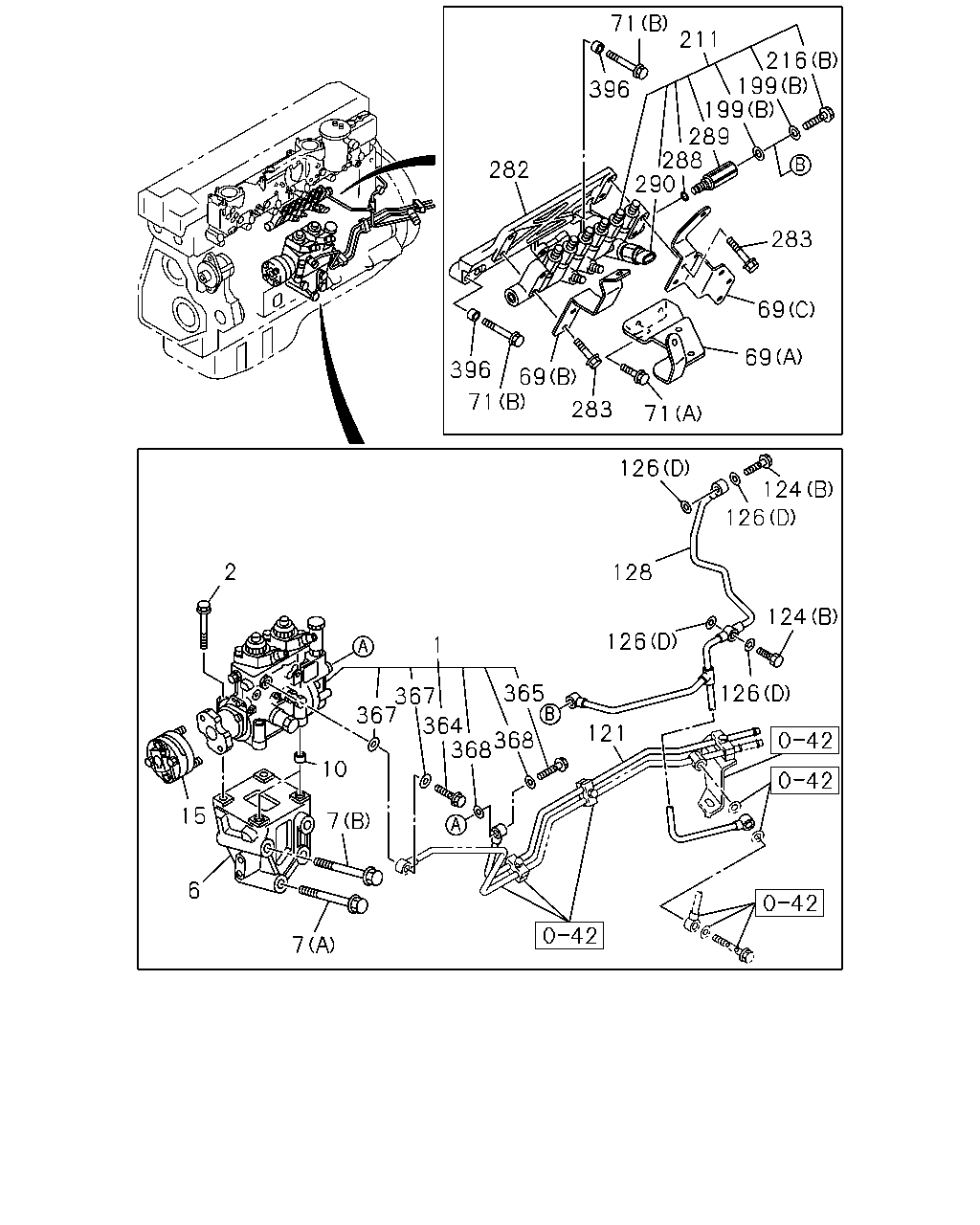

çizim 180107
71 211 216 199 199 289 288 290 396 282 283 69 69 396 69 71 283 71 126 124 126 2 128 124 126 1 365 126 367 367 15 364 368 368 121 10 7 6 7
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 1-15603-515-3 01 1 0710-
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 0710-
6 BRACKET; INJ PUMP TO C/BL 8-97611-140-1 01 1 0710-1001
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1002-
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0710-
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0710-
10 DOWEL; INJ PUMP
OD=14 L=10 		9-11319-065-3 02 1 0710-1001
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1002-
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(A) 		8-97605-219-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(B) 		8-97613-974-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(C) 		8-97613-988-0 01 1 0710-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 02 1 0710-
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-908-1 01 1 0710-
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206-
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-
128 PIPE ASM; INJ 8-97603-638-0 01 1 0710-1205
128 PIPE ASM; INJ 8-98218-280-0 01 1 1206-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-
211 RAIL ASM; COMMON 8-97603-121-2 01 1 0710-
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0710-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-
282 BRACKET; COMMON RAIL 8-97603-122-2 01 1 0710-
283 BOLT; COMMON RAIL
M10X40 FLANGE 		0-28151-040-0 04 1 0710-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0710-
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 0710-
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-1102
290 SENSOR; PRESS 8-98119-790-0 01 1 1103-
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0710-
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0710-
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0710-
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0710-
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 0710-

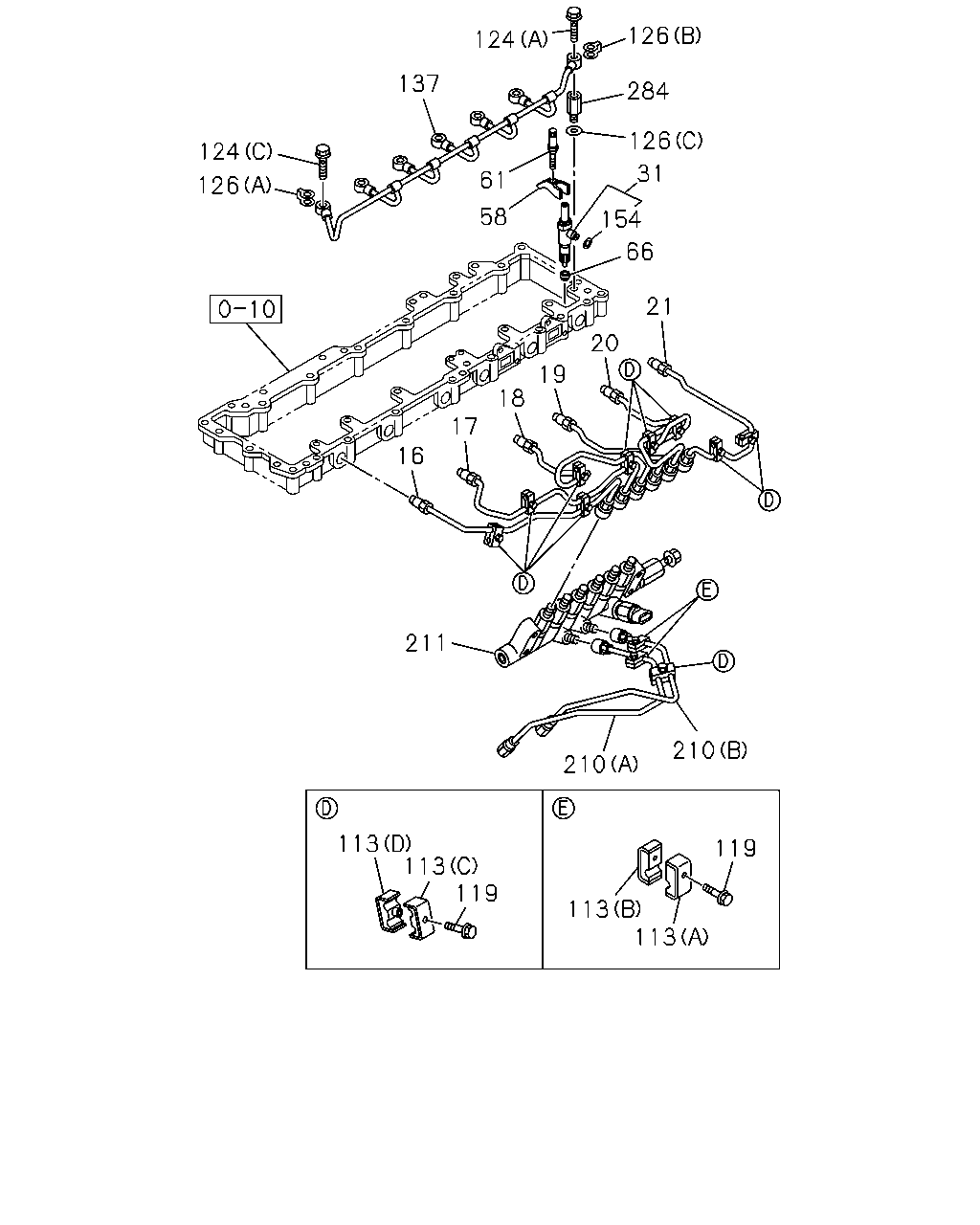

çizim 286072
113 113 119 210 210 119 113 113 211 16 17 18 19 20 21 66 154 31 126 284 126 124 137 124 126 61 58
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 1-15416-842-2 01 1 0710-
17 PIPE; INJ NO.2 1-15416-843-3 01 1 0710-
18 PIPE; INJ NO.3 1-15416-844-2 01 1 0710-
19 PIPE; INJ NO.4 1-15416-845-2 01 1 0710-
20 PIPE; INJ NO.5 1-15416-846-3 01 1 0710-
21 PIPE; INJ NO.6 1-15416-847-2 01 1 0710-
31 NOZZLE ASM; INJ 8-97603-415-7 06 1 0710-
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 0710-
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 0710-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 0710-
113 CLIP; INJ PIPE
(B) 		1-09701-269-0 02 1 0710-
113 CLIP; INJ PIPE
(A) 		8-94396-371-0 02 1 0710-
113 CLIP; INJ PIPE
(C) 		8-97330-118-3 13 1 0710-
113 CLIP; INJ PIPE
(D) 		8-97330-119-3 13 1 0710-
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 15 1 0710-
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206-
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 0710-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0710-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107-
210 PIPE; INJ,C/R
(A) 		8-97610-904-1 01 1 0710-
210 PIPE; INJ,C/R
(B) 		8-97610-905-1 01 1 0710-
211 RAIL ASM; COMMON 8-97603-121-2 01 1 0710-
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 0710-
