8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#3706) — 26 parça

85 85 39 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	SCREW; COMB SW CABLE M6X8 W/LK&PL WASHER	8-94279-401-0	01	1	0105-
39	RELAY; DOOR LK 24V 12.5A MITUBA	8-97062-815-1	01	1	9712-
60	SWITCH; STARTER SUB	1-82380-107-1	01	1	9712-
85	RELAY; HEADLAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	9712-

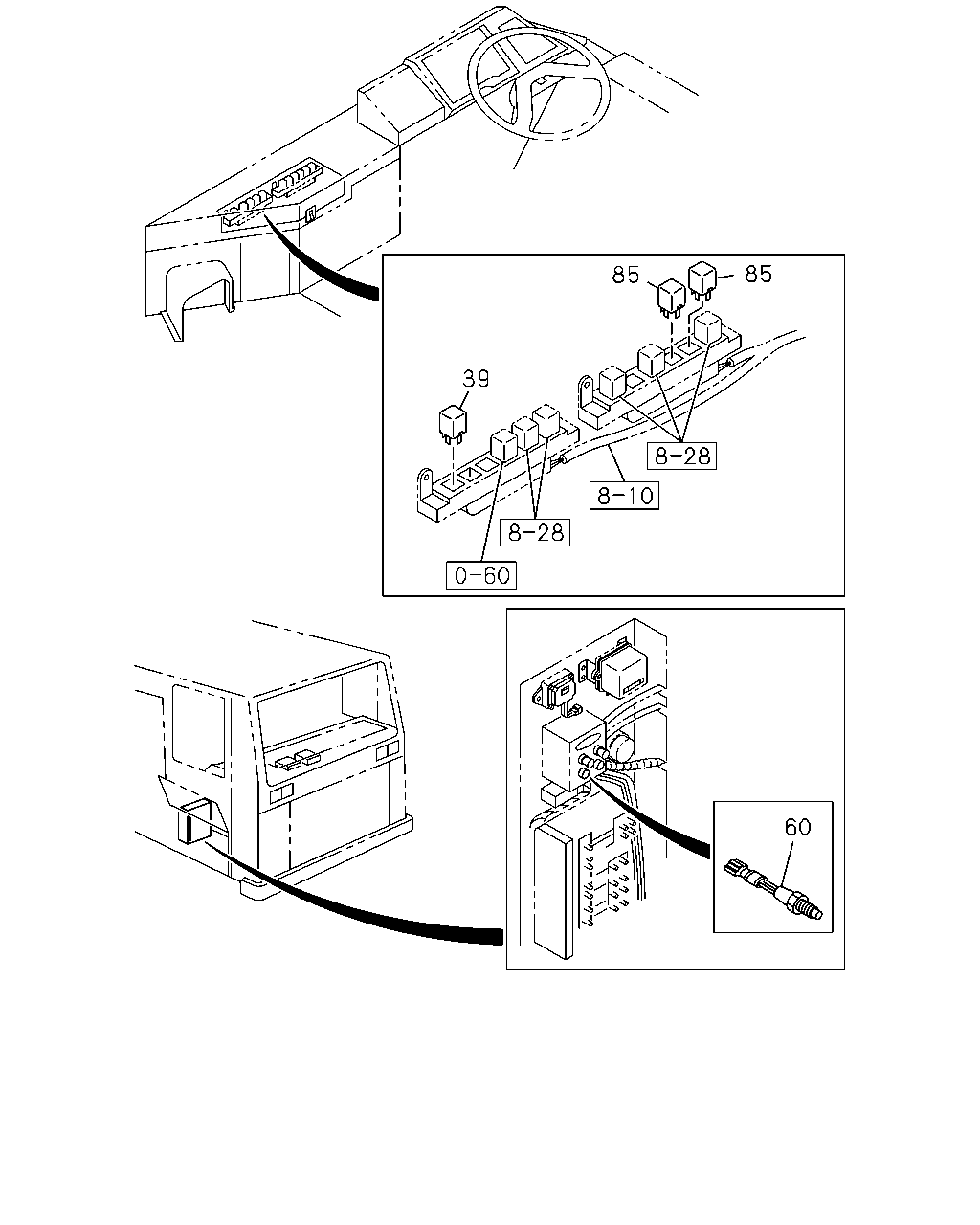

62 271 33 323 32 269 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	SCREW; COMB SW CABLE M6X8 W/LK&PL WASHER	8-94279-401-0	01	1	0105-
32	WASHER; DOOR SW ID=12.5 OD=26	9-09160-612-0	01	1	9712-
33	NUT; DOOR SW M12	9-99111-412-0	01	1	9712-
62	BOLT; STARTER SW M8X30 W/PL WASHER	1-09981-482-2	02	1	9712-
269	SWITCH; LUGGAGE ROOM	1-82440-091-0	01	1	9712-
271	SWITCH; OIL PRESS METER	1-82340-284-0	01	1	9712-
323	SWITCH ASM; SELECTOR	1-82380-152-0	01	1	9712-
353	SWITCH ASM; PARKING BRAKE	1-82340-185-1	01	1	9712-

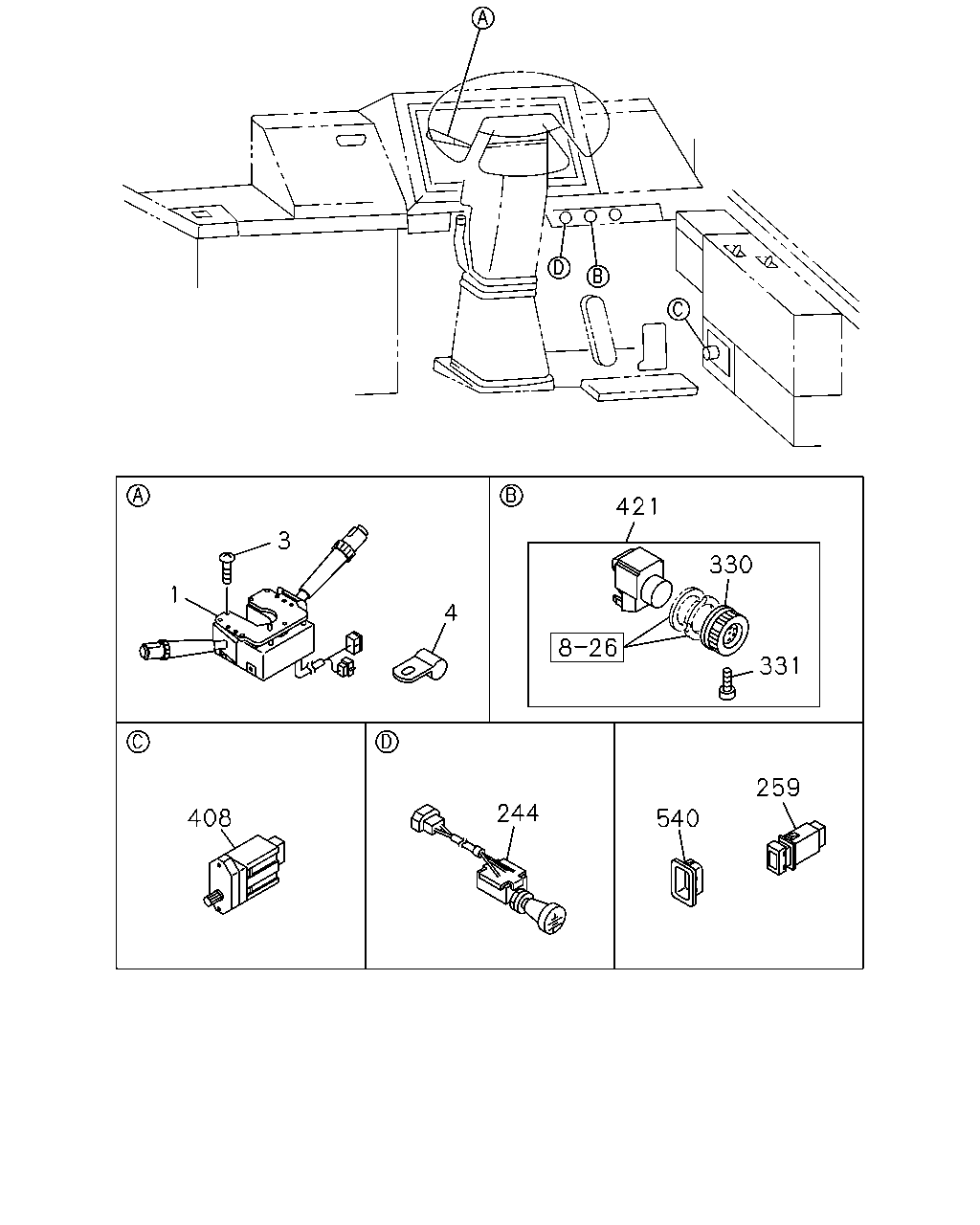

421 3 330 1 4 331 259 244 408 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB	1-82360-413-1	01	1	9712-9712
1	SWITCH; COMB	1-82360-491-1	01	1	9801-0103
1	SWITCH; COMB	1-82360-605-0	01	1	0104-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9712-
4	CLIP; COMB SW ID=16 L=20	9-09525-535-0	01	1	9712-0104
4	CLIP; COMB SW ID=19 L=32	9-09525-862-0	01	1	0105-
5	SCREW; COMB SW CABLE M6X8 W/LK&PL WASHER	8-94279-401-0	01	1	0105-
244	SWITCH; BATTERY	1-82340-162-1	01	1	9712-
259	SWITCH; RETARDER	1-82340-407-1	01	1	9712-
330	KNOB; INT HTR INTAKE HEATER<SL2>	1-82336-003-1	01	1	9712-
331	SCREW INTAKE HEATER<SL2>	1-09106-002-0	01	1	9712-
408	SWITCH; DIAGNOSIS MONITOR	1-82250-342-0	01	1	9712-
421	SWITCH ASM; INT HTR INTAKE HEATER<SL2>	1-82330-030-0	01	1	9712-
540	BEZEL; SW	1-82490-017-0	01	1	9712-
