5-30 — SPARE TIRE CARRIER AND COVER (#37050) — 21 parça

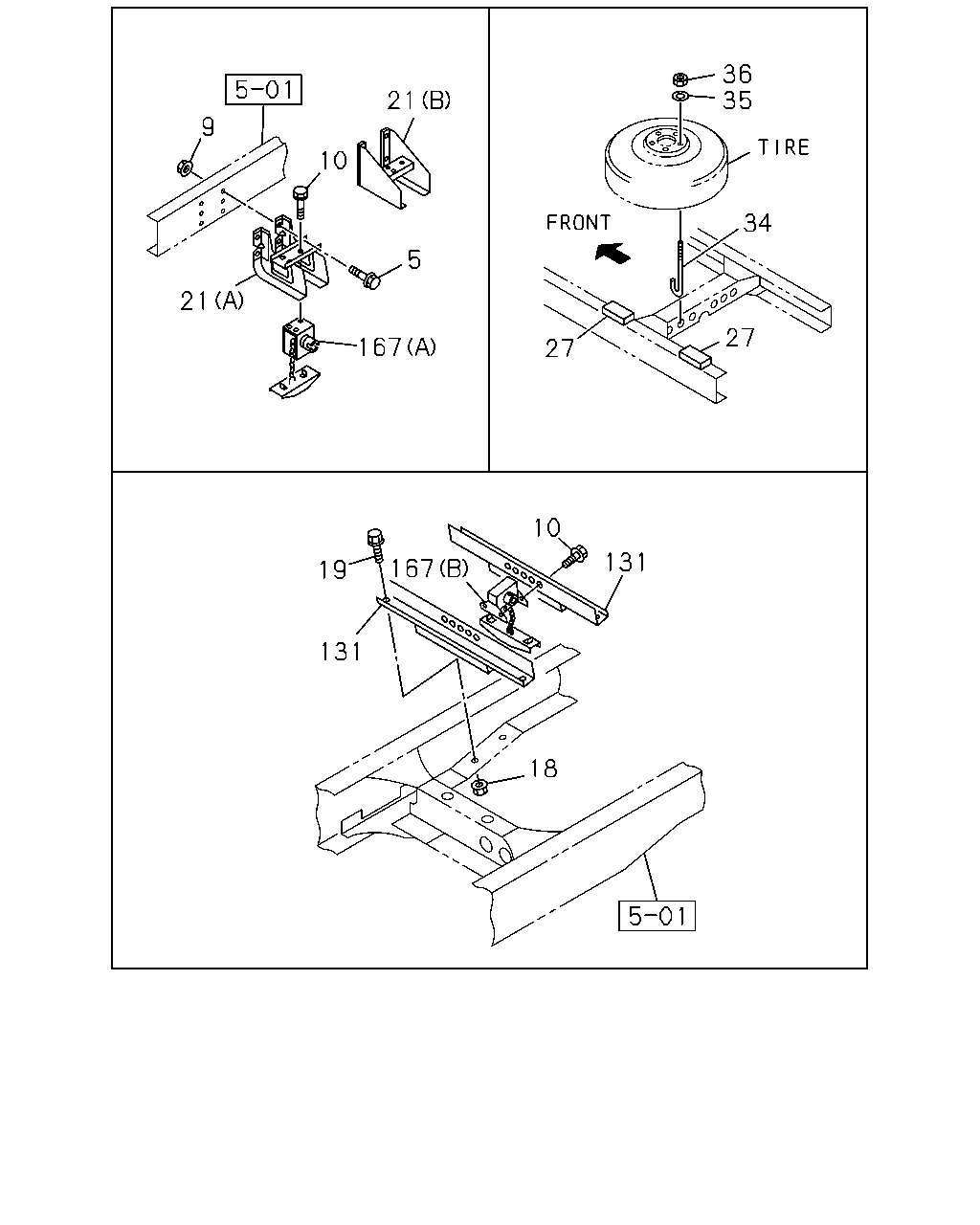

çizim 33292
36 35 21 9 10 34 5 21 27 167 27 10 131 167 19 131 18
BalonParca AdiParca NoAdetTipApplied Date
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 0710-
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0901
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0902-
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0710-
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0710-0712
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0801-
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0801-
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-98036-085-1 01 1 0710-0710
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98036-085-2 01 1 0711-
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) 		8-97384-022-3 01 1 0710-0710
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B) 		8-97384-022-3 01 1 0711-
27 07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 03 1 0710-
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 0710-
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 0710-
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12 		0-91110-512-0 01 1 0710-
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 0710-
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 0710-
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,REAR WIDE TREAD(V4T) (A) 		8-94382-875-1 01 1 0710-
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) 		8-98036-384-0 01 1 0710-
