Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#37041) — 304 parça

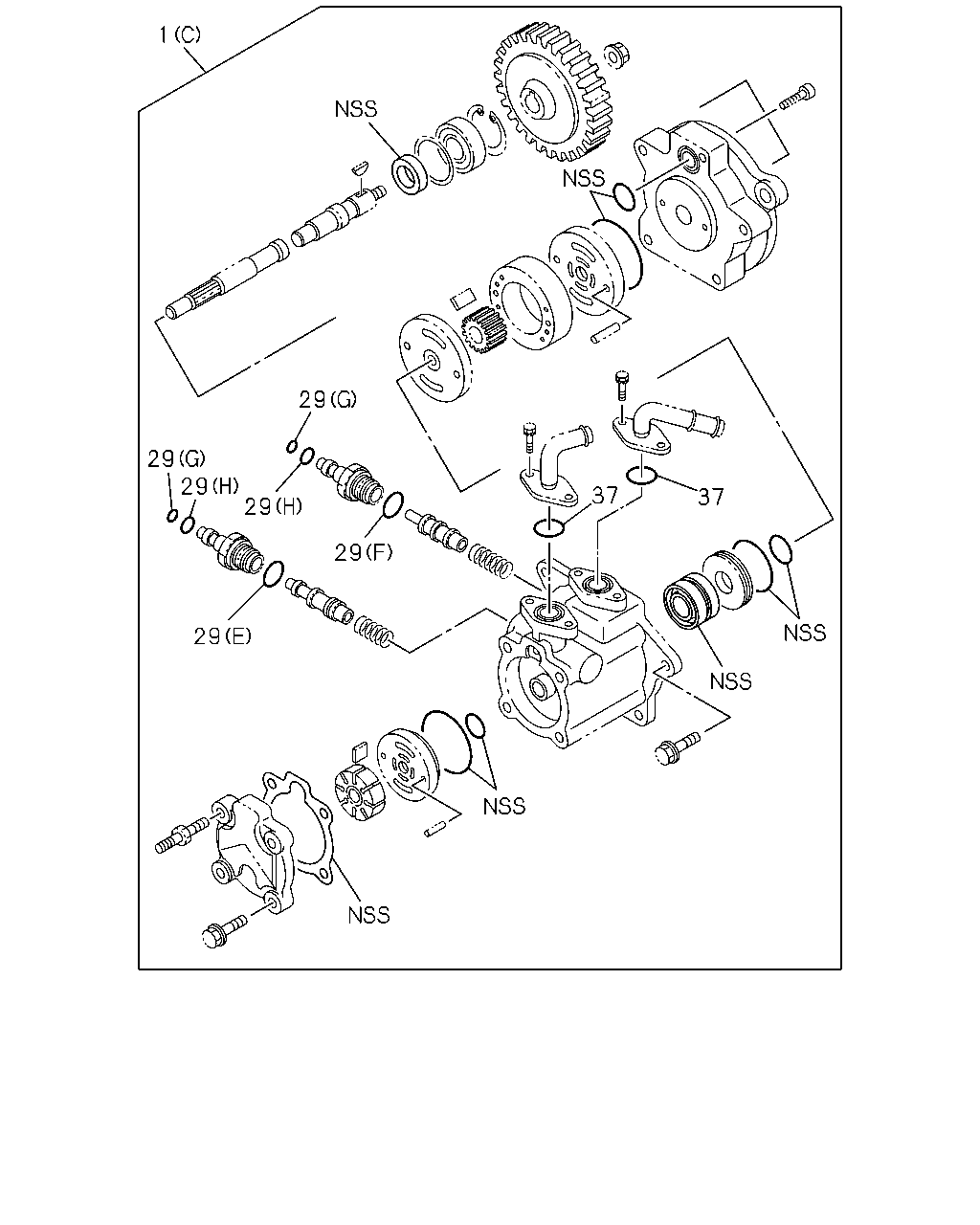

1 21 37 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: C = 8-97258-461-3, 97258461	8-97182-111-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-096-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G), ID=11.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (H), ID=13.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (E) ASM PART: C = 8-97258-461-3, 97258461	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: C = 8-97258-461-3, 97258461	9-88510-248-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0507
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97357-781-0	01	1	0502-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0508-

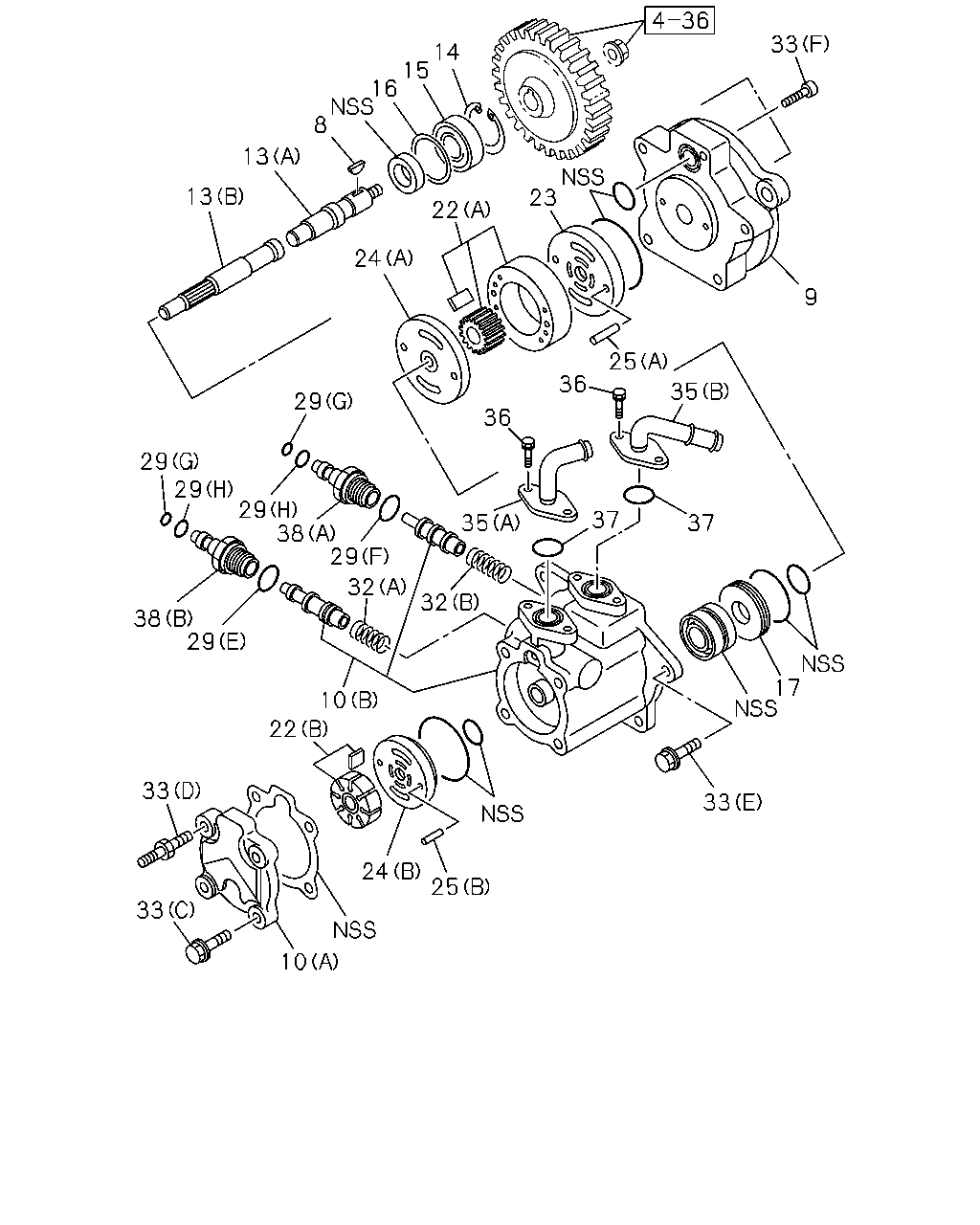

33 14 15 16 8 13 23 13 22 24 9 25 36 35 29 36 29 29 29 38 37 35 37 29 32 32 38 29 17 10 22 33 33 24 5 33 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	06.635 NUT; SHAFT,P/S PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-780-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-778-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	9-19519-089-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	8-97182-095-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97369-595-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-108-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98116-059-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-096-0	01	1	-
13	06.605 SHAFT KIT; RET (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-105-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-257-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-264-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97075-578-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-258-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-768-0	01	1	-
17	06.616 RING; RET ASM PART: C = 8-97258-461-3, 97258461	8-97182-106-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-092-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-102-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-088-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97147-453-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	8-97182-094-0	01	1	-
24	06.612 PLATE ASM; THRUST (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-093-0	01	1	-
24	06.612 PLATE ASM; THRUST (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-103-0	01	1	-
25	06.608 PIN; HSG,P/S (A) ASM PART: C = 8-97258-461-3, 97258461	1-19519-052-0	02	1	-
25	06.608 PIN; HSG,P/S (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-104-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G), ID=11.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (H), ID=13.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (E) ASM PART: C = 8-97258-461-3, 97258461	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: C = 8-97258-461-3, 97258461	9-88510-248-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: C = 8-97258-461-3, 97258461	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: C = 8-97258-461-3, 97258461	9-19529-013-0	01	1	-
33	06.606 BOLT; COVER (E) ASM PART: C = 8-97258-461-3, 97258461	1-44519-119-0	04	1	-
33	06.606 BOLT; COVER (C) ASM PART: C = 8-97258-461-3, 97258461	1-48119-054-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (F) ASM PART: C = 8-97258-461-3, 97258461	8-97182-100-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: C = 8-97258-461-3, 97258461	8-97182-110-0	02	1	-
33	06.606 BOLT; COVER (G) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (H) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97091-932-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-101-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97258-420-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-640-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-94379-664-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-97258-461-3, 97258461	8-94461-139-1	04	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0507
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97357-781-0	01	1	0502-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0508-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-098-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-109-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-291-0	01	1	-

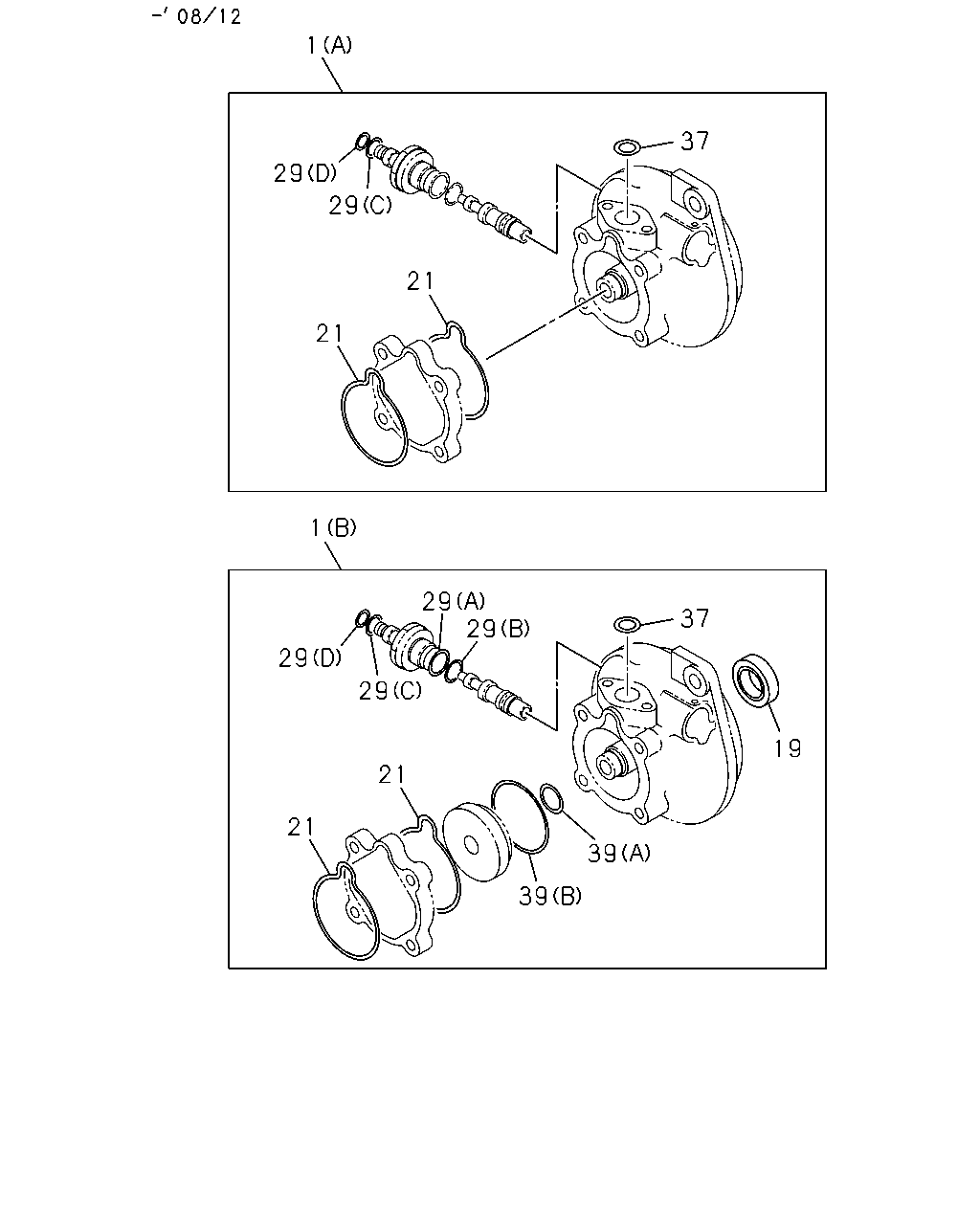

1 29 29 29 29 37 37 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: C = 8-97258-461-3, 97258461	8-97182-111-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-096-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G), ID=11.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (H), ID=13.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (E) ASM PART: C = 8-97258-461-3, 97258461	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: C = 8-97258-461-3, 97258461	9-88510-248-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0507
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97357-781-0	01	1	0502-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0508-

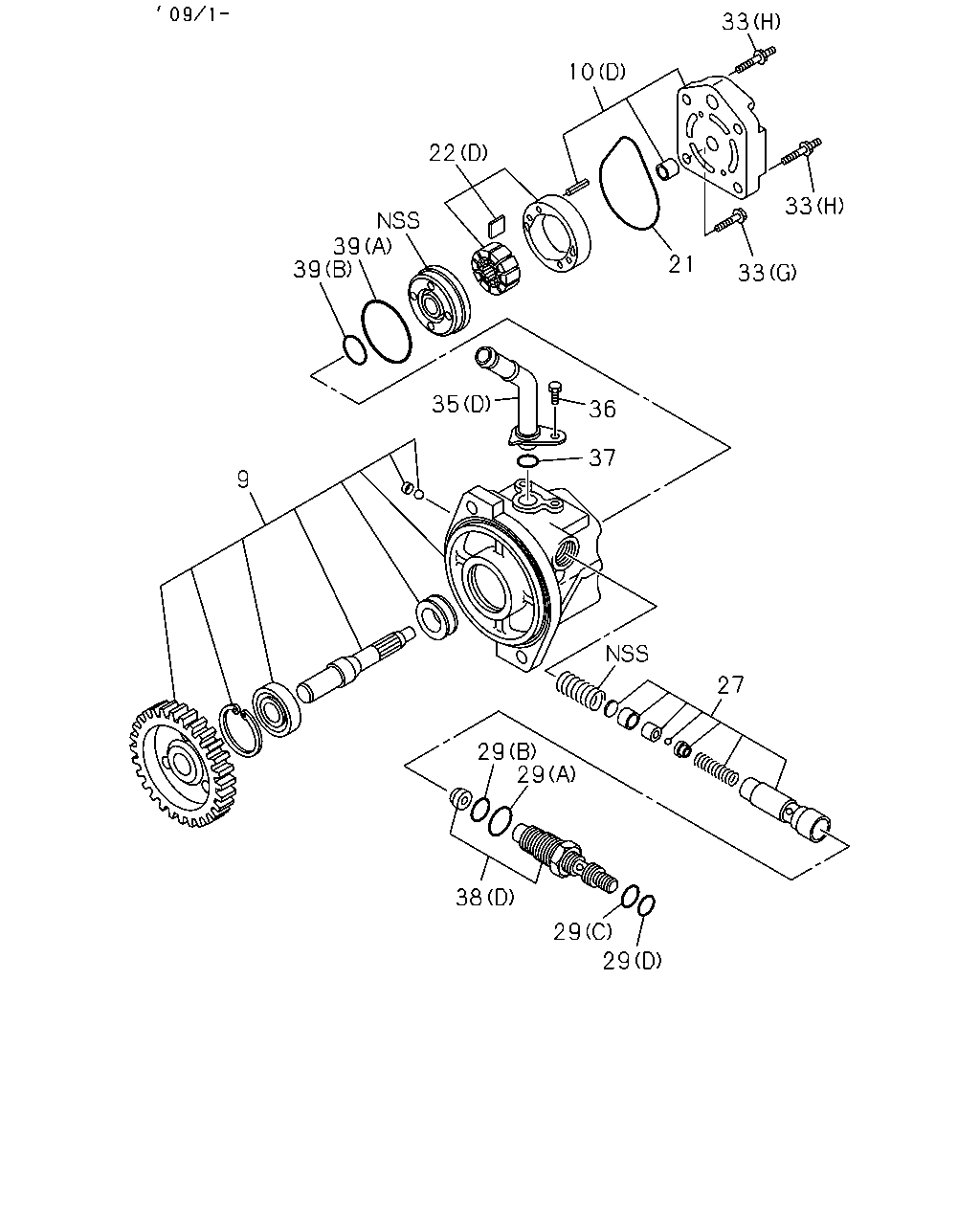

1 21 37 39 39 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: C = 8-97258-461-3, 97258461	8-97182-111-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-096-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G), ID=11.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (H), ID=13.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (E) ASM PART: C = 8-97258-461-3, 97258461	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: C = 8-97258-461-3, 97258461	9-88510-248-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0507
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97357-781-0	01	1	0502-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0508-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97147-441-0	01	1	-

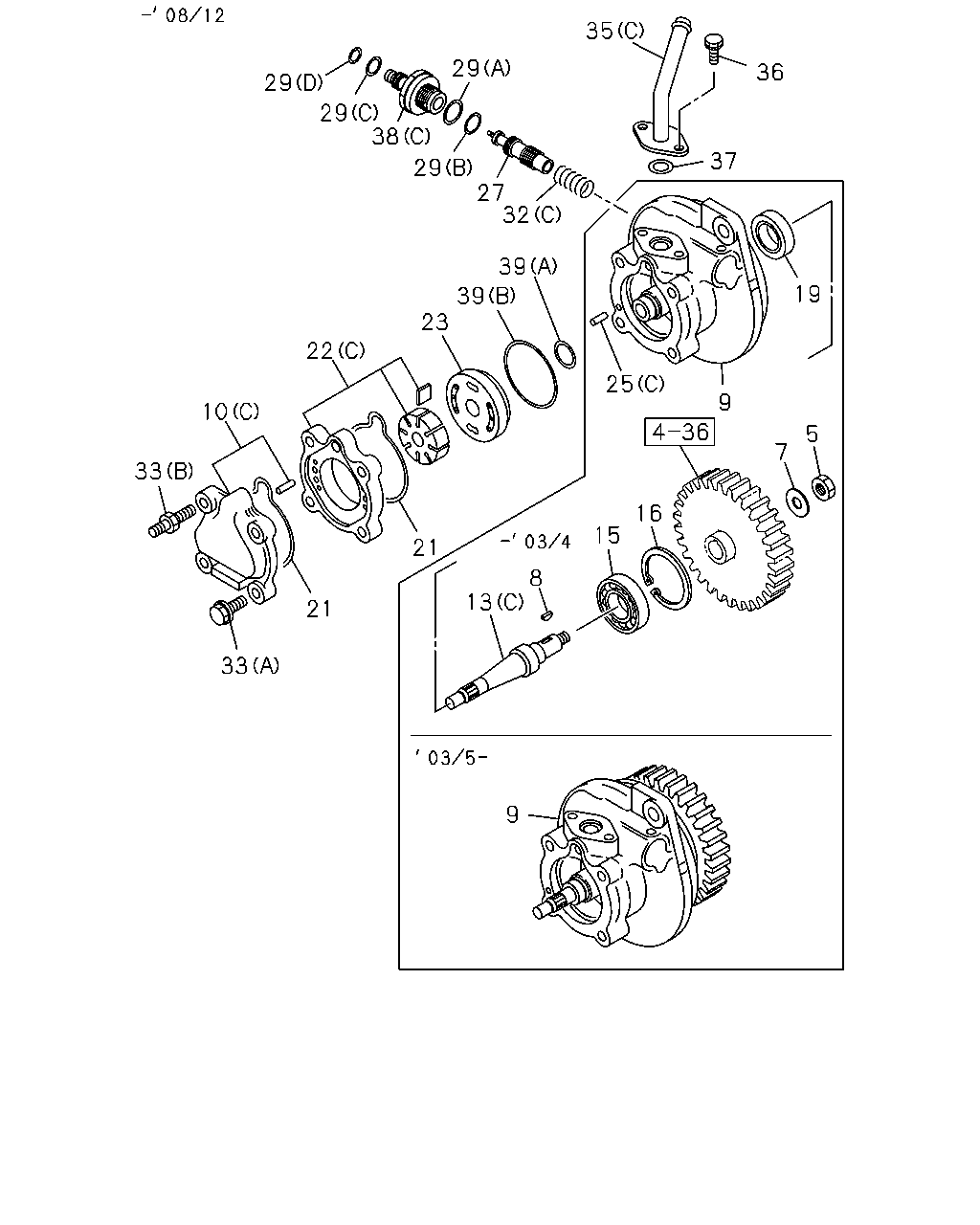

35 29 36 29 29 38 37 29 27 32 39 19 39 23 22 25 9 10 5 7 33 16 15 21 8 13 21 33 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	06.635 NUT; SHAFT,P/S PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-780-0	01	1	-
7	06.635 WASHER; SHAFT ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-779-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-778-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	9-19519-089-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	8-97182-095-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97369-595-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-108-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98116-059-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-096-0	01	1	-
13	06.605 SHAFT KIT; RET (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-105-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-264-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97075-578-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-258-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-768-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97075-577-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-092-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-102-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-088-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97147-453-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	8-97182-094-0	01	1	-
25	06.608 PIN; HSG,P/S (A) ASM PART: C = 8-97258-461-3, 97258461	1-19519-052-0	02	1	-
25	06.608 PIN; HSG,P/S (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-104-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, F = 8-97388-651-1, 97388651	8-97075-587-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97136-597-0, 97136597, E = 8-97357-215-0, 97357215, G = 8-97388-652-1, 97388652	8-97134-862-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: H = 8-98138-131-0, 98138131	8-98139-288-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: I = 8-98138-133-0, 98138133	8-98139-289-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G), ID=11.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (H), ID=13.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (E) ASM PART: C = 8-97258-461-3, 97258461	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: C = 8-97258-461-3, 97258461	9-88510-248-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: C = 8-97258-461-3, 97258461	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: C = 8-97258-461-3, 97258461	9-19529-013-0	01	1	-
33	06.606 BOLT; COVER (E) ASM PART: C = 8-97258-461-3, 97258461	1-44519-119-0	04	1	-
33	06.606 BOLT; COVER (C) ASM PART: C = 8-97258-461-3, 97258461	1-48119-054-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (F) ASM PART: C = 8-97258-461-3, 97258461	8-97182-100-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: C = 8-97258-461-3, 97258461	8-97182-110-0	02	1	-
33	06.606 BOLT; COVER (G) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (H) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97091-932-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-101-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97258-420-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-640-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-94379-664-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-97258-461-3, 97258461	8-94461-139-1	04	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0507
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97357-781-0	01	1	0502-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0508-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-098-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-109-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-291-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97147-441-0	01	1	-

1 37 29 29 21 21 1 29 29 37 29 29 19 21 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: C = 8-97258-461-3, 97258461	8-97182-111-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-096-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97075-577-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G), ID=11.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (H), ID=13.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (E) ASM PART: C = 8-97258-461-3, 97258461	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: C = 8-97258-461-3, 97258461	9-88510-248-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0507
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97357-781-0	01	1	0502-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0508-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97147-441-0	01	1	-

33 10 22 33 39 39 21 33 35 36 37 9 27 29 29 38 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	8-97182-095-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97369-595-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-108-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98116-059-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-092-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-102-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98058-088-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, F = 8-97388-651-1, 97388651	8-97075-587-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97136-597-0, 97136597, E = 8-97357-215-0, 97357215, G = 8-97388-652-1, 97388652	8-97134-862-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: H = 8-98138-131-0, 98138131	8-98139-288-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: I = 8-98138-133-0, 98138133	8-98139-289-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (G), ID=11.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-111-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (H), ID=13.0 ASM PART: C = 8-97258-461-3, 97258461	9-09561-113-0	02	1	-
29	06.609 GASKET; PLUG TO VLV 06.635, (E) ASM PART: C = 8-97258-461-3, 97258461	9-48429-028-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: C = 8-97258-461-3, 97258461	9-88510-248-0	01	1	-
33	06.606 BOLT; COVER (E) ASM PART: C = 8-97258-461-3, 97258461	1-44519-119-0	04	1	-
33	06.606 BOLT; COVER (C) ASM PART: C = 8-97258-461-3, 97258461	1-48119-054-0	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (F) ASM PART: C = 8-97258-461-3, 97258461	8-97182-100-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: C = 8-97258-461-3, 97258461	8-97182-110-0	02	1	-
33	06.606 BOLT; COVER (G) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (H) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97091-932-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-101-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97258-420-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97388-640-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-94379-664-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-97258-461-3, 97258461	8-94461-139-1	04	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-3, 97258461	1-19519-292-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215	8-97029-777-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97184-767-0	01	1	-0501
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0507
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: G = 8-97388-652-1, 97388652	8-97357-781-0	01	1	0502-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: F = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0508-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597	8-97029-775-1	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: C = 8-97258-461-3, 97258461	8-97182-098-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: C = 8-97258-461-3, 97258461	8-97182-109-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-98139-291-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, 97136574, B = 8-97136-597-0, 97136597, D = 8-97357-213-0, 97357213, E = 8-97357-215-0, 97357215, F = 8-97388-651-1, 97388651, G = 8-97388-652-1, 97388652, H = 8-98138-131-0, 98138131, I = 8-98138-133-0, 98138133	8-97147-441-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
