◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#37039) — 27 parça

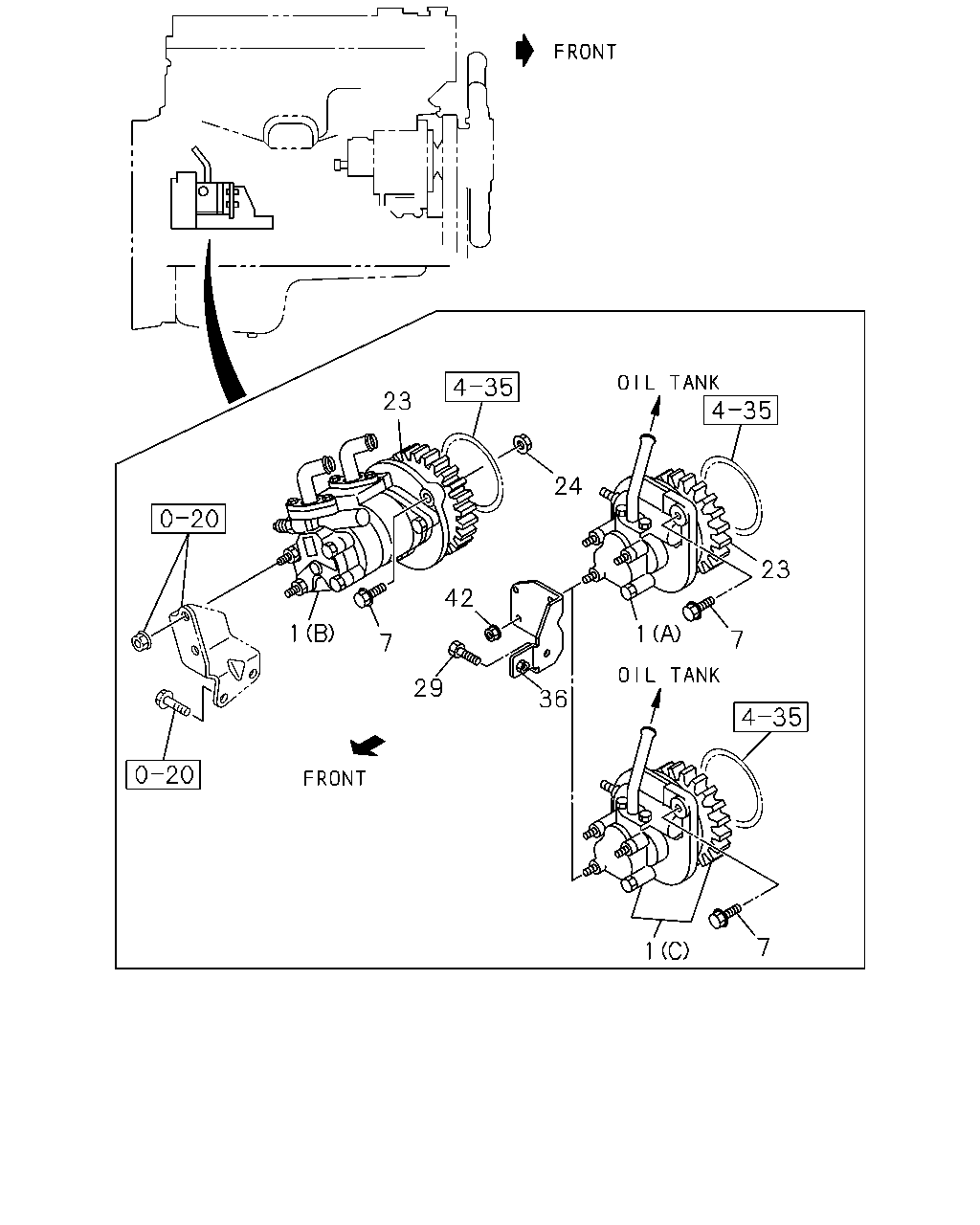

çizim 74923
23 24 23 42 1 1 7 7 29 36 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1-S ENG(RLS) (A) 		8-97136-574-1 01 1 0211-0302 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97136-574-1 01 1 0303-0304 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97357-213-0 01 1 0305-0409 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97388-651-0 01 1 0410-0501 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97388-651-1 01 1 0502-0812 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-98138-131-0 01 1 0901- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) (A) 		8-97136-597-0 01 1 0211-0304 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) (C) 		8-97357-215-0 01 1 0305-0409 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) (C) 		8-97388-652-1 01 1 0410-0812 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) (C) 		8-98138-133-0 01 1 0901- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97258-461-3 01 1 0303- ●
7 09.181 BOLT; OIL PUMP,P/S
00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0211-0501 ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0502-0805 ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ● ● ●
23 06.660 GEAR; OIL PUMP 8-97114-550-0 01 1 0211-0304 ● ● ●
23 06.660 GEAR; OIL PUMP
4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97114-550-1 01 1 0305- ●
24 06.673 NUT; GEAR,P/S PUMP
4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0303-0602 ●
24 06.673 NUT; GEAR,P/S PUMP
4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 05.816 M12 FLANGE 		0-91180-212-0 01 1 0603- ●
29 09.171 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28881-420-0 01 1 0211-0501 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28851-420-0 01 1 0601- ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP 8-97112-866-0 01 1 0211-0501 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0502- ● ● ● ●
42 06.672 NUT; ADJ PLATE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
42 06.672 NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
42 06.672 NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
