1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-245-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR

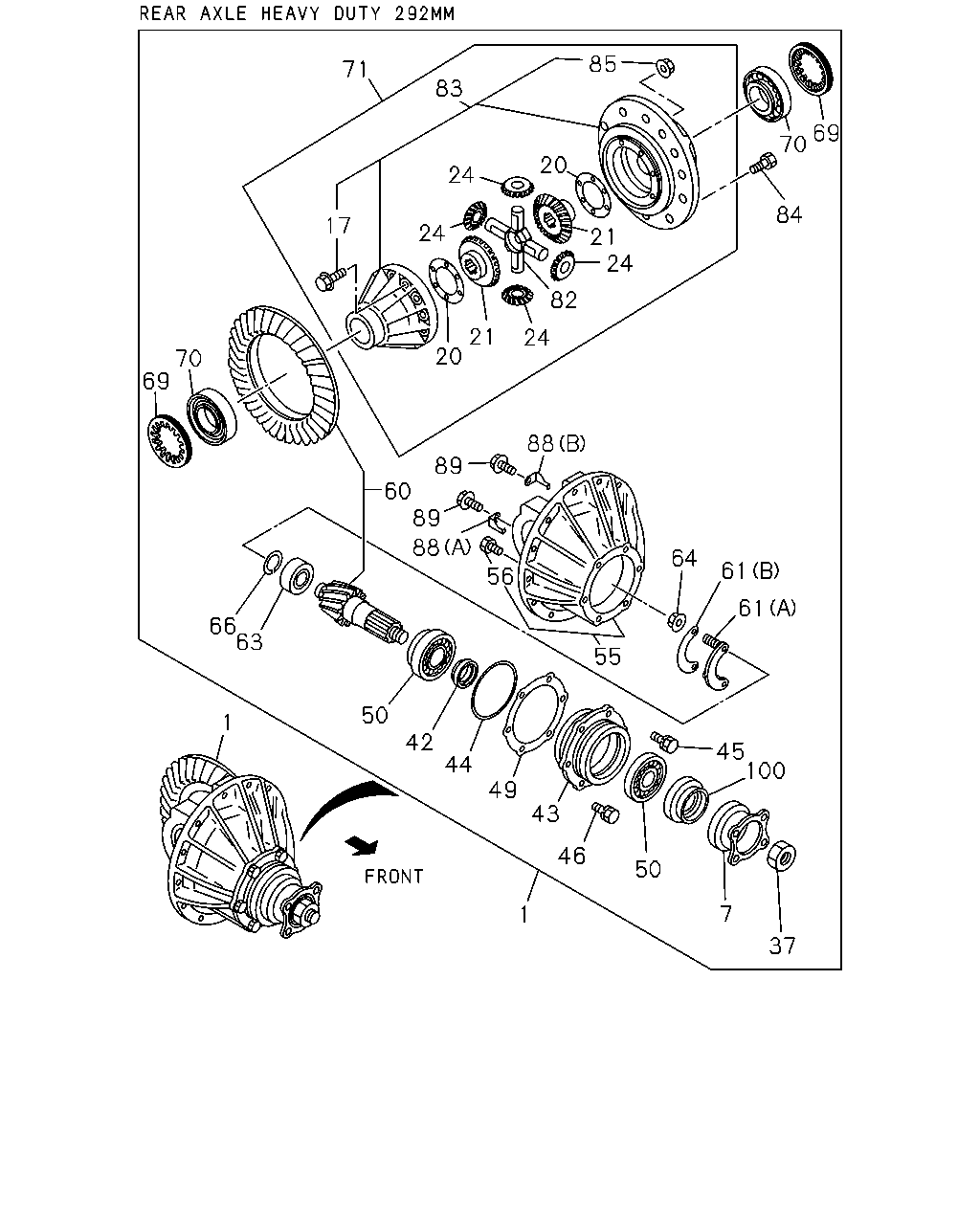

REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
41/7
|
8-97319-245-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97319-245-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
41/7
|
8-97319-245-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-245-0 |
01 |
1 |
0303-0303 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97319-245-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
41/7
|
8-97319-245-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97319-245-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-97319-245-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97356-427-0 |
01 |
1 |
0304-0304 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97356-427-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
41/7
|
8-97356-427-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97356-427-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-97356-427-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97319-246-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
43/7
|
8-97319-246-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97319-246-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
43/7
|
8-97319-246-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97319-246-0 |
01 |
1 |
0303-0303 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97319-246-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
43/7
|
8-97319-246-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97319-246-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
43/7
|
8-97319-246-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97356-428-0 |
01 |
1 |
0304-0304 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97356-428-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
43/7
|
8-97356-428-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97356-428-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
43/7
|
8-97356-428-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97319-244-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
39/7
|
8-97319-244-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
39/7
|
8-97319-244-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97319-244-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97319-244-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
39/7
|
8-97356-426-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97356-426-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97356-426-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)

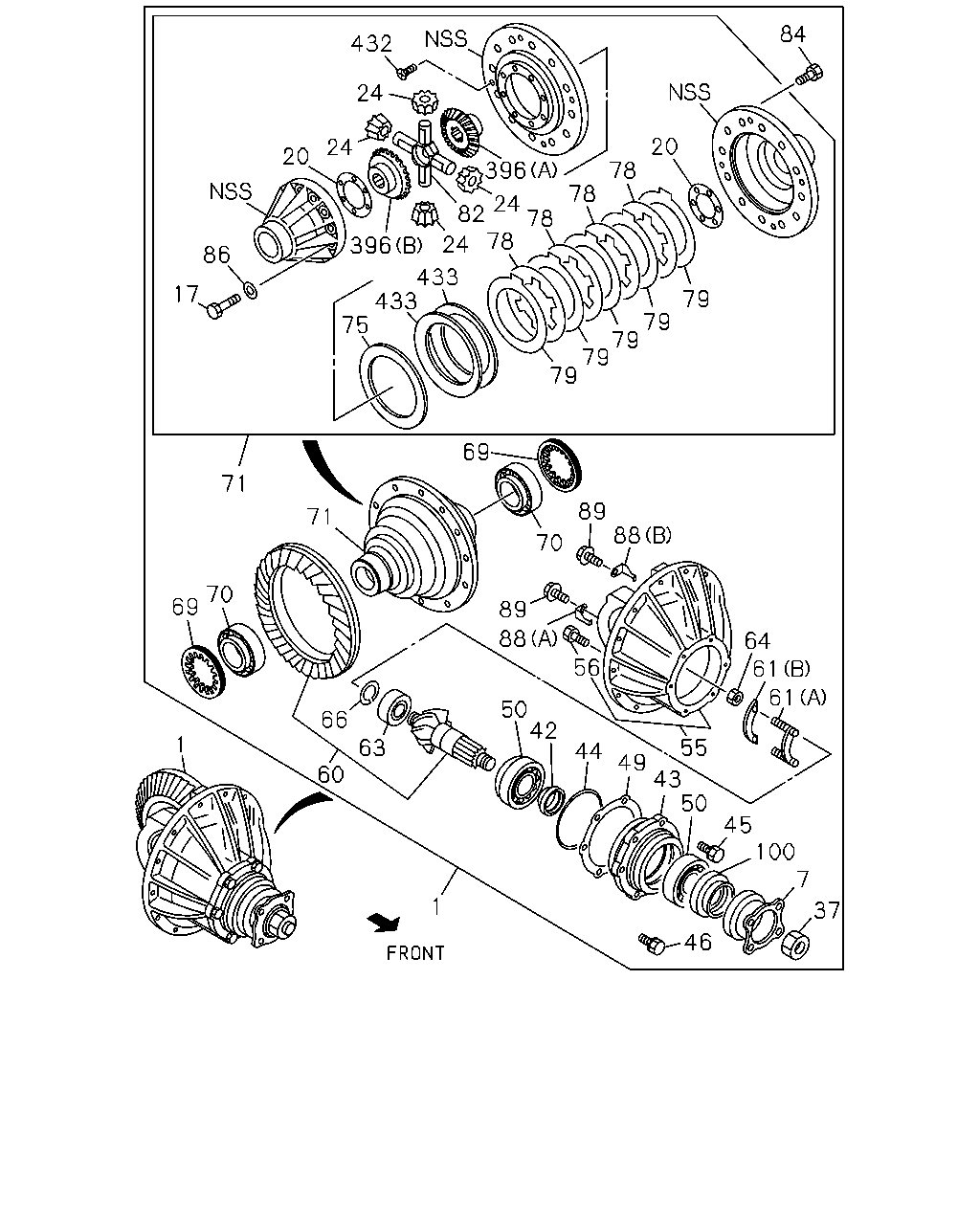

LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97319-281-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97319-281-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97356-462-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97363-144-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR

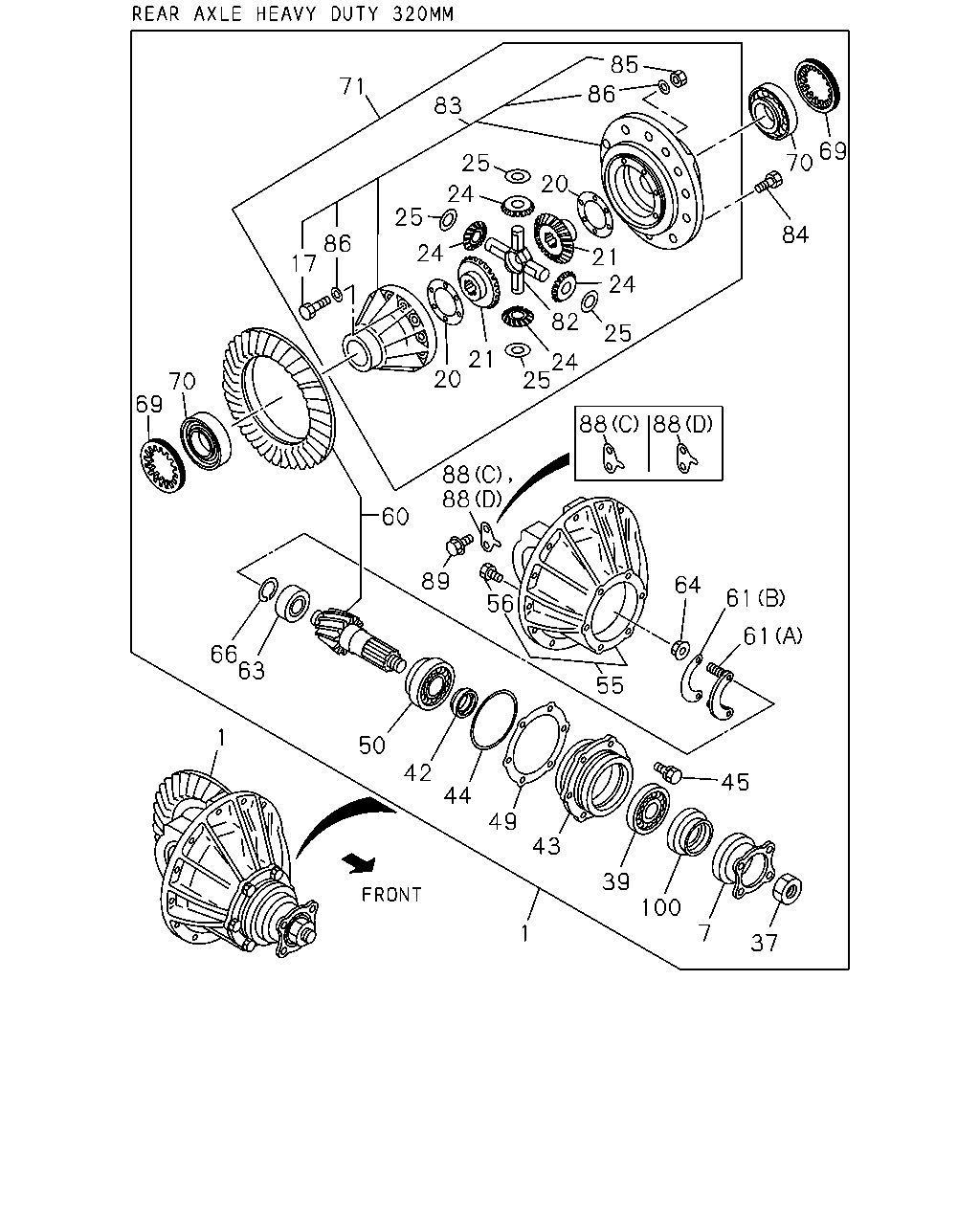

REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97121-902-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
39/7
|
8-97121-902-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97121-902-0 |
01 |
1 |
0505- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97319-258-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97319-258-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97356-440-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97363-113-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97319-283-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97319-283-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97356-463-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97363-145-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97319-259-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97319-259-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97356-441-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97363-114-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97094-682-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
0211-0302 |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97094-682-0 |
01 |
1 |
0303-0308 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
0303-0308 |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
41/7
|
8-97094-682-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97094-682-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
0309-0501 |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97094-682-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
41/7
|
8-97094-682-0 |
01 |
1 |
0502- |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97094-684-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
0211-0302 |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97094-684-0 |
01 |
1 |
0303-0308 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
0303-0308 |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
43/7
|
8-97094-684-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97094-684-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
0309-0501 |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97094-684-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
43/7
|
8-97094-684-0 |
01 |
1 |
0502- |
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
41/6
|
8-97094-685-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/6
|
8-97094-685-0 |
01 |
1 |
0303-0308 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
41/6
|
8-97094-685-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/6
|
8-97094-685-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97363-099-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
39/7
|
8-97363-099-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97363-099-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97363-099-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97363-099-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
39/7
|
8-97367-503-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97367-503-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97367-503-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97367-503-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
39/7
|
8-97367-503-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97367-503-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97367-503-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97367-503-0 |
01 |
1 |
0502-0510 |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
39/7
|
8-98015-128-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-98015-128-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-98015-128-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-98015-128-0 |
01 |
1 |
0511- |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97363-100-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97363-100-0 |
01 |
1 |
0304-0501 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97363-100-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
41/7
|
8-97363-100-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97363-100-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-97363-100-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97363-100-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97363-100-0 |
01 |
1 |
0502-0510 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-97363-100-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97363-100-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-97363-100-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-97363-100-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97363-100-0 |
01 |
1 |
0502-0510 |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-129-0 |
01 |
1 |
0511-0512 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0511-0512 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0511-0512 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0511-0512 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-98015-129-0 |
01 |
1 |
0511-0512 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-129-0 |
01 |
1 |
0511-0512 |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0601-0604 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0601-0604 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-98015-129-0 |
01 |
1 |
0601-0604 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-129-0 |
01 |
1 |
0601-0604 |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-129-0 |
01 |
1 |
0605- |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0605- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0605- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-98015-129-0 |
01 |
1 |
0605- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-98015-129-0 |
01 |
1 |
0605- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-129-0 |
01 |
1 |
0605- |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97363-101-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97363-101-0 |
01 |
1 |
0304-0304 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97363-101-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
43/7
|
8-97363-101-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97363-101-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97363-101-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
43/7
|
8-97363-101-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97367-504-0 |
01 |
1 |
0305-0501 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97367-504-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
43/7
|
8-97367-504-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97367-504-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97367-504-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
43/7
|
8-97367-504-0 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97367-504-0 |
01 |
1 |
0502-0510 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
43/7
|
8-97367-504-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97367-504-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
43/7
|
8-97367-504-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
43/7
|
8-97367-504-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97367-504-0 |
01 |
1 |
0502-0510 |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-98015-130-0 |
01 |
1 |
0511- |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
43/7
|
8-98015-130-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-98015-130-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
43/7
|
8-98015-130-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
43/7
|
8-98015-130-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-98015-130-0 |
01 |
1 |
0511- |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98024-933-0 |
01 |
1 |
0601-0604 |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-98024-933-0 |
01 |
1 |
0601-0604 |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
39/7
|
8-97367-509-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-94477-723-4 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-94477-723-4 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-94477-723-4 |
01 |
1 |
0502- |
● |
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-94477-723-4 |
01 |
1 |
0502- |
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
G.V.W. 8.0-8.5TON(RPZ)
|
8-97073-802-2 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-97073-802-2 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97073-802-2 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
G.V.W. 8.0-8.5TON(RPZ)
|
8-97073-802-2 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-97073-802-2 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
7 |
05.545 FLANGE; FINAL
G.V.W. 8.0-8.5TON(RPZ)
|
8-97073-802-2 |
01 |
1 |
0505- |
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-97073-802-2 |
01 |
1 |
0505- |
|
|
● |
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-095-2 |
01 |
1 |
0607- |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,FRAME
STRAIGHT TYPE<7KJ>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
● |
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0502- |
● |
|
|
● |
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0502- |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97321-642-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97321-642-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-295-0 |
12 |
1 |
0211-0501 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
|
8-97047-295-0 |
12 |
1 |
0211-0501 |
|
|
● |
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-295-0 |
12 |
1 |
0502-0504 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-295-0 |
12 |
1 |
0502-0504 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
|
8-97047-295-0 |
12 |
1 |
0502-0504 |
|
|
● |
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-295-0 |
12 |
1 |
0505-0606 |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
|
8-97047-295-0 |
12 |
1 |
0505-0606 |
|
|
● |
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-295-0 |
12 |
1 |
0607- |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-295-0 |
12 |
1 |
0607- |
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
|
8-97047-295-0 |
12 |
1 |
0607- |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.40
|
9-41562-601-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
T=1.40
|
9-41562-601-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.40
|
9-41562-601-0 |
02 |
1 |
0502- |
● |
|
|
● |
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
T=1.40
|
9-41562-601-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
T=1.30
|
8-97220-723-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
T=1.30
|
8-97220-723-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
T=1.50
|
8-97220-724-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
T=1.50
|
8-97220-724-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
T=1.60
|
8-97220-725-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
T=1.60
|
8-97220-725-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.80
|
1-41562-073-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=2.80
|
1-41562-073-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.80
|
1-41562-073-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.80
|
1-41562-073-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=2.80
|
1-41562-073-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.80
|
1-41562-073-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.90
|
1-41562-074-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=2.90
|
1-41562-074-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.90
|
1-41562-074-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.90
|
1-41562-074-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=2.90
|
1-41562-074-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=2.90
|
1-41562-074-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.00
|
1-41562-075-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.00
|
1-41562-075-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.00
|
1-41562-075-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.00
|
1-41562-075-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.00
|
1-41562-075-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.00
|
1-41562-075-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.10
|
1-41562-076-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.10
|
1-41562-076-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.10
|
1-41562-076-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.10
|
1-41562-076-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.10
|
1-41562-076-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.10
|
1-41562-076-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.20
|
1-41562-077-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.20
|
1-41562-077-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.20
|
1-41562-077-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.20
|
1-41562-077-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.20
|
1-41562-077-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.20
|
1-41562-077-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.30
|
1-41562-078-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.30
|
1-41562-078-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.30
|
1-41562-078-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.30
|
1-41562-078-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.30
|
1-41562-078-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.30
|
1-41562-078-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.40
|
1-41562-079-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.40
|
1-41562-079-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.40
|
1-41562-079-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.40
|
1-41562-079-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
T=3.40
|
1-41562-079-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
G.V.W. 8.0-8.5TON(RPZ)
T=3.40
|
1-41562-079-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=20
|
8-97300-266-0 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
Z=20
|
8-97300-266-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
Z=20
|
8-97300-266-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 7.0-7.5TON(RPX)
Z=20
|
8-97300-266-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=20
|
8-97300-266-0 |
02 |
1 |
0303-0303 |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
Z=20
|
8-97300-266-0 |
02 |
1 |
0303-0303 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
Z=20
|
8-97300-266-0 |
02 |
1 |
0303-0303 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
Z=20
|
8-97300-266-0 |
02 |
1 |
0303-0303 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
Z=20
|
8-97300-266-0 |
02 |
1 |
0303-0303 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
Z=20
|
8-97300-269-0 |
02 |
1 |
0211-0303 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
05.515
Z=20
|
8-97362-599-0 |
02 |
1 |
0304-0501 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=16
|
1-41561-093-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
1-41561-093-0 |
02 |
1 |
0211-0501 |
|
|
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
Z=16
|
1-41561-093-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=16
|
1-41561-093-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
1-41561-093-0 |
02 |
1 |
0502-0504 |
|
|
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=16
|
1-41561-093-0 |
02 |
1 |
0505-0606 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
1-41561-093-0 |
02 |
1 |
0505-0606 |
|
|
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
Z=16
|
1-41561-093-0 |
02 |
1 |
0607-1004 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=16
|
1-41561-093-0 |
02 |
1 |
0607-1004 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
1-41561-093-0 |
02 |
1 |
0607-1004 |
|
|
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
Z=16
|
8-98165-935-0 |
02 |
1 |
1005- |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=16
|
8-98165-935-0 |
02 |
1 |
1005- |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
8-98165-935-0 |
02 |
1 |
1005- |
|
|
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
Z=20
|
8-97362-598-0 |
02 |
1 |
0303-0303 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=20
|
8-97362-598-0 |
02 |
1 |
0304-0501 |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
Z=20
|
8-97362-598-0 |
02 |
1 |
0304-0501 |
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=20
|
8-97362-598-0 |
02 |
1 |
0502- |
● |
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
Z=20
|
8-97362-598-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97300-265-0 |
04 |
1 |
0211-0302 |
● |
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
Z=10
|
8-97300-265-0 |
04 |
1 |
0211-0302 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97300-265-0 |
04 |
1 |
0303-0303 |
● |
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
Z=10
|
8-97300-265-0 |
04 |
1 |
0303-0303 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 6.0-6.5TON(RPV)
Z=10
|
8-97300-265-0 |
04 |
1 |
0303-0303 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
Z=10
|
8-97300-265-0 |
04 |
1 |
0303-0303 |
|
|
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=10
|
1-41551-024-0 |
04 |
1 |
0211-0501 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-024-0 |
04 |
1 |
0211-0501 |
|
|
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
Z=10
|
1-41551-024-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=10
|
1-41551-024-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-024-0 |
04 |
1 |
0502-0504 |
|
|
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=10
|
1-41551-024-0 |
04 |
1 |
0505-0606 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-024-0 |
04 |
1 |
0505-0606 |
|
|
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
Z=10
|
1-41551-024-0 |
04 |
1 |
0607-1004 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=10
|
1-41551-024-0 |
04 |
1 |
0607-1004 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-024-0 |
04 |
1 |
0607-1004 |
|
|
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
Z=10
|
1-41551-050-0 |
04 |
1 |
1005- |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 8.0-8.5TON(RPZ)
Z=10
|
1-41551-050-0 |
04 |
1 |
1005- |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-050-0 |
04 |
1 |
1005- |
|
|
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
Z=10
|
8-97356-349-0 |
04 |
1 |
0303-0303 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97356-349-0 |
04 |
1 |
0304-0501 |
● |
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
Z=10
|
8-97356-349-0 |
04 |
1 |
0304-0501 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97356-349-0 |
04 |
1 |
0502-0510 |
● |
|
|
● |
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
Z=10
|
8-97356-349-0 |
04 |
1 |
0502-0510 |
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-98015-202-0 |
04 |
1 |
0511- |
● |
|
|
● |
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
Z=10
|
8-98015-202-0 |
04 |
1 |
0511- |
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
G.V.W. 8.0-8.5TON(RPZ)
|
1-41552-020-0 |
04 |
1 |
0211-0501 |
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
0211-0501 |
|
|
● |
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
1-41552-020-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
G.V.W. 8.0-8.5TON(RPZ)
|
1-41552-020-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
0502-0504 |
|
|
● |
|
| |
25 |
05.528 WASHER; THRUST,PINION
G.V.W. 8.0-8.5TON(RPZ)
|
1-41552-020-0 |
04 |
1 |
0505-0606 |
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
0505-0606 |
|
|
● |
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
1-41552-020-0 |
04 |
1 |
0607- |
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
G.V.W. 8.0-8.5TON(RPZ)
|
1-41552-020-0 |
04 |
1 |
0607- |
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
0607- |
|
|
● |
|
| |
37 |
05.595 NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0502- |
● |
|
|
● |
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0502- |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
G.V.W. 8.0-8.5TON(RPZ)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
G.V.W. 8.0-8.5TON(RPZ)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
37 |
05.595 NUT; DRIVING PINION
G.V.W. 8.0-8.5TON(RPZ)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
G.V.W. 8.0-8.5TON(RPZ)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
5-09812-062-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
JTEKT
|
5-09812-062-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
5-09812-062-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
5-09812-062-1 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
JTEKT
|
5-09812-062-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
5-09812-062-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
0607- |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
5-09812-063-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
NSK
|
5-09812-063-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
5-09812-063-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
5-09812-063-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
NSK
|
5-09812-063-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
5-09812-063-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
L=19.6
|
9-41219-603-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
0502- |
● |
|
|
● |
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
L=19.6
|
9-41219-603-1 |
01 |
1 |
0502- |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-097-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-097-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-097-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-097-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-097-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-097-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-94400-890-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-94400-890-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-098-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-098-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-098-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
43 |
05.453 CAGE; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-098-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-098-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-098-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
44 |
05.476 GASKET; PINION CAGE
05.458
|
9-09720-505-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.458
|
9-09720-505-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
05.458
|
9-09720-505-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.458
|
9-09720-505-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97048-053-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97048-053-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97048-053-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
44 |
05.476 GASKET; PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97048-053-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97048-053-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97048-053-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0211-0501 |
● |
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0211-0501 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0502-0909 |
● |
|
|
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0502-0909 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50551-238-0 |
05 |
1 |
0910- |
● |
|
|
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12X38 W/LK WASHER
|
0-50551-238-0 |
05 |
1 |
0910- |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0211-0501 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0211-0501 |
|
|
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0502-0504 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0502-0504 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0502-0504 |
|
|
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0505-0606 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0505-0606 |
|
|
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0607-0909 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0607-0909 |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0607-0909 |
|
|
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
16.545
M12X40 W/LK WASHER
|
0-50571-240-0 |
06 |
1 |
0910- |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
16.545
M12X40 W/LK WASHER
|
0-50571-240-0 |
06 |
1 |
0910- |
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
16.545
M12X40 W/LK WASHER
|
0-50571-240-0 |
06 |
1 |
0910- |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
G.V.W. 8.0-8.5TON(RPZ)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0502- |
● |
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0502- |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0502- |
● |
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0607- |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0607- |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0607- |
|
|
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
JTEKT
|
1-09812-042-1 |
01 |
1 |
0701- |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
1-09812-042-1 |
01 |
1 |
0701- |
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
JTEKT
|
1-09812-042-1 |
01 |
1 |
0701- |
|
|
● |
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97307-760-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
55 |
05.505 CARRIER; DIFF
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-97307-760-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97307-760-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-97307-760-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97094-637-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97094-637-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97094-637-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
55 |
05.505 CARRIER; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97094-637-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97094-637-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97094-637-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
56 |
05.506 BOLT; BRG CAP
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0211-0501 |
● |
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0211-0501 |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0502- |
● |
|
|
● |
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0502- |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
G.V.W. 8.0-8.5TON(RPZ)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0211-0501 |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0211-0501 |
|
|
● |
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
G.V.W. 8.0-8.5TON(RPZ)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0502-0504 |
|
|
● |
|
| |
56 |
05.506 BOLT; BRG CAP
G.V.W. 8.0-8.5TON(RPZ)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0505-0606 |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0505-0606 |
|
|
● |
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0607- |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
G.V.W. 8.0-8.5TON(RPZ)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0607- |
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0607- |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
41/7
|
8-97319-161-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
0303-0501 |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97319-161-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-97319-161-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97319-161-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
41/7
|
8-97319-161-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
0502- |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-97319-161-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97319-161-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
41/7
|
8-97319-161-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
41/7
|
8-97319-161-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
0502- |
|
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97320-103-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
43/7
|
8-97320-103-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97320-103-0 |
01 |
1 |
0303-0501 |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97320-103-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97320-103-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
43/7
|
8-97320-103-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
43/7
|
8-97320-103-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97320-103-0 |
01 |
1 |
0502- |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
43/7
|
8-97320-103-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97320-103-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
43/7
|
8-97320-103-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
43/7
|
8-97320-103-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97320-103-0 |
01 |
1 |
0502- |
|
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97319-160-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
39/7
|
8-97319-160-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
39/7
|
8-97319-160-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97319-160-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97319-160-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97319-160-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
39/7
|
8-97319-160-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
39/7
|
8-97319-160-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97319-160-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97319-160-0 |
01 |
1 |
0502- |
|
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
41/7
|
8-97083-126-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
0211-0302 |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97083-126-0 |
01 |
1 |
0303-0308 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
0303-0308 |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
41/7
|
8-97083-126-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97083-126-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
0309-0501 |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/7
|
8-97083-126-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 41/7(R41)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
41/7
|
8-97083-126-0 |
01 |
1 |
0502- |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
43/7
|
8-97092-946-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
0211-0302 |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97092-946-0 |
01 |
1 |
0303-0308 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
0303-0308 |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
43/7
|
8-97092-946-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97092-946-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
0309-0501 |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. BRK WHL LK CONT LSPV<6PH>
43/7
|
8-97092-946-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
FINAL GEAR RATIO 43/7(R42)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
43/7
|
8-97092-946-0 |
01 |
1 |
0502- |
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
41/6
|
8-97047-092-1 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/6
|
8-97047-092-1 |
01 |
1 |
0303-0308 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
41/6
|
8-97047-092-1 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
41/6
|
8-97047-092-1 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97121-593-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
39/7
|
8-97121-593-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97121-593-1 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97121-593-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
39/7
|
8-97121-593-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(B)
|
9-41227-601-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(B)
|
9-41227-601-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(B)
|
8-97047-150-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(B)
|
8-97047-150-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(B)
|
8-97047-150-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(B)
|
8-97047-150-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(B)
|
8-97047-150-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
G.V.W. 8.0-8.5TON(RPZ)
(B)
|
8-97047-150-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
5-09810-008-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
NSK
|
5-09810-008-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
5-09810-008-1 |
01 |
1 |
0502- |
● |
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
NSK
|
5-09810-008-1 |
01 |
1 |
0502- |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
JTEKT
|
8-97107-548-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
JTEKT
|
8-97107-548-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97047-296-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
NSK
|
8-97047-296-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97047-296-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97047-296-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
NSK
|
8-97047-296-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97047-296-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
8-97047-928-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97047-928-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
JTEKT
|
8-97047-928-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
8-97047-928-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97047-928-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
8-97047-928-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97047-928-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
JTEKT
|
8-97047-928-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
8-97047-928-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97047-928-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
64 |
05.476 NUT; RET
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
| |
64 |
05.476 NUT; RET
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0502-0602 |
● |
● |
● |
● |
| |
64 |
05.476 NUT; RET
01.062
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
0603- |
● |
● |
● |
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
9-09752-002-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
9-09752-002-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-297-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-297-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-297-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-297-0 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-297-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-297-0 |
01 |
1 |
0607- |
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
0607- |
|
|
● |
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0502- |
● |
|
|
● |
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0211-0501 |
|
|
● |
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0502-0504 |
|
|
● |
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0505-0606 |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0505-0606 |
|
|
● |
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0607- |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0607- |
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0607- |
|
|
● |
|
| |
70 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
NSK
|
9-00093-602-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
0502- |
● |
|
|
● |
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
NSK
|
9-00093-602-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0211-0501 |
|
|
● |
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0502-0504 |
|
|
● |
|
| |
70 |
05.536 BEARING; DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0505-0606 |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0505-0606 |
|
|
● |
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0607- |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
G.V.W. 8.0-8.5TON(RPZ)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0607- |
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0607- |
|
|
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97319-039-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97319-039-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97319-039-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 7.0-7.5TON(RPX)
|
8-97319-039-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97319-039-0 |
01 |
1 |
0303-0303 |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97319-039-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97319-039-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97319-039-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97319-039-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97356-483-0 |
01 |
1 |
0304-0304 |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97356-483-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97356-483-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97356-483-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97356-483-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97319-048-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97319-048-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97356-490-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97363-165-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97319-040-0 |
01 |
1 |
0211-0303 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97356-486-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97363-159-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-100-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-100-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-100-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-100-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-100-1 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-100-1 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-100-1 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-100-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-100-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-100-1 |
01 |
1 |
0607- |
|
|
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
|
8-97363-156-0 |
01 |
1 |
0303-0303 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97363-156-0 |
01 |
1 |
0304-0501 |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-97363-156-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97363-156-0 |
01 |
1 |
0502-0510 |
● |
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-97363-156-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-98015-179-0 |
01 |
1 |
0511- |
● |
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-98015-179-0 |
01 |
1 |
0511- |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
05.520
|
5-41521-008-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,FRAME
STRAIGHT TYPE<7KJ>
05.520
|
5-41521-008-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
05.520
|
5-41521-008-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
05.520
|
5-41521-008-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
05.520
|
5-41521-008-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
● |
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
05.520
|
5-41521-008-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
5-41521-008-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
05.520
|
5-41521-008-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97220-519-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97220-519-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
G.V.W. 8.0-8.5TON(RPZ)
05.520
|
1-41521-035-2 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-2 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
05.520
|
1-41521-035-2 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
G.V.W. 8.0-8.5TON(RPZ)
05.520
|
1-41521-035-2 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-2 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
82 |
05.517 SPIDER; DIFF PINION
G.V.W. 8.0-8.5TON(RPZ)
05.520
|
1-41521-035-2 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-2 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
05.520
|
1-41521-035-2 |
01 |
1 |
0607-1004 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
G.V.W. 8.0-8.5TON(RPZ)
05.520
|
1-41521-035-2 |
01 |
1 |
0607-1004 |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-2 |
01 |
1 |
0607-1004 |
|
|
● |
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
1-41521-062-0 |
01 |
1 |
1005- |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
G.V.W. 8.0-8.5TON(RPZ)
|
1-41521-062-0 |
01 |
1 |
1005- |
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
|
1-41521-062-0 |
01 |
1 |
1005- |
|
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
|
8-97319-396-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97319-396-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97319-396-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97319-396-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
|
8-97319-396-0 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97319-396-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97319-396-1 |
01 |
1 |
0502- |
● |
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-97319-396-1 |
01 |
1 |
0502- |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-117-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97047-117-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-117-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-117-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97047-117-1 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-117-1 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97047-117-1 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97047-117-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-117-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97047-117-1 |
01 |
1 |
0607- |
|
|
● |
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
M14X25
|
8-97318-938-1 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,FRAME
STRAIGHT TYPE<7KJ>
M14X25
|
8-97318-938-1 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
M14X25
|
8-97318-938-1 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
M14X25
|
8-97318-938-1 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
M14X25
|
8-97318-938-1 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
● |
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
M14X25
|
8-97318-938-1 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M14X25
|
8-97318-938-1 |
12 |
1 |
0502- |
● |
|
|
● |
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M14X25
|
8-97318-938-1 |
12 |
1 |
0502- |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
M14X29
|
8-97319-141-2 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
M14X29
|
8-97319-141-2 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
G.V.W. 8.0-8.5TON(RPZ)
M16X30
|
8-97047-147-0 |
12 |
1 |
0211-0501 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
0211-0501 |
|
|
● |
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M16X30
|
8-97047-147-0 |
12 |
1 |
0502-0504 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
G.V.W. 8.0-8.5TON(RPZ)
M16X30
|
8-97047-147-0 |
12 |
1 |
0502-0504 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
0502-0504 |
|
|
● |
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
G.V.W. 8.0-8.5TON(RPZ)
M16X30
|
8-97047-147-0 |
12 |
1 |
0505-0606 |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
0505-0606 |
|
|
● |
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M16X30
|
8-97047-147-0 |
12 |
1 |
0607- |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
G.V.W. 8.0-8.5TON(RPZ)
M16X30
|
8-97047-147-0 |
12 |
1 |
0607- |
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
0607- |
|
|
● |
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,FRAME
STRAIGHT TYPE<7KJ>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
● |
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. LIMITED SLIP DIFF<6LV>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0502-0602 |
● |
|
|
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0502-0602 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0603- |
● |
|
|
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0603- |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M12
|
8-97065-214-0 |
12 |
1 |
0211-0501 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
0211-0501 |
|
|
● |
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M12
|
8-97065-214-0 |
12 |
1 |
0502-0504 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M12
|
8-97065-214-0 |
12 |
1 |
0502-0504 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
0502-0504 |
|
|
● |
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M12
|
8-97065-214-0 |
12 |
1 |
0505-0606 |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
0505-0606 |
|
|
● |
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M12
|
8-97065-214-0 |
12 |
1 |
0607- |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M12
|
8-97065-214-0 |
12 |
1 |
0607- |
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
0607- |
|
|
● |
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
ID=10 OD=18 T=2
|
9-09651-116-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.0-6.5TON(RPV)
LIMITED SLIP DIFF<6LV>
ENGINE POWER N-SPEC(7QV)
EXC. BRK WHL LK CONT LSPV<6PH>,FRAME
STRAIGHT TYPE<7KJ>
ID=10 OD=18 T=2
|
9-09651-116-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0211-0501 |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0211-0501 |
|
|
● |
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0502-0504 |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0502-0504 |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0502-0504 |
|
|
● |
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0505-0606 |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0505-0606 |
|
|
● |
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0607- |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
G.V.W. 8.0-8.5TON(RPZ)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0607- |
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0607- |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(A)
|
8-97027-281-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(A)
|
8-97027-281-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97027-282-0 |
AR |
1 |
0211-0501 |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(B)
|
8-97027-282-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97027-282-0 |
AR |
1 |
0502- |
● |
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
(B)
|
8-97027-282-0 |
AR |
1 |
0502- |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(D)
|
8-97087-821-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(D)
|
8-97087-821-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(D)
|
8-97087-821-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(D)
|
8-97087-821-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(D)
|
8-97087-821-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(D)
|
8-97087-821-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(D)
|
8-97087-821-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(D)
|
8-97087-821-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(D)
|
8-97087-821-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(D)
|
8-97087-821-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0211-0501 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0211-0501 |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0502-0504 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0502-0504 |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0505-0606 |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0505-0606 |
|
|
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
G.V.W. 8.0-8.5TON(RPZ)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0607- |
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0607- |
|
|
● |
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0502-0512 |
● |
|
|
● |
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0502-0512 |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
● |
|
|
● |
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
G.V.W. 8.0-8.5TON(RPZ)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0211-0501 |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0211-0501 |
|
|
● |
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
G.V.W. 8.0-8.5TON(RPZ)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0502-0504 |
|
|
● |
|
| |
89 |
05.506 BOLT; LK PLATE
G.V.W. 8.0-8.5TON(RPZ)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0505-0512 |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0505-0512 |
|
|
● |
|
| |
89 |
05.506 BOLT; LK PLATE
G.V.W. 8.0-8.5TON(RPZ)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601-0606 |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601-0606 |
|
|
● |
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0607- |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
G.V.W. 8.0-8.5TON(RPZ)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0607- |
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0607- |
|
|
● |
|
| |
89 |
05.506 BOLT; LK PLATE
4HF1-S ENG(RLS)
FINAL GEAR RATIO 41/7(R41)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0601-0604 |
● |
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYP
E<7KJ>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0601-0604 |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
OD=103
|
8-94408-083-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
OD=103
|
8-94408-083-0 |
01 |
1 |
0502- |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97047-609-0 |
01 |
1 |
0211-0406 |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
8-97047-609-0 |
01 |
1 |
0211-0406 |
|
|
● |
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
1-09625-484-1 |
01 |
1 |
0407-0501 |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
0407-0501 |
|
|
● |
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
NOK
|
1-09625-484-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
1-09625-484-1 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
0502-0504 |
|
|
● |
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
1-09625-484-1 |
01 |
1 |
0505-0606 |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
0505-0606 |
|
|
● |
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
NOK
|
1-09625-484-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
1-09625-484-1 |
01 |
1 |
0607- |
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
0607- |
|
|
● |
|
