1 |

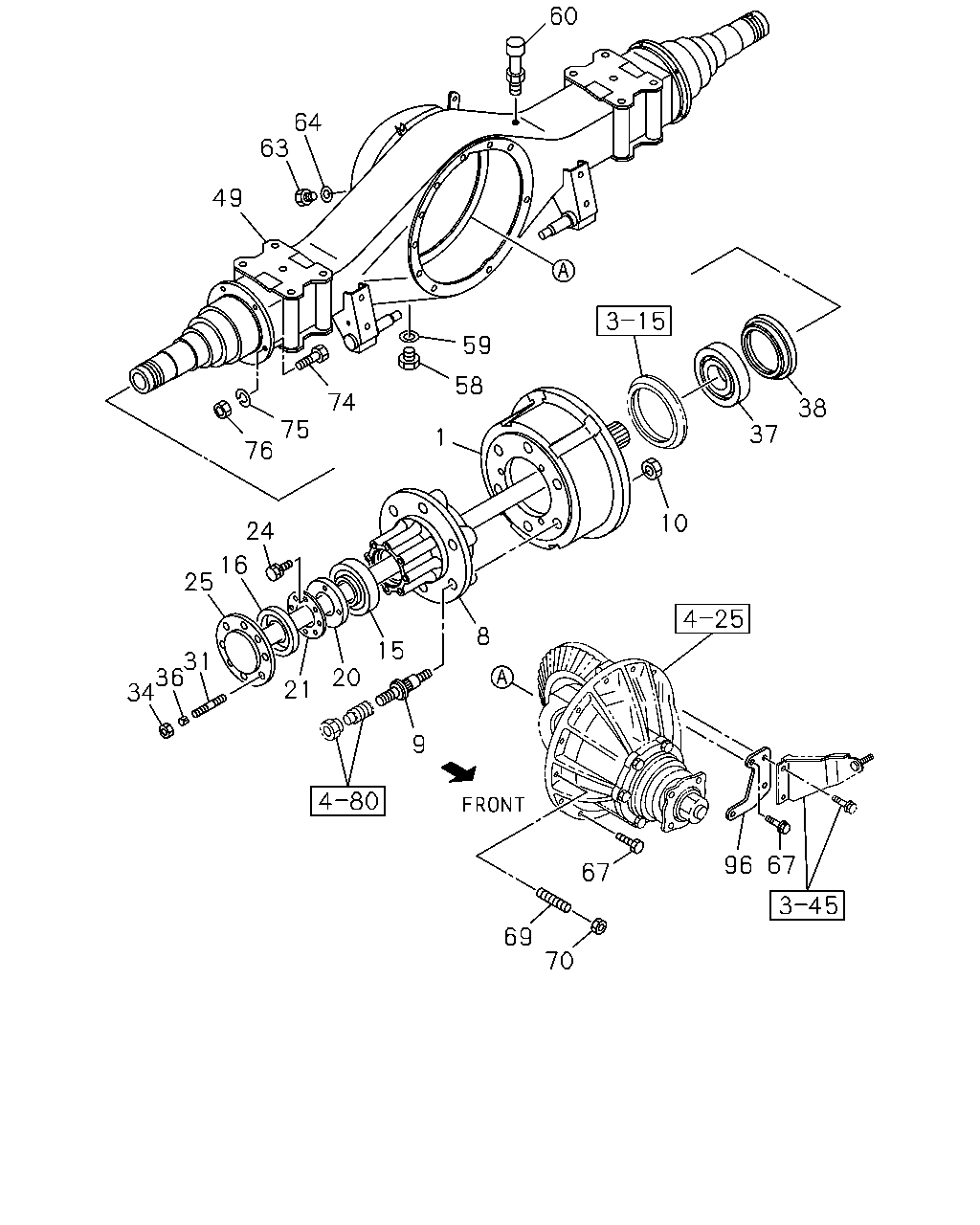

05.809 DRUM; BRK,RR
|
8-97034-770-3 |
02 |
1 |
0211- |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
|
8-97034-770-3 |
02 |
1 |
0211- |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-219-2 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
|
8-97081-219-2 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-219-2 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97081-219-2 |
02 |
1 |
0502- |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97081-219-2 |
02 |
1 |
0502- |
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-3 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
0211-0302 |
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
|
8-97102-001-3 |
02 |
1 |
0303-0304 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-3 |
02 |
1 |
0303-0304 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
0303-0304 |
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
|
8-97102-001-3 |
02 |
1 |
0305-0305 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
|
8-97102-001-3 |
02 |
1 |
0306-0501 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-3 |
02 |
1 |
0306-0501 |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
0306-0501 |
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
|
8-97102-001-3 |
02 |
1 |
0502- |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-3 |
02 |
1 |
0502- |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
0502- |
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
|
8-94382-893-4 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-94382-893-4 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-94382-893-4 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-94382-893-4 |
02 |
1 |
0502- |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
|
8-94382-893-4 |
02 |
1 |
0502- |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<6PH>
|
8-97081-323-2 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-323-2 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97081-323-2 |
02 |
1 |
0502- |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97081-323-2 |
02 |
1 |
0502- |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97026-139-3 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-2 |
02 |
1 |
0211-0304 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-2 |
02 |
1 |
0211-0304 |
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97107-549-2 |
02 |
1 |
0305- |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-2 |
02 |
1 |
0305- |
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-321-1 |
02 |
1 |
0303-0308 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-321-1 |
02 |
1 |
0309-0501 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
|
8-97250-321-1 |
02 |
1 |
0309-0501 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
|
8-97250-321-1 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-321-1 |
02 |
1 |
0505- |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0211- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0211- |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0211- |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0211- |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
0211-0501 |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
0211-0501 |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-3 |
06 |
1 |
0502- |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-3 |
06 |
1 |
0502- |
|
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
0211-0501 |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
0211-0501 |
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-3 |
06 |
1 |
0502- |
|
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-3 |
06 |
1 |
0502- |
|
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0211-0512 |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0211-0512 |
|
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
05.812
M20
|
0-91110-520-0 |
10 |
1 |
0601- |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
05.812
M20
|
0-91110-520-0 |
10 |
1 |
0601- |
|
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
0211-0501 |
|
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
M22
|
9-09110-522-0 |
12 |
1 |
0211-0501 |
|
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
0502-0512 |
|
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
M22
|
9-09110-522-0 |
12 |
1 |
0502-0512 |
|
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
07.172
M22
|
0-91110-522-0 |
12 |
1 |
0601- |
|
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
07.172
M22
|
0-91110-522-0 |
12 |
1 |
0601- |
|
|
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
0211-0501 |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NSK
|
9-00093-607-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-607-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-082-0 |
04 |
1 |
0211-0304 |
|
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-082-0 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-317-2 |
02 |
1 |
0211-0501 |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
TKK
|
8-94336-317-2 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-317-2 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
TKK
|
8-94336-317-2 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-317-2 |
02 |
1 |
0502- |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-960-1 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NOK
|
8-94367-960-1 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-960-1 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-960-1 |
02 |
1 |
0303-0304 |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NOK
|
8-94367-960-1 |
02 |
1 |
0303-0304 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX)
NOK
|
8-94367-960-1 |
02 |
1 |
0303-0304 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-960-1 |
02 |
1 |
0305-0501 |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NOK
|
8-94367-960-1 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-960-1 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
NOK
|
8-94367-960-1 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-960-1 |
02 |
1 |
0502- |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-315-2 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-961-1 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
0211-0501 |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
M55
|
8-97137-094-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
M55
|
8-97137-094-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
M52
|
8-97137-092-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
0211-0501 |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
ID=55
|
9-09653-002-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
ID=55
|
9-09653-002-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
ID=52
|
9-09853-214-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
0211-0501 |
● |
● |
|
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
0502-0512 |
● |
● |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.342
M6X12 W/LK WASHER
|
0-50540-612-0 |
04 |
1 |
0601-0611 |
● |
● |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0612- |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
L=830
|
8-94341-974-1 |
02 |
1 |
0211-0501 |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
L=830
|
8-94341-974-1 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=830
|
8-94341-974-1 |
02 |
1 |
0502- |
● |
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
0502- |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
0502- |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=804.5
|
8-97032-497-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 8.0-8.5TON(RPZ)
L=885
|
8-97134-439-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
L=885
|
8-97134-439-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 8.0-8.5TON(RPZ)
L=885
|
8-97134-439-0 |
02 |
1 |
0502-0504 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
0502-0504 |
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 8.0-8.5TON(RPZ)
L=885
|
8-97134-439-0 |
02 |
1 |
0505-0606 |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
0505-0606 |
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
L=885
|
8-97134-439-0 |
02 |
1 |
0607- |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 8.0-8.5TON(RPZ)
L=885
|
8-97134-439-0 |
02 |
1 |
0607- |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
0607- |
|
|
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0211-0501 |
● |
● |
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0502-0709 |
● |
● |
● |
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0710- |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
0211-0501 |
● |
● |
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
0502-0602 |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0603- |
● |
● |
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0211-0501 |
● |
● |
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0502-0709 |
● |
● |
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0710- |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-624-0 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NSK
|
9-00093-624-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
NSK
|
9-00093-624-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-624-0 |
02 |
1 |
0303-0501 |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NSK
|
9-00093-624-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
9-00093-624-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-624-0 |
02 |
1 |
0502- |
● |
|
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
NSK
|
9-00093-624-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-624-0 |
02 |
1 |
0502- |
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-081-0 |
04 |
1 |
0211-0304 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-081-0 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
0211-0302 |
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
NSK
|
8-97122-938-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
0303-0501 |
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
NSK
|
8-97122-938-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
0502- |
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
8-97123-119-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
0211-0302 |
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
JTEKT
|
8-97123-119-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
8-97123-119-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
0303-0501 |
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
JTEKT
|
8-97123-119-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
JTEKT
|
8-97123-119-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
0502- |
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-316-1 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
TKK
|
8-94336-316-1 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
TKK
|
8-94336-316-1 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-316-1 |
02 |
1 |
0303-0501 |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
TKK
|
8-94336-316-1 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
TKK
|
8-94336-316-1 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-316-1 |
02 |
1 |
0502- |
● |
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
TKK
|
8-94336-316-1 |
02 |
1 |
0502- |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
TKK
|
8-94336-316-1 |
02 |
1 |
0502- |
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-958-0 |
02 |
1 |
0211-0304 |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NOK
|
8-94367-958-0 |
02 |
1 |
0211-0304 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
0211-0304 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-958-0 |
02 |
1 |
0305-0501 |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
NOK
|
8-94367-958-0 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-94367-958-0 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
0305-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-958-0 |
02 |
1 |
0502- |
● |
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
NOK
|
8-94367-958-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
NOK
|
8-94367-958-0 |
02 |
1 |
0502- |
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-314-1 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-959-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
0211-0302 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
0211-0302 |
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-97122-937-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
0303-0501 |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
0303-0501 |
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
NOK
|
8-97122-937-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
0502- |
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
0502- |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
|
8-97036-560-2 |
02 |
1 |
0211-0304 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97036-560-2 |
02 |
1 |
0211-0304 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
02 |
1 |
0211-0304 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97036-560-4 |
01 |
1 |
0305-0501 |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97036-560-4 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-4 |
01 |
1 |
0305-0501 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97036-560-6 |
01 |
1 |
0502- |
● |
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-6 |
01 |
1 |
0502- |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-081-1 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97222-081-2 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-081-2 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97222-081-3 |
01 |
1 |
0502- |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-556-4 |
01 |
1 |
0211-0501 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97222-079-1 |
01 |
1 |
0211-0302 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97222-079-1 |
01 |
1 |
0211-0302 |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97222-079-3 |
01 |
1 |
0303- |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97222-079-3 |
01 |
1 |
0303- |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-092-1 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-092-2 |
01 |
1 |
0502- |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
|
8-97250-319-0 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97250-319-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
|
8-97222-080-3 |
01 |
1 |
0607- |
|
● |
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0502-0611 |
● |
● |
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0612- |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
0211-0409 |
● |
● |
|
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0410-0501 |
● |
● |
|
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0502-0606 |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0502-0611 |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0612- |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0211-0501 |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0211-0501 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0502-0909 |
● |
|
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0502-0909 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.0-6.5TON(RPV)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0502-0909 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
0910- |
● |
|
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
0910- |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.0-6.5TON(RPV)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
0910- |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0211-0501 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0211-0501 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0502-0504 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0502-0504 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0502-0504 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0505-0606 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0505-0606 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0607-0909 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0607-0909 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0607-0909 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
0910- |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
0910- |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
0910- |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0211-0501 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0211-0501 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0502-0504 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0502-0504 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0505-0606 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0505-0606 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0607-0909 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0607-0909 |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0607-0909 |
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
0910- |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 8.0-8.5TON(RPZ)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
0910- |
|
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
0910- |
|
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0211-0501 |
● |
● |
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0502-0610 |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0611- |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0211-0501 |
● |
● |
|
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0502-0602 |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
M12X32
|
5-09000-078-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
0303-0501 |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M12X32
|
5-09000-078-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
M12X32
|
5-09000-078-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
M12X32
|
5-09000-078-0 |
12 |
1 |
0303-0501 |
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
0502-0611 |
● |
|
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
M12X32
|
5-09000-078-0 |
12 |
1 |
0502-0611 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
M12X32
|
5-09000-078-0 |
12 |
1 |
0502-0611 |
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
0612- |
● |
|
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
M12X32
|
8-97359-819-0 |
12 |
1 |
0612- |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
M12X32
|
8-97359-819-0 |
12 |
1 |
0612- |
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X35
|
8-97122-853-2 |
12 |
1 |
0211-0302 |
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
M14X35
|
8-97122-853-2 |
12 |
1 |
0303-0310 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
0303-0310 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X35
|
8-97122-853-2 |
12 |
1 |
0303-0310 |
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
M14X40
|
8-97357-301-1 |
12 |
1 |
0311-0501 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X40
|
8-97357-301-1 |
12 |
1 |
0311-0501 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-97357-301-1 |
12 |
1 |
0311-0501 |
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
M14X40
|
8-97357-301-1 |
12 |
1 |
0502-0611 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X40
|
8-97357-301-1 |
12 |
1 |
0502-0611 |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-97357-301-1 |
12 |
1 |
0502-0611 |
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
M14X40
|
8-98007-879-0 |
12 |
1 |
0612- |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X40
|
8-98007-879-0 |
12 |
1 |
0612- |
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
0612- |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0303-0501 |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0303-0501 |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0502-0603 |
● |
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0502-0603 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0502-0603 |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
00.002
ID=12.2
|
0-91510-612-0 |
12 |
1 |
0604-0611 |
● |
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
00.002
ID=12.2
|
0-91510-612-0 |
12 |
1 |
0604-0611 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
00.002
ID=12.2
|
0-91510-612-0 |
12 |
1 |
0604-0611 |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0612- |
● |
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0612- |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0612- |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0211-0302 |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0303-0501 |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0502-0603 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0502-0603 |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0502-0603 |
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0303-0501 |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0303-0501 |
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0502-0512 |
● |
|
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0502-0512 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0502-0512 |
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
M12
|
0-91110-512-0 |
12 |
1 |
0601- |
● |
|
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV)
M12
|
0-91110-512-0 |
12 |
1 |
0601- |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
M12
|
0-91110-512-0 |
12 |
1 |
0601- |
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0211-0302 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0211-0302 |
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRAME STRAIGHT TYPE<7KJ>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0303-0501 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0303-0501 |
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0502-0512 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0502-0512 |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0502-0512 |
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
07.833
M14
|
0-91110-514-0 |
12 |
1 |
0601- |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.833
M14
|
0-91110-514-0 |
12 |
1 |
0601- |
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.833
M14
|
0-91110-514-0 |
12 |
1 |
0601- |
|
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
|
8-97011-997-3 |
01 |
1 |
0303-0501 |
|
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97011-997-3 |
01 |
1 |
0502-0610 |
|
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-98030-956-0 |
01 |
1 |
0611- |
|
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
|
8-97145-451-2 |
01 |
1 |
0309-0501 |
|
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97145-451-2 |
01 |
1 |
0502-0504 |
|
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 7.0-7.5TON(RPX)
|
8-97145-451-2 |
01 |
1 |
0607- |
|
● |
|
|
