Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#37031) — 209 parça

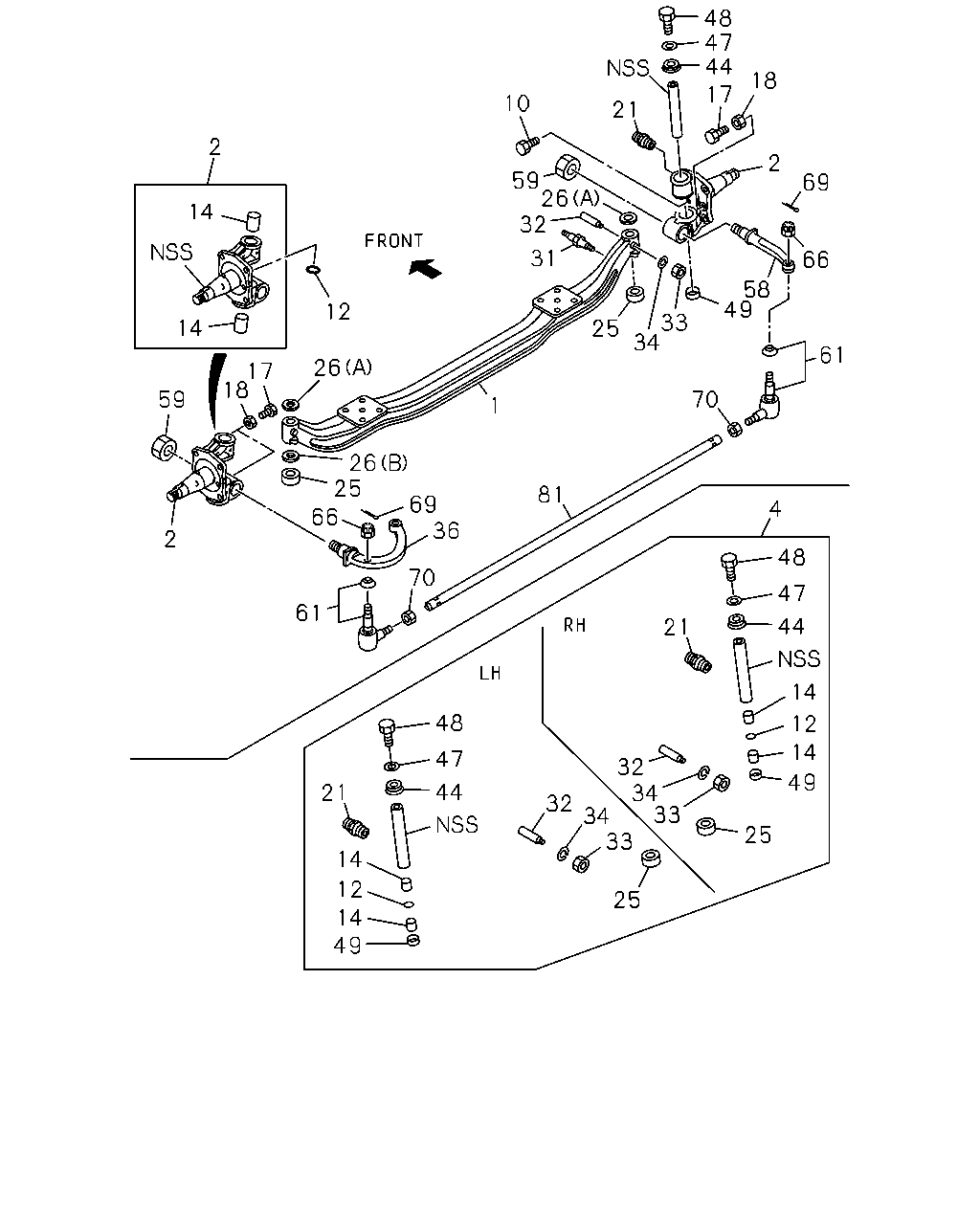

48 47 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 26 25 81 69 36 4 66 2 48 70 47 61 44 21 14 48 12 14 47 32 34 33 49 44 21 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.008 AXLE; FRT	8-97137-588-3	01	1	0211-0501	●
1	06.008 AXLE; FRT G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97137-588-3	01	1	0211-0501		●
1	06.008 AXLE; FRT	8-97137-588-3	01	1	0502-	●		●
1	06.008 AXLE; FRT G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97137-588-3	01	1	0502-		●
1	06.008 AXLE; FRT G.V.W. 8.0-8.5TON(RPZ)	8-97145-406-3	01	1	0211-		●
1	06.008 AXLE; FRT	8-97145-406-3	01	1	0211-				●
2	06.020 KNUCKLE; FRT AXLE	8-97261-545-1	01	1	0211-0302	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97261-545-1	01	1	0211-0302		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-545-1	01	1	0303-0501	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-97261-545-1	01	1	0303-0501		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-545-1	01	1	0303-0501		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-545-1	01	1	0502-	●		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-97261-545-1	01	1	0502-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-545-1	01	1	0502-		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-546-1	01	1	0211-0302	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97261-546-1	01	1	0211-0302		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-546-1	01	1	0303-0501	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-97261-546-1	01	1	0303-0501		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-546-1	01	1	0303-0501		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-546-1	01	1	0502-	●		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV)	8-97261-546-1	01	1	0502-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-546-1	01	1	0502-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ)	8-97261-549-1	01	1	0211-0308		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-1	01	1	0211-0308				●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-549-1	01	1	0309-		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-1	01	1	0309-				●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ)	8-97261-550-1	01	1	0211-0308		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-1	01	1	0211-0308				●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-550-1	01	1	0309-		●
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-1	01	1	0309-				●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97349-683-0	01	1	0303-0308		●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97349-683-0	01	1	0309-		●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97349-684-0	01	1	0303-0308		●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97349-684-0	01	1	0309-		●
4	06.203 KING PIN KIT	5-87831-608-1	01	1	0211-0402	●	●		●
4	06.203 KING PIN KIT	5-87832-220-1	01	1	0403-0501	●	●		●
4	06.203 KING PIN KIT	5-87832-183-2	01	1	0502-0610	●	●	●	●
4	06.203 KING PIN KIT	5-87832-209-0	01	1	0611-0707	●	●	●	●
4	06.203 KING PIN KIT	5-87832-220-1	01	1	0708-	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0211-0501	●	●		●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0502-0610	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0611-	●	●	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	0211-0501	●	●		●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	0502-0707	●	●	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0708-	●	●	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	0211-0501	●	●		●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0502-	●	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0211-0501	●	●		●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0502-0809	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0211-0501	●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	5-09000-208-1	03	1	0211-0501		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS),FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-WHL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7 .5-16-10 6GSX16-127 6-WHL/NUT GULF(BQQ) ,FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	5-09000-208-1	03	1	0211-0501		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT) M12X24 EYE-BOLT	5-09000-208-1	03	1	0211-0501				●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0502-0505	●		●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	5-09000-208-1	03	1	0502-0505		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS),FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-WHL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7 .5-16-10 6GSX16-127 6-WHL/NUT GULF(BQQ) ,FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	5-09000-208-1	03	1	0502-0505		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT) M12X24 EYE-BOLT	5-09000-208-1	03	1	0502-0505				●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0506	●		●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0506		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 2 15/75R17.5 17.5X6.00-127 SILVER(CQU) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0506		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0506				●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0604	●		●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0604		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 2 25/85R16 16X6K-128(CNY),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR TI RE 205/85R16 DISC 16-5.5J-116.5(CSB), FRT&RR 215/85R16 16X6K-128(CSC) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0604		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) M12X24 EYE-BOLT	5-09000-208-1	03	1	0506-0604				●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0605-0611	●		●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	5-09000-208-1	03	1	0605-0611		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 2 25/85R16 16X6K-128(CNY),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/7 5R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	5-09000-208-1	03	1	0605-0611		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M12X24 EYE-BOLT	5-09000-208-1	03	1	0605-0611				●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-0706	●		●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-0706		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 2 25/85R16 16X6K-128(CNY),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/7 5R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-0706		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-0706				●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0707-0804	●		●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	8-97360-059-0	03	1	0707-0804		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 215/75R17.5 1 7.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	8-97360-059-0	03	1	0707-0804		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M12X24 EYE-BOLT	8-97360-059-0	03	1	0707-0804				●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0805-	●		●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X24 EYE-BOLT	8-97360-059-0	03	1	0805-		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 215/75R17.5 1 7.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FR T&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) G.V.W. 8.0-8.5TON(RPZ) M12X24 EYE-BOLT	8-97360-059-0	03	1	0805-		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M12X24 EYE-BOLT	8-97360-059-0	03	1	0805-				●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) G.V.W. 8.0-8.5TON(RPZ) M12X27.5	8-94433-409-1	03	1	0211-0501		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) M12X27.5	8-94433-409-1	03	1	0211-0501				●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X27.5	8-94433-409-1	03	1	0502-0610		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) M12X27.5	8-94433-409-1	03	1	0502-0610				●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98016-968-0	03	1	0611-		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP)	8-98016-968-0	03	1	0611-				●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	0211-0501	●	●		●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	0502-0512	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0601-	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	0211-0501	●	●		●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	0502-0607	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0608-	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	01	1	0211-0501	●	●		●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	01	1	0502-	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0211-0501	●	●		●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0502-	●	●	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0211-0501	●	●		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0502-	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	0211-0501	●	●		●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	0502-	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0211-0501	●	●		●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0502-	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	0211-0501	●	●		●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	0502-0512	●	●	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0601-	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	0211-0501	●	●		●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	0502-0603	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0604-	●	●	●	●
36	06.103 ARM; KNUCKLE	8-97210-771-0	01	1	0211-0501	●	●		●
36	06.103 ARM; KNUCKLE	8-97210-771-3	01	1	0502-0804	●	●	●	●
36	06.103 ARM; KNUCKLE FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ)	8-97210-771-4	01	1	0805-	●
36	06.103 ARM; KNUCKLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97210-771-4	01	1	0805-		●
36	06.103 ARM; KNUCKLE FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) G.V.W. 6.0-6.5TON(RPV)	8-97210-771-4	01	1	0805-		●
36	06.103 ARM; KNUCKLE	8-97210-771-4	01	1	0805-			●	●
36	06.103 ARM; KNUCKLE FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA)	8-97210-770-4	01	1	0805-	●
36	06.103 ARM; KNUCKLE FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) G.V.W. 6.0-6.5TON(RPV)	8-97210-770-4	01	1	0805-		●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	0211-0501	●	●		●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	0502-0611	●	●	●	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	0211-0402	●	●		●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	0211-0402	●	●		●
48	06.225 BOLT; COVER 04.640 M10X12 FLANGE	0-28081-012-0	02	1	0403-0501	●	●		●
48	06.225 BOLT; COVER 04.640 M10X12 FLANGE	0-28081-012-0	02	1	0502-0512	●	●	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0211-0501	●	●		●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0502-0611	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0612-	●	●	●	●
58	06.103 ARM; TIE ROD	8-97147-636-0	01	1	0211-0501	●	●		●
58	06.103 ARM; TIE ROD	8-97147-636-1	01	1	0502-	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	0211-0501	●	●		●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	0502-0611	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0211-0501	●	●		●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0502-	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0211-0501	●	●		●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0502-	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	0211-0501	●	●		●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	0502-0605	●	●	●	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0606-	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	0211-0501	●	●		●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	0502-0606	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0607-	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0211-0501	●	●		●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0502-	●	●	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	0211-0501	●	●		●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	0502-0512	●	●	●	●
70	06.234 NUT; TIE ROD END M20	0-91111-520-0	01	1	0601-0610	●	●	●	●
70	06.234 NUT; TIE ROD END M20	8-98043-530-0	01	1	0611-	●	●	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	0211-0501	●	●		●
81	06.230 ROD; TIE	8-97061-869-0	01	1	0502-	●	●	●	●

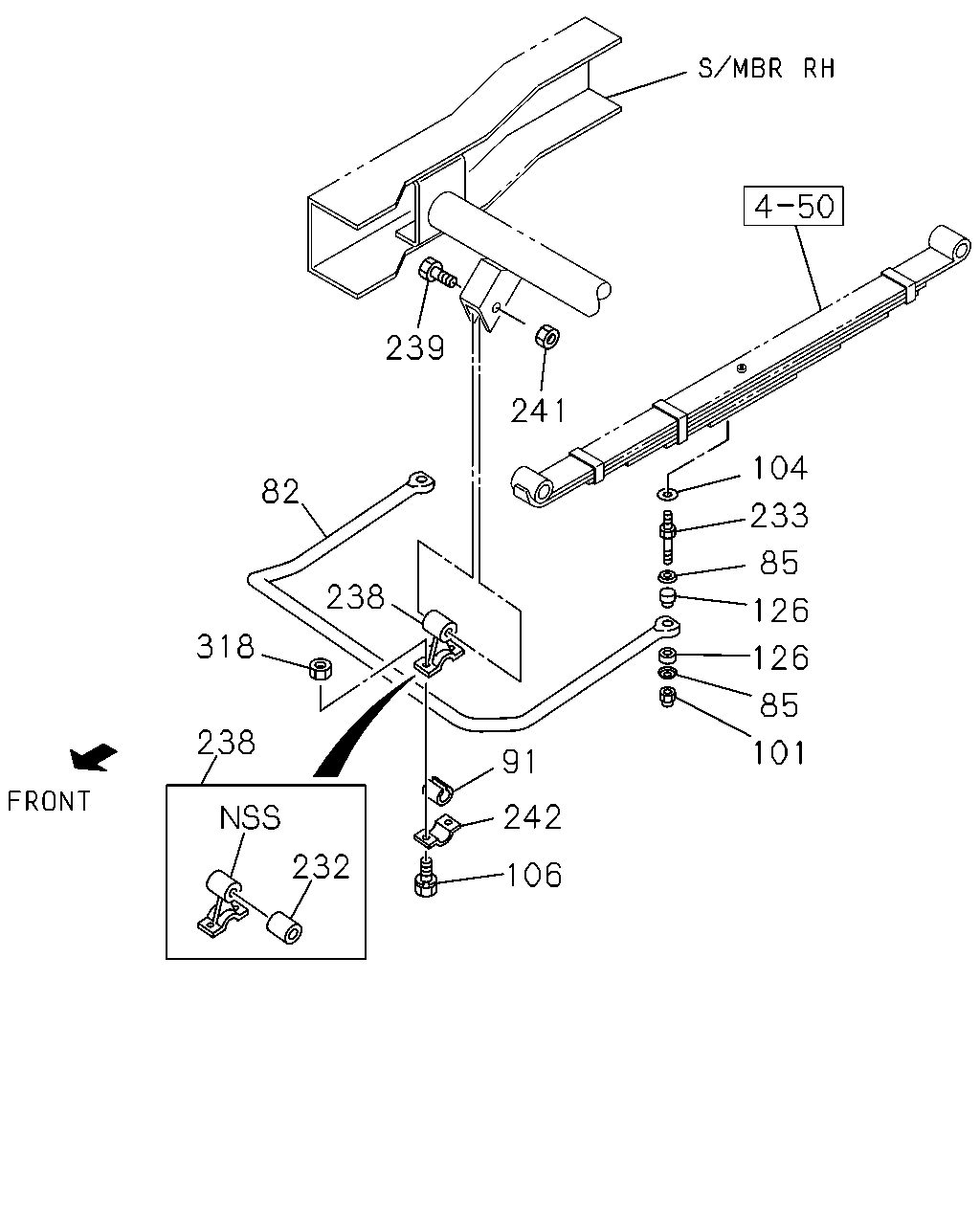

239 241 104 82 233 85 238 126 318 126 85 238 101 91 242 232 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	0211-0501	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	0502-	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	0211-0501	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	0502-	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	0211-0501	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	0502-0610	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-97360-055-0	04	1	0611-	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	0211-0501	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	0502-	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	0211-0501	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	0502-0603	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> M12 LOCK NUT	0-91370-012-0	02	1	0604-	●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	0211-0501	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	0502-0603	●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 05.605 ID=14.2	0-91510-514-0	02	1	0604-	●	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0211-0501	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0502-0512	●	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	0211-0501	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	0502-	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	0211-0501	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	0502-	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	0211-0501	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	0502-	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	0211-0501	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	0502-	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	0211-0501	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	0502-0610	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97360-120-0	02	1	0611-	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	0211-0501	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	0502-	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70	0-10806-470-0	02	1	0211-0306	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28881-470-0	02	1	0307-0501	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28881-470-0	02	1	0502-0512	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28851-470-0	02	1	0601-	●	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	0211-0306	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 07.417 M14 FLANGE	8-94137-483-0	02	1	0307-0501	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 07.417 M14 FLANGE	8-94137-483-0	02	1	0502-0610	●	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 06.174 M14 FLANGE	8-97360-124-0	02	1	0611-	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	0211-0501	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	0502-	●	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0602	●	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
