Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶

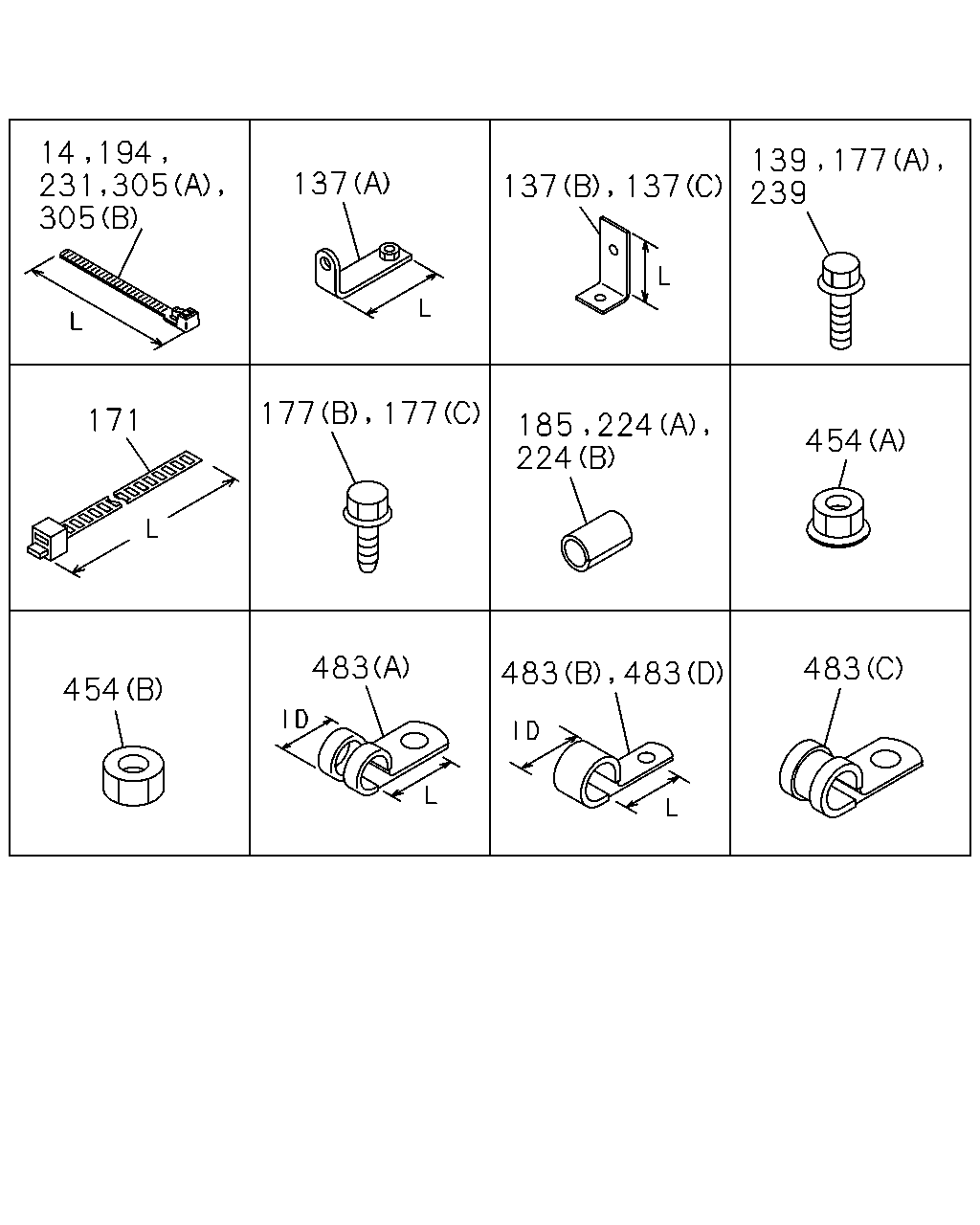

8-15 — FIXING PARTS; WIRING HARNESS
(#3703) — 31 parça
305
239
137
137
137
177
177
171
224
454
483
483
454
14
194
305
231
139
177
224
185
483
483
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CLIP; BAND,HARNESS
L=250
5-09707-030-0
05
1
9712-9803
137
BRACKET; HARNESS CLAMP
(A) L=71
1-15419-131-1
01
1
9712-9803
137
BRACKET; HARNESS CLAMP
(B) L=55
1-47475-304-0
01
1
9712-9803
137
BRACKET; HARNESS CLAMP
(C) L=115 B=25
1-47476-758-0
01
1
9712-9803
139
BOLT; BRKT
M10X16 FLANGE
0-28181-016-0
01
1
9712-9803
171
CLIP; STARTER HARNESS
L=300
1-09707-001-0
02
1
9712-9803
177
BOLT; ENG STOP CLIP
(A) M10X16 FLANGE
0-28181-016-0
01
1
9712-9803
177
BOLT; ENG STOP CLIP
(B) M6X16 FLANGE
0-28680-616-0
01
1
9712-9803
177
BOLT; ENG STOP CLIP
(C) M8X20 FLANGE
0-28680-820-0
02
1
9712-9803
177
BOLT; ENG STOP CLIP
(C) M8X20 FLANGE
0-28680-820-0
01
1
9804-
177
BOLT; ENG STOP CLIP
(C) M8X20 FLANGE
0-28680-820-0
02
1
9804-
185
SLEEVE; RUBBER
ID=29 OD=39 L=40
1-09337-013-0
05
1
9712-9803
194
CLIP; BAND
L=250
5-09707-030-0
05
1
9712-9803
224
SLEEVE; RUBBER,HARNESS
(A) ID=29 OD=39 L=40
1-09337-013-0
02
1
9712-9804
224
SLEEVE; RUBBER,HARNESS
(A) ID=29 OD=39 L=40
1-09337-013-0
01
1
9805-
224
SLEEVE; RUBBER,HARNESS
(B) ID=23 OD=27 L=40
1-09337-015-0
03
1
9712-
231
CLIP; BAND,OIL PRESS
L=250
5-09707-030-0
01
1
9712-9803
239
BOLT; GRAND
M12X16 FLANGE
1-09044-079-0
01
1
9804-
305
CLIP; ENG HARNESS
(A) L=250
5-09707-030-0
02
1
9712-9804
305
CLIP; ENG HARNESS
(A) L=250
5-09707-030-1
01
1
9805-
305
CLIP; ENG HARNESS
(B) L=140
5-09707-031-1
03
1
9712-
454
NUT
(A) M8 FLANGE
0-91150-108-0
02
1
9712-9803
454
NUT
(B) M8
9-09110-408-0
02
1
9712-9803
454
NUT
(A) M8 FLANGE
0-91150-108-0
01
1
9804-9804
454
NUT
(A) M8 FLANGE
0-91150-108-0
01
1
9804-9804
483
CLIP; ENG HARNESS
(C) ID=25 L=30
1-09700-705-0
01
1
9712-9803
483
CLIP; ENG HARNESS
(A) ID=28 L=32
1-09701-107-1
02
1
9712-9803
483
CLIP; ENG HARNESS
(B) ID=13 L=28
9-09525-252-0
01
1
9712-9803
483
CLIP; ENG HARNESS
(D) ID=16 L=40
9-09525-576-0
02
1
9712-9803
483
CLIP; ENG HARNESS
(A) ID=28 L=32
1-09701-107-1
01
1
9804-
483
CLIP; ENG HARNESS
(A) ID=28 L=32
1-09701-107-1
02
1
9804-
