Sayfa 3-58 - Isuzu EPC

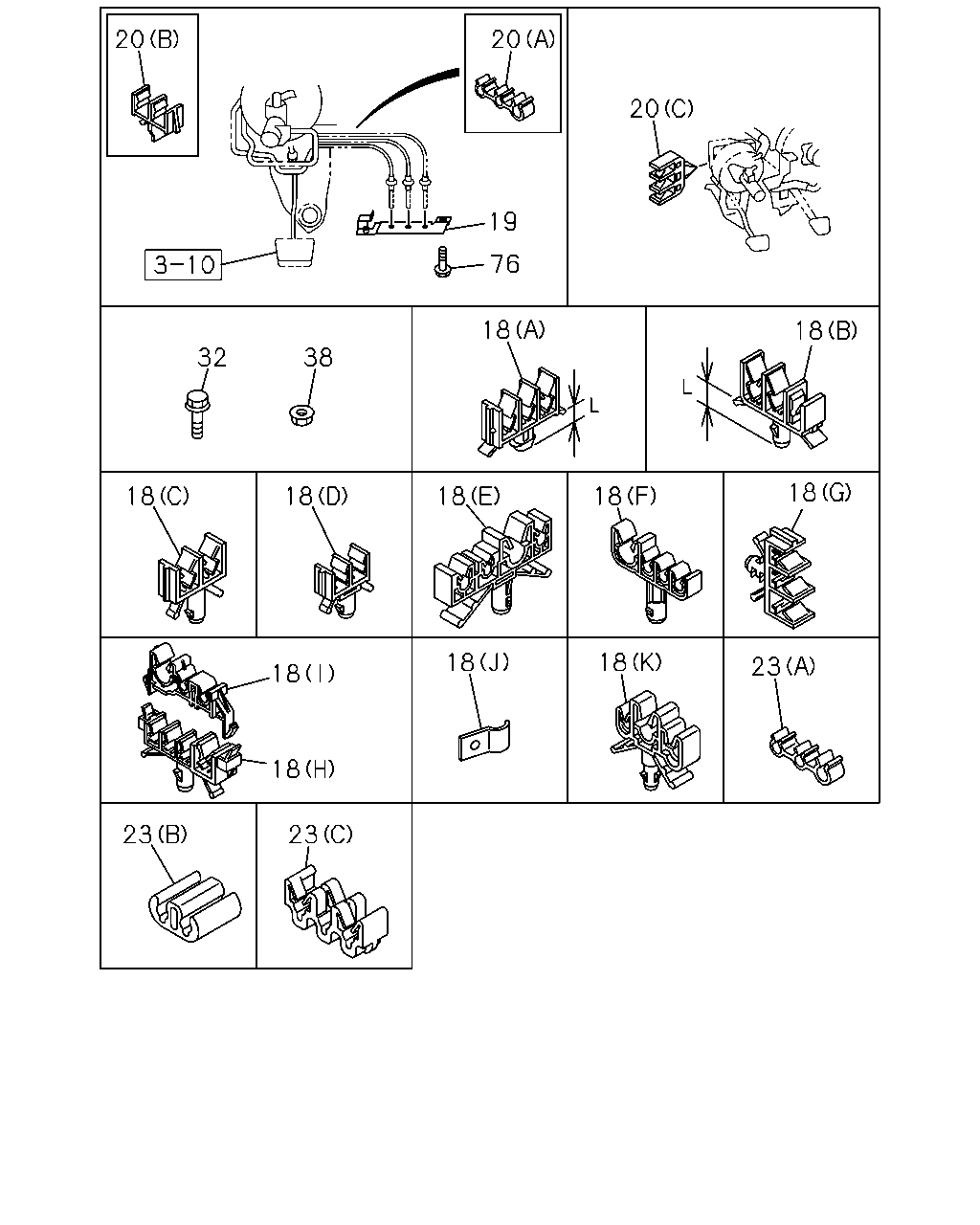

3-58 — FIXING PARTS; OIL PIPING (#37028) — 263 parça

20 20 20 19 76 18 18 32 38 18 18 18 18 18 18 18 23 18 18 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0211-0212	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0211-0212		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0301-0302	●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0301-0302	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0301-0302		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0301-0302		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0303-0501	●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0303-0501	●
18	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0303-0501		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0303-0501		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0502-	●		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0502-	●
18	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0502-		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0502-		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0502-				●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0211-0212	●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0211-0212	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0211-0212		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0301-0302	●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0303-	●
18	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0303-		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0211-0212		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0301-0302		●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0303-0501	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0303-0501		●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-	●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-		●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-0	02	1	0211-0302	●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-0	02	1	0211-0302	●
18	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-0	02	1	0211-0302		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-0	02	1	0211-0302		●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0303-0501	●		●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0303-0501	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0303-0501		●		●
18	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0303-0501		●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0502-	●		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0502-		●
18	04.686 CLIP; BRK PIPE (J) B=18 L=20	1-09700-372-0	02	1	0211-0302	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20	1-09700-372-0	02	1	0211-0302		●
18	04.686 CLIP; BRK PIPE (J) B=18 L=20	1-09700-372-0	02	1	0303-0501	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20	1-09700-372-0	02	1	0303-0501		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20	1-09700-372-0	02	1	0303-0501		●
18	04.686 CLIP; BRK PIPE (J) B=18 L=20	1-09700-372-0	02	1	0502-	●		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20	1-09700-372-0	02	1	0502-		●		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20	1-09700-372-0	02	1	0502-		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0211-0302		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0211-0302		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0211-0302		●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0211-0302				●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0211-0302				●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303		●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303				●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0303-0303				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0211-0302		●
18	04.686 CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	01	1	0211-0302				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8X2	8-94316-410-0	01	1	0303-0501		●
18	04.686 CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	01	1	0303-0501				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.8X2	8-94316-410-0	01	1	0502-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0502-				●
18	04.686 CLIP; BRK PIPE MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0502-				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0211-0302		●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94455-816-0	01	1	0211-0302				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0303-0501		●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94455-816-0	01	1	0303-0501				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0502-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (C) ID=4.8X2	8-94455-816-0	01	1	0502-				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-0302		●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-0302				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0303-0501		●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0303-0501				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-				●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0301-0302	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0301-0302		●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0303-0501	●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0303-0501		●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0502-	●		●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0502-		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0502-				●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (B) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0211-0303	●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (B) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0211-0303	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0211-0303		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0211-0303		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	0304-0304	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	0304-0304		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (B) ID=6.5 & 4.8X2	8-94424-234-0	03	1	0304-0501	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	03	1	0304-0501		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (B) ID=6.5 & 4.8X2	8-94424-234-0	03	1	0502-	●		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	03	1	0502-		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	03	1	0502-				●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	02	1	0211-0303	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	02	1	0211-0303		●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0304-0304	●	●		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0304-0304		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0304-0304		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0304-0304		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0304-0304		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0304-0304		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-0	01	1	0304-0304				●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0305-0501	●	●		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0305-0501		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0305-0501		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0305-0501		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0305-0501		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0305-0501				●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0611	●	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0611		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0611		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0611		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0611		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0611				●
18	04.686 CLIP; BRK PIPE 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-	●	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-				●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0303	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0303		●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0303		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0303				●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0303				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501				●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-		●		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-				●
18	04.686 CLIP; BRK PIPE (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0211-0304	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0211-0304		●
18	04.686 CLIP; BRK PIPE (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0305-0501	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0305-0501		●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	08	1	0502-	●		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	08	1	0502-		●		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (G) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0305-0501		●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0211-0501	●	●		●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0502-	●	●	●	●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	08	1	0211-0501	●	●		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	09	1	0502-1005		●		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	07	1	1006-		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	07	1	1006-				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	05	1	0211-		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	04	1	0211-		●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	06	1	0211-0501				●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	06	1	0502-				●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=10 & 4.76X2	8-97183-217-0	01	1	0303-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	01	1	0303-1005		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	01	1	1006-		●		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=10 & 4.76X3	8-97326-158-1	01	1	1006-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	02	1	0303-0611		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	03	1	0612-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	01	1	0303-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	04	1	0303-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	03	1	0303-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=10 & 4.76X2	8-97183-217-0	02	1	0303-		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	0305-0501		●
18	04.686 CLIP; BRK PIPE 4HF1-S ENG(RLS) (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0502-	●		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0502-		●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0502-				●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0612-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0612-		●
19	04.686 BRACKET; OIL PIPE	8-97178-320-1	01	1	0211-0302	●	●		●
19	04.686 BRACKET; OIL PIPE	8-97178-320-1	01	1	0303-0501	●			●
19	04.686 BRACKET; OIL PIPE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	0303-0501		●
19	04.686 BRACKET; OIL PIPE	8-97178-320-1	01	1	0502-	●		●	●
19	04.686 BRACKET; OIL PIPE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	0502-		●
19	04.686 BRACKET; OIL PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97171-018-3	01	1	0303-		●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0211-0501	●	●		●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0502-	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0211-0501	●	●		●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0502-	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0211-0501	●	●		●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0502-	●	●	●	●
23	04.686 CLAMP; PIPE 4HF1-S ENG(RLS) (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0211-0302	●
23	04.686 CLAMP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0211-0302		●
23	04.686 CLAMP; PIPE 4HF1-S ENG(RLS) (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0303-0501	●
23	04.686 CLAMP; PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0303-0501		●
23	04.686 CLAMP; PIPE 4HF1-S ENG(RLS) (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0502-	●		●
23	04.686 CLAMP; PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0502-		●
23	04.686 CLAMP; PIPE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0502-				●
23	04.686 CLAMP; PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2	8-94389-060-0	04	1	0303-		●
23	04.686 CLAMP; PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0303-		●
23	04.686 CLAMP; PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X3	8-94487-369-0	01	1	0303-		●
23	04.686 CLAMP; PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2	8-94389-060-0	01	1	0303-		●
32	04.686 BOLT; CLIP,OIL PIPE 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●
32	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
32	04.686 BOLT; CLIP,OIL PIPE 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●
32	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
32	04.686 BOLT; CLIP,OIL PIPE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512				●
32	04.686 BOLT; CLIP,OIL PIPE 4HF1-S ENG(RLS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
32	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
32	04.686 BOLT; CLIP,OIL PIPE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-				●
32	04.686 BOLT; CLIP,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0303-0512		●
32	04.686 BOLT; CLIP,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0612		●
32	04.686 BOLT; CLIP,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0701-		●
38	04.686 NUT; CLIP FIX 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302	●
38	04.686 NUT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302		●
38	04.686 NUT; CLIP FIX 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●
38	04.686 NUT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501		●
38	04.686 NUT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501		●
38	04.686 NUT; CLIP FIX 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●		●
38	04.686 NUT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●		●
38	04.686 NUT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
38	04.686 NUT; CLIP FIX 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
38	04.686 NUT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
38	04.686 NUT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●		●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●

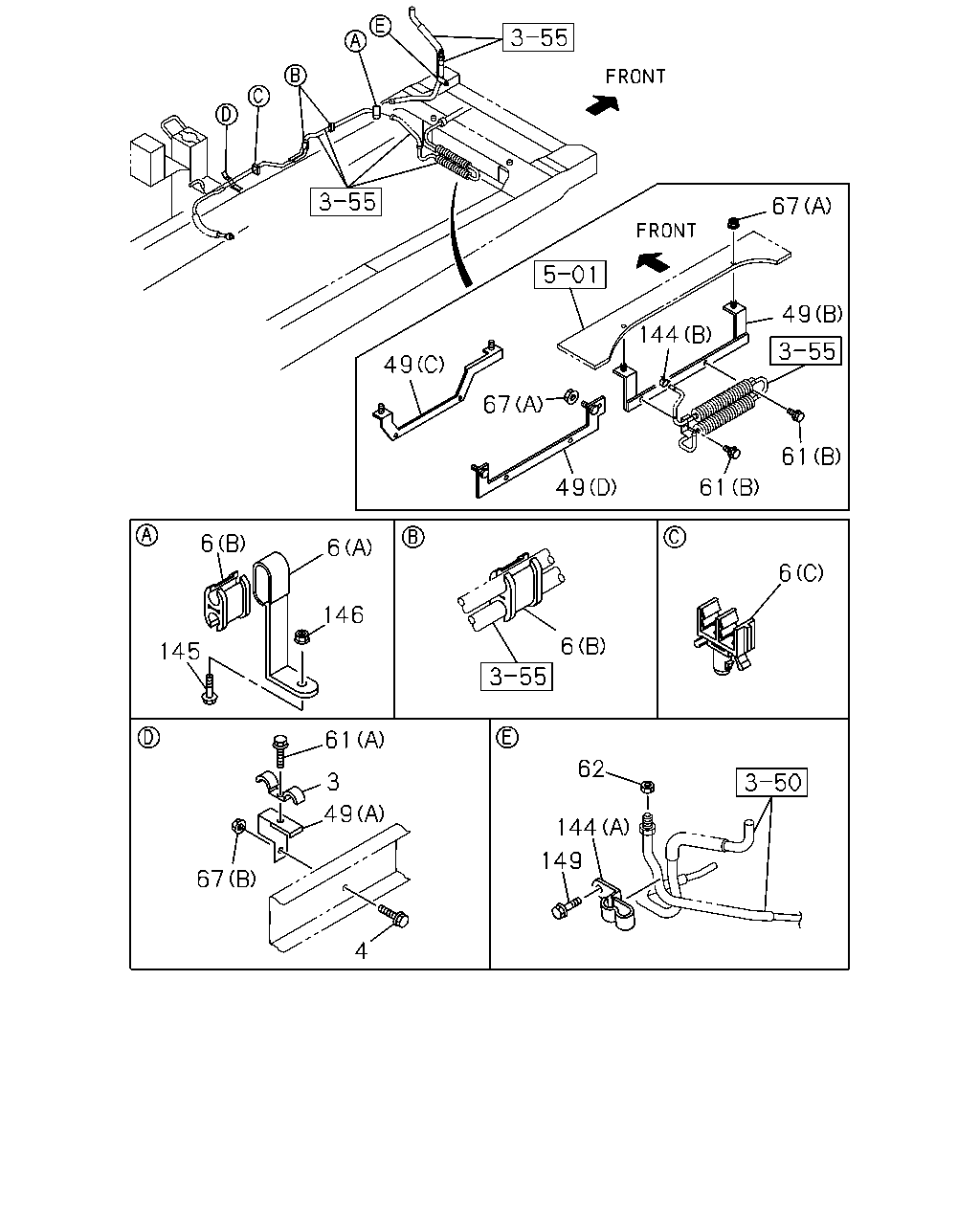

67 49 144 49 67 61 49 61 6 6 6 146 6 145 61 62 3 49 144 149 67 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0303-	●
4	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0303-0512	●
4	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0303-0512	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0307-0512	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0303-	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0303-	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0303-	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	02	1	0303-	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0303-	●
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0303-0306	●
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97370-411-0	01	1	0307-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97358-030-0	01	1	0303-0306	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-420-0	01	1	0307-	●
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0303-0501	●
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C)	8-97378-054-0	01	1	0502-0504	●
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0505-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97334-291-0	01	1	0303-	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0303-0512	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0303-0512	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0303-0512	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.515 M14	0-91111-514-0	01	1	0601-	●
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0303-0306	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0307-0501	●
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0303-0501	●
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	03	1	0502-0602	●
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) M10 FLANGE	0-91180-110-0	03	1	0603-	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0303-0501	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0502-0602	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0303-0501	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0303-	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	0303-0501	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	0502-1005	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.681 (B) ID=11-17	8-98173-762-0	03	1	1006-	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0303-0512	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0602	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0303-0512	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
