Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#37026) — 494 parça

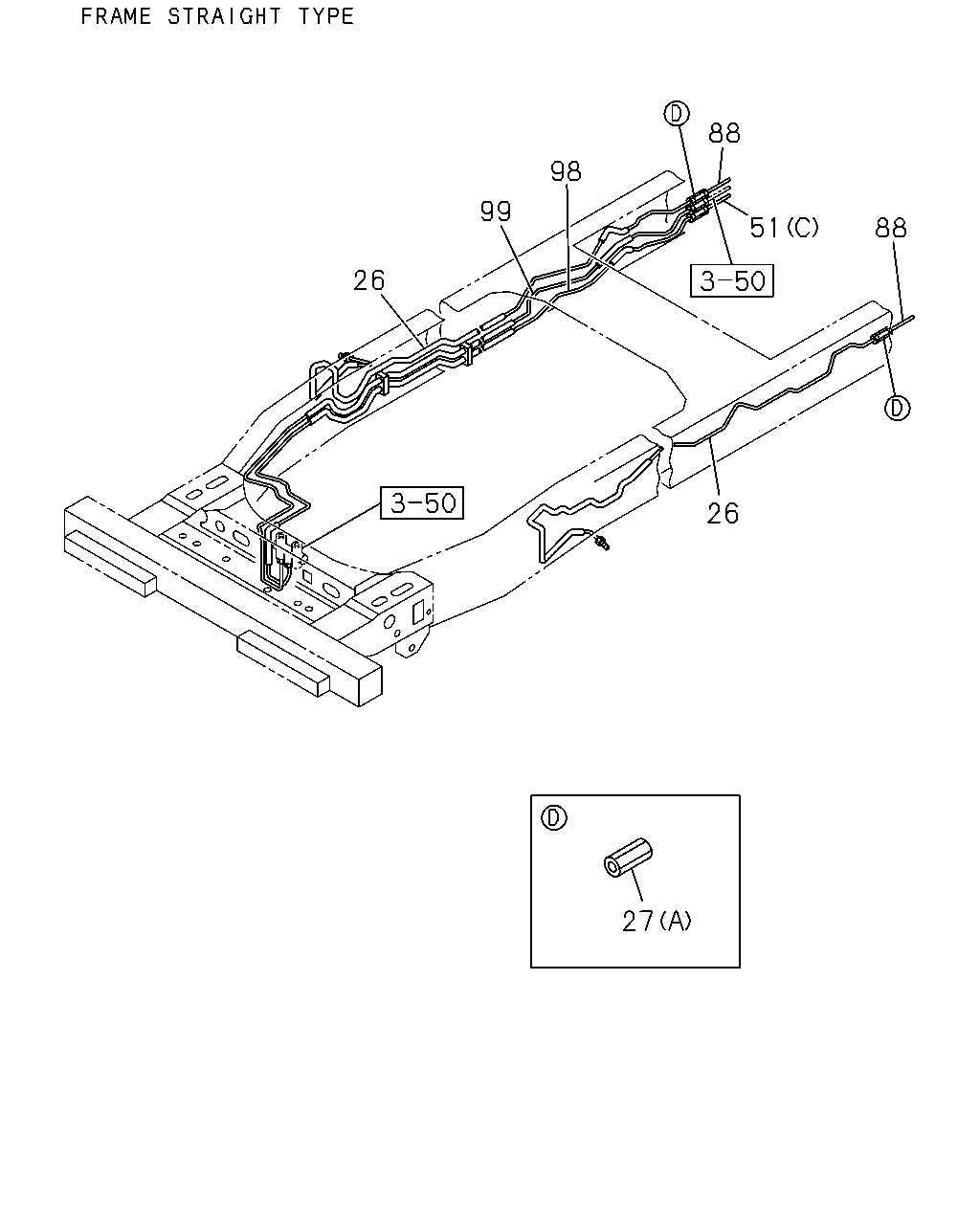

1 9 9 26 96 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0211-0501	●	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0502-	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0211-0501	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0211-0501	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0502-0610	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0502-0610	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-121-2	01	1	0303-0303		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-464-0	01	1	0304-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 7-LEAF	8-97326-376-0	01	1	0303-0306		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97370-406-0	01	1	0307-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-018-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97333-346-0	01	1	0303-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-017-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-120-2	01	1	0303-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-019-0	01	1	0507-		●
71	04.686 GROMMET; OIL PIPE 05.002	9-09756-034-0	02	1	0211-	●
71	04.686 GROMMET; OIL PIPE G.V.W. 6.0-6.5TON(RPV) 05.002	9-09756-034-0	02	1	0211-		●
71	04.686 GROMMET; OIL PIPE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002	8-97044-742-1	02	1	0211-0501		●
71	04.686 GROMMET; OIL PIPE 05.002	8-97044-742-1	02	1	0211-0501			●
71	04.686 GROMMET; OIL PIPE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002	8-97044-742-1	02	1	0502-		●
71	04.686 GROMMET; OIL PIPE 05.002	8-97044-742-1	02	1	0502-			●	●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0211-0302	●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0303-0501	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0502-	●			●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0211-0302	●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0303-0501	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0502-	●			●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97096-950-0	01	1	0211-0302			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-950-0	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97096-950-0	01	1	0303-0501			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-950-0	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-954-1	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97096-954-1	01	1	0211-0302			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-954-1	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97096-954-1	01	1	0303-0501			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-954-1	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-954-1	01	1	0502-			●

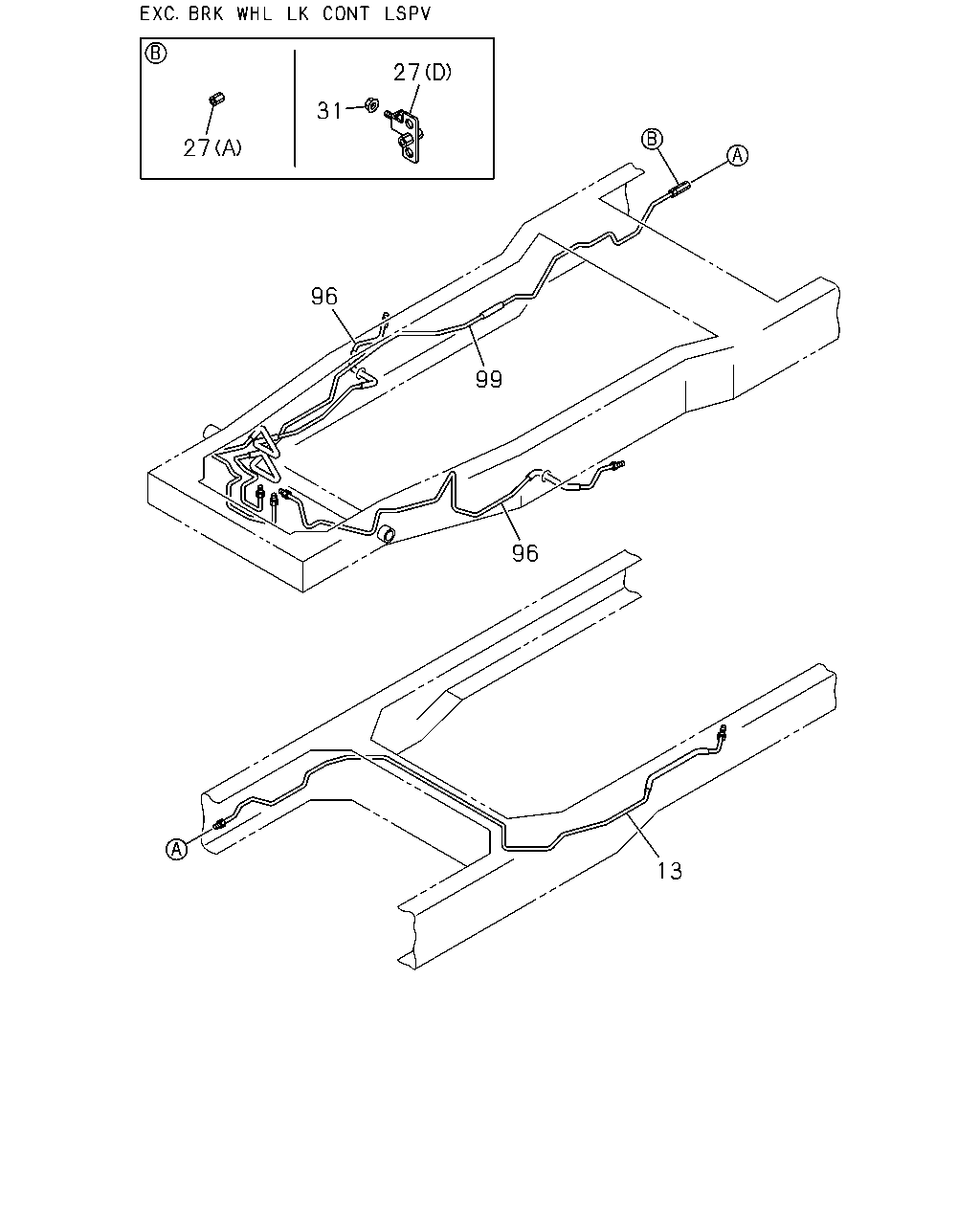

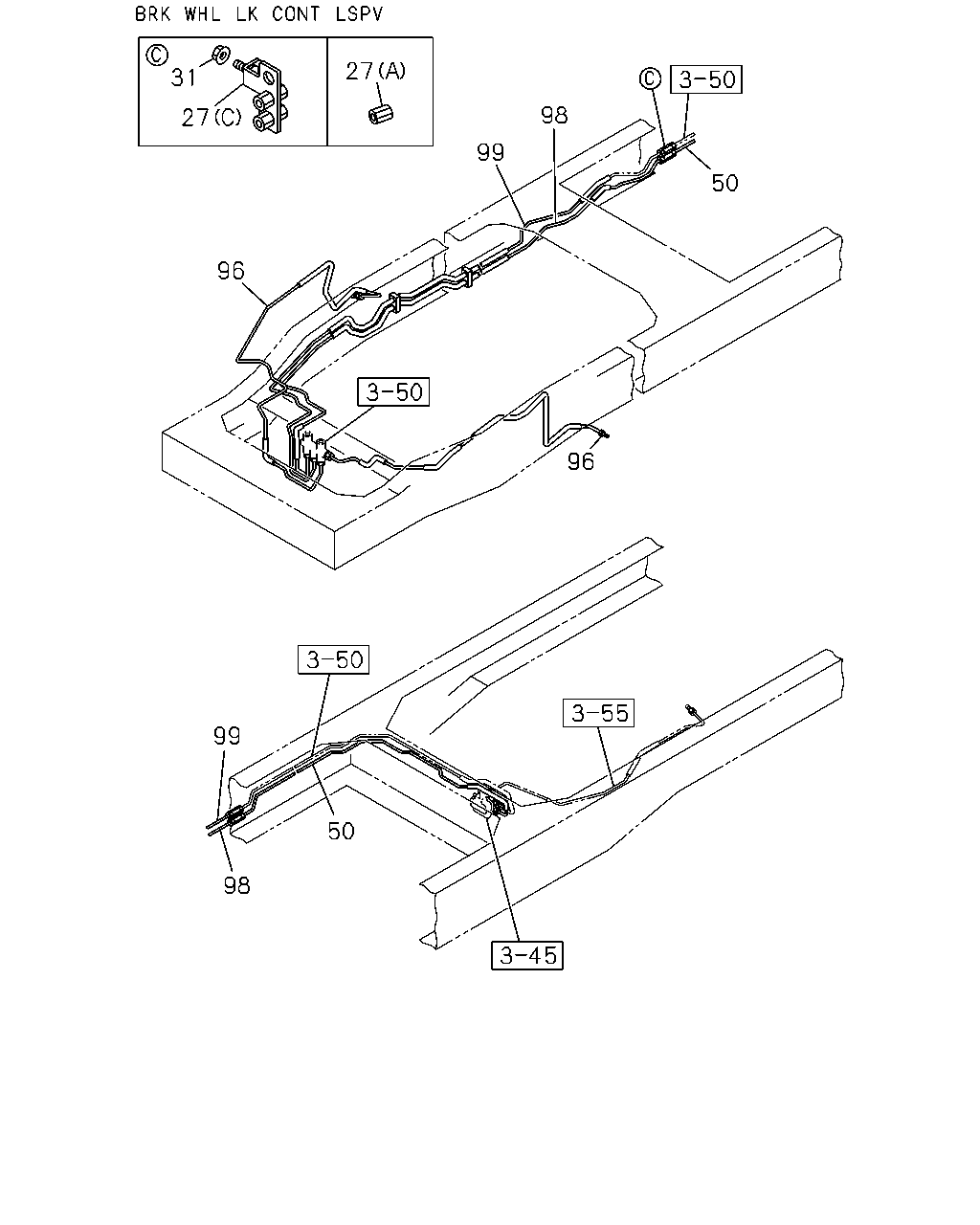

31 27 98 27 99 50 96 96 99 50 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0211-0302	●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0211-0302		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0303-0501	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	0502-1009	●			●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009		●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009			●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	1010-				●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009			●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-1	01	1	0303-		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C)	8-97259-943-1	01	1	0303-		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP 4HF1-S ENG(RLS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-				●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.476 SERVICED BY L=2720	5-47411-788-0	01	1	0303-		●
50	04.685 PIPE; BRK,UNION TO VLV BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-782-0	01	1	0303-		●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0211-0302	●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0303-0501	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0502-	●			●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0211-0302	●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0303-0501	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0502-	●			●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97096-950-0	01	1	0211-0302			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-950-0	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97096-950-0	01	1	0303-0501			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-950-0	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-954-1	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97096-954-1	01	1	0211-0302			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-954-1	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97096-954-1	01	1	0303-0501			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-954-1	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-954-1	01	1	0502-			●
98	04.686 PIPE ASM; 4/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97185-055-1	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-710-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-772-1	01	1	0303-		●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0211-0302		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0211-0302			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0303-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0303-0501			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0502-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0211-0501	●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0211-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0502-	●			●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0502-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97185-056-2	01	1	0303-		●

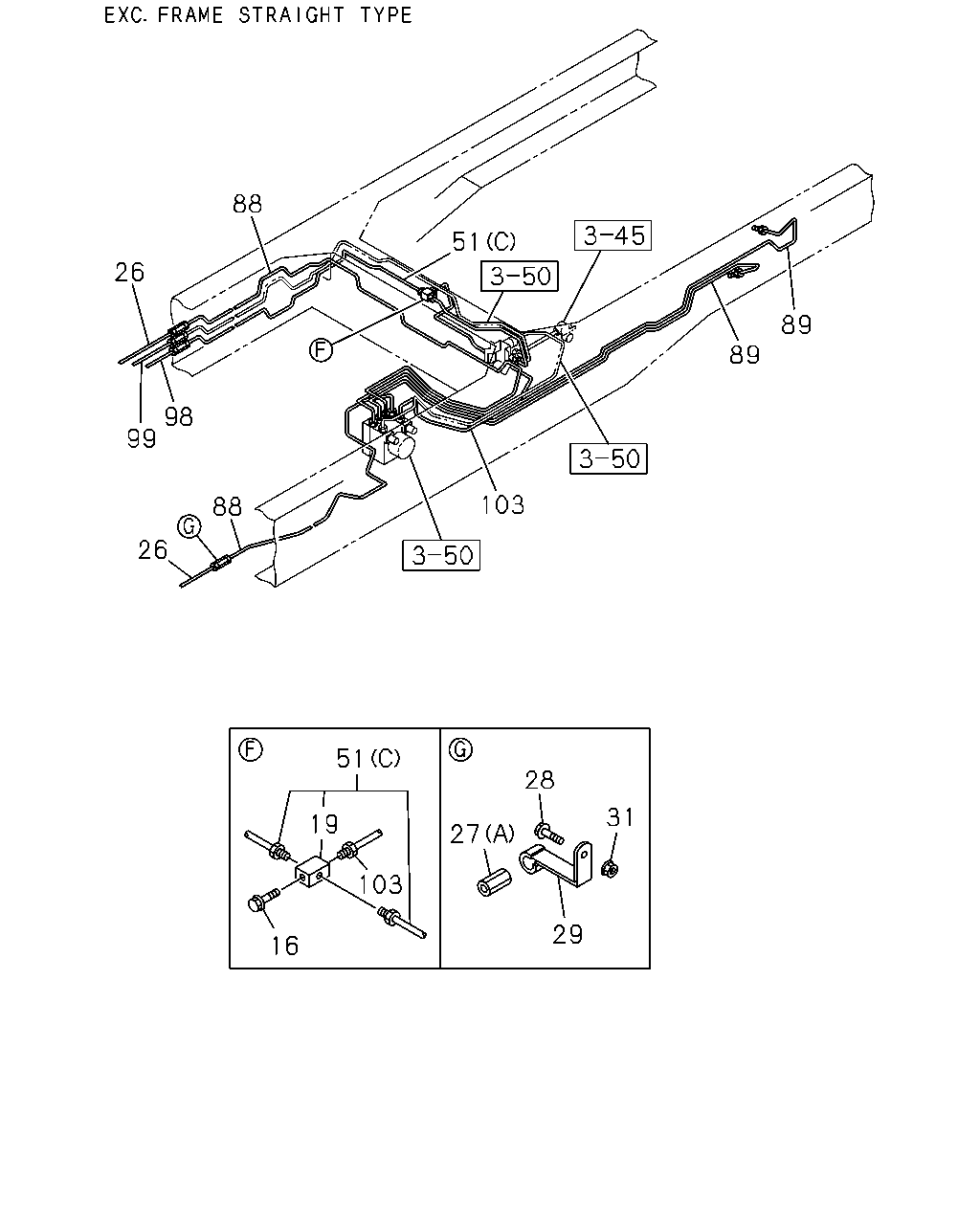

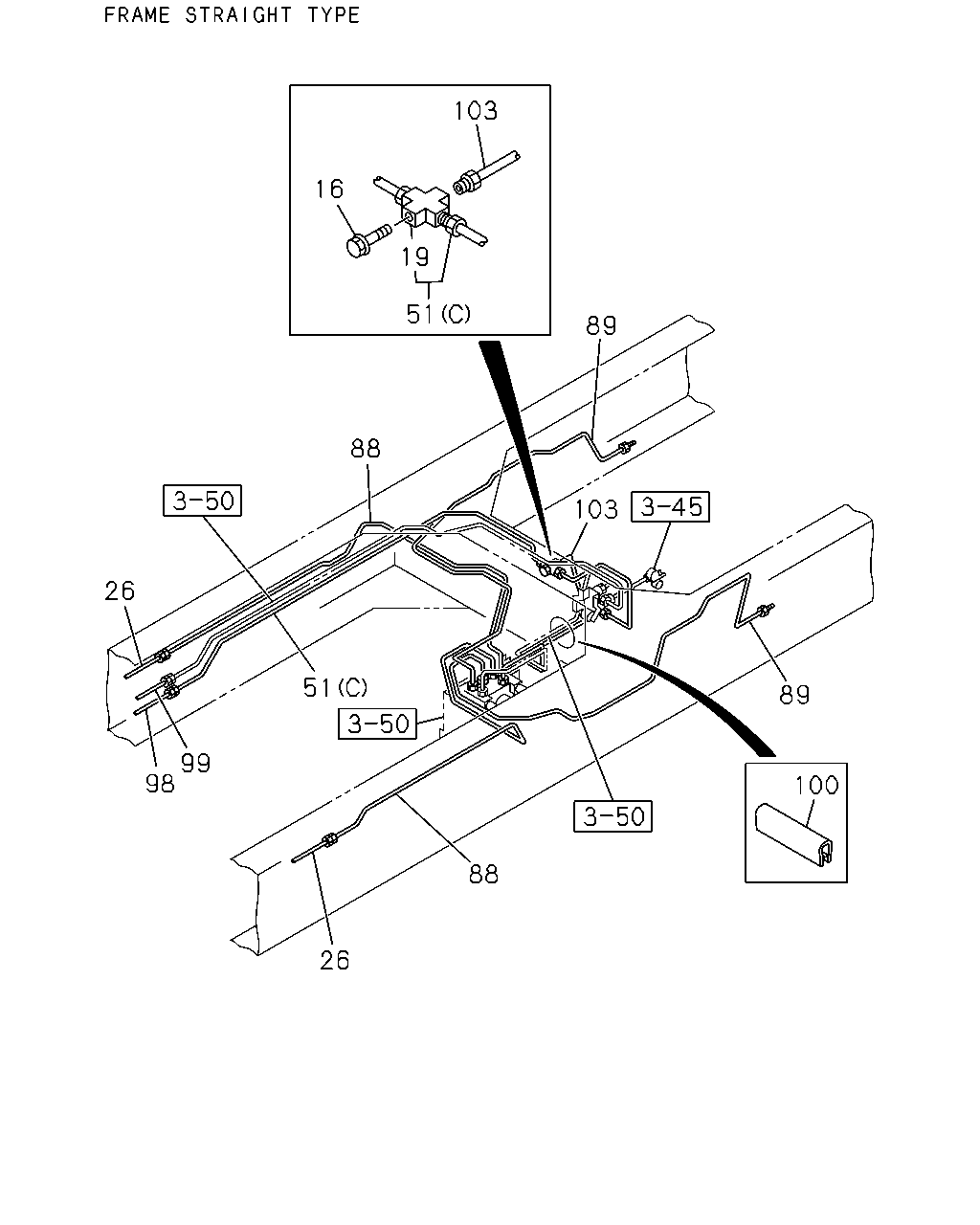

103 16 19 1 89 88 103 26 51 89 99 98 100 88 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0211-0501	●	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0502-	●	●	●	●
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0303-0512		●
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
19	04.686 UNION; OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0303-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-121-2	01	1	0303-0303		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-464-0	01	1	0304-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 7-LEAF	8-97326-376-0	01	1	0303-0306		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97370-406-0	01	1	0307-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-018-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97333-346-0	01	1	0303-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-017-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-120-2	01	1	0303-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-019-0	01	1	0507-		●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-804-1	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-886-0	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-890-0	01	1	0303-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-879-0	01	1	0303-0312		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97375-586-0	01	1	0401-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-878-2	01	1	0303-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-870-0	01	1	0303-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97357-231-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97185-055-1	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-710-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-772-1	01	1	0303-		●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0211-0302		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0211-0302			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0303-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0303-0501			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0502-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0211-0501	●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0211-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0502-	●			●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0502-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97185-056-2	01	1	0303-		●
100	04.931 PROTECTOR; EDGE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0303-		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-874-0	01	1	0303-		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97359-229-0	01	1	0303-		●

88 51 26 89 89 98 99 103 88 26 51 28 31 19 27 103 29 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0303-0512		●
16	04.686 BOLT; 3 WAY CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
19	04.686 UNION; OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0303-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-121-2	01	1	0303-0303		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-464-0	01	1	0304-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 7-LEAF	8-97326-376-0	01	1	0303-0306		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97370-406-0	01	1	0307-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-018-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97333-346-0	01	1	0303-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-017-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-120-2	01	1	0303-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-019-0	01	1	0507-		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0211-0302	●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0211-0302		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0303-0501	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	0502-1009	●			●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009		●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009			●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	1010-				●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009			●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-1	01	1	0303-		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C)	8-97259-943-1	01	1	0303-		●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0303-0512		●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=16 H=24 L=20	9-09527-015-0	01	1	0303-0606		●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 H=24 L=20	0-95207-315-0	01	1	0607-		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP 4HF1-S ENG(RLS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-				●

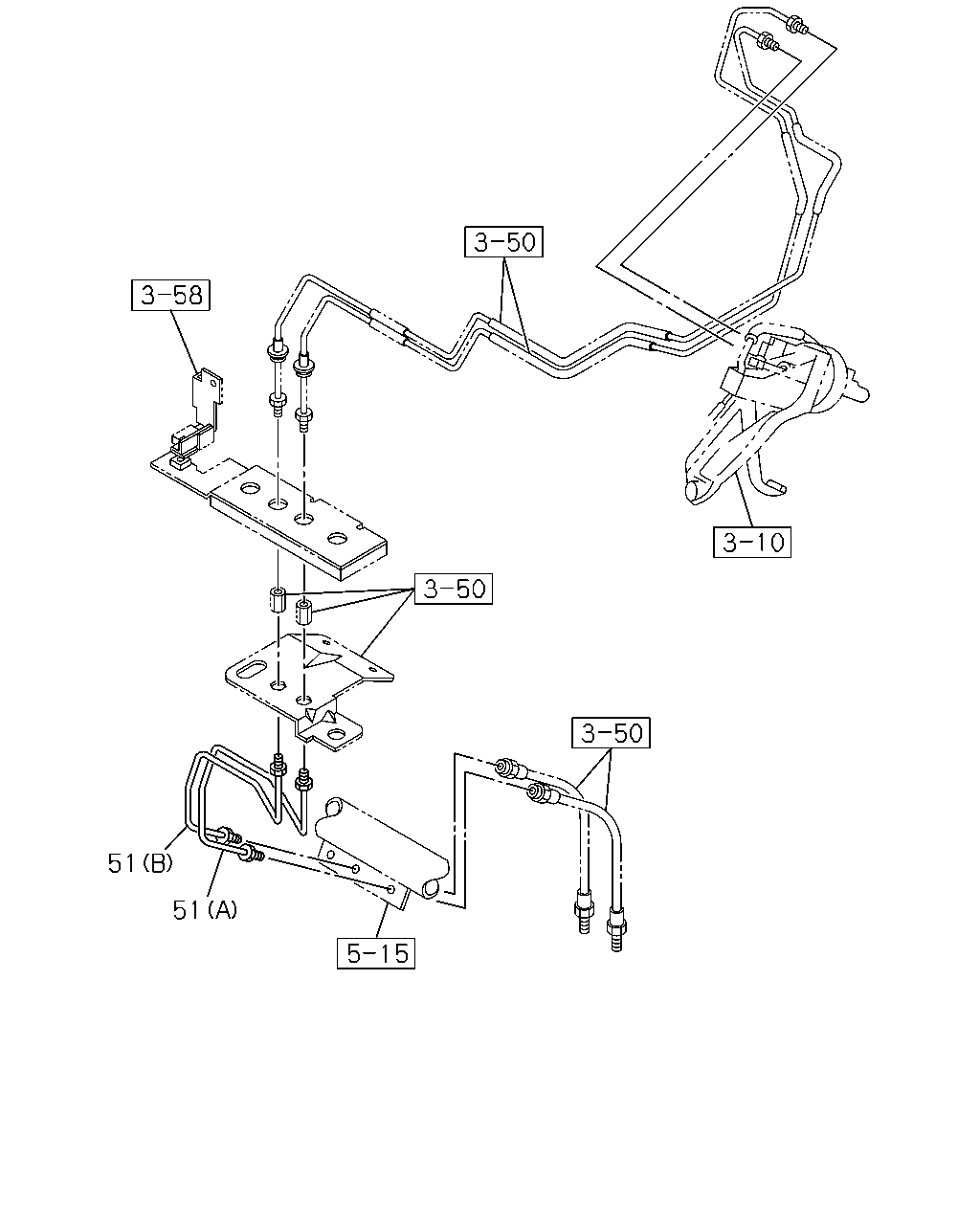

51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-804-1	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-886-0	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-890-0	01	1	0303-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-879-0	01	1	0303-0312		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97375-586-0	01	1	0401-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-878-2	01	1	0303-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-870-0	01	1	0303-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97357-231-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97185-055-1	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-710-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-772-1	01	1	0303-		●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0211-0302		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0211-0302			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0303-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0303-0501			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0502-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0211-0501	●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0211-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0502-	●			●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0502-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97185-056-2	01	1	0303-		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-874-0	01	1	0303-		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97359-229-0	01	1	0303-		●

88 98 99 51 88 26 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-121-2	01	1	0303-0303		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-464-0	01	1	0304-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 7-LEAF	8-97326-376-0	01	1	0303-0306		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97370-406-0	01	1	0307-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-018-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97333-346-0	01	1	0303-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-017-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-120-2	01	1	0303-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-019-0	01	1	0507-		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0211-0302	●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0211-0302		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0303-0501	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	0502-1009	●			●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009		●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009			●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	1010-				●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009			●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-1	01	1	0303-		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C)	8-97259-943-1	01	1	0303-		●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-804-1	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-886-0	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-890-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97185-055-1	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-710-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-772-1	01	1	0303-		●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0211-0302		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0211-0302			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0303-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0303-0501			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0502-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0211-0501	●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0211-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0502-	●			●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0502-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97185-056-2	01	1	0303-		●

27 31 27 96 99 96 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	04.685 PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ>	8-97205-718-0	01	1	0211-0302		●
13	04.685 PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>	8-97205-718-0	01	1	0303-		●
13	04.685 PIPE; OIL,UNION TO UNION EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-779-1	01	1	0211-0302		●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ>	8-97325-779-1	01	1	0303-		●
13	04.685 PIPE; OIL,UNION TO UNION	8-97325-778-1	01	1	0211-	●
13	04.685 PIPE; OIL,UNION TO UNION	8-97205-719-0	01	1	0211-0501			●
13	04.685 PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ>	8-97205-719-0	01	1	0502-			●
13	04.685 PIPE; OIL,UNION TO UNION	8-97325-777-1	01	1	0502-				●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0211-0302	●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0211-0302		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0303-0501	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	0502-1009	●			●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009		●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009			●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	1010-				●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009			●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-1	01	1	0303-		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C)	8-97259-943-1	01	1	0303-		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP 4HF1-S ENG(RLS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-				●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0211-0302	●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0303-0501	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97325-762-2	01	1	0502-	●			●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-762-2	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0211-0302	●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0303-0501	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97325-767-2	01	1	0502-	●			●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-767-2	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97096-950-0	01	1	0211-0302			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-950-0	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97096-950-0	01	1	0303-0501			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-950-0	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0502-			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-954-1	01	1	0211-0302		●
96	04.686 PIPE ASM; 6 WAY	8-97096-954-1	01	1	0211-0302			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-954-1	01	1	0303-0501		●
96	04.686 PIPE ASM; 6 WAY	8-97096-954-1	01	1	0303-0501			●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97096-954-1	01	1	0502-		●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-954-1	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0211-0302		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0211-0302			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0303-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0303-0501			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0502-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0211-0501	●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0211-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0502-	●			●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0502-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97185-056-2	01	1	0303-		●

51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-804-1	01	1	0303-		●

88 98 99 51 88 26 26 31 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-121-2	01	1	0303-0303		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-464-0	01	1	0304-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 7-LEAF	8-97326-376-0	01	1	0303-0306		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97370-406-0	01	1	0307-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-018-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97333-346-0	01	1	0303-0506		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-017-0	01	1	0507-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97334-120-2	01	1	0303-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98009-019-0	01	1	0507-		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0211-0302	●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0211-0302		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-0	01	1	0303-0501	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	0502-1009	●			●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009		●
27	04.686 UNION; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97287-444-1	01	1	0502-1009			●
27	04.686 UNION; BRK PIPE (D)	8-97287-444-1	01	1	1010-				●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0303			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0303-0501			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0502-0607			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-1009			●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	01	1	1010-			●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97257-650-1	01	1	0303-		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0303-0607		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (C)	8-97259-943-1	01	1	0303-		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302	●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0302		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0303-0501		●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009	●			●
31	04.686 NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-1009		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-		●
31	04.686 NUT; UNION CLIP 4HF1-S ENG(RLS) 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-				●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (A) FRONT	8-97073-076-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0211-0501	●	●	●
51	04.685 PIPE; BRK (B) REAR	8-97073-078-1	01	1	0502-	●	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97206-804-1	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-886-0	01	1	0303-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97247-890-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	8-97185-055-1	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-710-0	01	1	0303-		●
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-772-1	01	1	0303-		●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0211-0302		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0211-0302			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0303-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0303-0501			●
99	04.686 PIPE ASM; 4/5/6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97142-709-0	01	1	0502-		●
99	04.686 PIPE ASM; 4/5/6 WAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97142-709-0	01	1	0502-			●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0211-0501	●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0211-0501		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97325-773-1	01	1	0502-	●			●
99	04.686 PIPE ASM; 4/5/6 WAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-773-1	01	1	0502-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97185-056-2	01	1	0303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
