Sayfa 3-50 - Isuzu EPC

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685	5-47411-786-0	01	1	0303-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685	5-47411-786-0	01	1	0303-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-786-0	01	1	0303-	●

193 22 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=250	5-09707-030-1	02	1	0303-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (B) ID=10 & 16	8-94413-325-0	01	1	0408-	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97148-805-2	01	1	0303-	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97171-016-2	01	1	0303-	●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97201-847-3	01	1	0303-	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0303-1005	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> ID=11-17	8-98173-762-0	01	1	1006-	●

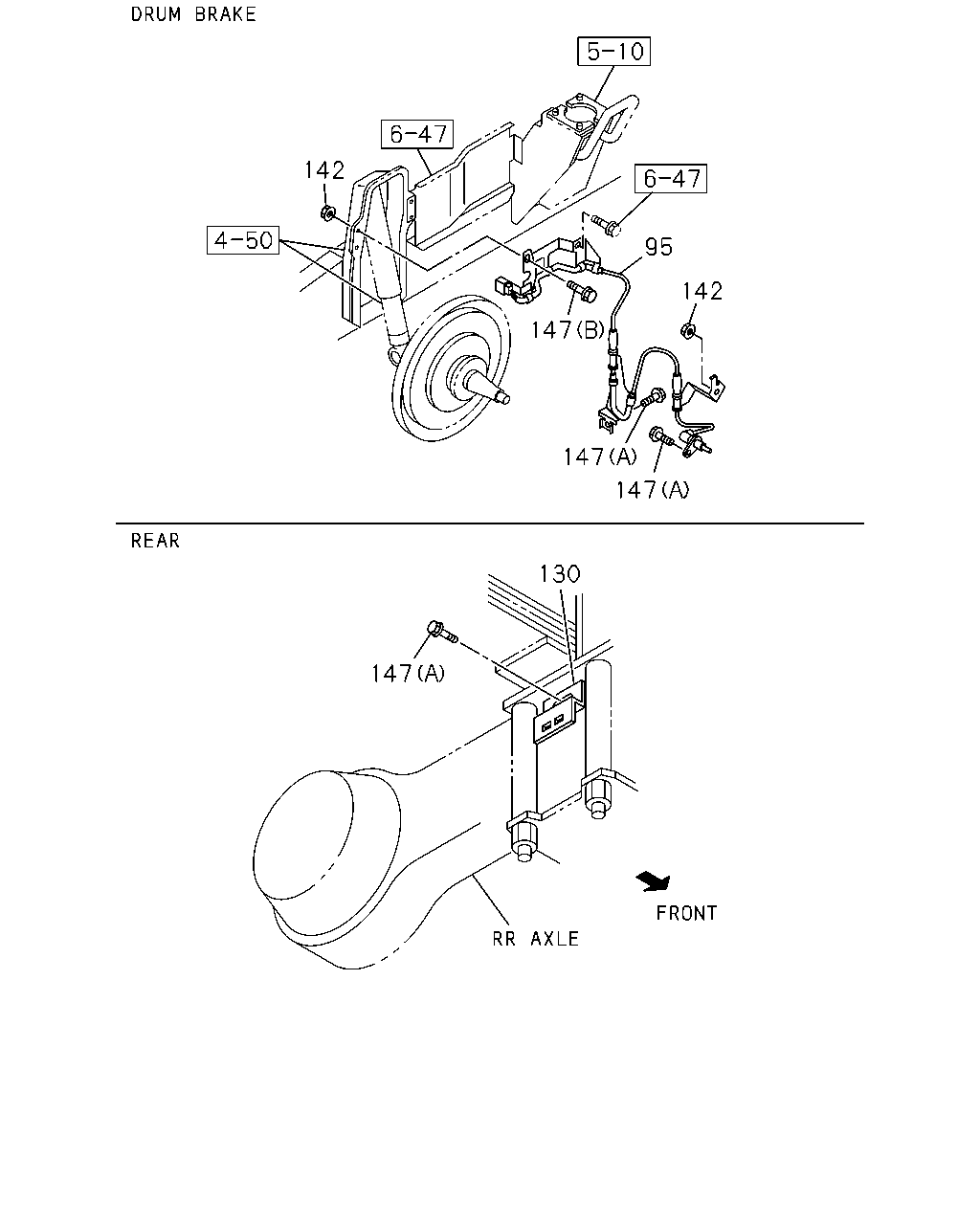

142 95 142 147 147 147 130 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-768-0	01	1	0303-0305	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97349-768-1	01	1	0306-	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-767-1	01	1	0303-	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97370-317-0	01	1	0306-	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0303-	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	06	1	0303-0512	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	0601-	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●

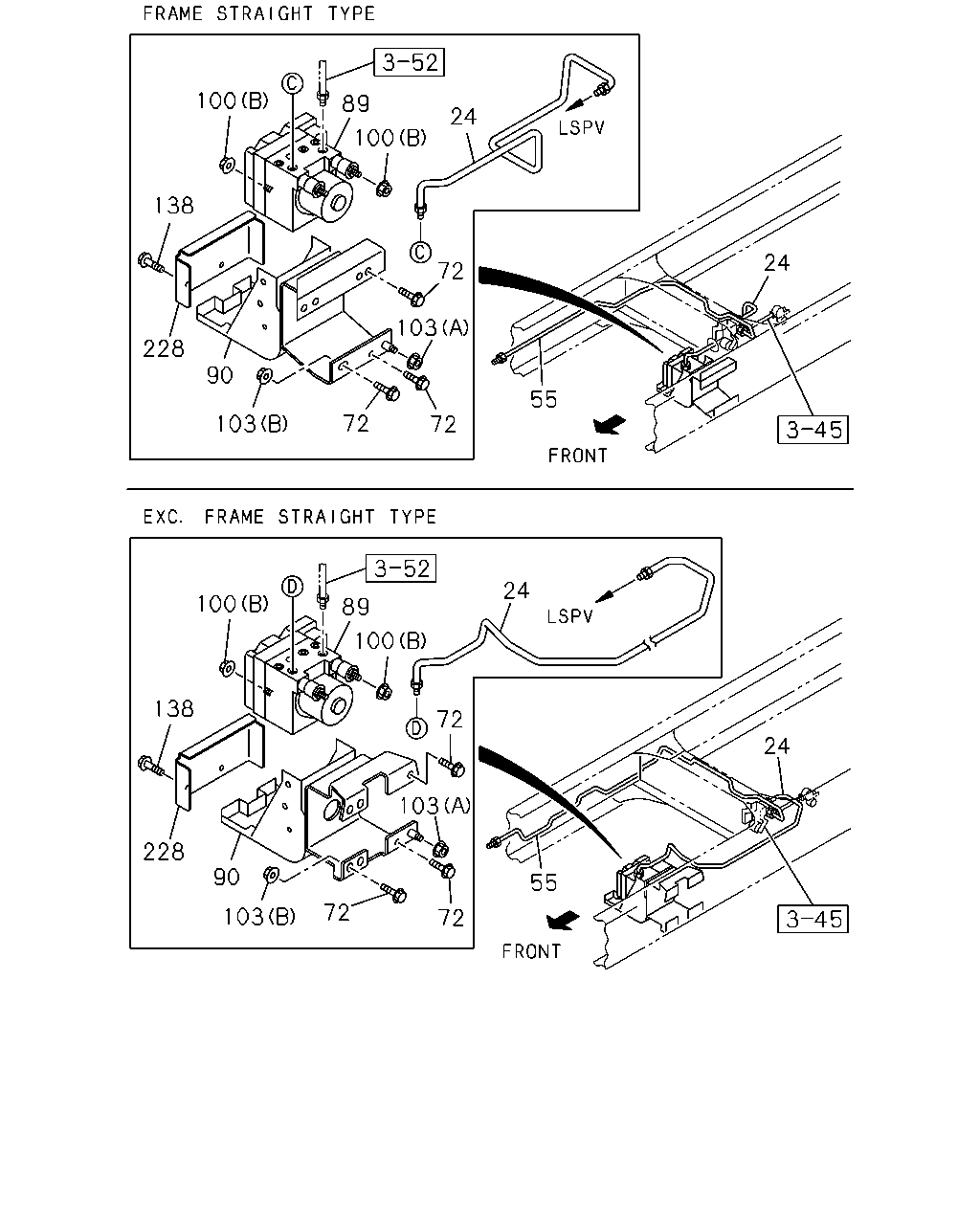

100 89 24 100 138 24 72 103 228 90 55 72 103 72 24 100 89 100 138 72 24 103 228 90 55 72 103 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-875-1	01	1	0303-	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-865-4	01	1	0303-	●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685	5-47411-786-0	01	1	0303-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685	5-47411-786-0	01	1	0303-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-786-0	01	1	0303-	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0303-0512	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0601-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-076-3	01	1	0303-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98155-356-0	01	1	1007-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97245-497-4	01	1	0303-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97245-499-1	01	1	0303-	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0303-0602	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0303-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0303-0602	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0303-0602	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0303-0512	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0303-0611	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-760-0	01	1	0612-	●

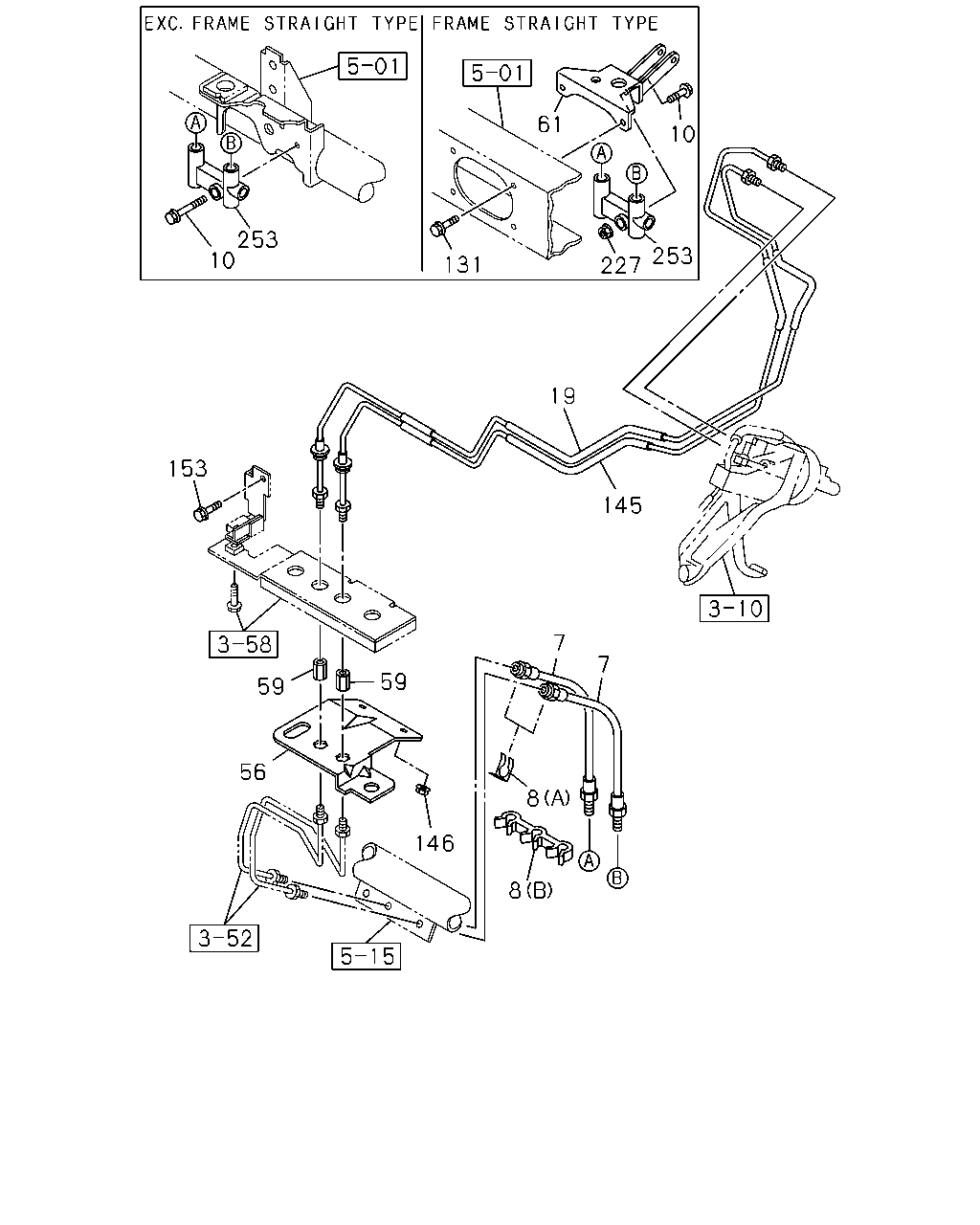

61 10 253 10 253 131 227 19 153 145 7 7 59 59 56 8 146 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0211-0501	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0502-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	0211-0501	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	0502-0610	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0611-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0211-0501	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0502-	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0211-0501	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0502-0512	●	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-593-0	01	1	0211-0302	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-593-0	01	1	0303-0501		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-593-0	01	1	0303-0501	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-593-0	01	1	0502-		●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-593-0	01	1	0502-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ>	8-97119-830-0	01	1	0303-	●
56	04.686 BRACKET; UNION,BRK	8-97171-017-1	01	1	0211-0501	●	●	●
56	04.686 BRACKET; UNION,BRK	8-97171-017-1	01	1	0502-	●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0211-0501	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0502-0607	●	●	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-	●	●	●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0211-0501	●
61	04.686 BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0211-0501			●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0502-	●		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●
131	04.710 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-586-0	01	1	0211-0302	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-586-0	01	1	0303-0501		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-586-0	01	1	0303-0501	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-586-0	01	1	0502-		●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97314-586-0	01	1	0502-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ>	8-97119-829-0	01	1	0303-	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
153	04.730 SCREW; BRKT FIX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0211-0501	●	●	●
153	04.730 SCREW; BRKT FIX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0502-0604	●	●	●	●
153	04.730 SCREW; BRKT FIX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●
227	04.685 NUT; JOINT 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●		●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●		●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0211-0302	●	●	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0303-0501		●	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0303-0501	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0502-		●	●	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0502-	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97139-922-1	01	1	0303-	●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	0303-	●

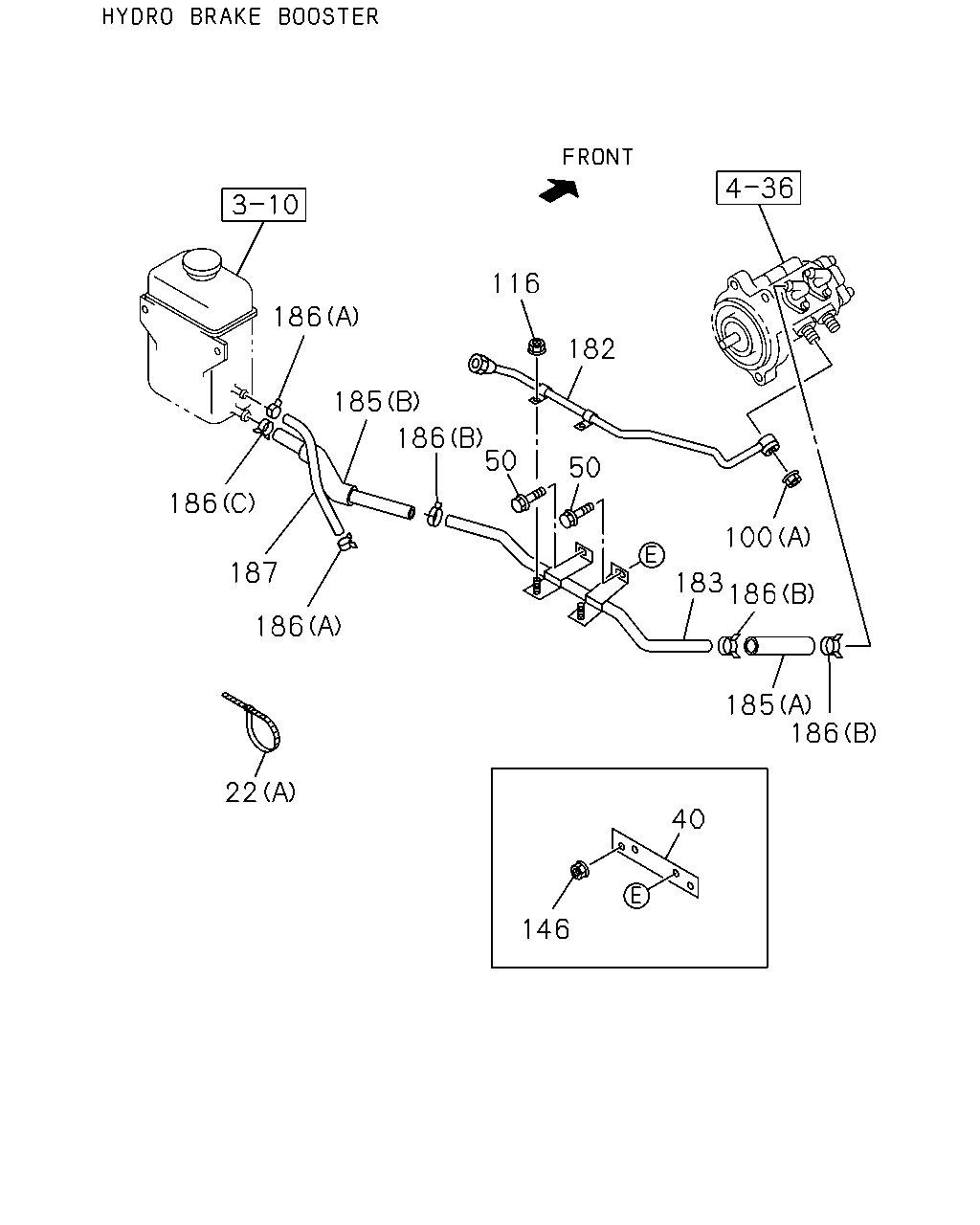

116 186 182 185 186 50 50 186 100 187 183 186 186 185 186 22 40 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=250	5-09707-030-1	02	1	0303-	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (B) ID=10 & 16	8-94413-325-0	01	1	0408-	●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ>	8-97334-384-0	01	1	0303-0306	●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ>	8-97370-408-0	01	1	0307-	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0303-0512	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0303-0602	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0303-	●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE	0-91150-106-0	02	1	0303-0602	●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97334-118-1	01	1	0303-	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ>	8-97334-119-1	01	1	0303-0306	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ>	8-97370-410-0	01	1	0307-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0303-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (B)	8-97334-259-1	01	1	0303-	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0303-0911	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0303-0911	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=21	8-98150-355-0	03	1	0912-	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0303-1003	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22	8-97359-141-0	01	1	1004-	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97358-026-0	01	1	0303-0306	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97370-427-0	01	1	0307-	●
