◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10695 - LV233(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#3702) — 28 parça

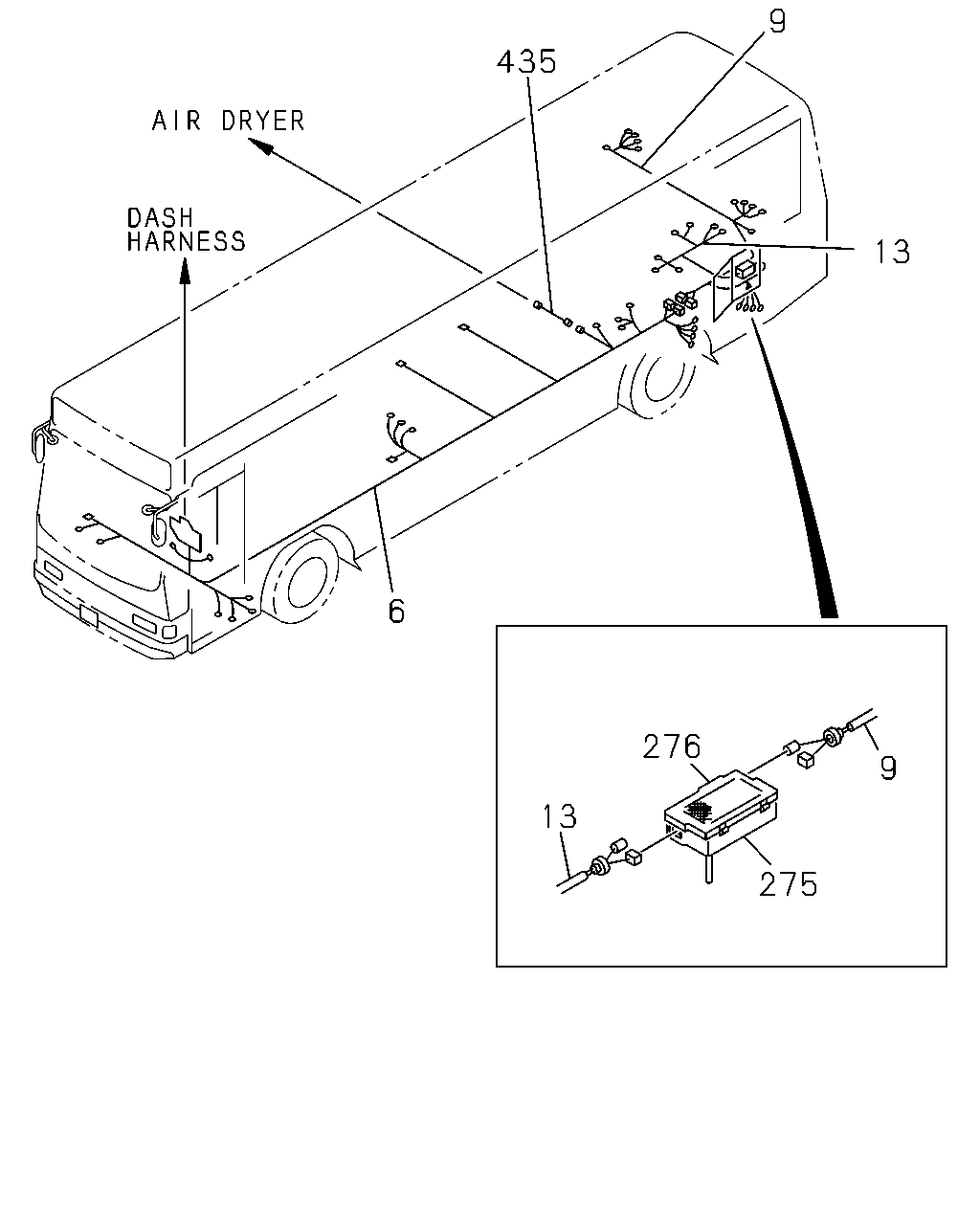

çizim 37892
9 435 13 6 276 9 13 275
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EXC. DENSHI TIMER<WW8> 		1-82670-967-2 01 1 9712-
9 HARNESS; FRAME,RR
EXC. DENSHI TIMER<WW8> 		1-82670-969-2 01 1 9712-
9 HARNESS; FRAME,RR
EXC. DENSHI TIMER<WW8> 		1-82672-529-0 01 1 9906-9907
9 HARNESS; FRAME,RR
EXC. NIKKO<Y70> EXC. DENSHI TIMER<WW8> 		1-82672-529-0 01 1 9908-
13 HARNESS; ENG
EXC. DENSHI TIMER<WW8> 		1-82640-945-2 01 1 9712-
275 BOX ASM; FRAME HARNESS 1-82699-223-0 01 1 9712-
276 COVER; BOX,FRAME HARNESS 1-82699-215-0 01 1 9712-
431 CONNECTOR; JOINT
EXC. DENSHI TIMER<WW8> 10P BROWN 		1-82699-601-0 02 1 9712-9712
431 CONNECTOR; JOINT
EXC. DENSHI TIMER<WW8> 10P BROWN 		1-82699-601-0 01 1 9801-
435 HARNESS; AIR DRYER 1-82639-510-0 01 1 9712-

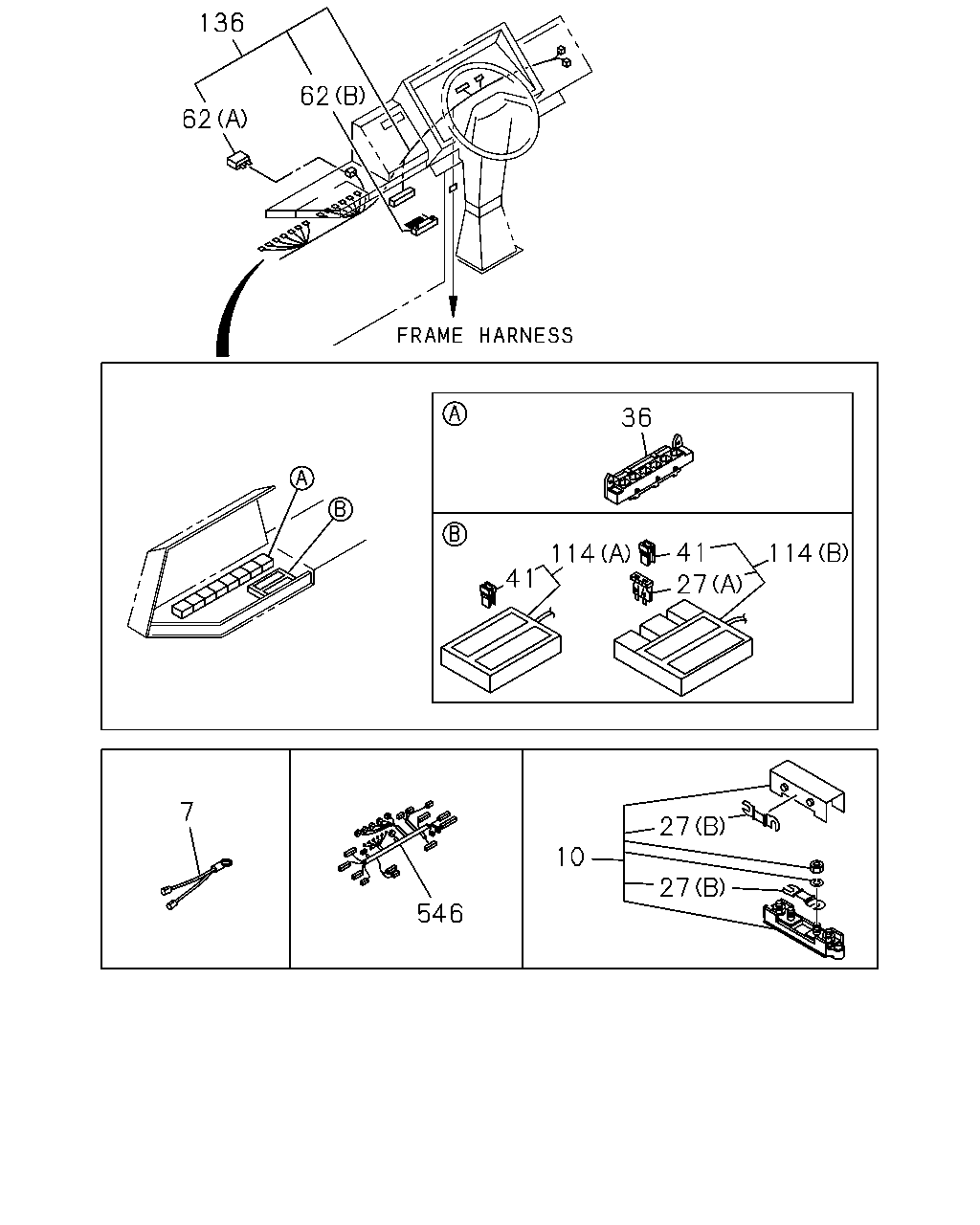

çizim 37893
136 62 62 36 41 114 114 41 27 7 27 10 7 546
BalonParca AdiParca NoAdetTipApplied Date
7 LINK ASM; FUSIBLE
L=150 BLACK 		1-82659-108-0 01 1 9712-
10 BOX; FUSE,HARNESS
150A 		1-82510-232-2 01 1 9712-
10 BOX; FUSE,HARNESS
100A 		1-82510-235-2 01 1 9712-
27 FUSE UNIT
(A) 10A RED 		5-82516-002-0 19 1 9712-
27 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 07 1 9712-
27 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 04 1 9712-
27 FUSE UNIT
(A) 30A GREEN 		8-94159-008-0 02 1 9712-
27 FUSE UNIT
(B) 100A 		9-82941-126-0 02 1 9712-
27 FUSE UNIT
(B) 150A 		9-82941-140-0 02 1 9712-
36 BOX; RELAY 8-97087-639-1 02 1 9712-
41 PULLER; FUSE
L=31.0 B=10.0 		8-94369-144-0 03 1 9712-
62 DIODE; HARNESS
EXC. DENSHI TIMER<WW8> (A) BLACK 2P-1.5A 		8-94422-639-1 01 1 9712-
114 BOX ASM; FUSE
(A) 		1-82510-343-1 02 1 9712-
114 BOX ASM; FUSE
(B) 		1-82510-382-1 01 1 9712-
136 HARNESS; DASH
EXC. DENSHI TIMER<WW8> 		1-82627-401-3 01 1 9712-
431 CONNECTOR; JOINT
EXC. DENSHI TIMER<WW8> 10P BROWN 		1-82699-601-0 02 1 9712-9712
431 CONNECTOR; JOINT
EXC. DENSHI TIMER<WW8> 10P BROWN 		1-82699-601-0 01 1 9801-
546 HARNESS; EVT
DENSHI TIMER<WW8> 		1-82638-844-0 01 1 9712-
