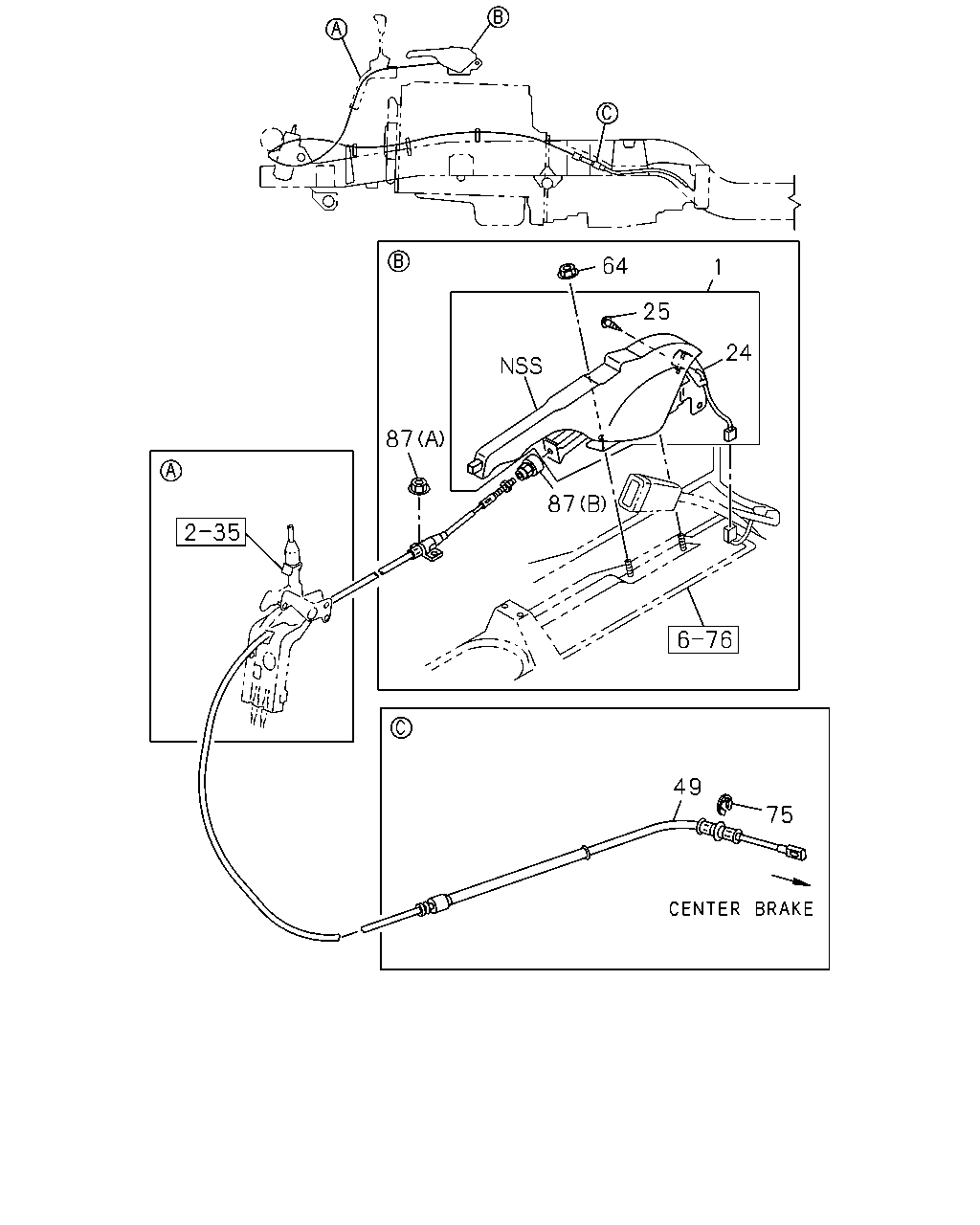

3-11 — PARKING BRAKE CONTROL (#37019) — 132 parça

64 1 25 24 87 87 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-543-2	01	1	0211-0501	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97585-445-2	01	1	0502-0610	●	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-385-0	01	1	0611-	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0211-0501	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0502-	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0211-0501	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0502-	●	●	●	●
49	04.779 CABLE; PARKING BRK 4HF1-S ENG(RLS)	8-97350-538-1	01	1	0211-0501	●
49	04.779 CABLE; PARKING BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-97350-538-1	01	1	0211-0501		●
49	04.779 CABLE; PARKING BRK	8-97350-538-1	01	1	0502-	●			●
49	04.779 CABLE; PARKING BRK EXC. FRAME STRAIGHT TYPE<7KJ>	8-97350-538-1	01	1	0502-		●	●
49	04.779 CABLE; PARKING BRK FRAME STRAIGHT TYPE<7KJ>	8-97350-534-0	01	1	0211-0501		●
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH)	8-97350-534-0	01	1	0211-0501			●
49	04.779 CABLE; PARKING BRK FRAME STRAIGHT TYPE<7KJ>	8-97350-534-0	01	1	0502-		●
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97350-534-0	01	1	0502-			●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501	●	●	●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0502-0610	●	●	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0611-	●	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	0211-0501	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	0502-0604	●	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0605-	●	●	●	●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	0211-0310	●	●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0501	●	●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0502-0611	●	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●

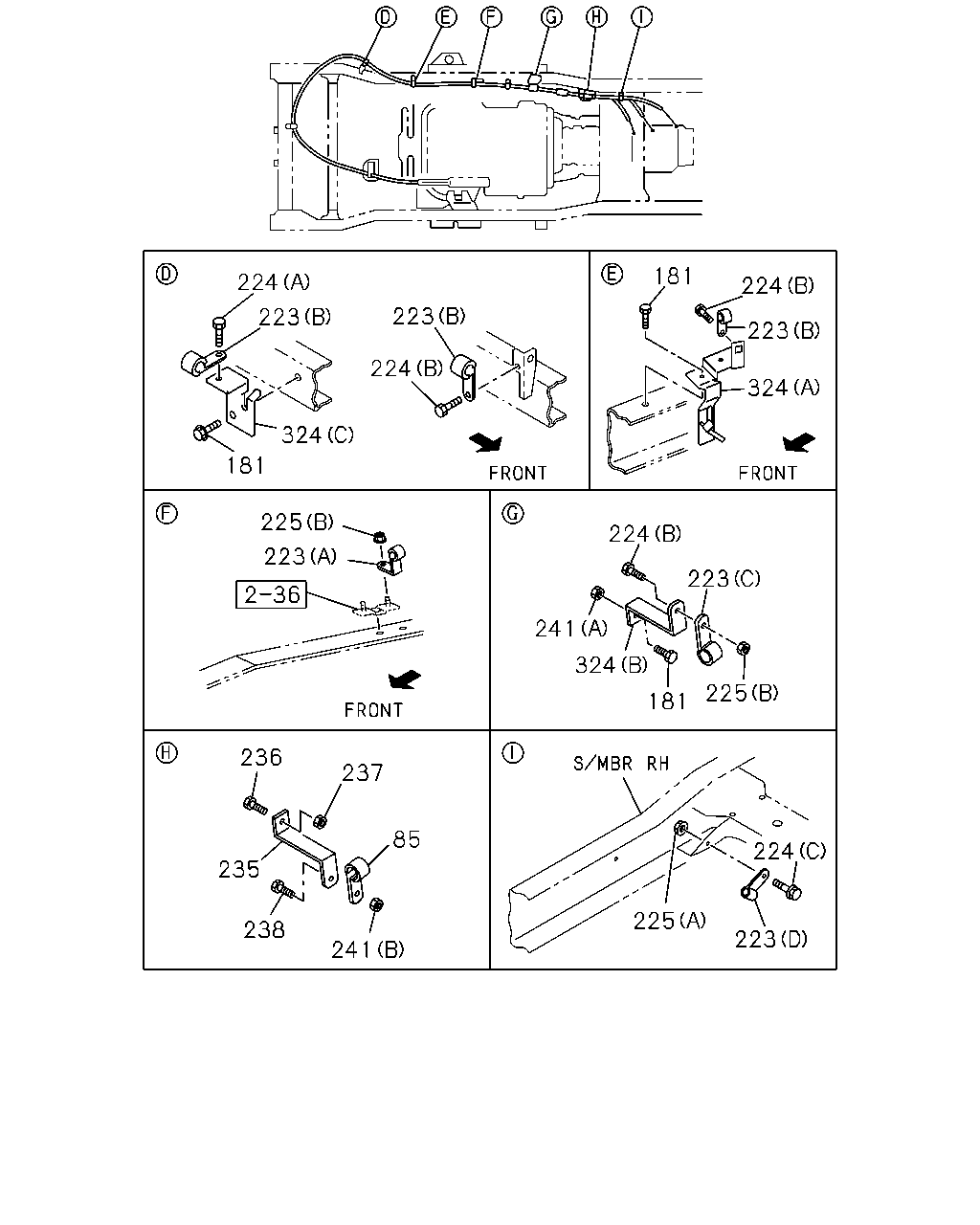

181 224 224 223 223 223 224 324 324 181 225 224 223 223 241 324 225 181 236 237 85 224 235 225 238 223 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
85	04.785 CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> ID=12 L=70	1-09700-097-1	01	1	0211-0501		●
85	04.785 CLIP; BRKT 4HG1 ENG(RJH) ID=12 L=70	1-09700-097-1	01	1	0211-0501			●
85	04.785 CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> ID=12 L=70	1-09700-097-1	01	1	0502-		●	●
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●			●
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●			●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●			●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●			●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0211-0501		●
181	04.785 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0211-0501			●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0512		●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-		●	●
223	04.785 CLIP; PARKING BRK CABLE 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0211-0501	●
223	04.785 CLIP; PARKING BRK CABLE 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0211-0501	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0211-0501		●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0211-0501		●
223	04.785 CLIP; PARKING BRK CABLE 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0502-0506	●			●
223	04.785 CLIP; PARKING BRK CABLE 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0502-0506	●			●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0502-0506		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0502-0506		●	●
223	04.785 CLIP; PARKING BRK CABLE 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0507-0507	●			●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0507-0507		●	●
223	04.785 CLIP; PARKING BRK CABLE 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-	●			●
223	04.785 CLIP; PARKING BRK CABLE 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-	●			●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-		●	●
223	04.785 CLIP; PARKING BRK CABLE (A) ID=16	1-09701-075-0	01	1	0211-0501	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0211-0501		●
223	04.785 CLIP; PARKING BRK CABLE (A) ID=16	1-09701-075-0	01	1	0502-	●			●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0502-		●	●
223	04.785 CLIP; PARKING BRK CABLE 00.799 (D) ID=13 L=20	1-09701-138-1	01	1	0211-0501	●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (D) ID=13 L=20	1-09701-138-1	01	1	0211-0501		●
223	04.785 CLIP; PARKING BRK CABLE 00.799 (D) ID=13 L=20	1-09701-138-1	01	1	0502-	●			●
223	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (D) ID=13 L=20	1-09701-138-1	01	1	0502-		●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28	9-09525-556-0	01	1	0211-0501		●
223	04.785 CLIP; PARKING BRK CABLE 01.531 (C) ID=16 L=28	9-09525-556-0	01	1	0211-0501			●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28	9-09525-556-0	01	1	0502-0606		●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 06.672 (C) ID=16 L=28	0-95235-556-0	01	1	0607-		●	●
224	04.785 BOLT; CABLE CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●
224	04.785 BOLT; CABLE CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●
224	04.785 BOLT; CABLE CLIP 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4HF1-S ENG(RLS) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501		●
224	04.785 BOLT; CABLE CLIP 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512	●			●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●	●
224	04.785 BOLT; CABLE CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●			●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
224	04.785 BOLT; CABLE CLIP 03.405 (C) M10X25 FLANGE	0-28681-025-0	01	1	0211-0501	●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE	0-28681-025-0	01	1	0211-0501		●
224	04.785 BOLT; CABLE CLIP 03.405 (C) M10X25 FLANGE	0-28681-025-0	01	1	0502-0512	●			●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE	0-28681-025-0	01	1	0502-0512		●	●
224	04.785 BOLT; CABLE CLIP 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●			●
224	04.785 BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	0601-		●	●
225	04.785 NUT; CABLE CLIP 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●
225	04.785 NUT; CABLE CLIP 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
225	04.785 NUT; CABLE CLIP (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501		●
225	04.785 NUT; CABLE CLIP (A) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●			●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0502-0602		●	●
225	04.785 NUT; CABLE CLIP 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-	●			●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-		●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-97325-052-0	01	1	0211-0501		●
235	04.785 BRACKET; CONT CABLE TO FRAME 4HG1 ENG(RJH)	8-97325-052-0	01	1	0211-0501			●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-97325-052-0	01	1	0502-		●	●
236	04.785 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501		●
236	04.785 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501			●
236	04.785 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0502-0512		●	●
236	04.785 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-		●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0211-0501		●
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) M10 FLANGE	0-91150-110-0	01	1	0211-0501			●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0502-0602		●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-		●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
238	04.785 BOLT; CLIP TO BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
241	04.785 NUT; BRKT 4HG1 ENG(RJH) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501		●
241	04.785 NUT; BRKT (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501			●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0502-0602		●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-		●	●
324	04.785 BRACKET (C)	8-97042-771-0	01	1	0211-0501	●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	0211-0501		●
324	04.785 BRACKET (C)	8-97042-771-0	01	1	0502-	●			●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	0502-		●	●
324	04.785 BRACKET (A)	8-97071-354-2	01	1	0211-0501	●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97071-354-2	01	1	0211-0501		●
324	04.785 BRACKET (A)	8-97071-354-2	01	1	0502-	●			●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97071-354-2	01	1	0502-		●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (B)	8-97103-822-1	01	1	0211-0501		●
324	04.785 BRACKET 4HG1 ENG(RJH) (B)	8-97103-822-1	01	1	0211-0501			●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (B)	8-97103-822-1	01	1	0502-		●
324	04.785 BRACKET 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-97103-822-1	01	1	0502-			●
