◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#37017) — 52 parça

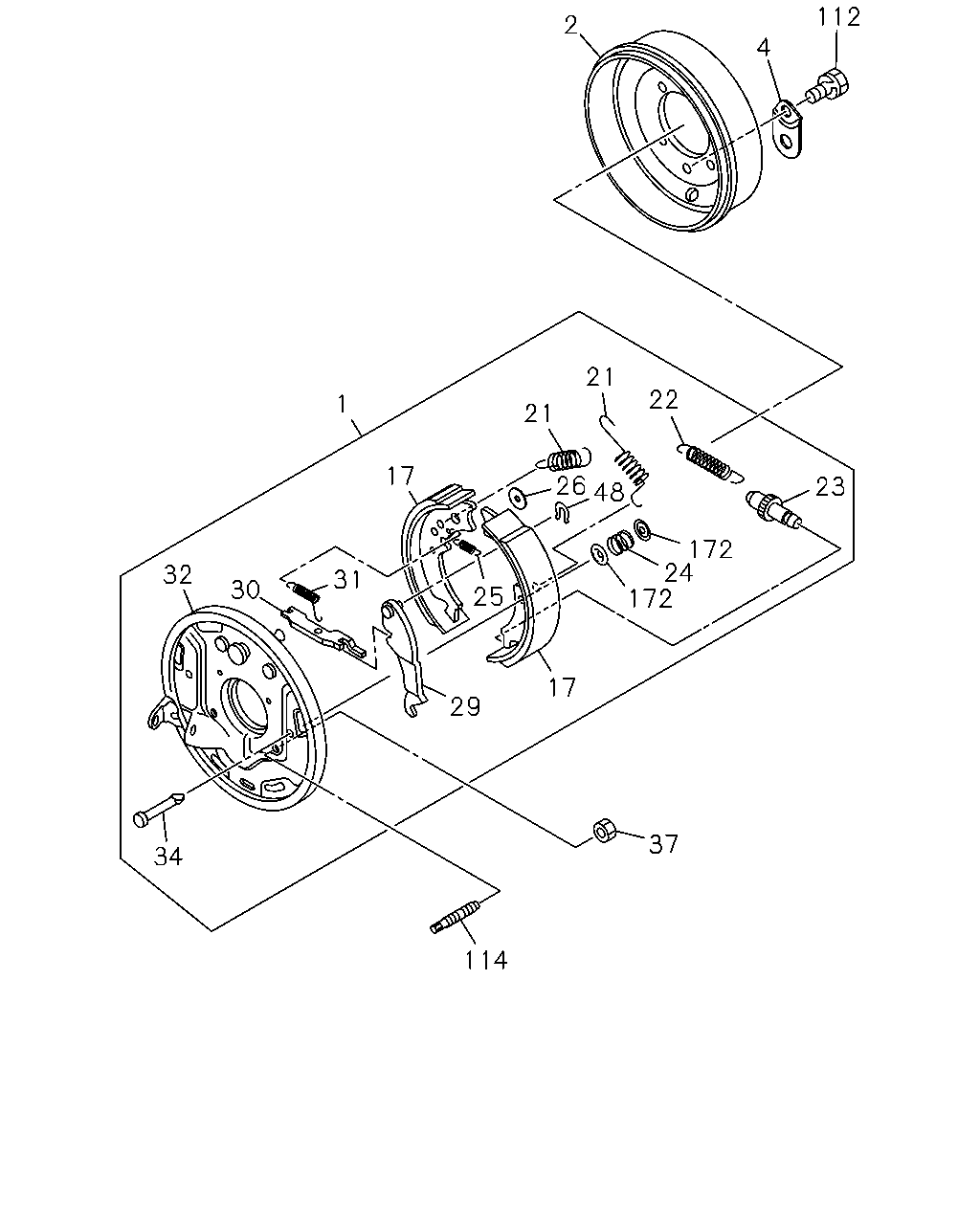

çizim 74939
112 2 4 21 22 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 37 34 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 05.610 BRAKE ASM; CENTER,PARKING 8-97308-175-0 01 1 0211-0501 ● ● ●
1 05.610 BRAKE ASM; CENTER,PARKING 8-97308-175-0 01 1 0502-0611 ● ● ● ●
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 0612- ● ● ● ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 0211-0501 ● ● ●
2 05.605 DRUM; PARKING BRK 8-97033-989-1 01 1 0502- ● ● ● ●
4 05.606 COVER; ADJ HOLE 5-46219-001-0 01 1 0211-0501 ● ● ●
4 05.606 COVER; ADJ HOLE 5-46219-001-0 01 1 0502-0604 ● ● ● ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 0605- ● ● ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 0211-0501 ● ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 0502- ● ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 0211-0501 ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 0502- ● ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 0211-0501 ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 0502- ● ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 5-47165-025-0 01 1 0211-0501 ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 5-47165-025-0 01 1 0502-0611 ● ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 0612- ● ● ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-0 02 1 0211-0501 ● ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 0502- ● ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 0211-0501 ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 0502- ● ● ● ●
26 05.605 PLATE; SHOE GUIDE 9-09851-986-0 01 1 0211-0501 ● ● ●
26 05.605 PLATE; SHOE GUIDE 9-09851-986-0 01 1 0502-0611 ● ● ● ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 0612- ● ● ● ●
29 04.591 LEVER; PARKING BRK
05.605 		8-97027-125-0 01 1 0211-0501 ● ● ●
29 04.591 LEVER; PARKING BRK
05.605 		8-97027-125-0 01 1 0502-0611 ● ● ● ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 0612- ● ● ● ●
30 05.605 STRUT; PARKING BRK 8-94311-779-0 01 1 0211-0501 ● ● ●
30 05.605 STRUT; PARKING BRK 8-94311-779-0 01 1 0502-0611 ● ● ● ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 0612- ● ● ● ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 0211-0501 ● ● ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 0502- ● ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 0211-0501 ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 0502- ● ● ● ●
34 05.605 PIN; BRK SHOE 8-94132-159-0 02 1 0211-0501 ● ● ●
34 05.605 PIN; BRK SHOE 8-94132-159-0 02 1 0502-0611 ● ● ● ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 0612- ● ● ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-97248-173-0 04 1 0211-0501 ● ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-97248-173-0 04 1 0502-0604 ● ● ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 0605- ● ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
05.158 		9-46349-005-1 01 1 0211-0501 ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
05.158 		9-46349-005-1 01 1 0502-0611 ● ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 0612- ● ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 0211-0501 ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 0502-0512 ● ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0601- ● ● ● ●
114 05.605 STUD; SUPPORT PLATE 8-97289-280-0 04 1 0211-0501 ● ● ●
114 05.605 STUD; SUPPORT PLATE 8-97289-280-0 04 1 0502-0604 ● ● ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 0605- ● ● ● ●
172 05.605 CUP; SHOE HOLD
05.043 		9-47162-033-0 04 1 0211-0501 ● ● ●
172 05.605 CUP; SHOE HOLD
05.043 		9-47162-033-0 04 1 0502-0611 ● ● ● ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 0612- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
