3-01 — FRONT WHEEL BRAKE (#37015) — 382 parça

15 15 17 16 17 16 255 302 18 19 254 253 24 24 25 252 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97170-950-0	01	1	0211-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) (A) FRONT	8-97170-950-0	01	1	0211-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97170-951-0	01	1	0211-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) (A) FRONT	8-97170-951-0	01	1	0211-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97170-952-0	01	1	0211-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) (A) REAR	8-97170-952-0	01	1	0211-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97170-953-0	01	1	0211-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) (A) REAR	8-97170-953-0	01	1	0211-		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) (A) REAR	8-97139-818-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97139-818-0	01	1	0303-0501		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97139-818-0	01	1	0502-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97139-818-0	01	1	0502-			●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) (A) REAR	8-97139-819-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97139-819-0	01	1	0303-0501		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97139-819-0	01	1	0502-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97139-819-0	01	1	0502-			●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) (A) FRONT	8-97139-820-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97139-820-0	01	1	0303-0501		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97139-820-0	01	1	0502-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97139-820-0	01	1	0502-			●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) (A) FRONT	8-97139-821-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97139-821-0	01	1	0303-0501		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97139-821-0	01	1	0502-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97139-821-0	01	1	0502-			●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) (A) REAR	8-97144-795-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97144-795-0	01	1	0211-0302				●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ> (A) REAR	8-97144-795-0	01	1	0303-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97144-795-0	01	1	0303-				●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) (A) REAR	8-97144-796-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97144-796-0	01	1	0211-0302				●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ> (A) REAR	8-97144-796-0	01	1	0303-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97144-796-0	01	1	0303-				●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) (A) FRONT	8-97144-797-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97144-797-0	01	1	0211-0302				●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ> (A) FRONT	8-97144-797-0	01	1	0303-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97144-797-0	01	1	0303-				●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) (A) FRONT	8-97144-798-0	01	1	0211-0302		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97144-798-0	01	1	0211-0302				●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ> (A) FRONT	8-97144-798-0	01	1	0303-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97144-798-0	01	1	0303-				●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 04.556 (B) FRONT	8-97358-874-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 04.556 (B) FRONT	8-97358-874-0	01	1	0309-		●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> (B) FRONT	8-97358-875-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) FRONT	8-97358-875-0	01	1	0309-		●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> (B) REAR	8-97358-876-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) REAR	8-97358-876-0	01	1	0309-		●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> (B) REAR	8-97358-877-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) REAR	8-97358-877-0	01	1	0309-		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) FRONT	8-97353-573-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97353-573-0	01	1	0309-		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) FRONT	8-97353-574-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97353-574-0	01	1	0309-		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) REAR	8-97353-575-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97353-575-0	01	1	0309-		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) REAR	8-97353-576-0	01	1	0303-0308		●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97353-576-0	01	1	0309-		●
16	04.666 SCREW; BLEEDER,FRT BRK	9-47615-027-0	02	1	0211-0501	●	●		●
16	04.666 SCREW; BLEEDER,FRT BRK	9-47615-027-0	02	1	0502-0707	●	●	●	●
16	04.666 SCREW; BLEEDER,FRT BRK	9-47615-027-0	02	1	0708-0710	●		●	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 6.0-6.5TON(RPV)	9-47615-027-0	02	1	0708-0710		●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	9-47615-027-0	02	1	0708-0710		●
16	04.666 SCREW; BLEEDER,FRT BRK	9-47615-027-0	02	1	0711-0711	●		●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 6.0-6.5TON(RPV)	9-47615-027-0	02	1	0711-0711		●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	9-47615-027-0	02	1	0711-0711		●
16	04.666 SCREW; BLEEDER,FRT BRK	8-98050-476-0	02	1	0712-	●		●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 6.0-6.5TON(RPV)	8-98050-476-0	02	1	0712-		●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-476-0	02	1	0712-		●
16	04.666 SCREW; BLEEDER,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-98050-477-0	02	1	0708-0710		●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 8.0-8.5TON(RPZ)	8-98050-477-0	02	1	0711-		●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	0711-		●
16	04.666 SCREW; BLEEDER,FRT BRK	8-98050-477-0	02	1	0711-				●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	02	1	0211-0501	●	●		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	02	1	0502-0707	●	●	●	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	02	1	0708-0710	●		●	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	1-47619-009-0	02	1	0708-0710		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-009-0	02	1	0708-0710		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	02	1	0711-0711	●		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	1-47619-009-0	02	1	0711-0711		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-009-0	02	1	0711-0711		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-98050-479-0	02	1	0708-0710		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 8.0-8.5TON(RPZ)	8-98050-479-0	02	1	0711-0711		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	02	1	0711-0711		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	02	1	0711-0711				●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	02	1	0712-	●	●	●	●
18	05.107 STOPPER; ADJ SCREW	8-94128-486-0	04	1	0211-0302	●	●		●
18	05.107 STOPPER; ADJ SCREW	8-94128-486-0	04	1	0303-0308	●			●
18	05.107 STOPPER; ADJ SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 8.0-8.5TON(RPZ)	8-94128-486-0	04	1	0303-0308		●
18	05.107 STOPPER; ADJ SCREW G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	0303-0308		●
18	05.107 STOPPER; ADJ SCREW	8-94128-486-0	04	1	0309-0501	●			●
18	05.107 STOPPER; ADJ SCREW G.V.W. 6.0-6.5TON(RPV)	8-94128-486-0	04	1	0309-0501		●
18	05.107 STOPPER; ADJ SCREW G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	0309-0501		●
18	05.107 STOPPER; ADJ SCREW	8-94128-486-0	04	1	0502-	●		●	●
18	05.107 STOPPER; ADJ SCREW G.V.W. 6.0-6.5TON(RPV)	8-94128-486-0	04	1	0502-		●
18	05.107 STOPPER; ADJ SCREW G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	0502-		●
19	05.107 SCREW; STOPPER SETTING	8-94128-727-0	04	1	0211-0302	●	●		●
19	05.107 SCREW; STOPPER SETTING	8-94128-727-0	04	1	0303-0308	●			●
19	05.107 SCREW; STOPPER SETTING G.V.W. 6.0-6.5TON(RPV),G.V.W. 8.0-8.5TON(RPZ)	8-94128-727-0	04	1	0303-0308		●
19	05.107 SCREW; STOPPER SETTING G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	0303-0308		●
19	05.107 SCREW; STOPPER SETTING	8-94128-727-0	04	1	0309-0501	●			●
19	05.107 SCREW; STOPPER SETTING G.V.W. 6.0-6.5TON(RPV)	8-94128-727-0	04	1	0309-0501		●
19	05.107 SCREW; STOPPER SETTING G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	0309-0501		●
19	05.107 SCREW; STOPPER SETTING	8-94128-727-0	04	1	0502-	●		●	●
19	05.107 SCREW; STOPPER SETTING G.V.W. 6.0-6.5TON(RPV)	8-94128-727-0	04	1	0502-		●
19	05.107 SCREW; STOPPER SETTING G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	0502-		●
24	04.668 PISTON; FRT WHEEL CYL	8-97078-621-0	04	1	0211-	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97078-621-0	04	1	0211-		●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-94414-700-1	04	1	0211-0302		●
24	04.668 PISTON; FRT WHEEL CYL	8-94414-700-1	04	1	0211-0302				●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-94414-700-1	04	1	0303-0501		●
24	04.668 PISTON; FRT WHEEL CYL	8-94414-700-1	04	1	0303-0501				●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-94414-700-1	04	1	0502-		●
24	04.668 PISTON; FRT WHEEL CYL	8-94414-700-1	04	1	0502-			●	●
24	04.668 PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97349-729-0	02	1	0303-0308		●
24	04.668 PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97349-729-0	02	1	0309-		●
24	04.668 PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97349-730-0	02	1	0303-0308		●
24	04.668 PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97349-730-0	02	1	0309-		●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97353-579-0	04	1	0303-0308		●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97353-579-0	04	1	0309-		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL	8-97078-623-0	04	1	0211-	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97078-623-0	04	1	0211-		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 04.666	8-94414-702-0	04	1	0211-0302		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 04.666	8-94414-702-0	04	1	0211-0302				●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.666	8-94414-702-0	04	1	0303-0501		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 04.666	8-94414-702-0	04	1	0303-0501				●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.666	8-94414-702-0	04	1	0502-		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 04.666	8-94414-702-0	04	1	0502-			●	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 04.666	8-97349-741-0	02	1	0303-0308		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 04.666	8-97349-741-0	02	1	0309-		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 04.666	8-97349-742-0	02	1	0303-0308		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 04.666	8-97349-742-0	02	1	0309-		●
26	04.667 CUP SET; FRT WHEEL CYL	5-87831-602-0	01	1	0211-	●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	5-87831-602-0	01	1	0211-		●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 04.665	5-87831-598-0	01	1	0211-0302		●
26	04.667 CUP SET; FRT WHEEL CYL 04.665	5-87831-598-0	01	1	0211-0302				●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ> 04.665	5-87831-598-0	01	1	0303-0501		●
26	04.667 CUP SET; FRT WHEEL CYL 04.665	5-87831-598-0	01	1	0303-0501				●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ> 04.665	5-87831-598-0	01	1	0502-		●
26	04.667 CUP SET; FRT WHEEL CYL 04.665	5-87831-598-0	01	1	0502-			●	●
26	04.667 CUP SET; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	5-87832-069-0	01	1	0303-0308		●
26	04.667 CUP SET; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	5-87832-069-0	01	1	0309-		●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 04.665	5-87832-080-0	01	1	0303-0308		●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665	5-87832-080-0	01	1	0309-		●
252	04.665 GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97358-894-0	02	1	0303-0308		●
252	04.665 GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97358-894-0	02	1	0309-		●
252	04.665 GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97358-895-0	02	1	0303-0308		●
252	04.665 GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97358-895-0	02	1	0309-		●
253	04.665 WASHER; THRUST 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 05.110	8-97349-736-0	04	1	0303-0308		●
253	04.665 WASHER; THRUST 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 05.110	8-97349-736-0	04	1	0309-		●
254	04.665 SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 05.107	8-97349-745-0	04	1	0303-0308		●
254	04.665 SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 05.107	8-97349-745-0	04	1	0309-		●
255	04.665 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 05.103	8-97349-743-0	02	1	0303-0308		●
255	04.665 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 05.103	8-97349-743-0	02	1	0309-		●
255	04.665 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 05.103	8-97349-744-0	02	1	0303-0308		●
255	04.665 LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 05.103	8-97349-744-0	02	1	0309-		●
302	04.665 SCREW; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 04.666	8-97349-747-0	04	1	0303-0308		●
302	04.665 SCREW; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 04.666	8-97349-747-0	04	1	0309-		●

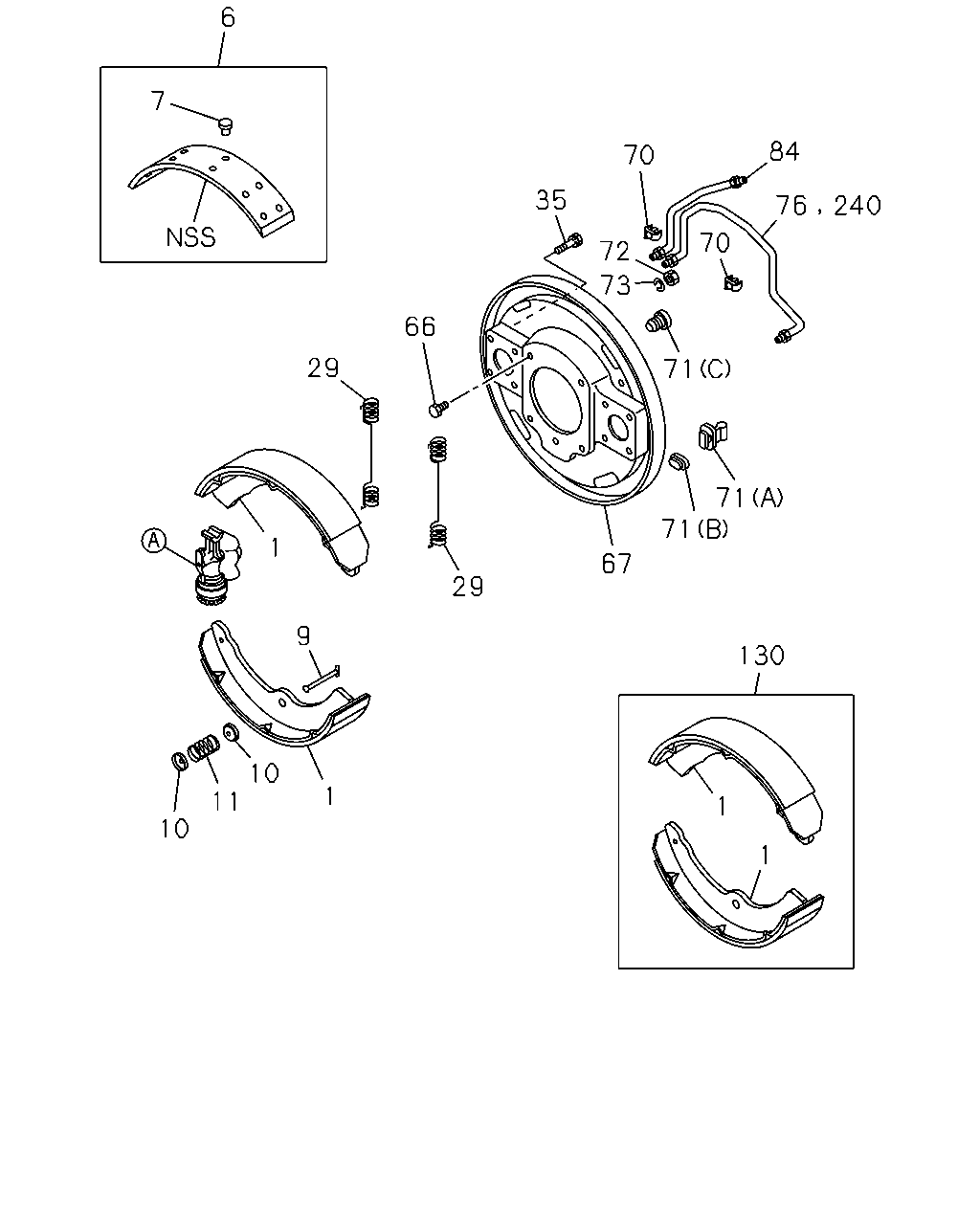

6 7 84 70 35 70 72 73 66 29 71 71 71 1 67 29 9 130 10 1 11 1 10 1 76 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.017 SHOE; BRK,FRT	8-97287-778-0	04	1	0211-	●
1	05.017 SHOE; BRK,FRT G.V.W. 6.0-6.5TON(RPV)	8-97287-778-0	04	1	0211-		●
1	05.017 SHOE; BRK,FRT G.V.W. 7.0-7.5TON(RPX)	8-97201-061-0	04	1	0211-0302		●
1	05.017 SHOE; BRK,FRT G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97201-061-0	04	1	0303-0501		●
1	05.017 SHOE; BRK,FRT G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97201-061-0	04	1	0502-		●
1	05.017 SHOE; BRK,FRT	8-97201-061-0	04	1	0502-			●
1	05.017 SHOE; BRK,FRT G.V.W. 8.0-8.5TON(RPZ)	8-97188-455-0	04	1	0211-0302		●
1	05.017 SHOE; BRK,FRT	8-97188-455-0	04	1	0211-0302				●
1	05.017 SHOE; BRK,FRT G.V.W. 8.0-8.5TON(RPZ)	8-97188-455-0	04	1	0303-		●
1	05.017 SHOE; BRK,FRT G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	0303-		●
1	05.017 SHOE; BRK,FRT	8-97188-455-0	04	1	0303-				●
6	05.018 LINING KIT; FRT BRK	5-87831-801-0	01	1	0211-	●
6	05.018 LINING KIT; FRT BRK G.V.W. 6.0-6.5TON(RPV)	5-87831-801-0	01	1	0211-		●
6	05.018 LINING KIT; FRT BRK G.V.W. 7.0-7.5TON(RPX)	5-87831-774-0	01	1	0211-0302		●
6	05.018 LINING KIT; FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-774-0	01	1	0303-0501		●
6	05.018 LINING KIT; FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-774-0	01	1	0502-		●
6	05.018 LINING KIT; FRT BRK	5-87831-774-0	01	1	0502-			●
6	05.018 LINING KIT; FRT BRK G.V.W. 8.0-8.5TON(RPZ)	5-87831-692-0	01	1	0211-0302		●
6	05.018 LINING KIT; FRT BRK	5-87831-692-0	01	1	0211-0302				●
6	05.018 LINING KIT; FRT BRK G.V.W. 8.0-8.5TON(RPZ)	5-87831-692-0	01	1	0303-		●
6	05.018 LINING KIT; FRT BRK G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	0303-		●
6	05.018 LINING KIT; FRT BRK	5-87831-692-0	01	1	0303-				●
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	40	1	0211-	●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 6.0-6.5TON(RPV)	1-09732-029-0	40	1	0211-		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 7.0-7.5TON(RPX)	1-09732-029-0	48	1	0211-0302		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	48	1	0303-0501		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	48	1	0502-		●
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	48	1	0502-			●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 8.0-8.5TON(RPZ)	1-09732-029-0	64	1	0502-		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	64	1	0502-		●
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	64	1	0502-				●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 8.0-8.5TON(RPZ)	1-09732-029-0	64	1	0211-0302		●
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	64	1	0211-0302				●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 8.0-8.5TON(RPZ)	1-09732-029-0	64	1	0303-0501		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09732-029-0	64	1	0303-0501		●
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	64	1	0303-0501				●
9	05.026 PIN; SHOE HOLDER 05.043	5-47162-001-0	04	1	0211-	●
9	05.026 PIN; SHOE HOLDER G.V.W. 6.0-6.5TON(RPV) 05.043	5-47162-001-0	04	1	0211-		●
9	05.026 PIN; SHOE HOLDER G.V.W. 7.0-7.5TON(RPX) 05.043	8-97022-089-0	04	1	0211-0302		●
9	05.026 PIN; SHOE HOLDER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.043	8-97022-089-0	04	1	0303-0501		●
9	05.026 PIN; SHOE HOLDER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.043	8-97022-089-0	04	1	0502-		●
9	05.026 PIN; SHOE HOLDER 05.043	8-97022-089-0	04	1	0502-			●
9	05.026 PIN; SHOE HOLDER G.V.W. 8.0-8.5TON(RPZ) 05.043	8-97122-870-0	04	1	0211-0302		●
9	05.026 PIN; SHOE HOLDER 05.043	8-97122-870-0	04	1	0211-0302				●
9	05.026 PIN; SHOE HOLDER G.V.W. 8.0-8.5TON(RPZ) 05.043	8-97122-870-0	04	1	0303-		●
9	05.026 PIN; SHOE HOLDER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.043	8-97122-870-0	04	1	0303-		●
9	05.026 PIN; SHOE HOLDER 05.043	8-97122-870-0	04	1	0303-				●
10	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	0211-0501	●	●		●
10	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	0502-	●	●	●	●
11	05.027 SPRING; SHOE HOLDING 05.043	5-09580-101-1	04	1	0211-0501	●	●		●
11	05.027 SPRING; SHOE HOLDING 05.043	5-09580-101-1	04	1	0502-	●	●	●	●
29	05.026 SPRING; RETURN,FRT BRK SHOE	5-09583-118-0	04	1	0211-	●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 6.0-6.5TON(RPV)	5-09583-118-0	04	1	0211-		●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 7.0-7.5TON(RPX)	8-97022-087-0	04	1	0211-0302		●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-087-0	04	1	0303-0501		●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-087-0	04	1	0502-		●
29	05.026 SPRING; RETURN,FRT BRK SHOE	8-97022-087-0	04	1	0502-			●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 8.0-8.5TON(RPZ)	8-97122-869-0	04	1	0211-0302		●
29	05.026 SPRING; RETURN,FRT BRK SHOE	8-97122-869-0	04	1	0211-0302				●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 8.0-8.5TON(RPZ)	8-97122-869-0	04	1	0303-		●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	0303-		●
29	05.026 SPRING; RETURN,FRT BRK SHOE	8-97122-869-0	04	1	0303-				●
35	04.665 BOLT; FRT WHEEL CYL	5-09030-016-1	16	1	0211-	●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	5-09030-016-1	16	1	0211-		●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX)	8-97022-088-0	16	1	0211-0302		●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-088-0	16	1	0303-0501		●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-088-0	16	1	0502-0502		●
35	04.665 BOLT; FRT WHEEL CYL	8-97022-088-0	16	1	0502-0502			●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 8.0-8.5TON(RPZ)	8-97081-305-0	16	1	0211-0302		●
35	04.665 BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0211-0302				●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 8.0-8.5TON(RPZ)	8-97081-305-0	16	1	0303-0502		●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97081-305-0	16	1	0303-0502		●
35	04.665 BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0303-0502				●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97081-305-0	16	1	0503-		●
35	04.665 BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0503-			●	●
66	05.815 BOLT; OIL SHIELD COVER M12X33	9-09600-043-3	08	1	0211-0302	●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M12X33	9-09600-043-3	08	1	0211-0302		●
66	05.815 BOLT; OIL SHIELD COVER M12X33	9-09600-043-3	08	1	0303-0501	●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) M12X33	9-09600-043-3	08	1	0303-0501		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X33	9-09600-043-3	08	1	0303-0501		●
66	05.815 BOLT; OIL SHIELD COVER M12X33	9-09600-043-3	08	1	0502-0611	●		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) M12X33	9-09600-043-3	08	1	0502-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X33	9-09600-043-3	08	1	0502-0611		●
66	05.815 BOLT; OIL SHIELD COVER M12X33	8-98009-493-2	08	1	0612-	●		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) M12X33	8-98009-493-2	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X33	8-98009-493-2	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 05.002 M14X35	8-97122-853-2	08	1	0211-0302		●
66	05.815 BOLT; OIL SHIELD COVER 05.002 M14X35	8-97122-853-2	08	1	0211-0302				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 05.002 M14X35	8-97122-853-2	08	1	0303-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 M14X35	8-97122-853-2	08	1	0303-0611		●
66	05.815 BOLT; OIL SHIELD COVER 05.002 M14X35	8-97122-853-2	08	1	0303-0611				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 05.002 M14X40	8-98007-879-0	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 M14X40	8-98007-879-0	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER 05.002 M14X40	8-98007-879-0	08	1	0612-				●
67	05.001 PLATE; BACK,FRT BRK	8-97302-588-0	01	1	0211-	●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 6.0-6.5TON(RPV)	8-97302-588-0	01	1	0211-		●
67	05.001 PLATE; BACK,FRT BRK	8-97302-589-0	01	1	0211-	●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 6.0-6.5TON(RPV)	8-97302-589-0	01	1	0211-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.0-7.5TON(RPX)	8-97302-596-0	01	1	0211-0302		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97302-596-0	01	1	0303-0501		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97302-596-0	01	1	0502-		●
67	05.001 PLATE; BACK,FRT BRK	8-97302-596-0	01	1	0502-			●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.0-7.5TON(RPX)	8-97302-597-0	01	1	0211-0302		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97302-597-0	01	1	0303-0501		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97302-597-0	01	1	0502-		●
67	05.001 PLATE; BACK,FRT BRK	8-97302-597-0	01	1	0502-			●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ)	8-97122-858-0	01	1	0211-0302		●
67	05.001 PLATE; BACK,FRT BRK	8-97122-858-0	01	1	0211-0302				●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97122-858-0	01	1	0303-		●
67	05.001 PLATE; BACK,FRT BRK	8-97122-858-0	01	1	0303-				●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ)	8-97122-859-0	01	1	0211-0302		●
67	05.001 PLATE; BACK,FRT BRK	8-97122-859-0	01	1	0211-0302				●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97122-859-0	01	1	0303-		●
67	05.001 PLATE; BACK,FRT BRK	8-97122-859-0	01	1	0303-				●
67	05.001 PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97358-868-0	01	1	0303-0308		●
67	05.001 PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97358-868-0	01	1	0309-		●
67	05.001 PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97358-869-0	01	1	0303-0308		●
67	05.001 PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97358-869-0	01	1	0309-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97160-410-0	01	1	0303-0308		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97160-410-0	01	1	0309-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97160-411-0	01	1	0303-0308		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97160-411-0	01	1	0309-		●
70	04.685 CLIP; PIPE HOLD	8-94128-306-0	02	1	0211-	●
70	04.685 CLIP; PIPE HOLD G.V.W. 6.0-6.5TON(RPV)	8-94128-306-0	02	1	0211-		●
70	04.685 CLIP; PIPE HOLD G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97022-086-0	04	1	0211-0501		●
70	04.685 CLIP; PIPE HOLD	8-97022-086-0	04	1	0211-0501				●
70	04.685 CLIP; PIPE HOLD G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97022-086-0	04	1	0502-		●
70	04.685 CLIP; PIPE HOLD	8-97022-086-0	04	1	0502-			●	●
71	05.002 GROMMET; CHECK HOLE (B)	8-94171-287-0	02	1	0211-	●
71	05.002 GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) (B)	8-94171-287-0	02	1	0211-		●
71	05.002 GROMMET; CHECK HOLE (A)	9-09756-034-0	02	1	0211-	●
71	05.002 GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) (A)	9-09756-034-0	02	1	0211-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (A)	8-97044-742-1	02	1	0211-0302		●
71	05.002 GROMMET; CHECK HOLE (A)	8-97044-742-1	02	1	0211-0302				●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	02	1	0303-0501		●
71	05.002 GROMMET; CHECK HOLE (A)	8-97044-742-1	02	1	0303-0501				●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	02	1	0502-		●
71	05.002 GROMMET; CHECK HOLE (A)	8-97044-742-1	02	1	0502-			●	●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (B)	8-97017-507-0	02	1	0211-0302		●
71	05.002 GROMMET; CHECK HOLE (B)	8-97017-507-0	02	1	0211-0302				●
71	05.002 GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97017-507-0	06	1	0303-0308		●
71	05.002 GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97017-507-0	06	1	0309-0501		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97017-507-0	02	1	0502-		●
71	05.002 GROMMET; CHECK HOLE (B)	8-97017-507-0	02	1	0502-			●	●
71	05.002 GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ> 04.670 (C)	1-47154-008-0	04	1	0303-0308		●
71	05.002 GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 04.670 (C)	1-47154-008-0	04	1	0309-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97017-507-0	02	1	0303-0501		●
71	05.002 GROMMET; CHECK HOLE (B)	8-97017-507-0	02	1	0303-0501				●
71	05.002 GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97017-507-0	06	1	0502-		●
72	05.815 NUT; OIL SHIELD COVER 04.634 M12	9-99110-512-0	08	1	0211-0302	●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 04.634 M12	9-99110-512-0	08	1	0211-0302		●
72	05.815 NUT; OIL SHIELD COVER 04.634 M12	9-99110-512-0	08	1	0303-0501	●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) 04.634 M12	9-99110-512-0	08	1	0303-0501		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.634 M12	9-99110-512-0	08	1	0303-0501		●
72	05.815 NUT; OIL SHIELD COVER 04.634 M12	9-99110-512-0	08	1	0502-0512	●		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) 04.634 M12	9-99110-512-0	08	1	0502-0512		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.634 M12	9-99110-512-0	08	1	0502-0512		●
72	05.815 NUT; OIL SHIELD COVER 05.002 M12	0-91110-512-0	08	1	0601-	●		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) 05.002 M12	0-91110-512-0	08	1	0601-		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 M12	0-91110-512-0	08	1	0601-		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 07.529 M14	9-99110-514-0	08	1	0211-0302		●
72	05.815 NUT; OIL SHIELD COVER 07.529 M14	9-99110-514-0	08	1	0211-0302				●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 07.529 M14	9-99110-514-0	08	1	0303-0512		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 07.529 M14	9-99110-514-0	08	1	0303-0512		●
72	05.815 NUT; OIL SHIELD COVER 07.529 M14	9-99110-514-0	08	1	0303-0512				●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 07.833 M14	0-91110-514-0	08	1	0601-		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 07.833 M14	0-91110-514-0	08	1	0601-		●
72	05.815 NUT; OIL SHIELD COVER 07.833 M14	0-91110-514-0	08	1	0601-				●
73	05.815 WASHER; LK,OIL SHIELD COVER 06.515 ID=12.2	9-09150-612-0	08	1	0211-0302	●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 06.515 ID=12.2	9-09150-612-0	08	1	0211-0302		●
73	05.815 WASHER; LK,OIL SHIELD COVER 06.515 ID=12.2	9-09150-612-0	08	1	0303-0501	●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) 06.515 ID=12.2	9-09150-612-0	08	1	0303-0501		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.515 ID=12.2	9-09150-612-0	08	1	0303-0501		●
73	05.815 WASHER; LK,OIL SHIELD COVER 06.515 ID=12.2	9-09150-612-0	08	1	0502-0603	●		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) 06.515 ID=12.2	9-09150-612-0	08	1	0502-0603		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.515 ID=12.2	9-09150-612-0	08	1	0502-0603		●
73	05.815 WASHER; LK,OIL SHIELD COVER 00.002 ID=12.2	0-91510-612-0	08	1	0604-0611	●		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) 00.002 ID=12.2	0-91510-612-0	08	1	0604-0611		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.002 ID=12.2	0-91510-612-0	08	1	0604-0611		●
73	05.815 WASHER; LK,OIL SHIELD COVER 07.347 ID=12.2	0-91510-812-0	08	1	0612-	●		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 6.0-6.5TON(RPV) 07.347 ID=12.2	0-91510-812-0	08	1	0612-		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.347 ID=12.2	0-91510-812-0	08	1	0612-		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 05.387 ID=14.2	9-09150-614-0	08	1	0211-0302		●
73	05.815 WASHER; LK,OIL SHIELD COVER 05.387 ID=14.2	9-09150-614-0	08	1	0211-0302				●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 05.387 ID=14.2	9-09150-614-0	08	1	0303-0603		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.387 ID=14.2	9-09150-614-0	08	1	0303-0603		●
73	05.815 WASHER; LK,OIL SHIELD COVER 05.387 ID=14.2	9-09150-614-0	08	1	0303-0603				●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 05.586 ID=14.2	0-91510-614-0	08	1	0604-0611		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 05.586 ID=14.2	0-91510-614-0	08	1	0604-0611		●
73	05.815 WASHER; LK,OIL SHIELD COVER 05.586 ID=14.2	0-91510-614-0	08	1	0604-0611				●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 8.0-8.5TON(RPZ) 06.174 ID=14.2	0-91510-814-0	08	1	0612-		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.174 ID=14.2	0-91510-814-0	08	1	0612-		●
73	05.815 WASHER; LK,OIL SHIELD COVER 06.174 ID=14.2	0-91510-814-0	08	1	0612-				●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97079-847-0	02	1	0211-0302		●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK	8-97079-847-0	02	1	0211-0302				●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	0303-0501		●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK	8-97079-847-0	02	1	0303-0501				●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	0502-		●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK	8-97079-847-0	02	1	0502-			●	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-94154-917-0	01	1	0211-	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 6.0-6.5TON(RPV)	8-94154-917-0	01	1	0211-		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-94154-918-0	01	1	0211-	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 6.0-6.5TON(RPV)	8-94154-918-0	01	1	0211-		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97039-676-0	01	1	0211-0501		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-676-0	01	1	0211-0501				●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97039-676-0	01	1	0502-		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-676-0	01	1	0502-			●	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97039-677-0	01	1	0211-0501		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-677-0	01	1	0211-0501				●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97039-677-0	01	1	0502-		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-677-0	01	1	0502-			●	●
130	05.017 SHOE KIT; BRK,FRT	5-87832-047-0	01	1	0211-	●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 6.0-6.5TON(RPV)	5-87832-047-0	01	1	0211-		●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 7.0-7.5TON(RPX)	5-87831-775-0	01	1	0211-0302		●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-775-0	01	1	0303-0501		●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-775-0	01	1	0502-		●
130	05.017 SHOE KIT; BRK,FRT	5-87831-775-0	01	1	0502-			●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 8.0-8.5TON(RPZ)	5-87831-693-0	01	1	0211-0302		●
130	05.017 SHOE KIT; BRK,FRT	5-87831-693-0	01	1	0211-0302				●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 8.0-8.5TON(RPZ)	5-87831-693-0	01	1	0303-		●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 7.0-7.5TON(RPX) 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	0303-		●
130	05.017 SHOE KIT; BRK,FRT	5-87831-693-0	01	1	0303-				●
240	04.685 PIPE; OIL,FRT BRK	8-94154-916-0	02	1	0211-	●
240	04.685 PIPE; OIL,FRT BRK G.V.W. 6.0-6.5TON(RPV)	8-94154-916-0	02	1	0211-		●
240	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) HYDRO BRAKE BOOSTER<7QQ>	8-97079-847-0	02	1	0303-0308		●
240	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ>	8-97079-847-0	02	1	0309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
