Sayfa 3-58 - Isuzu EPC

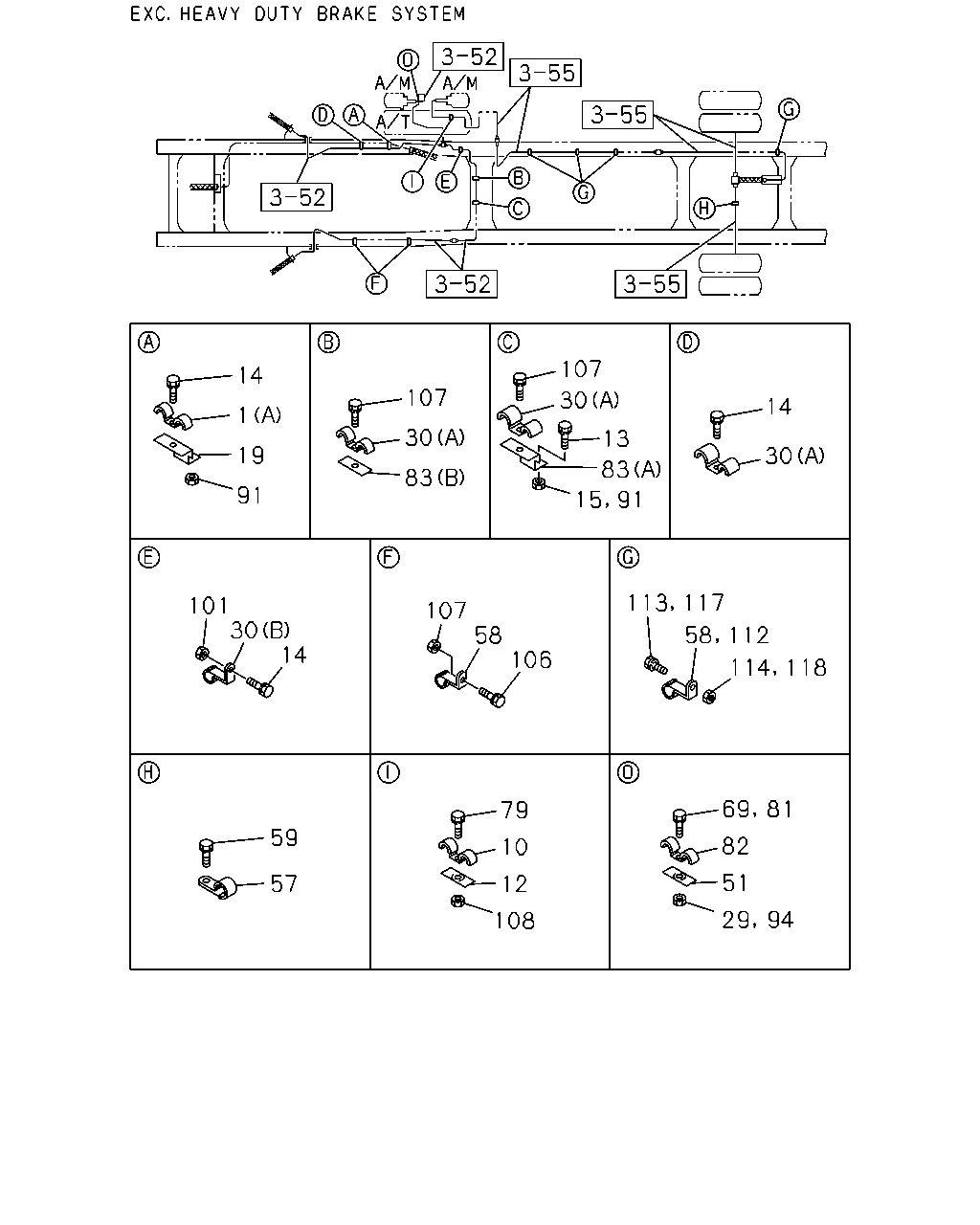

3-58 — FIXING PARTS; OIL PIPING (#37) — 160 parça

107 14 107 30 14 1 30 13 19 30 83 83 91 113 117 101 30 14 107 58 58 112 106 118 114 79 59 82 10 51 57 12 29 94 108 15 91 69 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9208-	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9202-9207	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9208-	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=45 L=20	1-09700-824-0	01	1	9202-9207	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=45 L=20	1-09700-824-0	01	1	9208-	●
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9202-9210	●	●
1	CLIP; OIL PIPE TO BODY EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9211-	●	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-9207	●	●
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-9207	●	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-	●	●
1	CLIP; OIL PIPE TO BODY AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-		●
1	CLIP; OIL PIPE TO BODY AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9211-		●
10	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9202-	●	●
12	BRACKET; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9202-	●	●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X40 FLANGE	0-28080-840-0	02	1	9208-	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-9210	●	●
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-9210	●	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9211-	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	01	1	9211-		●
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-9210	●	●
14	BOLT; CLIP,OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9211-	●	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9211-		●
15	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9210	●	●
15	NUT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9211-		●
19	BRACKET; OIL PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-427-1	01	1	9208-	●
19	BRACKET; OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-427-1	01	1	9202-9207	●
19	BRACKET; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3)	1-47475-427-1	02	1	9208-	●	●
19	BRACKET; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-461-0	01	1	9211-	●	●
29	NUT; CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
30	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9202-	●	●
30	CLIP; OIL PIPE AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9208-9210	●	●
30	CLIP; OIL PIPE DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9211-	●	●
30	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=10 L=20	1-09701-029-0	02	1	9208-	●	●
30	CLIP; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-9207	●	●
30	CLIP; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
30	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
30	CLIP; OIL PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9211-		●
30	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9202-9207	●	●
30	CLIP; OIL PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9208-9210	●	●
30	CLIP; OIL PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-	●
30	CLIP; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-		●
30	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-		●
51	BRACKET; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) L=50	1-47475-299-2	01	1	9208-	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9202-	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	07	1	9202-9312	●	●
58	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	06	1	9401-	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9401-	●	●
58	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	01	1	9401-	●	●
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=6 H=20 L=20	1-09700-603-0	05	1	9401-	●	●
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-	●	●
58	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9202-	●	●
69	BOLT; CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	01	1	9208-	●	●
79	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
79	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
81	BOLT; BRKT,OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9211-	●	●
82	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9211-	●	●
83	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9202-	●	●
83	BRACKET; PIPE CLIP (A) 45X55	1-47475-460-1	01	1	9202-	●	●
91	NUT; BRKT,OIL PIPE M8	9-09110-408-0	02	1	9211-	●	●
94	NUT; BRKT,OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9211-	●	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-9207	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9208-	●	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9208-	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9207	●	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
107	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9202-	●	●
108	NUT; CLIP,AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-	●	●
112	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	05	1	9202-	●	●
113	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	05	1	9202-	●	●
114	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	05	1	9202-	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	10	1	9202-9204	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	10	1	9205-	●	●
118	NUT; CLIP,OIL PIPE M8	9-09110-408-0	10	1	9202-	●	●

118 107 14 69 14 117 30 30 1 82 13 83 101 91 14 59 1 57 19 29 101 51 83 1 30 58 14 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9208-	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9202-9207	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9208-	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=45 L=20	1-09700-824-0	01	1	9202-9207	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=45 L=20	1-09700-824-0	01	1	9208-	●
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9202-9210	●	●
1	CLIP; OIL PIPE TO BODY EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9211-	●	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-9207	●	●
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-9207	●	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
1	CLIP; OIL PIPE TO BODY WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-	●	●
1	CLIP; OIL PIPE TO BODY AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-		●
1	CLIP; OIL PIPE TO BODY AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9211-		●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X40 FLANGE	0-28080-840-0	02	1	9208-	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-9210	●	●
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-9210	●	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9211-	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	01	1	9211-		●
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-9210	●	●
14	BOLT; CLIP,OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9211-	●	●
14	BOLT; CLIP,OIL PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9211-		●
19	BRACKET; OIL PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-427-1	01	1	9208-	●
19	BRACKET; OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-427-1	01	1	9202-9207	●
19	BRACKET; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3)	1-47475-427-1	02	1	9208-	●	●
19	BRACKET; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-461-0	01	1	9211-	●	●
29	NUT; CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
30	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9202-	●	●
30	CLIP; OIL PIPE AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9208-9210	●	●
30	CLIP; OIL PIPE DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9211-	●	●
30	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=10 L=20	1-09701-029-0	02	1	9208-	●	●
30	CLIP; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-9207	●	●
30	CLIP; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
30	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9208-9210	●	●
30	CLIP; OIL PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9211-		●
30	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9202-9207	●	●
30	CLIP; OIL PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9208-9210	●	●
30	CLIP; OIL PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-	●
30	CLIP; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-		●
30	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9211-		●
51	BRACKET; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) L=50	1-47475-299-2	01	1	9208-	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9202-	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	07	1	9202-9312	●	●
58	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	06	1	9401-	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9401-	●	●
58	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	01	1	9401-	●	●
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=6 H=20 L=20	1-09700-603-0	05	1	9401-	●	●
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-	●	●
58	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9202-	●	●
69	BOLT; CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	01	1	9208-	●	●
82	CLIP; OIL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9211-	●	●
83	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9202-	●	●
83	BRACKET; PIPE CLIP (A) 45X55	1-47475-460-1	01	1	9202-	●	●
91	NUT; BRKT,OIL PIPE M8	9-09110-408-0	02	1	9211-	●	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-9207	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9208-	●	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9208-	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9207	●	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
107	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9202-	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	10	1	9202-9204	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	10	1	9205-	●	●
118	NUT; CLIP,OIL PIPE M8	9-09110-408-0	10	1	9202-	●	●
