1-45 — WATER SEDIMENTER; FUEL (#36995) — 164 parça

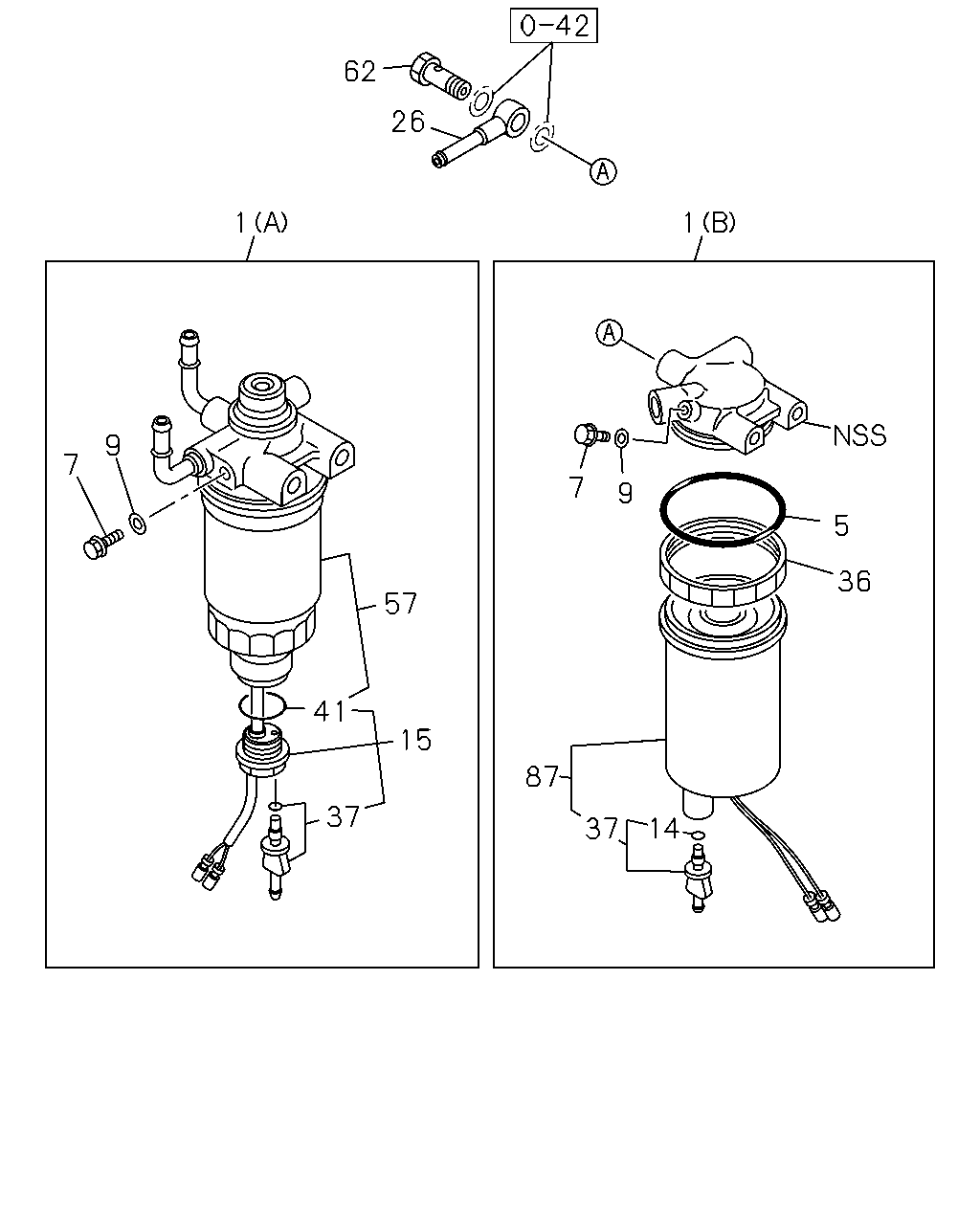

çizim 75552
62 26 1 1 9 7 7 9 5 36 57 41 15 87 37 14 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97207-734-1 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) (B) 		8-94144-933-3 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94144-933-3 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) (B) 		8-94144-933-3 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) (B) 		8-94144-933-4 01 1 0502- ● ●
1 03.890 SEDIMENTER; FUEL
(B) 		8-94144-933-4 01 1 0502- ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) (B) 		8-94144-933-4 01 1 0502- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0211-0501 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
EXC. ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0211-0501 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) 		5-09623-075-0 01 1 0211-0501 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0502- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0502- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) 		5-09623-075-0 01 1 0502- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0502- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 0502- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1-S ENG(RLS) 03.895 		9-09571-406-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. ENGINE POWER N-SPEC(7QV) 03.895 		9-09571-406-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) 03.895 		9-09571-406-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1-S ENG(RLS) 03.895 		9-09571-406-0 01 1 0502- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
03.895 		9-09571-406-0 01 1 0502- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) 03.895 		9-09571-406-0 01 1 0502- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HF1-S ENG(RLS) 		8-94447-156-0 01 1 0211-0501 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
EXC. ENGINE POWER N-SPEC(7QV) 		8-94447-156-0 01 1 0211-0501 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94447-156-0 01 1 0211-0501 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) 		8-94447-156-0 01 1 0211-0501 ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HF1-S ENG(RLS) 		8-94447-156-0 01 1 0502- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 0502- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) 		8-94447-156-0 01 1 0502- ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 0211-0501 ●
26 03.163 PIPE; FUEL,IN & OUT
4HF1-S ENG(RLS) 		5-15411-223-1 02 1 0211-0501 ●
26 03.163 PIPE; FUEL,IN & OUT
EXC. ENGINE POWER N-SPEC(7QV) 		5-15411-223-1 02 1 0211-0501 ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH) 		5-15411-223-1 02 1 0211-0501 ●
26 03.163 PIPE; FUEL,IN & OUT
4HF1-S ENG(RLS) 		5-15411-223-1 02 1 0502- ● ●
26 03.163 PIPE; FUEL,IN & OUT 5-15411-223-1 02 1 0502- ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH) 		5-15411-223-1 02 1 0502- ●
36 03.890 RING; BODY TO CASE
4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0211-0501 ●
36 03.890 RING; BODY TO CASE
EXC. ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0211-0501 ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) 		5-13234-001-0 01 1 0211-0501 ●
36 03.890 RING; BODY TO CASE
4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0502- ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0502- ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) 		5-13234-001-0 01 1 0502- ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0211-0501 ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0211-0501 ●
37 03.890 PLUG; SENSOR
EXC. ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 0211-0501 ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) 		8-94453-746-0 01 1 0211-0501 ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0502- ● ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0502- ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) 		8-94453-746-0 01 1 0502- ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0211-0501 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94369-299-3 01 1 0211-0501 ●
62 03.162 BOLT; EYE,FUEL FILTER
4HF1-S ENG(RLS) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0211-0501 ●
62 03.162 BOLT; EYE,FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0211-0501 ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0211-0501 ●
62 03.162 BOLT; EYE,FUEL FILTER
4HF1-S ENG(RLS) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0502- ● ●
62 03.162 BOLT; EYE,FUEL FILTER
M14X29 EYE-BOLT 		9-09906-325-1 02 1 0502- ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0502- ●
87 03.890 CASE ASM; SEDIMENTER
4HF1-S ENG(RLS) 		8-97219-363-0 01 1 0211-0501 ●
87 03.890 CASE ASM; SEDIMENTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97219-363-0 01 1 0211-0501 ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) 		8-97219-363-0 01 1 0211-0501 ●
87 03.890 CASE ASM; SEDIMENTER
4HF1-S ENG(RLS) 		8-97219-363-1 01 1 0502- ● ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 0502- ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) 		8-97219-363-1 01 1 0502- ●

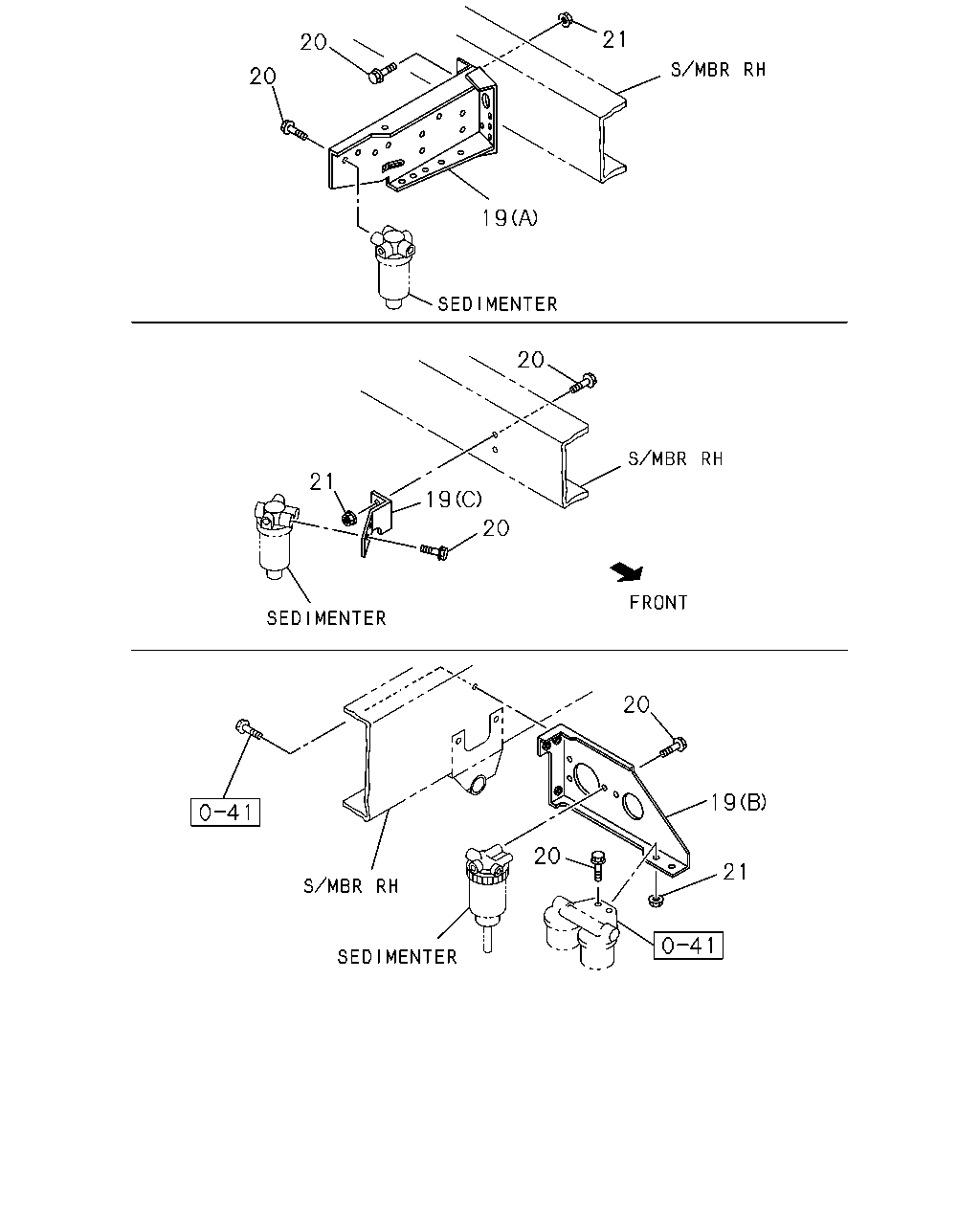

çizim 75579
21 20 20 19 20 21 19 20 20 19 20 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 03.890 BRACKET; FUEL SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97189-165-0 01 1 0211-0212 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) (B) 		8-97189-165-0 01 1 0211-0212 ●
19 03.890 BRACKET; FUEL SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97363-089-0 01 1 0301-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) (B) 		8-97363-089-0 01 1 0301-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97363-089-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97363-089-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) 		8-97370-092-0 01 1 0502- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) 		8-94366-685-0 01 1 0211-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0211-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) 		8-94366-685-0 01 1 0502- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0502- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FUEL FILTER DUAL(S6B) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 03 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 03 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE 		0-28051-030-0 04 1 0601- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601- ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603- ● ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603- ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603- ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
21 03.890 NUT; BRKT TO FRAME
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
21 03.890 NUT; BRKT TO FRAME
EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
