Sayfa 1-40 - Isuzu EPC

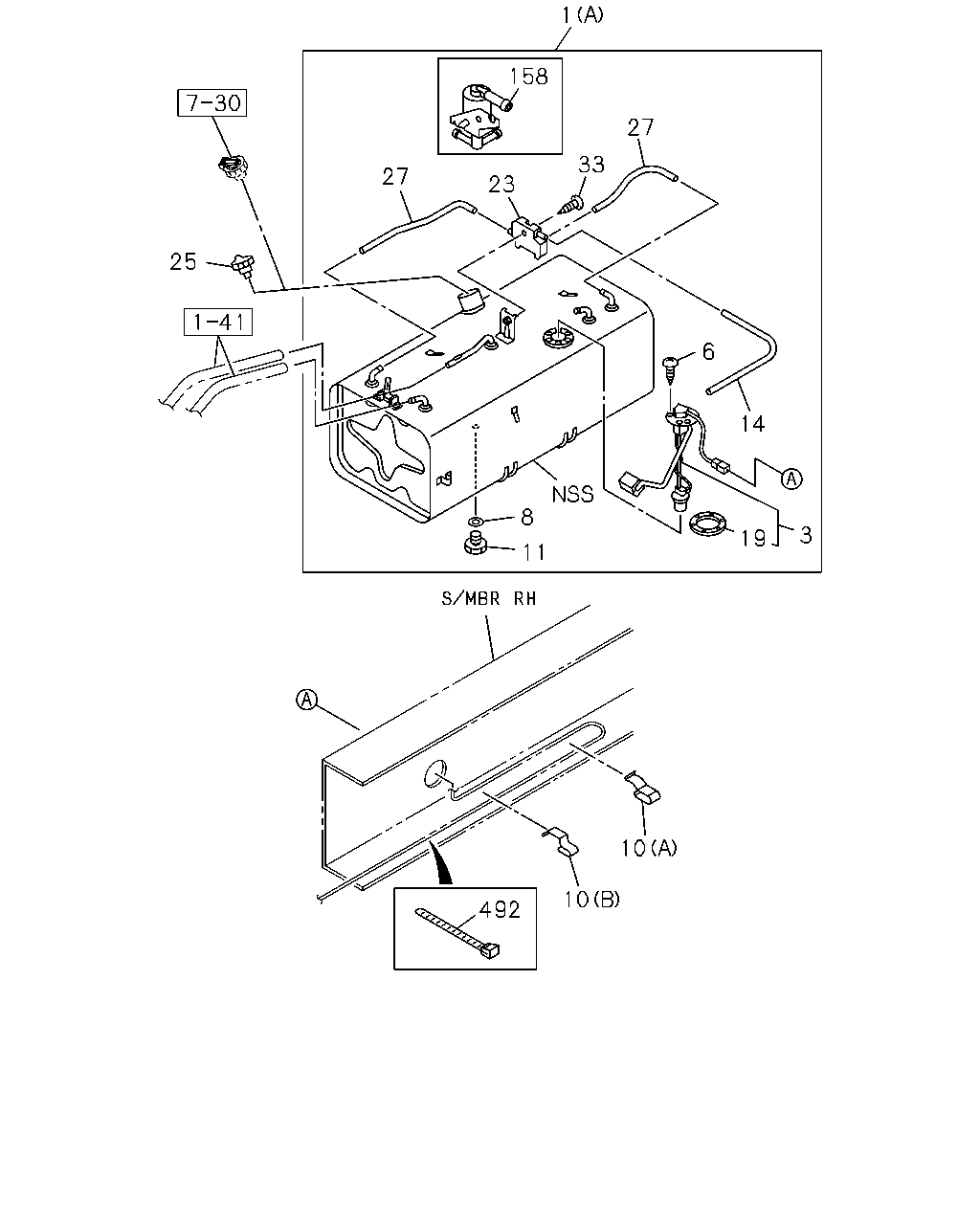

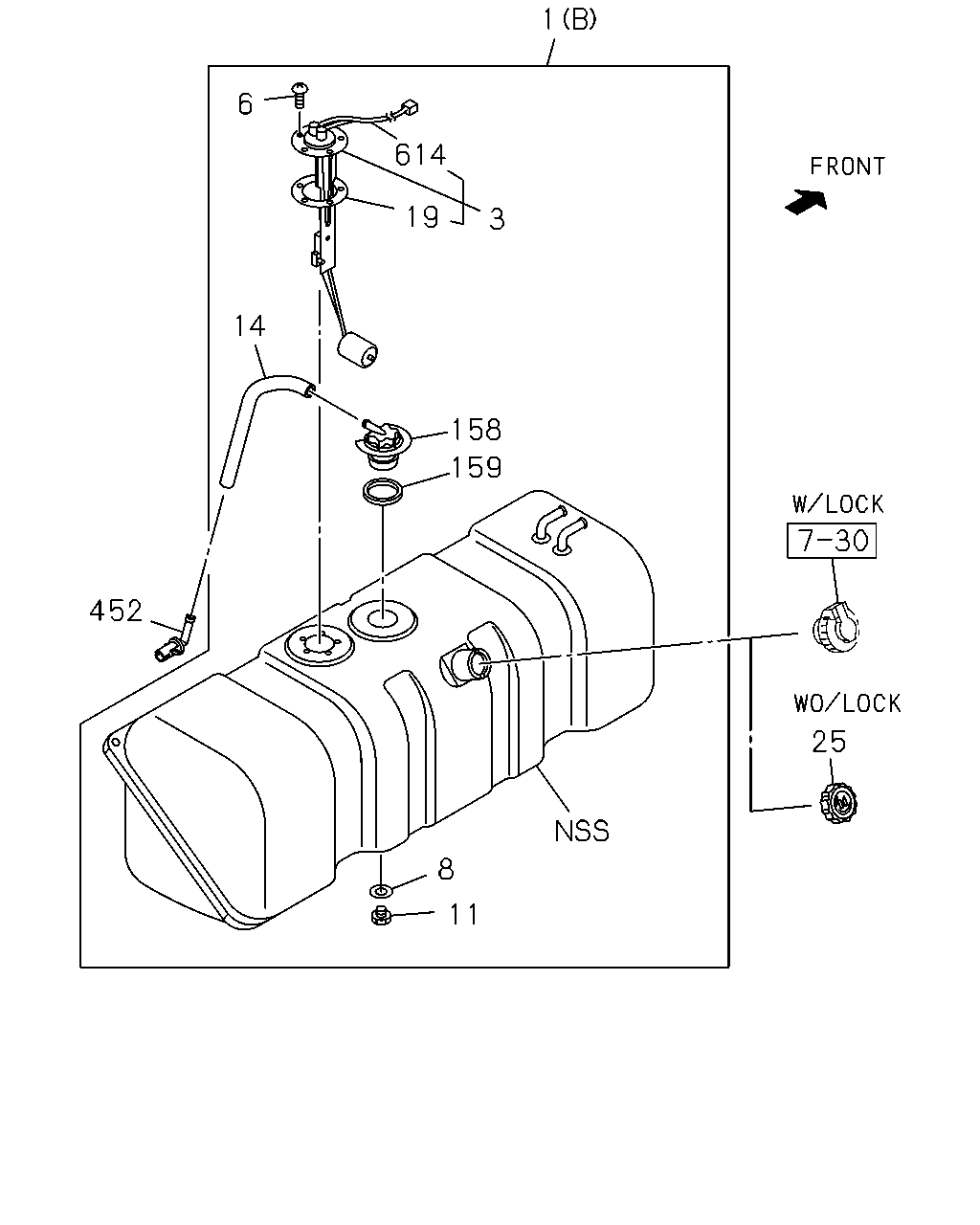

1-40 — FUEL TANK (#36993) — 345 parça

1 6 614 19 3 14 158 159 452 25 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0212	●
1	03.001 TANK; FUEL (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0212		●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0212			●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-0	01	1	0301-0401	●
1	03.001 TANK; FUEL EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-0	01	1	0301-0401		●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-0	01	1	0301-0401			●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (B) 980X380X375 100L	8-97356-869-0	01	1	0301-0401	●	●	●
1	03.001 TANK; FUEL (B) 980X380X375 100L	8-97356-869-0	01	1	0402-0402	●	●	●
1	03.001 TANK; FUEL (B) 979X380X375 100L	8-97375-634-1	01	1	0402-0501	●	●	●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) (B) 979X380X375 100L	8-97375-634-4	01	1	0502-	●
1	03.001 TANK; FUEL (B) 979X380X375 100L	8-97375-634-4	01	1	0502-		●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (B) 979X380X375 100L	8-97375-634-4	01	1	0502-			●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (B) 979X380X375 100L	8-97375-634-4	01	1	0502-				●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-1	01	1	0502-			●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-1	01	1	0502-				●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) 03.001	8-94316-190-0	01	1	0211-0212	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0211-0212		●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) 03.001	8-94316-190-0	01	1	0211-0212			●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0301-0401	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0301-0401		●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0301-0401			●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-006-0	01	1	0302-0401	●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-97363-006-0	01	1	0402-0501	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS)	8-97363-006-0	01	1	0502-	●
3	03.107 UNIT; FUEL TANK,SUB	8-97363-006-0	01	1	0502-		●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-006-0	01	1	0502-			●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-006-0	01	1	0502-				●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0502-			●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0502-				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0301	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0301		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0301			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401	●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0402-0501	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0603	●			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0603		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0603			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) 01.550	1-21729-043-0	01	1	0211-0212	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	0211-0212		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) 01.550	1-21729-043-0	01	1	0211-0212			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.550	1-21729-043-0	01	1	0301-0301	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.550	1-21729-043-0	01	1	0301-0301		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.550	1-21729-043-0	01	1	0301-0301			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0401	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0401		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0401			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0302-0401	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0402-0501	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-				●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-				●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0302-0401	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0302-0401		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0302-0401			●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0401	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0402-0501	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●
11	03.890 PLUG; DRAIN,FUEL TANK 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512				●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-				●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212		●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212			●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0301-0401	●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0301-0401		●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0301-0401			●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0502-			●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0502-				●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) L=420	8-98157-809-0	01	1	1004-	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1004-		●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> L=420	8-98157-809-0	01	1	1004-			●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> L=420	8-98157-809-0	01	1	1004-				●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) ID=42 OD=71	5-83148-001-0	01	1	0211-0212	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0211-0212		●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) ID=42 OD=71	5-83148-001-0	01	1	0211-0212			●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0301-0401	●
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0301-0401		●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0301-0401			●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-616-0	01	1	0302-0401	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97363-616-0	01	1	0402-0501	●	●	●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS)	8-97363-616-0	01	1	0502-	●
19	03.112 GASKET; FUEL TANK UNIT	8-97363-616-0	01	1	0502-		●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-616-0	01	1	0502-			●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-616-0	01	1	0502-				●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0502-			●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0502-				●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0502-	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97179-645-0	01	1	0302-0401	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0402-0501	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4HF1-S ENG(RLS)	8-97179-645-0	01	1	0502-	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0502-		●
158	03.164 VALVE; ROLL OVER & FLOAT 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97179-645-0	01	1	0502-			●
158	03.164 VALVE; ROLL OVER & FLOAT 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97179-645-0	01	1	0502-				●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97326-488-0	01	1	0302-0401	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0402-0501	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4HF1-S ENG(RLS)	8-97326-488-0	01	1	0502-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0502-		●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97326-488-0	01	1	0502-			●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97326-488-0	01	1	0502-				●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0211-0212	●	●	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97062-954-1	01	1	0301-0401	●	●	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97357-261-0	01	1	0301-0401	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0402-0501	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0502-	●	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97357-261-0	01	1	0502-			●	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97062-954-1	01	1	0502-			●	●
614	03.028 HARNESS; FUEL FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-614-0	01	1	0302-0401	●	●	●
614	03.028 HARNESS; FUEL	8-97363-614-0	01	1	0402-0501	●	●	●
614	03.028 HARNESS; FUEL 4HF1-S ENG(RLS)	8-97363-614-0	01	1	0502-	●
614	03.028 HARNESS; FUEL	8-97363-614-0	01	1	0502-		●
614	03.028 HARNESS; FUEL 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-614-0	01	1	0502-			●
614	03.028 HARNESS; FUEL 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-614-0	01	1	0502-				●

49 49 501 51 40 40 51 452 43 42 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0211-0212	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-94438-385-4	02	1	0301-0401	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97169-231-1	02	1	0301-0401	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0402-0501	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0502-	●	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97169-231-1	02	1	0502-			●	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-94438-385-4	02	1	0502-			●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0211-0501	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0502-	●	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	02	1	0211-0212	●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FRONT	8-97035-517-0	01	1	0301-0401	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	0402-0501	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	0502-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FRONT	8-97035-517-0	01	1	0502-			●	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> FRONT	8-97035-517-0	02	1	0301-0401	●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> REAR	8-97181-220-0	01	1	0301-0401	●	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	0402-0501	●	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	0502-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> REAR	8-97181-220-0	01	1	0502-			●	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> FRONT	8-97035-517-0	02	1	0502-			●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0211-0501	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0502-0602	●	●	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	0211-0501	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0211-0501		●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) M10X30 FLANGE	0-28691-030-0	08	1	0211-0501			●
51	03.023 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) M10X30 FLANGE	0-28691-030-0	08	1	0502-0512	●			●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0502-0512		●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) M10X30 FLANGE	0-28691-030-0	08	1	0502-0512			●
51	03.023 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-	●			●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-		●
51	03.023 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-			●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0211-0212	●	●	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97062-954-1	01	1	0301-0401	●	●	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97357-261-0	01	1	0301-0401	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0402-0501	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0502-	●	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97357-261-0	01	1	0502-			●	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97062-954-1	01	1	0502-			●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	0211-0212	●	●	●
501	03.028 GROMMET; BRKT EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97096-990-0	01	1	0301-0401	●	●	●
501	03.028 GROMMET; BRKT EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97096-990-0	01	1	0502-			●	●

1 158 27 33 27 23 25 6 14 8 3 19 11 10 10 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0212	●
1	03.001 TANK; FUEL (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0212		●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0212			●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-0	01	1	0301-0401	●
1	03.001 TANK; FUEL EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-0	01	1	0301-0401		●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-0	01	1	0301-0401			●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (B) 980X380X375 100L	8-97356-869-0	01	1	0301-0401	●	●	●
1	03.001 TANK; FUEL (B) 980X380X375 100L	8-97356-869-0	01	1	0402-0402	●	●	●
1	03.001 TANK; FUEL (B) 979X380X375 100L	8-97375-634-1	01	1	0402-0501	●	●	●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) (B) 979X380X375 100L	8-97375-634-4	01	1	0502-	●
1	03.001 TANK; FUEL (B) 979X380X375 100L	8-97375-634-4	01	1	0502-		●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (B) 979X380X375 100L	8-97375-634-4	01	1	0502-			●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (B) 979X380X375 100L	8-97375-634-4	01	1	0502-				●
1	03.001 TANK; FUEL 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-1	01	1	0502-			●
1	03.001 TANK; FUEL 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> (A) 1000X340X327 100L	8-97350-991-1	01	1	0502-				●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) 03.001	8-94316-190-0	01	1	0211-0212	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0211-0212		●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) 03.001	8-94316-190-0	01	1	0211-0212			●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0301-0401	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0301-0401		●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0301-0401			●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-006-0	01	1	0302-0401	●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-97363-006-0	01	1	0402-0501	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS)	8-97363-006-0	01	1	0502-	●
3	03.107 UNIT; FUEL TANK,SUB	8-97363-006-0	01	1	0502-		●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-006-0	01	1	0502-			●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-006-0	01	1	0502-				●
3	03.107 UNIT; FUEL TANK,SUB 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0502-			●
3	03.107 UNIT; FUEL TANK,SUB 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.001	8-94316-190-0	01	1	0502-				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0212			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0301	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0301		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0301-0301			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401	●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0401			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0402-0501	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0603	●			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0603		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0603			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HF1-S ENG(RLS) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4HG1 ENG(RJH) 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) 01.550	1-21729-043-0	01	1	0211-0212	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	0211-0212		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) 01.550	1-21729-043-0	01	1	0211-0212			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.550	1-21729-043-0	01	1	0301-0301	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.550	1-21729-043-0	01	1	0301-0301		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.550	1-21729-043-0	01	1	0301-0301			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0401	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0401		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0401			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0302-0401	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0402-0501	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-				●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-				●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0211-0501	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0502-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0211-0501	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0502-	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0211-0501	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0502-	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0212			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0301-0301			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0302-0401	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0302-0401		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0302-0401			●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0401	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0402-0501	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●
11	03.890 PLUG; DRAIN,FUEL TANK 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512				●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
11	03.890 PLUG; DRAIN,FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-			●
11	03.890 PLUG; DRAIN,FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-				●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212		●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0212			●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0301-0401	●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0301-0401		●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0301-0401			●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0502-			●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0502-				●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) L=420	8-98157-809-0	01	1	1004-	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1004-		●
14	03.163 HOSE; BREATHER,OUTLET 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> L=420	8-98157-809-0	01	1	1004-			●
14	03.163 HOSE; BREATHER,OUTLET 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02> L=420	8-98157-809-0	01	1	1004-				●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) ID=42 OD=71	5-83148-001-0	01	1	0211-0212	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0211-0212		●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) ID=42 OD=71	5-83148-001-0	01	1	0211-0212			●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0301-0401	●
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0301-0401		●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0301-0401			●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-616-0	01	1	0302-0401	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97363-616-0	01	1	0402-0501	●	●	●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS)	8-97363-616-0	01	1	0502-	●
19	03.112 GASKET; FUEL TANK UNIT	8-97363-616-0	01	1	0502-		●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-616-0	01	1	0502-			●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97363-616-0	01	1	0502-				●
19	03.112 GASKET; FUEL TANK UNIT 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0502-			●
19	03.112 GASKET; FUEL TANK UNIT 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> ID=42 OD=71	5-83148-001-0	01	1	0502-				●
23	03.162 JOINT; BREATHER HOSE 4HF1-S ENG(RLS)	8-97077-713-1	01	1	0211-0212	●
23	03.162 JOINT; BREATHER HOSE	8-97077-713-1	01	1	0211-0212		●
23	03.162 JOINT; BREATHER HOSE 4HG1 ENG(RJH)	8-97077-713-1	01	1	0211-0212			●
23	03.162 JOINT; BREATHER HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97077-713-1	01	1	0301-0401	●
23	03.162 JOINT; BREATHER HOSE EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97077-713-1	01	1	0301-0401		●
23	03.162 JOINT; BREATHER HOSE 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97077-713-1	01	1	0301-0401			●
23	03.162 JOINT; BREATHER HOSE 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97077-713-1	01	1	0502-			●
23	03.162 JOINT; BREATHER HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02>	8-97077-713-1	01	1	0502-				●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0502-	●	●	●	●
27	03.163 HOSE; BREATHER 4HF1-S ENG(RLS) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0211-0212	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0211-0212		●
27	03.163 HOSE; BREATHER 4HG1 ENG(RJH) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0211-0212			●
27	03.163 HOSE; BREATHER 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0301-0401	●
27	03.163 HOSE; BREATHER EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0301-0401		●
27	03.163 HOSE; BREATHER 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0301-0401			●
27	03.163 HOSE; BREATHER 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0502-			●
27	03.163 HOSE; BREATHER 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0502-				●
33	03.162 SCREW; JOINT TO FUEL TANK 4HF1-S ENG(RLS) 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0211-0212	●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0211-0212		●
33	03.162 SCREW; JOINT TO FUEL TANK 4HG1 ENG(RJH) 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0211-0212			●
33	03.162 SCREW; JOINT TO FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0301-0401	●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0301-0401		●
33	03.162 SCREW; JOINT TO FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0301-0401			●
33	03.162 SCREW; JOINT TO FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0502-0604			●
33	03.162 SCREW; JOINT TO FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0502-0604				●
33	03.162 SCREW; JOINT TO FUEL TANK 4HG1 ENG(RJH) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> M6X20 W/LK&PL WASHER	0-36230-620-0	01	1	0605-			●
33	03.162 SCREW; JOINT TO FUEL TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER "NON BOX TYPE "<N02> M6X20 W/LK&PL WASHER	0-36230-620-0	01	1	0605-				●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97179-645-0	01	1	0302-0401	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0402-0501	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4HF1-S ENG(RLS)	8-97179-645-0	01	1	0502-	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0502-		●
158	03.164 VALVE; ROLL OVER & FLOAT 4HG1 ENG(RJH) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97179-645-0	01	1	0502-			●
158	03.164 VALVE; ROLL OVER & FLOAT 4HF1-S ENG(RLS) FUEL TANK 100 LITTER "NON BOX TYPE"<N02>	8-97179-645-0	01	1	0502-				●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HF1-S ENG(RLS) 02.559 L=250	5-09707-030-1	01	1	0211-0501	●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	0211-0501		●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HG1 ENG(RJH) 02.559 L=250	5-09707-030-1	01	1	0211-0501			●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	0502-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
