◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

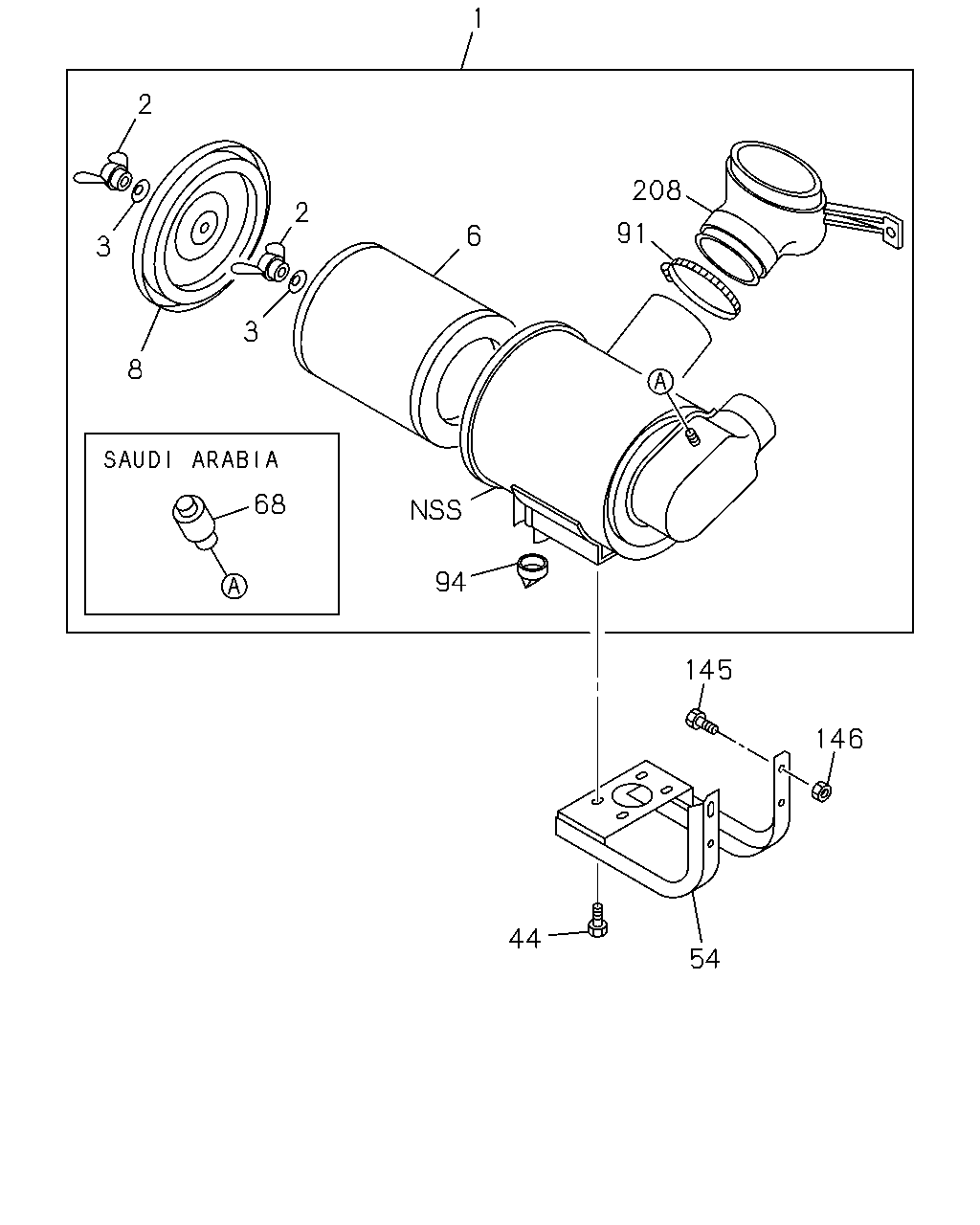

1-30 — AIR CLEANER (#36991) — 95 parça

1 2 208 2 91 6 3 3 8 68 94 145 146 44 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS)	8-97255-174-2	01	1	0211-0501	●
1	03.402 CLEANER ASM; AIR	8-97255-174-2	01	1	0211-0501		●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-97255-174-2	01	1	0211-0501			●
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS)	8-97255-174-2	01	1	0502-	●			●
1	03.402 CLEANER ASM; AIR	8-97255-174-2	01	1	0502-		●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-97255-174-2	01	1	0502-			●
2	03.403 NUT; WING,ELEMENT 4HF1-S ENG(RLS)	1-14217-068-0	02	1	0211-0501	●
2	03.403 NUT; WING,ELEMENT	1-14217-068-0	02	1	0211-0501		●
2	03.403 NUT; WING,ELEMENT 4HG1 ENG(RJH)	1-14217-068-0	02	1	0211-0501			●
2	03.403 NUT; WING,ELEMENT 4HF1-S ENG(RLS)	1-14217-068-0	02	1	0502-	●			●
2	03.403 NUT; WING,ELEMENT	1-14217-068-0	02	1	0502-		●
2	03.403 NUT; WING,ELEMENT 4HG1 ENG(RJH)	1-14217-068-0	02	1	0502-			●
3	03.403 WASHER; SEAL,WING NUT 4HF1-S ENG(RLS)	1-14219-225-0	02	1	0211-0501	●
3	03.403 WASHER; SEAL,WING NUT	1-14219-225-0	02	1	0211-0501		●
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH)	1-14219-225-0	02	1	0211-0501			●
3	03.403 WASHER; SEAL,WING NUT 4HF1-S ENG(RLS)	1-14219-225-0	02	1	0502-	●			●
3	03.403 WASHER; SEAL,WING NUT	1-14219-225-0	02	1	0502-		●
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH)	1-14219-225-0	02	1	0502-			●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS)	8-94156-052-0	01	1	0211-0501	●
6	03.410 FILTER; ACL	8-94156-052-0	01	1	0211-0501		●
6	03.410 FILTER; ACL 4HG1 ENG(RJH)	8-94156-052-0	01	1	0211-0501			●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS)	8-94156-052-0	01	1	0502-	●			●
6	03.410 FILTER; ACL	8-94156-052-0	01	1	0502-		●
6	03.410 FILTER; ACL 4HG1 ENG(RJH)	8-94156-052-0	01	1	0502-			●
8	03.410 COVER ASM; ACL 4HF1-S ENG(RLS)	8-97093-023-0	01	1	0211-0501	●
8	03.410 COVER ASM; ACL	8-97093-023-0	01	1	0211-0501		●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH)	8-97093-023-0	01	1	0211-0501			●
8	03.410 COVER ASM; ACL 4HF1-S ENG(RLS)	8-97093-023-0	01	1	0502-	●			●
8	03.410 COVER ASM; ACL	8-97093-023-0	01	1	0502-		●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH)	8-97093-023-0	01	1	0502-			●
44	03.403 BOLT; ACL 4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0211-0501	●
44	03.403 BOLT; ACL 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0211-0501		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0211-0501			●
44	03.403 BOLT; ACL 4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0502-0512	●			●
44	03.403 BOLT; ACL 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0502-0512		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0502-0512			●
44	03.403 BOLT; ACL 4HF1-S ENG(RLS) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●			●
44	03.403 BOLT; ACL M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-			●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS)	8-97106-928-0	01	1	0211-0501	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-928-0	01	1	0211-0501		●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS)	8-97106-928-0	01	1	0502-0504	●			●
54	03.405 BRACKET; ACL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-928-0	01	1	0502-0504		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-928-0	01	1	0502-0504			●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS)	8-97106-928-0	01	1	0505-0709	●			●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-928-0	01	1	0505-0709		●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS)	8-97106-928-0	01	1	0710-	●			●
54	03.405 BRACKET; ACL EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-928-0	01	1	0710-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-928-0	01	1	0710-			●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ>	8-97351-163-0	01	1	0211-0501		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH)	8-97351-163-0	01	1	0211-0501			●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ>	8-97351-163-0	01	1	0502-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97351-163-0	01	1	0502-			●
68	03.415 INDICATOR; SERVICE 4HF1-S ENG(RLS)	1-14219-212-0	01	1	0211-0501	●
68	03.415 INDICATOR; SERVICE	1-14219-212-0	01	1	0211-0501		●
68	03.415 INDICATOR; SERVICE 4HG1 ENG(RJH)	1-14219-212-0	01	1	0211-0501			●
68	03.415 INDICATOR; SERVICE 4HF1-S ENG(RLS)	1-14219-212-0	01	1	0502-	●			●
68	03.415 INDICATOR; SERVICE	1-14219-212-0	01	1	0502-		●
68	03.415 INDICATOR; SERVICE 4HG1 ENG(RJH)	1-14219-212-0	01	1	0502-			●
91	03.403 CLAMP 4HF1-S ENG(RLS)	8-97093-696-2	01	1	0211-0501	●
91	03.403 CLAMP	8-97093-696-2	01	1	0211-0501		●
91	03.403 CLAMP 4HG1 ENG(RJH)	8-97093-696-2	01	1	0211-0501			●
91	03.403 CLAMP 4HF1-S ENG(RLS)	8-97093-696-2	01	1	0502-	●			●
91	03.403 CLAMP	8-97093-696-2	01	1	0502-		●
91	03.403 CLAMP 4HG1 ENG(RJH)	8-97093-696-2	01	1	0502-			●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS)	8-94447-157-0	01	1	0211-0501	●
94	03.415 VALVE; VACUATOR	8-94447-157-0	01	1	0211-0501		●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH)	8-94447-157-0	01	1	0211-0501			●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS)	8-94447-157-0	01	1	0502-	●			●
94	03.415 VALVE; VACUATOR	8-94447-157-0	01	1	0502-		●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH)	8-94447-157-0	01	1	0502-			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0211-0501	●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0211-0501		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0211-0501			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0502-0512	●			●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0502-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0502-0512			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-	●			●
145	03.405 BOLT; BRKT TO FRAME 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-			●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501			●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602			●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-	●			●
146	03.405 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-			●
208	03.407 DUCT; ACL 4HF1-S ENG(RLS)	8-97103-478-1	01	1	0211-0501	●
208	03.407 DUCT; ACL	8-97103-478-1	01	1	0211-0501		●
208	03.407 DUCT; ACL 4HG1 ENG(RJH)	8-97103-478-1	01	1	0211-0501			●
208	03.407 DUCT; ACL 4HF1-S ENG(RLS)	8-97103-478-1	01	1	0502-	●			●
208	03.407 DUCT; ACL	8-97103-478-1	01	1	0502-		●
208	03.407 DUCT; ACL 4HG1 ENG(RJH)	8-97103-478-1	01	1	0502-			●
