1-11 — RADIATOR HOSE AND SUB TANK (#36990) — 78 parça
çizim 21747
56 128 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0211-0501 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0502- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) 		8-97177-372-0 01 1 0211- ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH) ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0502- ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0502- ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH) ID=40 		8-97245-216-0 02 1 0502- ●
128 01.159 HOSE; WATER,RAD INL
4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0211-0501 ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0502- ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) 		8-97210-676-0 01 1 0211- ● ●

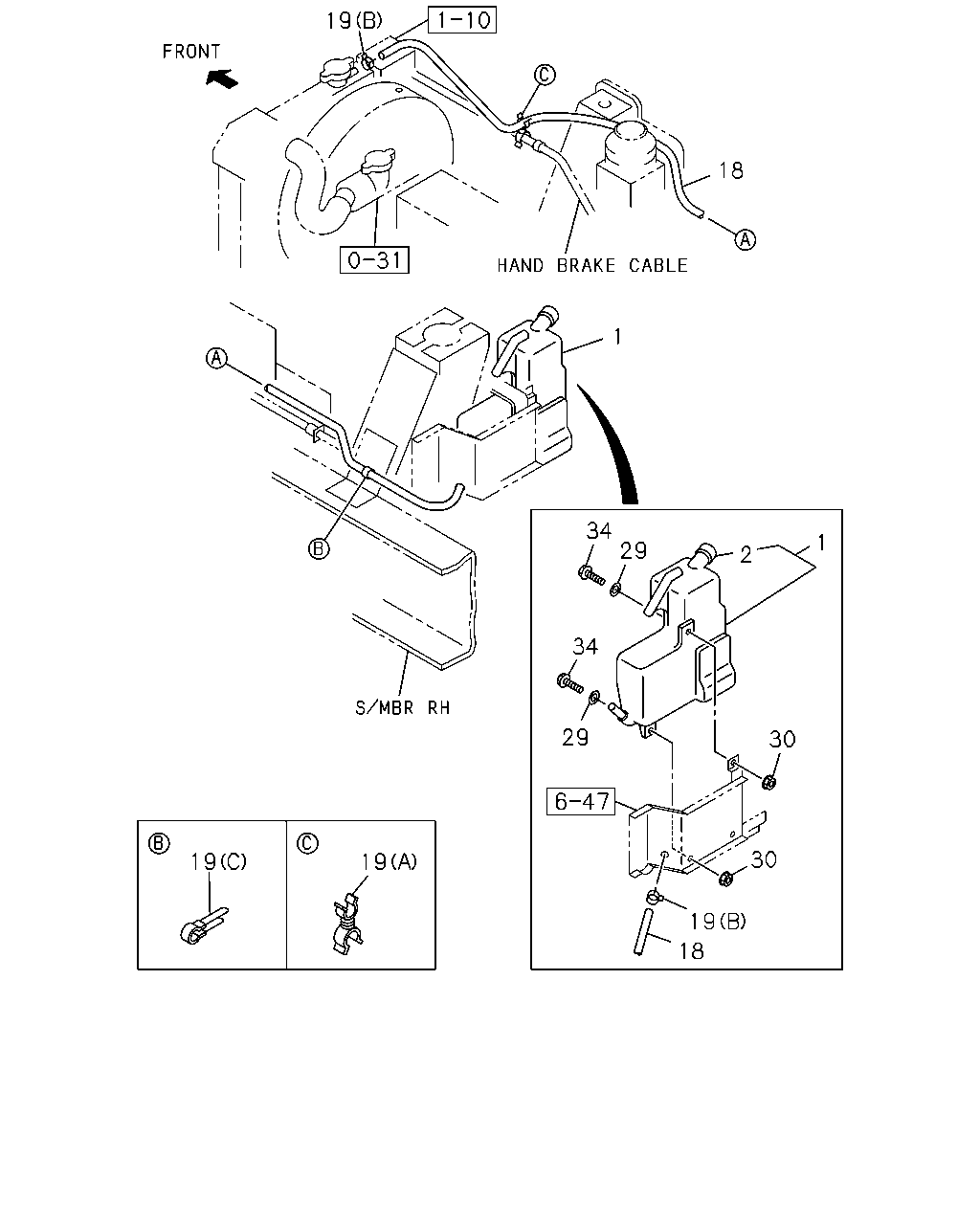

çizim 75243
19 18 1 34 29 1 2 34 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD 8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) 		8-97210-844-0 01 1 0502-1010 ● ●
1 01.219 TANK; SURGE,RAD 8-97210-844-0 01 1 0502-1010 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH) 		8-97210-844-0 01 1 0502-1010 ●
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) 		8-98178-177-0 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD 8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH) 		8-98178-177-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-1010 ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0502-1010 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH) 		8-97217-796-0 01 1 0502-1010 ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ● ●
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH) 		8-98178-074-0 01 1 1011- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (C) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) (C) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (C) ID=14 L=47 		5-09700-319-0 01 1 0502- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) (C) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0502- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (B) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (B) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ● ●
29 01.203 WASHER; PL,RESERVE TANK
00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ●
30 01.203 NUT
4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1 ENG(RJH) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ●
30 01.203 NUT
4HG1 ENG(RJH) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ●
30 01.203 NUT
4HF1-S ENG(RLS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
30 01.203 NUT
01.062 M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
4HG1 ENG(RJH) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0603- ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ● ●
34 01.203 BOLT; RESERVE TANK
03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
