Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

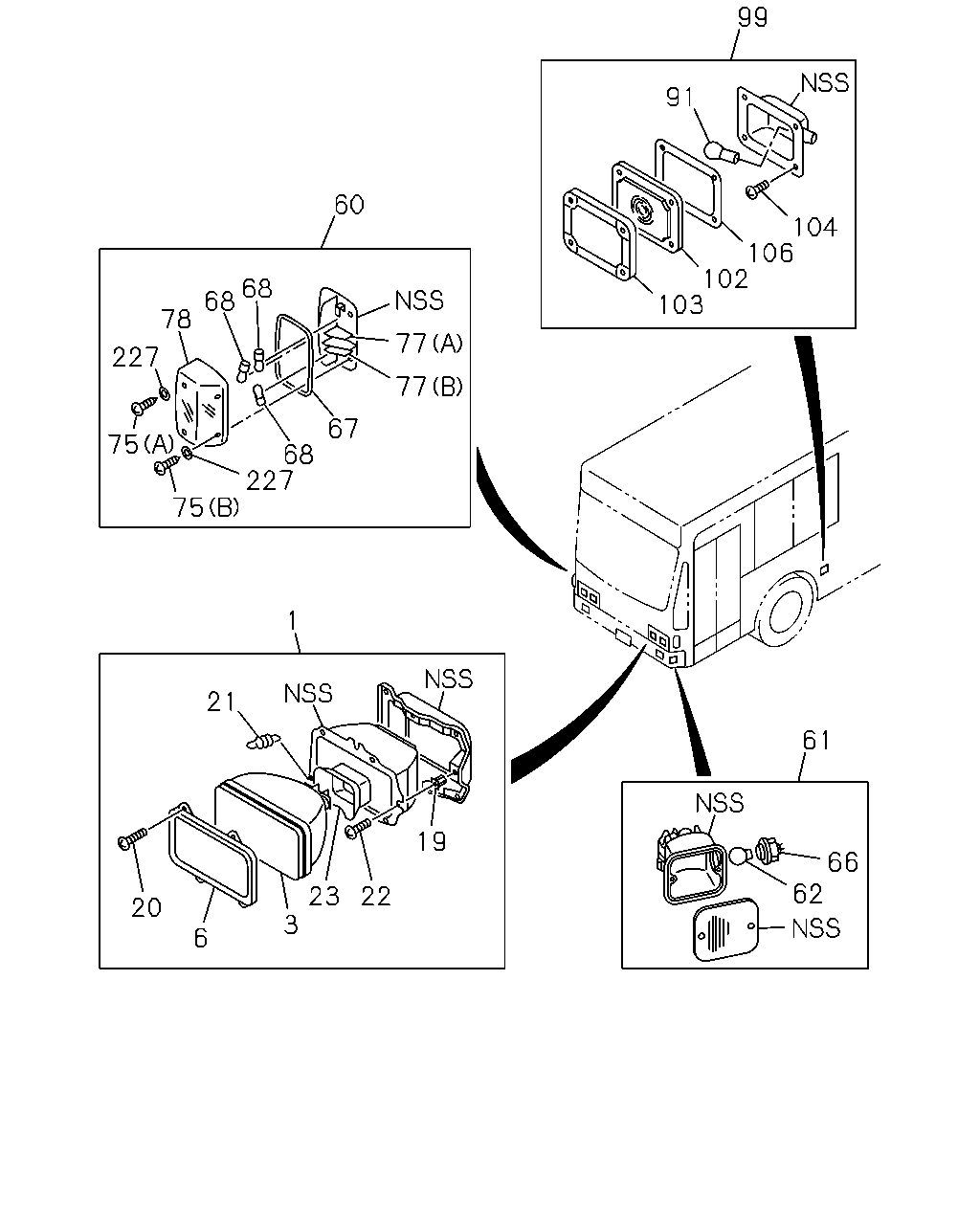

8-01 — LAMP; FRONT AND FRONT SIDE
(#3699) — 44 parça
99
91
60
104
106
102
103
68
68
78
77
227
77
67
75
68
227
75
1
21
61
19
66
62
23
3
22
20
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
24V 55W
1-82110-231-3
01
1
9712-
1
LAMP ASM; HEAD
24V 50/65W
1-82110-233-4
01
1
9712-
1
LAMP ASM; HEAD
24V 55W
1-82110-230-3
01
1
9712-
1
LAMP ASM; HEAD
24V 50/65W
1-82110-232-4
01
1
9712-
3
SEALED BEAM; HEADLAMP
24V 55W
1-82191-029-0
02
1
9712-
3
SEALED BEAM; HEADLAMP
24V 50/65W
1-82191-030-0
02
1
9712-
6
RIM; HEADLAMP
24V 70W
1-82114-018-0
02
1
9712-
6
RIM; HEADLAMP
24V 75/70W
1-82114-019-0
02
1
9712-
19
NUT; HEADLAMP
1-82119-056-0
08
1
9712-
20
SCREW; HEADLAMP
1-82119-023-0
16
1
9712-
21
SPRING; ADJ HEADLAMP
1-82119-105-0
04
1
9712-
22
SCREW; ADJ,HEADLAMP
1-82119-095-0
08
1
9712-
23
COVER; BULB,HEADLAMP
1-82119-013-0
04
1
9712-
60
LAMP ASM; FRT COMB
1-82210-194-0
01
1
9712-
60
LAMP ASM; FRT COMB
1-82210-193-0
01
1
9712-
61
LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W
1-86830-067-6
01
1
9712-
61
LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W
1-86830-010-6
01
1
9712-
62
BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W
8-97010-179-0
02
1
9712-
66
HARNESS; CORNERING LAMP
CORNERING LAMP<TDS>
1-86830-146-0
02
1
9712-
67
GASKET; FRT COMB LAMP
1-82216-004-0
01
1
9712-
67
GASKET; FRT COMB LAMP
1-82216-003-0
01
1
9712-
68
BULB; FRT COMB LAMP
24V 25W
9-82691-347-0
04
1
9712-
68
BULB; FRT COMB LAMP
24V 10/4W
9-82691-607-0
02
1
9712-
75
SCREW; FRT COMB LAMP
(A) M4X50
1-82219-015-0
04
1
9712-
75
SCREW; FRT COMB LAMP
(B) M4X16
1-82219-016-0
04
1
9712-
77
SHADE; FRT TURN SIGNAL LAMP
(A)
1-82219-020-0
02
1
9712-
77
SHADE; FRT TURN SIGNAL LAMP
(B)
1-82219-021-0
02
1
9712-
78
LENS ASM; FRT COMB
1-82215-009-0
01
1
9712-
78
LENS ASM; FRT COMB
1-82215-008-0
01
1
9712-
91
BULB; SIDE TURN SIGNAL
24V 25W
9-82691-347-0
02
1
9712-
91
BULB; SIDE TURN SIGNAL
24V 25W
9-82691-347-0
02
1
9712-
99
LAMP; SIDE FLASHER
24V 25W
1-82220-007-0
01
1
9712-
99
LAMP; SIDE FLASHER
24V 25W
1-82220-007-0
01
1
9712-
99
LAMP; SIDE FLASHER
24V 25W
1-82220-006-0
01
1
9712-
99
LAMP; SIDE FLASHER
24V 25W
1-82220-006-0
01
1
9712-
102
LENS; SIDE TURN SIGNAL
1-82225-002-0
02
1
9712-
102
LENS; SIDE TURN SIGNAL
1-82225-002-0
02
1
9712-
103
RIM; SIDE TURN SIGNAL
1-82224-001-0
02
1
9712-
103
RIM; SIDE TURN SIGNAL
1-82224-001-0
02
1
9712-
104
SCREW; SIDE TURN SIGNAL
1-82229-004-0
12
1
9712-
104
SCREW; SIDE TURN SIGNAL
1-82229-004-0
12
1
9712-
106
GASKET; SIDE TURN SIGNAL
1-82226-002-0
02
1
9712-
106
GASKET; SIDE TURN SIGNAL
1-82226-002-0
02
1
9712-
227
SEAT; SET SCREW,FRT COMB LAMP
1-82219-017-0
08
1
9712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
