Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#36989) — 282 parça

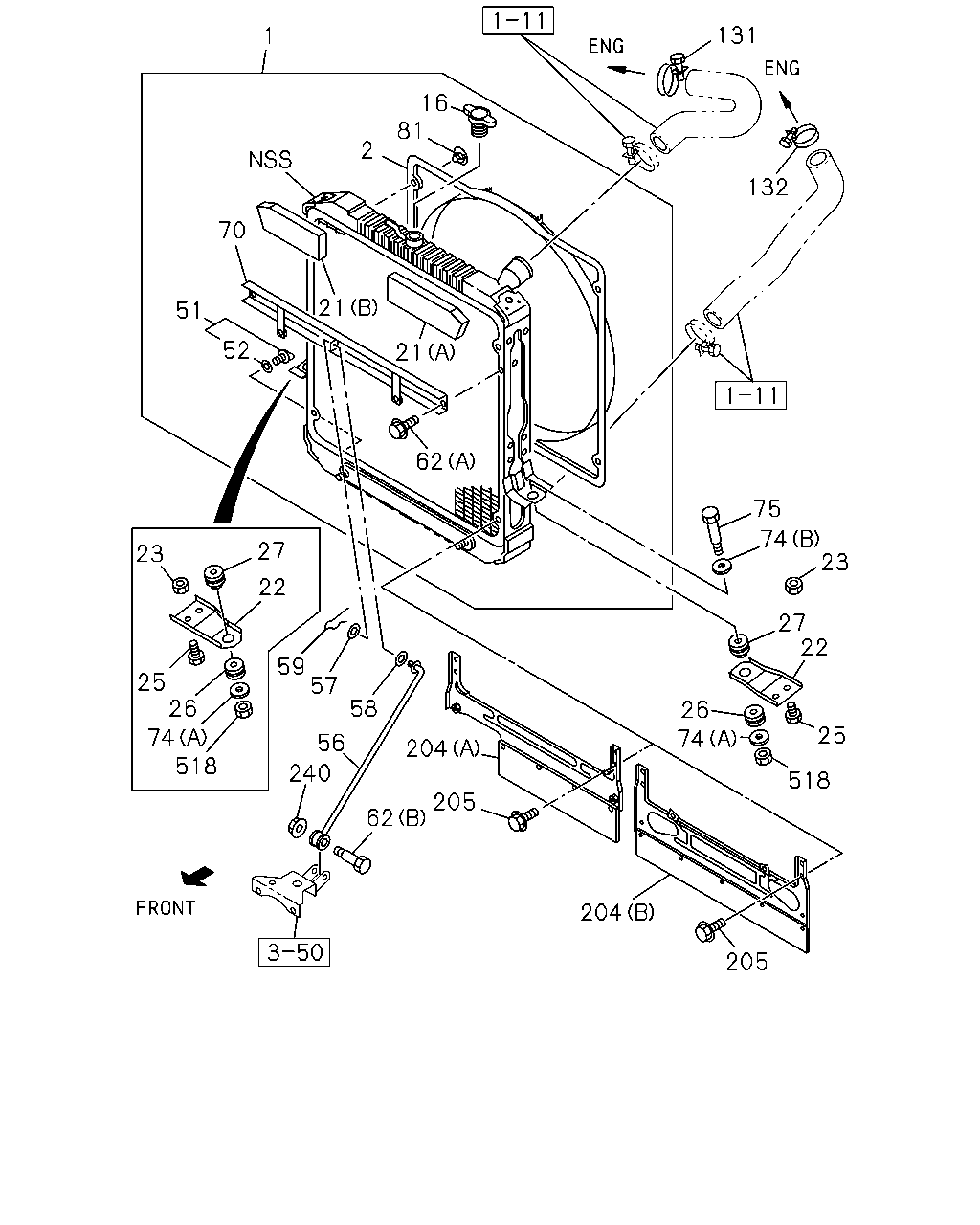

27 22 519 23 131 26 74 518 481 25 1 81 132 16 2 21 51 52 70 62 75 59 57 58 56 74 27 23 240 22 26 62 25 74 518 204 205 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97148-287-1	01	1	0211-0305	●	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97371-010-0	01	1	0306-0501	●	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97371-010-0	01	1	0502-	●	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-97177-193-1	01	1	0211-0305		●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-97371-011-0	01	1	0306-		●		●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-105-1	01	1	0502-	●	●	●
2	01.277 GUIDE; FAN 4HF1-S ENG(RLS)	8-97066-016-0	01	1	0211-0501	●
2	01.277 GUIDE; FAN	8-97066-016-0	01	1	0211-0501		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-97066-016-0	01	1	0211-0501				●
2	01.277 GUIDE; FAN 4HF1-S ENG(RLS)	8-97066-016-0	01	1	0502-	●		●
2	01.277 GUIDE; FAN	8-97066-016-0	01	1	0502-		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-97066-016-0	01	1	0502-				●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97177-872-0	01	1	0211-0305	●
16	01.203 CAP; RAD	8-97177-872-0	01	1	0211-0305		●
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-97177-872-0	01	1	0211-0305				●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97371-017-0	01	1	0306-0501	●
16	01.203 CAP; RAD	8-97371-017-0	01	1	0306-0501		●
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-97371-017-0	01	1	0306-0501				●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97371-017-0	01	1	0502-	●		●
16	01.203 CAP; RAD	8-97371-017-0	01	1	0502-		●
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-97371-017-0	01	1	0502-				●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) (A) L=240	8-97190-922-0	01	1	0211-		●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) (B) L=205	8-97190-923-0	01	1	0211-		●		●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-107-0	01	1	0502-	●	●	●
22	01.270 BRACKET; RAD MTG 4HF1-S ENG(RLS)	8-94101-621-1	02	1	0211-0501	●
22	01.270 BRACKET; RAD MTG EXC. FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	0211-0501		●
22	01.270 BRACKET; RAD MTG 4HF1-S ENG(RLS)	8-94101-621-1	02	1	0502-	●		●
22	01.270 BRACKET; RAD MTG EXC. FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	0502-		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	0502-				●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0211-0501		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97074-093-0	02	1	0211-0501				●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0502-		●		●
22	01.270 BRACKET; RAD MTG 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0211-		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0211-0501	●	●		●
23	01.271 NUT; RAD MTG 4HF1-S ENG(RLS) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-	●		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-				●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0501	●	●		●
25	01.271 BOLT; BRKT 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512	●		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512		●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512				●
25	01.271 BOLT; BRKT 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●		●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-		●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-				●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-0501	●	●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0502-	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-0501	●	●		●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0502-	●	●	●	●
51	08.951 PLUG; DRAIN 4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501				●
51	08.951 PLUG; DRAIN 4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0502-	●		●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0502-		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0502-				●
52	08.951 GASKET; DRAIN PLUG 4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0211-0501	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0211-0501		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0211-0501				●
52	08.951 GASKET; DRAIN PLUG 4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0502-	●		●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0502-		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0502-				●
56	01.270 STAY; RAD 4HF1-S ENG(RLS)	8-97350-324-0	01	1	0211-0501	●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97350-324-0	01	1	0211-0501		●
56	01.270 STAY; RAD 4HF1-S ENG(RLS)	8-97350-324-0	01	1	0502-	●		●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97350-324-0	01	1	0502-		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0211-0501		●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-802-2	01	1	0211-0501				●
56	01.270 STAY; RAD 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0502-		●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97330-456-0	01	1	0211-0501		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97330-456-0	01	1	0502-		●		●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97032-798-2	01	1	0211-		●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0501	●	●		●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0502-0605	●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0211-0501	●	●		●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0502-	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0211-0501	●	●		●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0502-0610	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501		●
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501				●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-	●		●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-		●
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-				●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-0501	●	●		●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0502-	●	●	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS)	8-97047-899-0	01	1	0211-0501	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS)	8-97047-899-0	01	1	0502-	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH)	8-97073-125-0	01	1	0211-		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0501	●	●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0502-0610	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-0501	●	●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-	●		●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-				●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-0501	●	●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HF1-S ENG(RLS) 01.274 M8X63	8-94249-446-0	01	1	0502-	●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0502-		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-				●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-S ENG(RLS)	8-97088-810-0	04	1	0211-0501	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0211-0501		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0211-0501				●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-S ENG(RLS)	8-97088-810-0	04	1	0502-	●		●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0502-		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0502-				●
131	01.166 CLIP; ENG SIDE TOP 4HF1-S ENG(RLS) ID=40	8-97245-216-0	01	1	0211-0501	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0211-0501		●
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0211-0501				●
131	01.166 CLIP; ENG SIDE TOP 4HF1-S ENG(RLS) ID=40	8-97245-216-0	01	1	0502-	●		●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0502-		●
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0502-				●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1-S ENG(RLS) ID=50	8-97245-217-0	01	1	0211-0501	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0211-0501		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0211-0501				●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1-S ENG(RLS) ID=50	8-97245-217-0	01	1	0502-	●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0502-		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0502-				●
204	01.267 GUIDE ASM; AIR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97038-894-1	01	1	0211-0501	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97038-894-1	01	1	0211-0501		●
204	01.267 GUIDE ASM; AIR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0502-0508	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0502-0508		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0502-0508				●
204	01.267 GUIDE ASM; AIR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0509-	●	●	●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97177-584-0	01	1	0509-		●		●
205	01.267 BOLT; AIR GUIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501		●
205	01.267 BOLT; AIR GUIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512	●		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512		●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512				●
205	01.267 BOLT; AIR GUIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-	●		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-		●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-				●
240	01.271 NUT; STAY FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0211-0501		●
240	01.271 NUT; STAY 4HG1 ENG(RJH) M8 FLANGE	8-94178-701-0	01	1	0211-0501				●
240	01.271 NUT; STAY FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0502-		●
240	01.271 NUT; STAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0502-				●
481	01.276 BOLT; SEAL FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97228-568-0	05	1	0502-	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0501	●	●		●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0502-0610	●	●	●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●	●
519	01.276 SEAL; RAD SIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97372-846-1	01	1	0502-	●	●	●

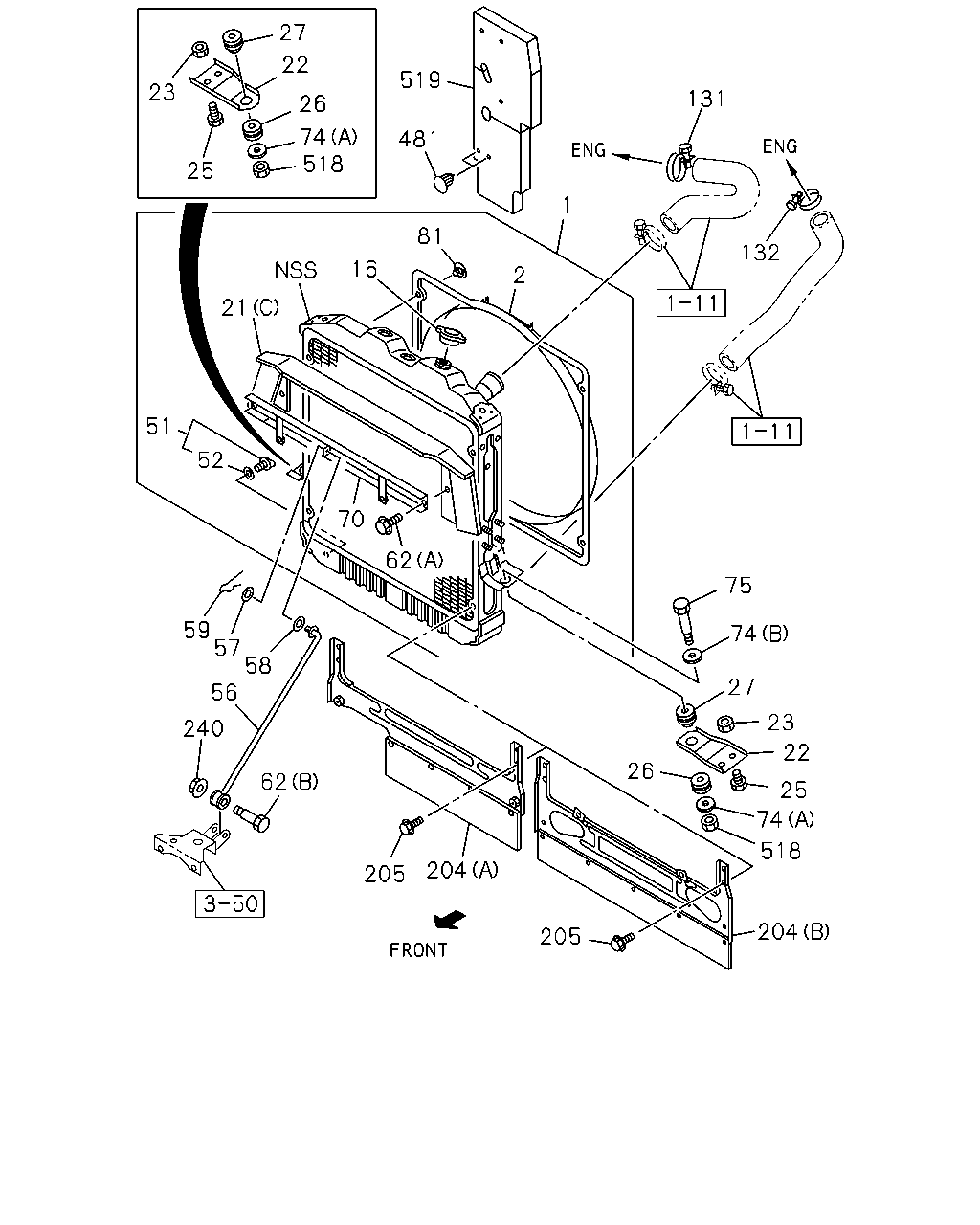

131 1 16 81 2 132 70 21 51 52 21 62 75 74 23 27 23 22 27 22 59 57 25 26 58 26 74 25 74 518 56 204 240 518 205 62 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97148-287-1	01	1	0211-0305	●	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97371-010-0	01	1	0306-0501	●	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97371-010-0	01	1	0502-	●	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-97177-193-1	01	1	0211-0305		●		●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-97371-011-0	01	1	0306-		●		●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-105-1	01	1	0502-	●	●	●
2	01.277 GUIDE; FAN 4HF1-S ENG(RLS)	8-97066-016-0	01	1	0211-0501	●
2	01.277 GUIDE; FAN	8-97066-016-0	01	1	0211-0501		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-97066-016-0	01	1	0211-0501				●
2	01.277 GUIDE; FAN 4HF1-S ENG(RLS)	8-97066-016-0	01	1	0502-	●		●
2	01.277 GUIDE; FAN	8-97066-016-0	01	1	0502-		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-97066-016-0	01	1	0502-				●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97177-872-0	01	1	0211-0305	●
16	01.203 CAP; RAD	8-97177-872-0	01	1	0211-0305		●
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-97177-872-0	01	1	0211-0305				●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97371-017-0	01	1	0306-0501	●
16	01.203 CAP; RAD	8-97371-017-0	01	1	0306-0501		●
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-97371-017-0	01	1	0306-0501				●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97371-017-0	01	1	0502-	●		●
16	01.203 CAP; RAD	8-97371-017-0	01	1	0502-		●
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-97371-017-0	01	1	0502-				●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) (A) L=240	8-97190-922-0	01	1	0211-		●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) (B) L=205	8-97190-923-0	01	1	0211-		●		●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97384-107-0	01	1	0502-	●	●	●
22	01.270 BRACKET; RAD MTG 4HF1-S ENG(RLS)	8-94101-621-1	02	1	0211-0501	●
22	01.270 BRACKET; RAD MTG EXC. FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	0211-0501		●
22	01.270 BRACKET; RAD MTG 4HF1-S ENG(RLS)	8-94101-621-1	02	1	0502-	●		●
22	01.270 BRACKET; RAD MTG EXC. FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	0502-		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94101-621-1	02	1	0502-				●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0211-0501		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97074-093-0	02	1	0211-0501				●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0502-		●		●
22	01.270 BRACKET; RAD MTG 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0211-		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0211-0501	●	●		●
23	01.271 NUT; RAD MTG 4HF1-S ENG(RLS) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-	●		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-				●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0501	●	●		●
25	01.271 BOLT; BRKT 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512	●		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512		●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512				●
25	01.271 BOLT; BRKT 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●		●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-		●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-				●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-0501	●	●		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0502-	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-0501	●	●		●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0502-	●	●	●	●
51	08.951 PLUG; DRAIN 4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501				●
51	08.951 PLUG; DRAIN 4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0502-	●		●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0502-		●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0502-				●
52	08.951 GASKET; DRAIN PLUG 4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0211-0501	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0211-0501		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0211-0501				●
52	08.951 GASKET; DRAIN PLUG 4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0502-	●		●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0502-		●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0502-				●
56	01.270 STAY; RAD 4HF1-S ENG(RLS)	8-97350-324-0	01	1	0211-0501	●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97350-324-0	01	1	0211-0501		●
56	01.270 STAY; RAD 4HF1-S ENG(RLS)	8-97350-324-0	01	1	0502-	●		●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97350-324-0	01	1	0502-		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0211-0501		●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-802-2	01	1	0211-0501				●
56	01.270 STAY; RAD 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0502-		●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97330-456-0	01	1	0211-0501		●
56	01.270 STAY; RAD 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97330-456-0	01	1	0502-		●		●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97032-798-2	01	1	0211-		●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0501	●	●		●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0502-0605	●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0211-0501	●	●		●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0502-	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0211-0501	●	●		●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0502-0610	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501		●
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501				●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-	●		●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-		●
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-				●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-0501	●	●		●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0502-	●	●	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS)	8-97047-899-0	01	1	0211-0501	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS)	8-97047-899-0	01	1	0502-	●	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH)	8-97073-125-0	01	1	0211-		●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0501	●	●		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0502-0610	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-0501	●	●		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-	●		●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-		●
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-				●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-0501	●	●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HF1-S ENG(RLS) 01.274 M8X63	8-94249-446-0	01	1	0502-	●		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0502-		●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-				●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-S ENG(RLS)	8-97088-810-0	04	1	0211-0501	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0211-0501		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0211-0501				●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-S ENG(RLS)	8-97088-810-0	04	1	0502-	●		●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0502-		●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0502-				●
131	01.166 CLIP; ENG SIDE TOP 4HF1-S ENG(RLS) ID=40	8-97245-216-0	01	1	0211-0501	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0211-0501		●
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0211-0501				●
131	01.166 CLIP; ENG SIDE TOP 4HF1-S ENG(RLS) ID=40	8-97245-216-0	01	1	0502-	●		●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0502-		●
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0502-				●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1-S ENG(RLS) ID=50	8-97245-217-0	01	1	0211-0501	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0211-0501		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0211-0501				●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1-S ENG(RLS) ID=50	8-97245-217-0	01	1	0502-	●		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0502-		●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0502-				●
204	01.267 GUIDE ASM; AIR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97038-894-1	01	1	0211-0501	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97038-894-1	01	1	0211-0501		●
204	01.267 GUIDE ASM; AIR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0502-0508	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0502-0508		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0502-0508				●
204	01.267 GUIDE ASM; AIR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-880-0	01	1	0509-	●	●	●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97177-584-0	01	1	0509-		●		●
205	01.267 BOLT; AIR GUIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501		●
205	01.267 BOLT; AIR GUIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512	●		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512		●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512				●
205	01.267 BOLT; AIR GUIDE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-	●		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-		●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-				●
240	01.271 NUT; STAY FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0211-0501		●
240	01.271 NUT; STAY 4HG1 ENG(RJH) M8 FLANGE	8-94178-701-0	01	1	0211-0501				●
240	01.271 NUT; STAY FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0502-		●
240	01.271 NUT; STAY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0502-				●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0501	●	●		●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0502-0610	●	●	●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
