Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#36988) — 286 parça

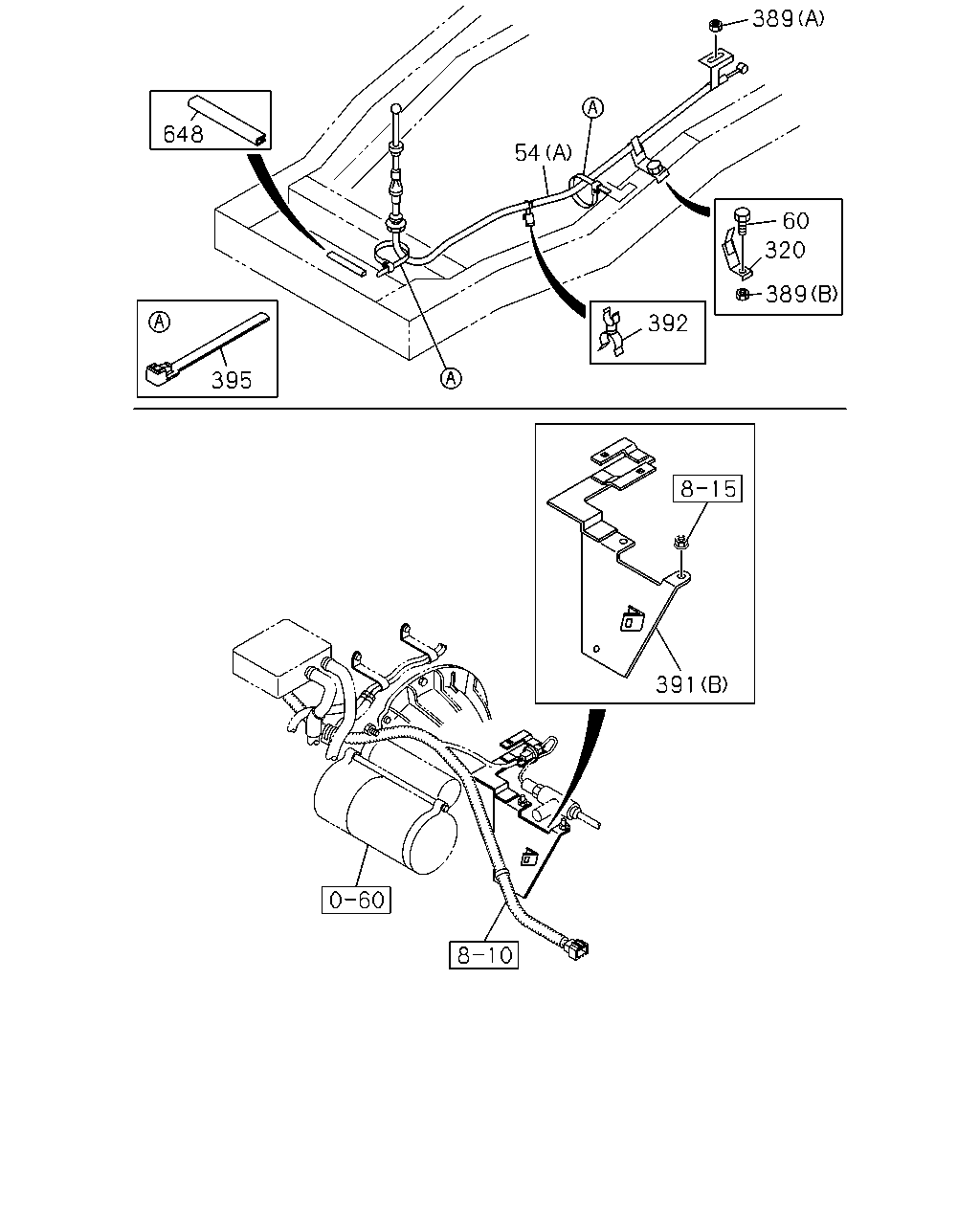

54 99 54 99 100 101 108 729 218 101 104 391 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> (A) L=2283	8-97122-494-2	01	1	0211-0306	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2283	8-97122-494-2	01	1	0211-0306		●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=2283	8-97122-494-2	01	1	0307-0501	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2283	8-97122-494-2	01	1	0307-0501		●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=2283	8-97122-494-2	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) L=2283	8-97122-494-2	01	1	0502-		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (A) L=2164	8-97118-536-2	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (A) L=2164	8-97118-536-2	01	1	0502-			●	●
54	03.430 CABLE; ENG CONT EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0502-		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0211-0501		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-			●	●
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0502-		●
54	03.430 CABLE; ENG CONT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-405-0	01	1	0307-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1-S ENG(RLS)	8-97118-729-0	01	1	0211-0501			●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0211-0501	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0211-0501		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1-S ENG(RLS)	8-97118-729-0	01	1	0502-			●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97118-729-0	01	1	0502-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0502-		●
100	03.463 SHAFT ASM; ENG CONT 4HF1-S ENG(RLS)	8-97118-737-0	01	1	0211-0501			●
100	03.463 SHAFT ASM; ENG CONT EXC. ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0211-0501	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0211-0501		●
100	03.463 SHAFT ASM; ENG CONT 4HF1-S ENG(RLS)	8-97118-737-0	01	1	0502-			●	●
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	0502-	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0502-		●
101	03.463 WASHER; ENG CONT 4HF1-S ENG(RLS) 01.276	8-94142-117-0	02	1	0211-0501			●
101	03.463 WASHER; ENG CONT EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0211-0501	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0211-0501		●
101	03.463 WASHER; ENG CONT 4HF1-S ENG(RLS) 01.276	8-94142-117-0	02	1	0502-			●	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0502-	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0502-		●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
104	03.463 NUT; ENG CONT EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●	●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
104	03.463 NUT; ENG CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
108	03.463 BUSHING; ENG CONT 4HF1-S ENG(RLS)	8-97120-004-0	01	1	0211-0501			●
108	03.463 BUSHING; ENG CONT EXC. ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0211-0501	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0211-0501		●
108	03.463 BUSHING; ENG CONT 4HF1-S ENG(RLS)	8-97120-004-0	01	1	0502-			●	●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0502-	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0502-		●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501			●
110	03.463 BOLT; BRKT TO HANGER EXC. ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501		●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0512			●	●
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0512	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0512		●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-			●	●
110	03.463 BOLT; BRKT TO HANGER 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0211-0501		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0502-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (B)	8-97357-141-0	01	1	0211-0501		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-			●	●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0502-	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (B)	8-97357-141-0	01	1	0502-		●
729	03.451 COLLAR; JOINT 4HF1-S ENG(RLS)	8-97118-760-0	01	1	0211-0501			●
729	03.451 COLLAR; JOINT EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0211-0501	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0211-0501		●
729	03.451 COLLAR; JOINT 4HF1-S ENG(RLS)	8-97118-760-0	01	1	0502-			●	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0502-	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0502-		●

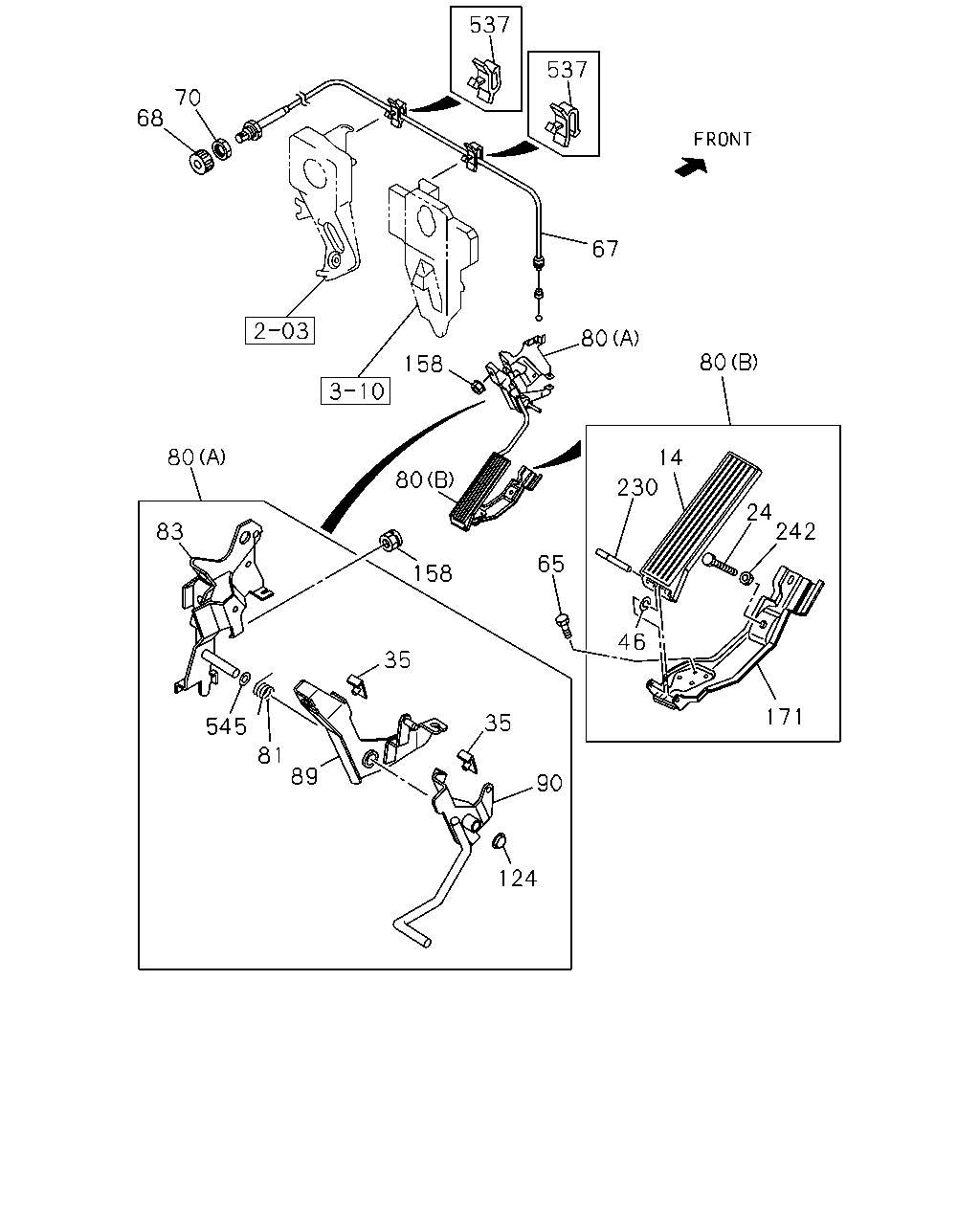

537 537 70 68 67 80 80 158 80 14 80 230 24 242 83 65 158 46 35 171 35 545 81 89 90 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0211-0501	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0502-	●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0211-0501	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0502-	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HF1-S ENG(RLS)	8-97302-305-0	02	1	0211-0501			●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0211-0501	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH)	8-97302-305-0	02	1	0211-0501		●
35	03.459 STOPPER; ACCEL PEDAL 4HF1-S ENG(RLS)	8-97302-305-0	02	1	0502-			●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0502-	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH)	8-97302-305-0	02	1	0502-		●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0604	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0211-0501	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0502-	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HF1-S ENG(RLS) L=945	8-97856-223-4	01	1	0211-0501			●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	0211-0501	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH) L=945	8-97856-223-4	01	1	0211-0501		●
67	03.480 CABLE ASM; IDLE CONT 4HF1-S ENG(RLS) L=945	8-97856-223-4	01	1	0502-			●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	0502-	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH) L=945	8-97856-223-4	01	1	0502-		●
68	03.480 KNOB; IDLE CONT 4HF1-S ENG(RLS)	8-97853-765-1	01	1	0211-0501			●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-0501	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH)	8-97853-765-1	01	1	0211-0501		●
68	03.480 KNOB; IDLE CONT 4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-			●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0502-	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH)	8-97853-765-1	01	1	0502-		●
70	03.483 NUT; CONT CABLE 4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0211-0501			●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-0501	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH) M18	8-97853-233-0	01	1	0211-0501		●
70	03.483 NUT; CONT CABLE 4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-			●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0502-	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH) M18	8-97853-233-0	01	1	0502-		●
80	03.452 LINK ASM; ENG CONT 4HF1-S ENG(RLS) (A)	8-97859-518-3	01	1	0211-0501			●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	0211-0501	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) (A)	8-97859-518-3	01	1	0211-0501		●
80	03.452 LINK ASM; ENG CONT 4HF1-S ENG(RLS) (A)	8-97859-518-3	01	1	0502-			●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	0502-	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) (A)	8-97859-518-3	01	1	0502-		●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0211-0501	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0502-	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0501			●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0211-0501	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH)	8-97853-205-1	01	1	0211-0501		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1-S ENG(RLS)	8-97853-205-1	01	1	0502-			●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0502-	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH)	8-97853-205-1	01	1	0502-		●
83	03.452 BRACKET; CONT LINK 4HF1-S ENG(RLS)	8-97859-519-0	01	1	0211-0501			●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	0211-0501	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-97859-519-0	01	1	0211-0501		●
83	03.452 BRACKET; CONT LINK 4HF1-S ENG(RLS)	8-97859-519-0	01	1	0502-			●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	0502-	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-97859-519-0	01	1	0502-		●
89	03.454 LEVER; RELAY 4HF1-S ENG(RLS)	8-97857-617-4	01	1	0211-0501			●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	0211-0501	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH)	8-97857-617-4	01	1	0211-0501		●
89	03.454 LEVER; RELAY 4HF1-S ENG(RLS)	8-97857-617-4	01	1	0502-			●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	0502-	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH)	8-97857-617-4	01	1	0502-		●
90	03.454 LEVER; RELAY,ENG CONT 4HF1-S ENG(RLS)	8-97857-613-6	01	1	0211-0501			●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	0211-0501	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH)	8-97857-613-6	01	1	0211-0501		●
90	03.454 LEVER; RELAY,ENG CONT 4HF1-S ENG(RLS)	8-97857-613-6	01	1	0502-			●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	0502-	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH)	8-97857-613-6	01	1	0502-		●
124	03.463 NUT; LEVER 4HF1-S ENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501			●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501		●
124	03.463 NUT; LEVER 4HF1-S ENG(RLS) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-			●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0211-0501	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0502-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	0211-0501	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	0502-0512	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 4HF1-S ENG(RLS) 04.342 ID=7	5-09707-053-0	02	1	0211-0501			●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	0211-0501	●
537	03.483 CLIP; IDLING CONT CABLE 4HG1 ENG(RJH) 04.342 ID=7	5-09707-053-0	02	1	0211-0501		●
537	03.483 CLIP; IDLING CONT CABLE 4HF1-S ENG(RLS) 04.342 ID=7	5-09707-053-0	02	1	0502-			●	●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	0502-	●
537	03.483 CLIP; IDLING CONT CABLE 4HG1 ENG(RJH) 04.342 ID=7	5-09707-053-0	02	1	0502-		●
545	03.463 WASHER; NYLON 4HF1-S ENG(RLS) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0211-0501			●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0211-0501	●
545	03.463 WASHER; NYLON 4HG1 ENG(RJH) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0211-0501		●
545	03.463 WASHER; NYLON 4HF1-S ENG(RLS) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0502-			●	●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0502-	●
545	03.463 WASHER; NYLON 4HG1 ENG(RJH) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0502-		●

389 648 54 60 320 389 392 395 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2061	8-97205-847-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> (A) L=2283	8-97122-494-2	01	1	0211-0306	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2283	8-97122-494-2	01	1	0211-0306		●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=2283	8-97122-494-2	01	1	0307-0501	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2283	8-97122-494-2	01	1	0307-0501		●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=2283	8-97122-494-2	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) L=2283	8-97122-494-2	01	1	0502-		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (A) L=2164	8-97118-536-2	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2164	8-97118-536-2	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (A) L=2164	8-97118-536-2	01	1	0502-			●	●
54	03.430 CABLE; ENG CONT EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2164	8-97118-536-2	01	1	0502-		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0211-0501		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-			●	●
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0502-		●
54	03.430 CABLE; ENG CONT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-405-0	01	1	0307-	●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) M8X25 FLANGE	0-28480-825-0	01	1	0211-0501			●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0211-0501	●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) M8X25 FLANGE	0-28480-825-0	01	1	0502-0512			●	●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0502-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0502-0512		●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) M8X25 FLANGE	0-28450-825-0	01	1	0601-			●	●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28450-825-0	01	1	0601-	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28450-825-0	01	1	0601-		●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
320	03.483 CLIP; FRAME FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501		●
320	03.483 CLIP; FRAME FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602			●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-			●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-		●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0211-0501	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0211-0501	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0211-0501		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0211-0501		●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805		●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0211-0501		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-			●	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0502-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (B)	8-97357-141-0	01	1	0211-0501		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-			●	●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0502-	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (B)	8-97357-141-0	01	1	0502-		●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-S ENG(RLS) 04.342 ID=8.3 & 10	8-94176-792-0	01	1	0211-0501			●
392	03.483 CLIP; ACCEL CONT CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 ID=8.3 & 10	8-94176-792-0	01	1	0211-0501	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1-S ENG(RLS) 04.342 ID=8.3 & 10	8-94176-792-0	01	1	0502-			●	●
392	03.483 CLIP; ACCEL CONT CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 ID=8.3 & 10	8-94176-792-0	01	1	0502-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 ID=8.3 & 10	8-94176-792-0	01	1	0502-		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) 02.559 L=250	5-09707-030-1	01	1	0211-0302			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0302	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0302	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 02.559 L=250	5-09707-030-1	01	1	0211-0302		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) 02.559 L=250	5-09707-030-1	01	1	0303-0501			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0303-0501	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0303-0501	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0303-0501	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 02.559 L=250	5-09707-030-1	01	1	0303-0501		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) 02.559 L=250	5-09707-030-1	01	1	0502-			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-		●
648	03.483 PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0211-0501	●
648	03.483 PROTECTOR 4HG1 ENG(RJH) 03.008 L=80	5-22439-006-0	01	1	0211-0501		●
648	03.483 PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0502-	●
648	03.483 PROTECTOR 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0502-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
