◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-86 - MISCELLANEOUS PARTS; INJECTION PUMP ▶
0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#36987) — 61 parça

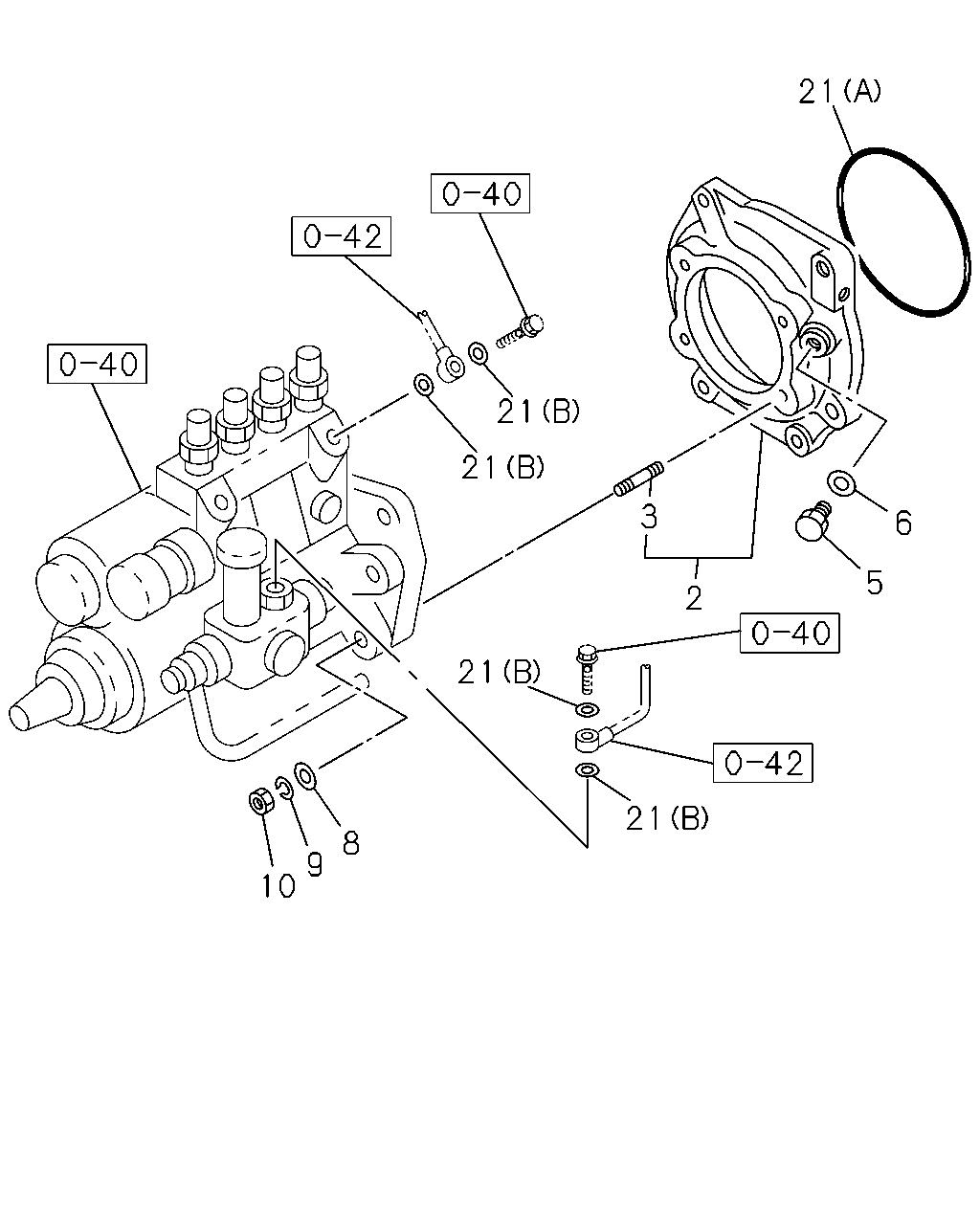

çizim 74831
21 21 21 3 6 5 2 21 21 8 9 10
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ>,ENGINE POWER N-SPEC(7QV) 		8-97121-616-0 01 1 0211-0501 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 		8-97121-616-0 01 1 0211-0501 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97121-616-0 01 1 0502- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 		8-97121-616-0 01 1 0502- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97123-609-0 01 1 0211-0501 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97123-609-0 01 1 0502- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97123-609-0 01 1 0502- ●
3 03.330 STUD; HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ>,ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45 		9-04101-030-0 04 1 0211-0501 ●
3 03.330 STUD; HSG BRKT,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45 		9-04101-030-0 04 1 0211-0501 ●
3 03.330 STUD; HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45 		9-04101-030-0 04 1 0502- ●
3 03.330 STUD; HSG BRKT,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45 		9-04101-030-0 04 1 0502- ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97026-919-0 01 1 0211-0302 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97026-919-0 01 1 0211-0302 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97026-919-0 01 1 0211-0302 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97026-919-0 01 1 0211-0302 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97026-919-0 01 1 0303-0501 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ>,ENGINE POWER N-SPEC(7QV) 		8-97026-919-0 01 1 0303-0501 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97026-919-0 01 1 0303-0501 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97026-919-0 01 1 0502- ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97026-919-0 01 1 0502- ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97026-919-0 01 1 0502- ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97026-919-0 01 1 0502- ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.308 		1-15729-787-0 01 1 0211-0302 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.308 		1-15729-787-0 01 1 0211-0302 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 0211-0302 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 0211-0302 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.308 		1-15729-787-0 01 1 0303-0501 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ>,ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 0303-0501 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 0303-0501 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.308 		1-15729-787-0 01 1 0502- ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.308 		1-15729-787-0 01 1 0502- ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 0502- ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 0502- ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 06.896 ID=10.5 		9-09164-510-0 04 1 0211-0302 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.896 ID=10.5 		9-09164-510-0 04 1 0211-0302 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5 		9-09164-510-0 04 1 0211-0302 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5 		9-09164-510-0 04 1 0211-0302 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.896 ID=10.5 		9-09164-510-0 04 1 0303-0501 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ>,ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5 		9-09164-510-0 04 1 0303-0501 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5 		9-09164-510-0 04 1 0303-0501 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 06.896 ID=10.5 		9-09164-510-0 04 1 0502- ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.896 ID=10.5 		9-09164-510-0 04 1 0502- ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5 		9-09164-510-0 04 1 0502- ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5 		9-09164-510-0 04 1 0502- ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60) 00.002 ID=10.2 		9-09150-610-0 04 1 0211-0501 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.002 ID=10.2 		9-09150-610-0 04 1 0502- ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60) 00.002 ID=10.2 		9-09150-610-0 04 1 0502- ●
10 03.306 NUT; HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-15639-002-0 04 1 0211-0302 ●
10 03.306 NUT; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		5-15639-002-0 04 1 0211-0302 ●
10 03.306 NUT; HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		5-15639-002-0 04 1 0211-0302 ●
10 03.306 NUT; HSG BRKT,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		5-15639-002-0 04 1 0211-0302 ●
10 03.306 NUT; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		5-15639-002-0 04 1 0303-0501 ●
10 03.306 NUT; HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ>,ENGINE POWER N-SPEC(7QV) 		5-15639-002-0 04 1 0303-0501 ●
10 03.306 NUT; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		5-15639-002-0 04 1 0303-0501 ●
10 03.306 NUT; HSG BRKT,INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-15639-002-0 04 1 0502- ●
10 03.306 NUT; HSG BRKT,INJ PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		5-15639-002-0 04 1 0502- ●
10 03.306 NUT; HSG BRKT,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		5-15639-002-0 04 1 0502- ●
10 03.306 NUT; HSG BRKT,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		5-15639-002-0 04 1 0502- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 0211- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 0211-0501 ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 0502- ● ●
