0-83 — ANEROID COMPENSATOR; INJECTION GOVERNOR (#36984) — 96 parça

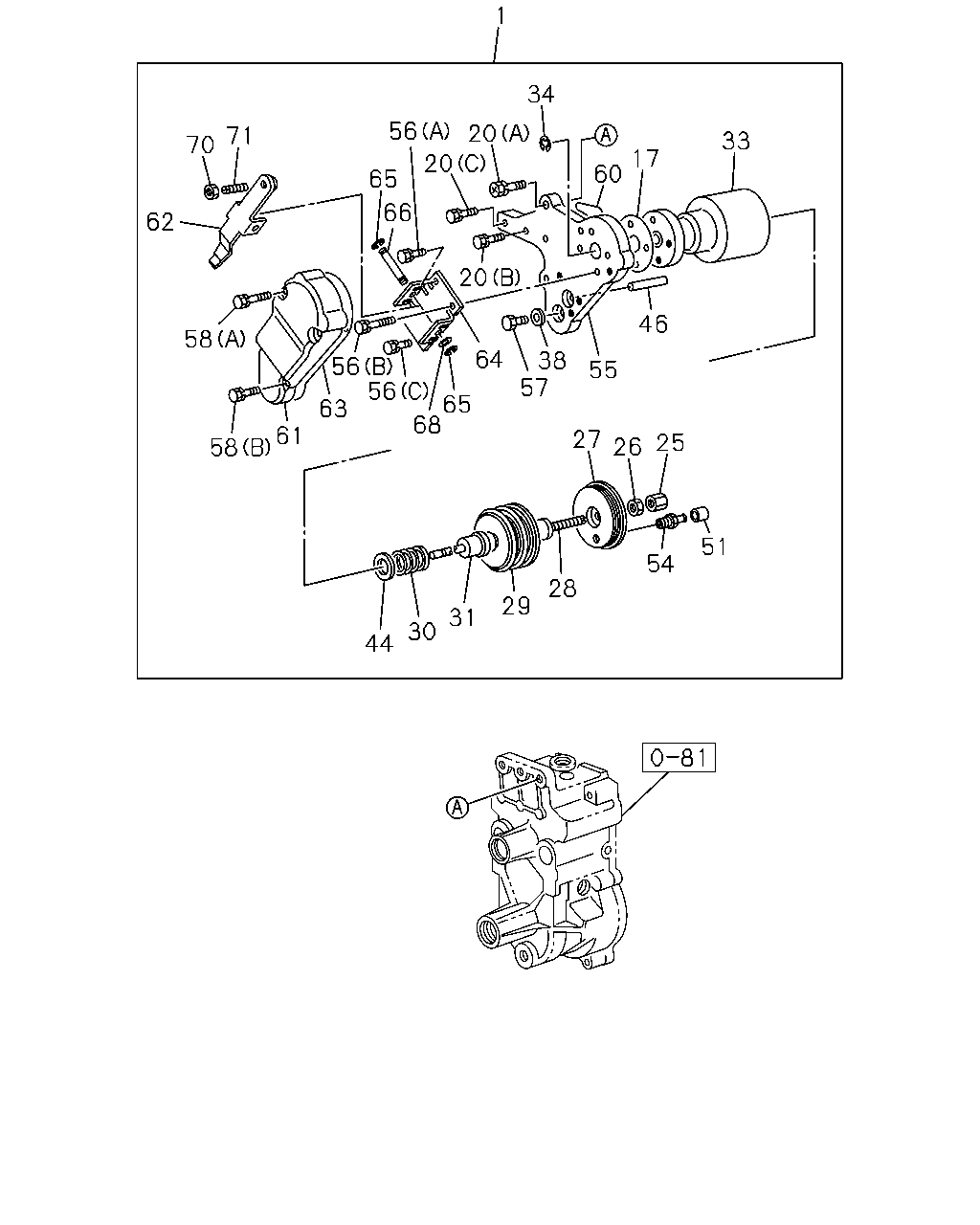

1 34 56 20 20 71 33 70 17 60 65 66 62 20 46 58 64 38 57 56 56 55 65 68 63 61 58 27 25 26 51 54 28 29 31 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.320 COMPENSATOR ASM; ANEROID,INJ PUM ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-97102-854-0	01	1	-
1	03.320 COMPENSATOR ASM; ANEROID,INJ PUM ASM PART: C = 8-97223-105-1, 97223105	8-97227-584-0	01	1	-
17	03.308 GASKET; HSG,ANEROID COMPENSATOR ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-97102-855-0	01	1	-
17	03.308 GASKET; HSG,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-97136-413-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS (A), M8X25 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-281-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS (B), M6X18 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	9-81325-186-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS 03.306, (C) ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	9-88410-094-0	02	1	-
25	03.330 NUT; CAP,SET BOLT,ANEROID COMPEN CAP NUT ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-093-0	01	1	-
26	03.308 NUT; SET BOLT,ANEROID COMPENSATO ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	9-81325-081-0	01	1	-
27	03.320 COVER; HSG,ANEROID COMPENSATOR 03.330 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15721-103-0	01	1	-
27	03.320 COVER; HSG,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94150-172-0	01	1	-
28	03.330 BOLT; BELLOWS SET,ANEROID COMPEN 03.306 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-342-0	01	1	-
29	03.320 BELLOWS; ANEROID COMPENSATOR ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-622-0	01	1	-
29	03.320 BELLOWS; ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94257-699-0	01	1	-
30	03.320 SPRING; PUSH ROD,ANEROID COMPENS ASM PART: C = 8-97223-105-1, 97223105	8-94257-690-0	01	1	-
30	03.320 SPRING; PUSH ROD,ANEROID COMPENS ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-94413-736-0	01	1	-
31	03.320 ROD; PUSH,BELLOWS,ANEROID COMPEN ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-270-0	01	1	-
33	03.320 HOUSING; ANEROID COMPENSATOR ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15779-159-0	01	1	-
34	03.330 RING; SNAP,PUSH ROD,ANEROID COMP ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-271-0	01	1	-
38	03.485 GASKET; SPACER BOLT,GOV 09.170 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-099-0	01	1	-
44	03.306 SHIM; SPRING,ANEROID COMPENSATOR 03.322 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	9-81393-301-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=102.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-346-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=102.5 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-347-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=103.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-348-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=103.5 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-623-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=104.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-624-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=97.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-631-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=98.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-632-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=99.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-633-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=100.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-634-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=101.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-635-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM L=95.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15779-065-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM L=96.0 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15779-066-0	01	1	-
51	03.320 CAP; HOSE JOINT,ANEROID COMPENSA ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-94424-221-0	01	1	-
54	03.320 JOINT; HOSE,ANEROID COMPENSATOR ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-360-0	01	1	-
55	03.320 SPACER; HSG,ANEROID COMPENSATOR 03.485 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-273-0	01	1	-
56	03.485 BOLT; PLATE TO SPACER,GOV 08.857, (A) ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15719-013-0	02	1	-
56	03.485 BOLT; PLATE TO SPACER,GOV 08.856, (B) ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-279-0	02	1	-
56	03.485 BOLT; PLATE TO SPACER,GOV (C), M5X8 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-280-0	02	1	-
57	03.485 BOLT; SPACER,GOV M6X12 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-282-0	01	1	-
58	03.485 BOLT; COVER TO SPACER,GOV (B) ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-83569-079-0	02	1	-
58	03.485 BOLT; COVER TO SPACER,GOV 08.856, (A) ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-279-0	02	1	-
60	03.485 RING; SPACER,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-94424-220-0	01	1	-
61	03.485 COVER; LEVER,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15721-047-0	01	1	-
62	03.485 LEVER; ANEROID COMPENSATOR,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15725-141-0	01	1	-
63	03.485 GASKET; LEVER COVER,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-97102-856-0	01	1	-
64	03.485 PLATE; LEVER,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-274-0	01	1	-
65	03.485 RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-09588-170-0	02	1	-
66	03.485 SHAFT; LEVER,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-275-0	01	1	-
68	03.485 WASHER; LEVER PIN,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	9-81393-309-0	02	1	-
70	03.485 NUT; LEVER SCREW,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-278-0	01	1	-
71	03.485 SCREW; LEVER,GOV ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	5-15729-277-0	01	1	-

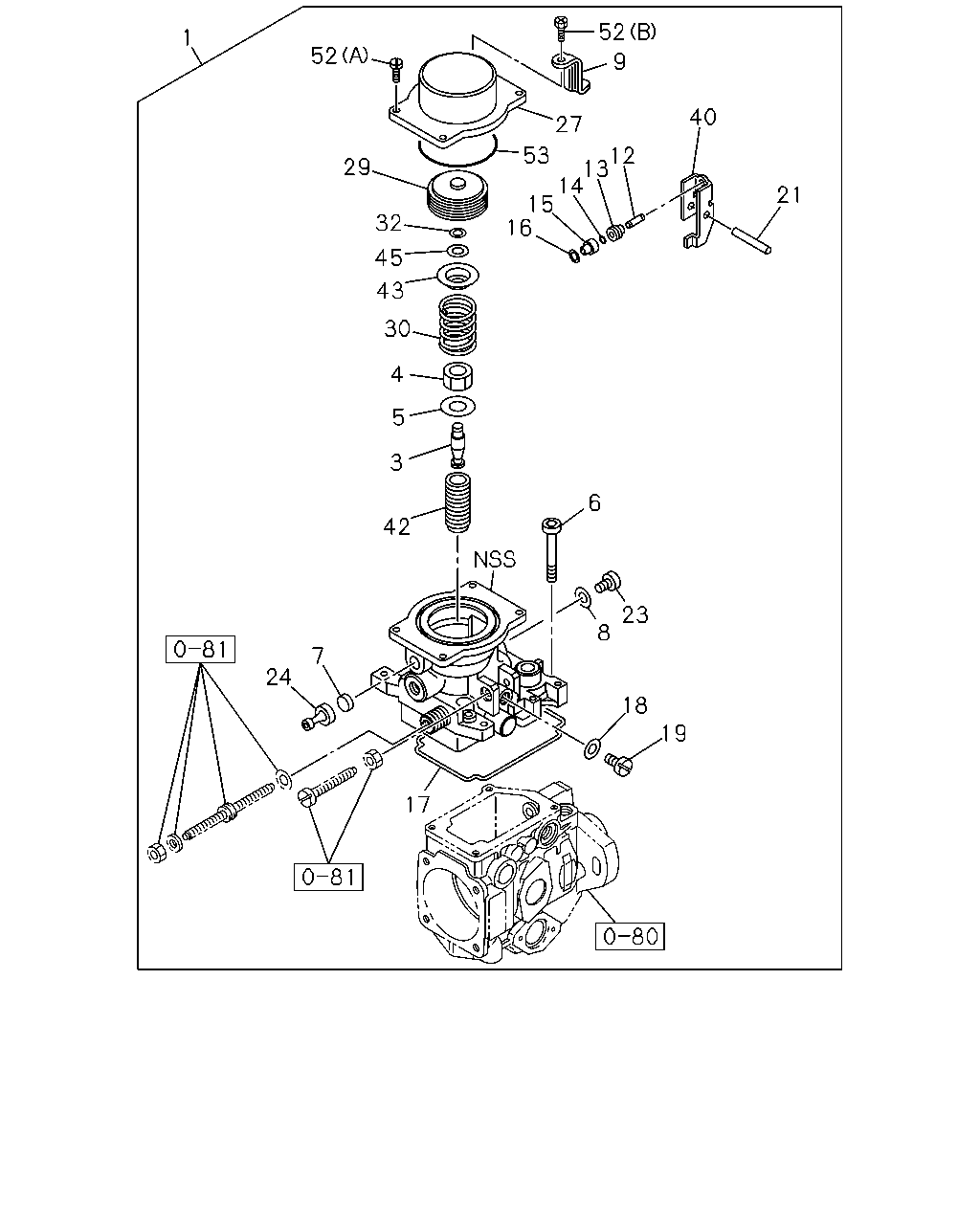

52 1 52 9 40 27 53 12 13 14 15 16 29 21 32 45 43 30 4 5 3 6 42 23 8 7 24 18 19 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.320 COMPENSATOR ASM; ANEROID,INJ PUM ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-97102-854-0	01	1	-
1	03.320 COMPENSATOR ASM; ANEROID,INJ PUM ASM PART: C = 8-97223-105-1, 97223105	8-97227-584-0	01	1	-
3	03.320 PIN; ADJ,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-97224-416-0	01	1	-
4	03.320 NUT; BUSHING LOCK,ANEROID COMPEN ASM PART: C = 8-97223-105-1, 97223105	8-94150-166-0	01	1	-
5	03.320 WASHER; BUSHING FIX,ANEROID COMP ASM PART: C = 8-97223-105-1, 97223105	8-94150-165-0	01	1	-
6	03.330 BOLT; HSG FIX,ANEROID COMPENSATO ASM PART: C = 8-97223-105-1, 97223105	8-94242-298-0	04	1	-
7	03.314 ELEMENT; HSG ASM PART: C = 8-97223-105-1, 97223105	8-94159-096-0	01	1	-
8	03.308 GASKET; HSG PLUG,ANEROID,COMPENS 03.306 ASM PART: C = 8-97223-105-1, 97223105	8-94144-588-0	01	1	-
9	03.485 BRACKET; COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-97227-585-0	01	1	-
12	03.320 PIN; CONN,ANEROID COMPENSATOR L=24.6 ASM PART: C = 8-97223-105-1, 97223105	8-94150-167-0	01	1	-
12	03.320 PIN; CONN,ANEROID COMPENSATOR L=24.8 ASM PART: C = 8-97223-105-1, 97223105	8-94150-168-0	01	1	-
12	03.320 PIN; CONN,ANEROID COMPENSATOR L=25.0 ASM PART: C = 8-97223-105-1, 97223105	8-94150-169-0	01	1	-
12	03.320 PIN; CONN,ANEROID COMPENSATOR L=25.2 ASM PART: C = 8-97223-105-1, 97223105	8-94150-170-0	01	1	-
12	03.320 PIN; CONN,ANEROID COMPENSATOR L=25.4 ASM PART: C = 8-97223-105-1, 97223105	8-94150-171-0	01	1	-
13	03.318 NUT; ADJ PIN BUSHING,ANEROID COM ASM PART: C = 8-97223-105-1, 97223105	8-94257-683-0	01	1	-
14	03.318 GASKET; CONN PIN,ANEROID COMPENS ASM PART: C = 8-97223-105-1, 97223105	8-94257-684-0	01	1	-
15	03.314 BUSHING; CONN PIN,ANEROID COMPEN ASM PART: C = 8-97223-105-1, 97223105	8-94257-685-0	01	1	-
16	03.318 GASKET; BUSHING,ANEROID COMPENSA ASM PART: C = 8-97223-105-1, 97223105	8-94257-686-0	01	1	-
17	03.308 GASKET; HSG,ANEROID COMPENSATOR ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-97102-855-0	01	1	-
17	03.308 GASKET; HSG,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-97136-413-0	01	1	-
18	03.318 GASKET; LEVER PIN PLUG,HSG 09.170 ASM PART: C = 8-97223-105-1, 97223105	5-15729-099-0	02	1	-
19	03.318 PLUG; LEVER PIN,ANEROID COMPENSA ASM PART: C = 8-97223-105-1, 97223105	8-94257-694-0	02	1	-
21	03.318 PIN; LEVER,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94257-693-0	01	1	-
23	03.318 PLUG; HSG,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94257-687-0	01	1	-
24	03.308 PLUG; HSG UPR,ANEROID COMPENSATO ASM PART: C = 8-97223-105-1, 97223105	8-94150-174-0	01	1	-
27	03.320 COVER; HSG,ANEROID COMPENSATOR 03.330 ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15721-103-0	01	1	-
27	03.320 COVER; HSG,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94150-172-0	01	1	-
29	03.320 BELLOWS; ANEROID COMPENSATOR ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	1-15729-622-0	01	1	-
29	03.320 BELLOWS; ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94257-699-0	01	1	-
30	03.320 SPRING; PUSH ROD,ANEROID COMPENS ASM PART: C = 8-97223-105-1, 97223105	8-94257-690-0	01	1	-
30	03.320 SPRING; PUSH ROD,ANEROID COMPENS ASM PART: A = 8-97203-383-0, 97203383, B = 8-97212-101-0, 97212101	8-94413-736-0	01	1	-
32	03.322 SHIM; BELLOWS,ANEROID COMPENSATO T=0.20 ASM PART: C = 8-97223-105-1, 97223105	8-94257-700-0	AR	1	-
32	03.322 SHIM; BELLOWS,ANEROID COMPENSATO T=0.30 ASM PART: C = 8-97223-105-1, 97223105	8-94257-701-0	AR	1	-
32	03.322 SHIM; BELLOWS,ANEROID COMPENSATO T=0.50 ASM PART: C = 8-97223-105-1, 97223105	8-94257-702-0	AR	1	-
32	03.322 SHIM; BELLOWS,ANEROID COMPENSATO T=0.70 ASM PART: C = 8-97223-105-1, 97223105	8-94257-703-0	AR	1	-
32	03.322 SHIM; BELLOWS,ANEROID COMPENSATO T=1.00 ASM PART: C = 8-97223-105-1, 97223105	8-94257-704-0	AR	1	-
32	03.322 SHIM; BELLOWS,ANEROID COMPENSATO T=1.50 ASM PART: C = 8-97223-105-1, 97223105	8-94257-705-0	AR	1	-
40	03.320 LEVER; ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94150-173-0	01	1	-
42	03.220 BUSHING; ADJ PIN,ANEROID COMPENS 03.320 ASM PART: C = 8-97223-105-1, 97223105	8-94150-164-0	01	1	-
43	03.320 SEAT; SPRING,ANEROID COMPENSATOR ASM PART: C = 8-97223-105-1, 97223105	8-94257-697-0	01	1	-
45	03.320 RING; SNAP,ADJ PIN,ANEROID COMPE ASM PART: C = 8-97223-105-1, 97223105	8-94257-698-0	01	1	-
52	03.320 SCREW; COVER FIX,ANEROID COMPENS 03.306, (A) ASM PART: C = 8-97223-105-1, 97223105	8-94313-203-0	03	1	-
52	03.320 SCREW; COVER FIX,ANEROID COMPENS 03.308, (B) ASM PART: C = 8-97223-105-1, 97223105	8-94313-267-0	01	1	-
53	03.308 GASKET; COVER,ANEROID COMPENSATO ASM PART: C = 8-97223-105-1, 97223105	8-94150-175-0	01	1	-
