0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#36983) — 18 parça

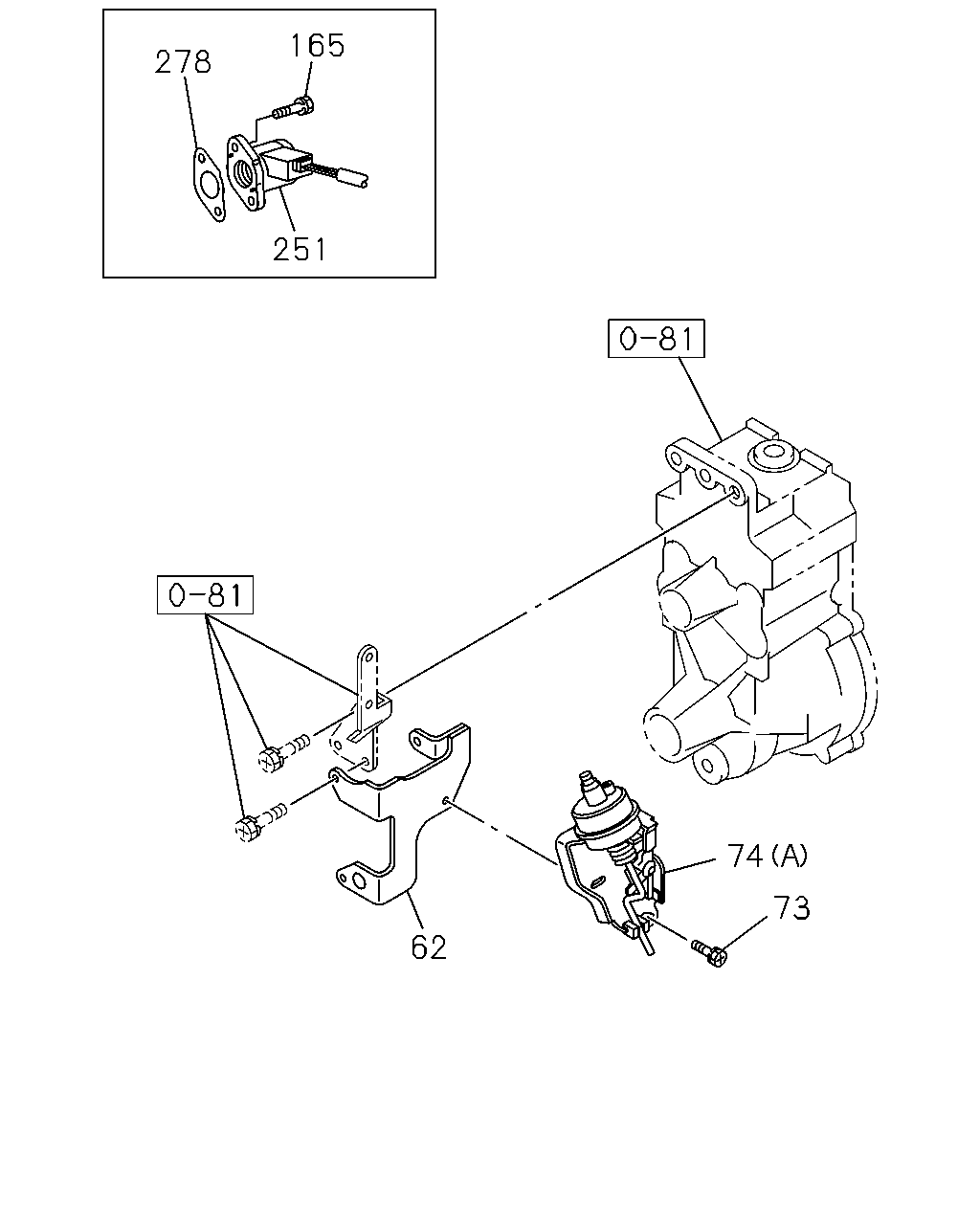

165 278 251 74 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	03.314 BRACKET; ACTUATOR ASM PART: A = 8-97203-381-0, 97203381, E = 8-97385-476-0, 97385476	8-97121-647-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97203-381-0, 97203381, E = 8-97385-476-0, 97385476	8-94121-627-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (A) ASM PART: A = 8-97203-381-0, 97203381, E = 8-97385-476-0, 97385476	8-97037-274-4	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (B) ASM PART: D = 8-97324-405-1, 97324405	8-97180-420-0	01	1	-
165	03.320 BOLT; SENSOR ASM PART: E = 8-97385-476-0, 97385476	1-83579-438-0	02	1	-
251	03.320 SENSOR; RACK,GOV ASM PART: E = 8-97385-476-0, 97385476	8-97129-636-0	01	1	-
278	03.320 GASKET; SENSOR ASM PART: E = 8-97385-476-0, 97385476	8-97121-637-0	01	1	-

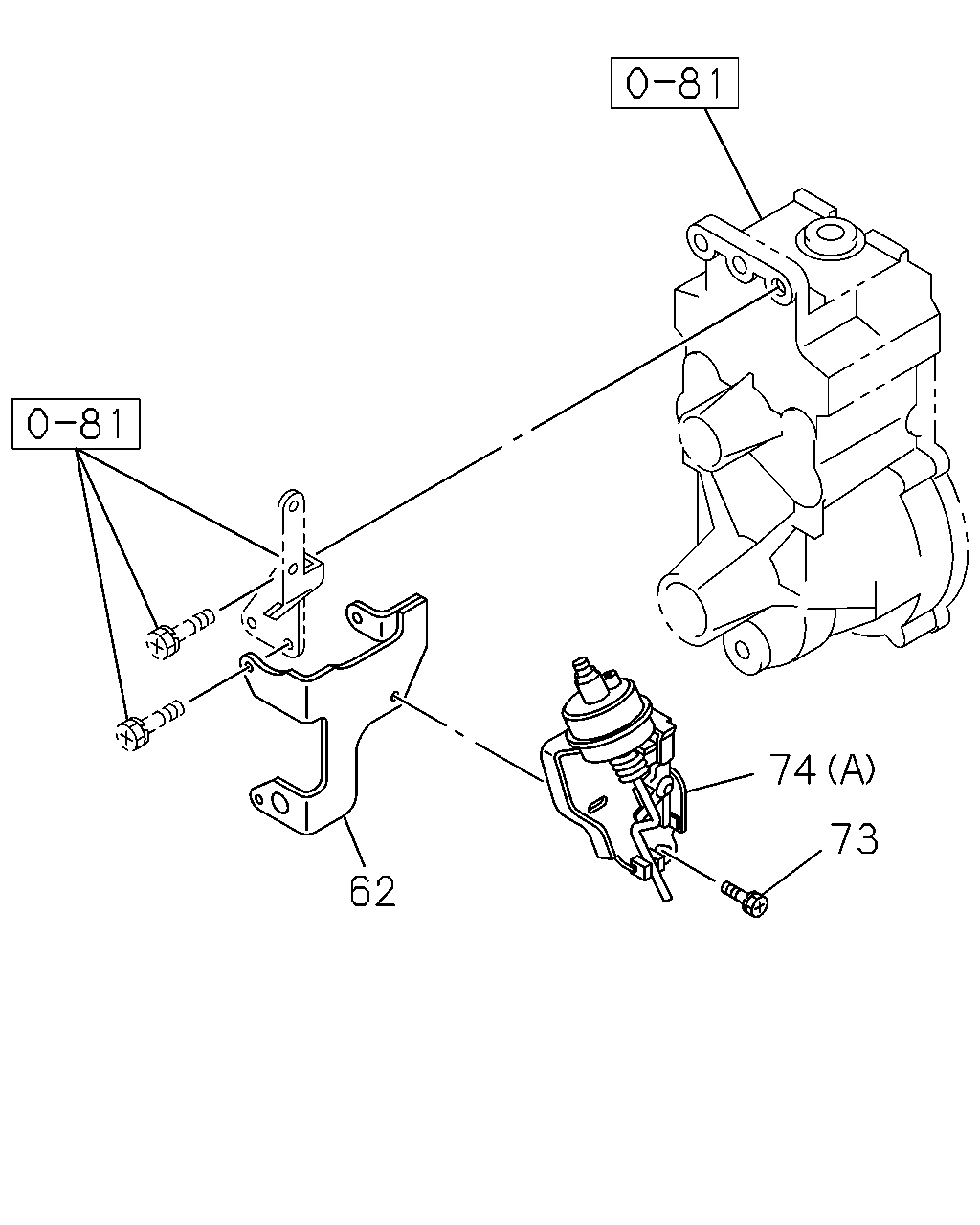

74 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	03.314 BRACKET; ACTUATOR ASM PART: A = 8-97203-381-0, 97203381, E = 8-97385-476-0, 97385476	8-97121-647-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97203-381-0, 97203381, E = 8-97385-476-0, 97385476	8-94121-627-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (A) ASM PART: A = 8-97203-381-0, 97203381, E = 8-97385-476-0, 97385476	8-97037-274-4	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (B) ASM PART: D = 8-97324-405-1, 97324405	8-97180-420-0	01	1	-

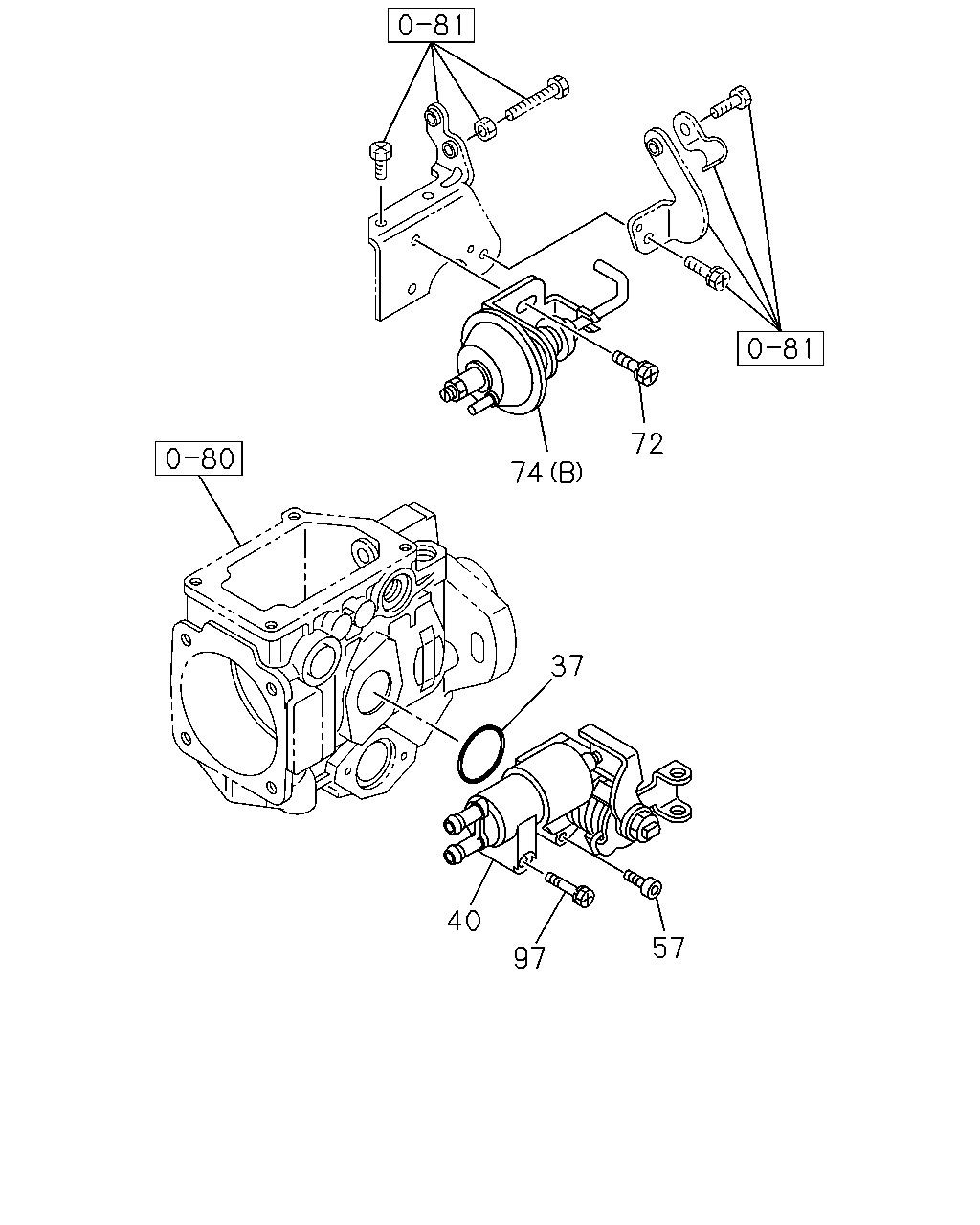

72 74 37 40 57 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	03.306 GASKET; STARTING ADVANCER,INJ PU ASM PART: B = 8-97223-104-1, 97223104, C = 8-97223-105-1, 97223105, D = 8-97324-405-1, 97324405	8-94227-491-0	01	1	-
40	03.308 ADVANCER ASM; STARTING,GOV ASM PART: B = 8-97223-104-1, 97223104, C = 8-97223-105-1, 97223105, D = 8-97324-405-1, 97324405	8-97148-141-0	01	1	-
57	03.308 BOLT; START ADVANCE ASM PART: B = 8-97223-104-1, 97223104, C = 8-97223-105-1, 97223105, D = 8-97324-405-1, 97324405	1-15619-276-0	02	1	-
72	03.330 BOLT; BRKT FIX,INJ PUMP ASM PART: D = 8-97324-405-1, 97324405	8-94343-302-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (A) ASM PART: A = 8-97203-381-0, 97203381, E = 8-97385-476-0, 97385476	8-97037-274-4	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ (B) ASM PART: D = 8-97324-405-1, 97324405	8-97180-420-0	01	1	-
97	03.306 BOLT; PLATE,START ADVANCE ASM PART: B = 8-97223-104-1, 97223104, C = 8-97223-105-1, 97223105, D = 8-97324-405-1, 97324405	8-97029-204-0	01	1	-
